Core Boost & Digital Power Design
Unleash and sustain maximum CPU performance powered by an aggressive digital VRM layout. Built with up to 16 phases and designed with dual power connectors and MSI's exclusive Core Boost technology, these optimized circuits have been assembled and tested to feed steady power with precision.
DDR4 Boost
The MSI OC lab has developed advanced memory technologies to ensure maximum compatibility and stability even when memory is overclocked. The introduction of tabbed routing structures onto memory traces lowers impedance in the line and reduces crosstalk noise between densely placed circuits resulting in improved signal reliability at high frequencies.
At Least 6-Layer PCB
MSI Z490 motherboards are built with multiple PCB layers for reliable circuit transmission. At least 6 layers, going up to 10, allow for higher bandwidth and faster transfer speeds across the entire MSI Z490 motherboard lineup.
Frozr Heatsink Design
Frozr Heatsink Design with Zero Frozr Technology actively cools down critical power delivery components. This heatsink is specially designed to take advantage of airflow for effective heat dissipation.
All Aluminum Design
Heatsinks are constructed from aluminum for its high heat conductivity. The large heatsinks have been formed with more surface to further improve heat dissipation capabilities.
M.2 Shield Frozr
Prevent SSD thermal throttling and sustain maximum high-speed M.2 SSD data transfer with M.2 Shield Frozr.
2.5G LAN
Connect and rapidly move data over networks with high-bandwidth and low-latency 2.5Gbps Ethernet LAN. Prioritize latency-sensitive applications with MSI LAN Manager, offering users the power to take control of their online experience.
Wi-Fi 6
Wi-Fi 6 adopts the latest OFDMA and two-way MU-MIMO technologies, allowing for up to 4X increased device capacity on a wireless network and reduced congestion in environments with high wireless signal density.
Lightning USB 20G
Transfer bulky files such as uncompressed video and raw images over USB faster than ever. Lightning USB 20G is developed from the latest USB 3.2 Gen 2x2 standard with transmissions speeds four times faster than USB 3.2 Gen 1.
 | MEG series motherboards go beyond hardcore gaming with designs built up with the latest technology for tremendous scalability, extreme overclocking, and maximum performance. | |||

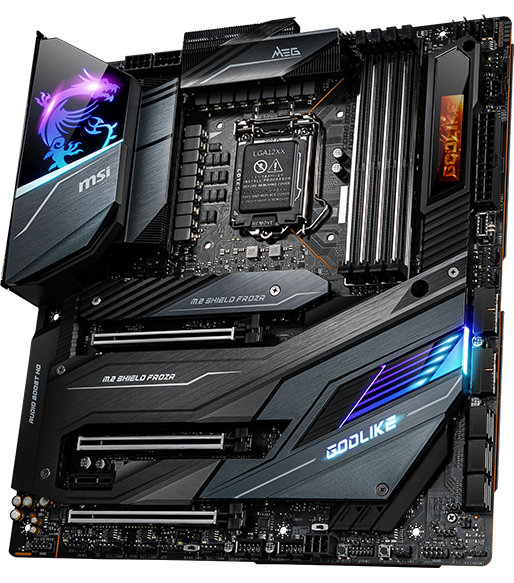

 MEG Z490 GODLIKE |
 MEG Z490 ACE |
 MEG Z490 UNIFY |
||
| CPU Compatibility | Supports 10th Generation Intel Core / Pentium Gold / Celeron Processors for LGA 1200 socket | |||
| Memory | 4 x DIMM; Max. 128GB DDR4; 5000 MHz | 4 x DIMM; Max. 128GB DDR4; 4800 MHz | 4 x DIMM; Max. 128GB DDR4; 4800 MHz | |
| PCIe x16 Slots | 2x PCIe 3.0 x16 slots
(x16/x0 or x8/x8) 1x PCIe 3.0 x16 slot (x4) 1x PCIe 3.0 x1 slot |
2x PCIe 3.0 x16 slots
(x16/x0 or x8/x8) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
2x PCIe 3.0 x16 slots
(x16/x0 or x8/x8) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
|
| Display Output | 2x Thunderbolt™3 (Type-C) | N/A | N/A | |
| M.2 | 3x M.2 | 3x M.2 | 3x M.2 | |
| Wireless | Wi-Fi 6 & Bluetooth | Wi-Fi 6 & Bluetooth | Wi-Fi 6 & Bluetooth | |
| Mystic Light RGB | 16.8 million colors | 16.8 million colors | N/A | |
| Form Factor | EATX | ATX | ATX | |
| Order Now | Order Now | Order Now | ||
 | MPG series motherboards are loaded for high-performance gaming with slick looks, dazzling colors, and customizable tuning options. | |||
 MPG Z490 GAMING CARBON WIFI |

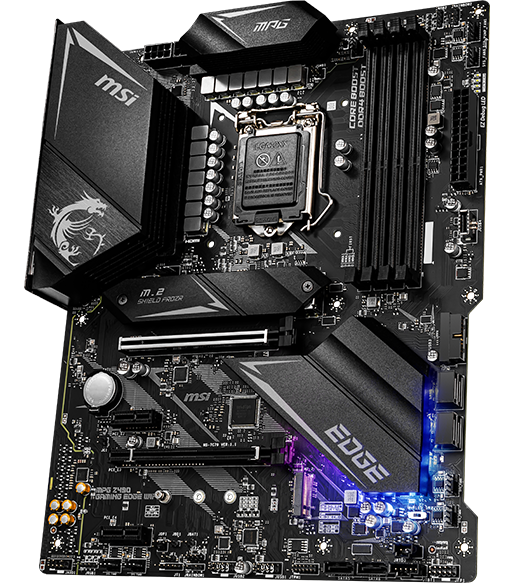

 MPG Z490 GAMING EDGE WIFI |

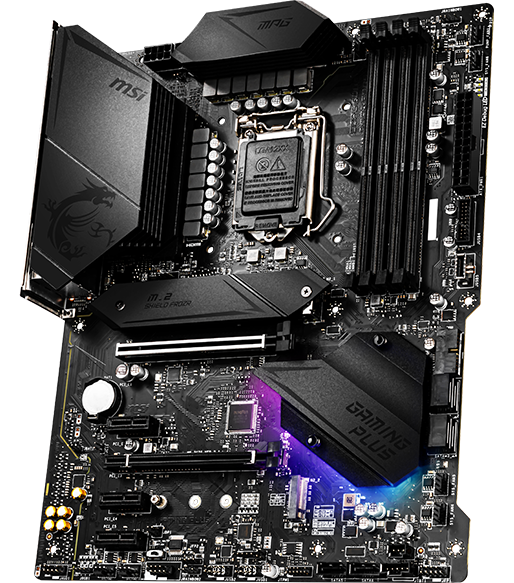

 MPG Z490 GAMING PLUS |
||
| CPU Compatibility | Supports 10th Generation Intel Core / Pentium Gold / Celeron Processors for LGA 1200 socket | |||
| Memory | 4 x DIMM; Max. 128GB DDR4; 4800 MHz | 4 x DIMM; Max. 128GB DDR4; 4800 MHz | 4 x DIMM; Max. 128GB DDR4; 4800 MHz | |
| PCIe x16 Slots | 2x PCIe 3.0 x16 slots
(x16/x0 or x8/x8) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
1x PCIe 3.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
1x PCIe 3.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 3x PCIe 3.0 x1 slots |
|
| Display Output | DisplayPort, HDMI | DisplayPort, HDMI | DisplayPort, HDMI | |
| M.2 | 2x M.2 | 2x M.2 | 2x M.2 | |
| Wireless | Wi-Fi 6 & Bluetooth | Wi-Fi 6 & Bluetooth | N/A | |
| Mystic Light RGB | 16.8 million colors | 16.8 million colors | 16.8 million colors | |
| Form Factor | ATX | ATX | ATX | |
| Order Now | Order Now | Order Now | ||
 MAG motherboards are ready to conquer any battlefield, built with durable materials, decorated in metallic livery, and developed with essential specifications for hardened PC builds. |
 MAG Z490 TOMAHAWK |
||||
| CPU Compatibility | Supports 10th Generation Intel Core / Pentium Gold / Celeron Processors for LGA 1200 socket | |||
| Memory | 4 x DIMM; Max. 128GB DDR4; 4800 MHz | |||
| PCIe x16 Slots | 1x PCIe 3.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
|||
| Display Output | DisplayPort, HDMI | |||
| M.2 | 2x M.2 | |||
| Wireless | N/A | |||
| Mystic Light RGB | 16.8 million colors | |||
| Form Factor | ATX | |||
| Order Now | ||||
 PRO Series motherboards combine stable functionality and HIGH-QUALITY assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use. |

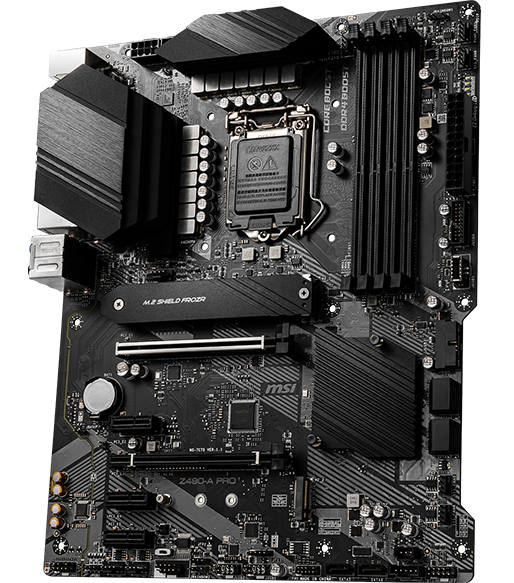

 Z490-A PRO |
||||
| CPU Compatibility | Supports 10th Generation Intel Core / Pentium Gold / Celeron Processors for LGA 1200 socket | |||
| Memory | 4 x DIMM; Max. 128GB DDR4; 4800 MHz | |||
| PCIe x16 Slots | 1x PCIe 3.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 3x PCIe 3.0 x1 slots |
|||
| Display Output | DisplayPort, HDMI | |||
| M.2 | 2x M.2 | |||
| Wireless | N/A | |||
| Mystic Light RGB | N/A | |||
| Form Factor | ATX | |||
| Order Now | ||||
