ENHANCED THERMAL DESIGN
Robust Power Layout and PCB with 2oz Thickened Copper
An aggressive VRM power solution and high-quality PCB material design with 2oz thickened copper ensure stable power delivery, durability, and high-performance reliability.
All Aluminum Cover with Extended Heatsink Design
Heatsinks are constructed from aluminum for its high heat conductivity. The large heatsinks and 7W/mK rated thermal pads have been formed with more surface for improved heat dissipation capabilities.

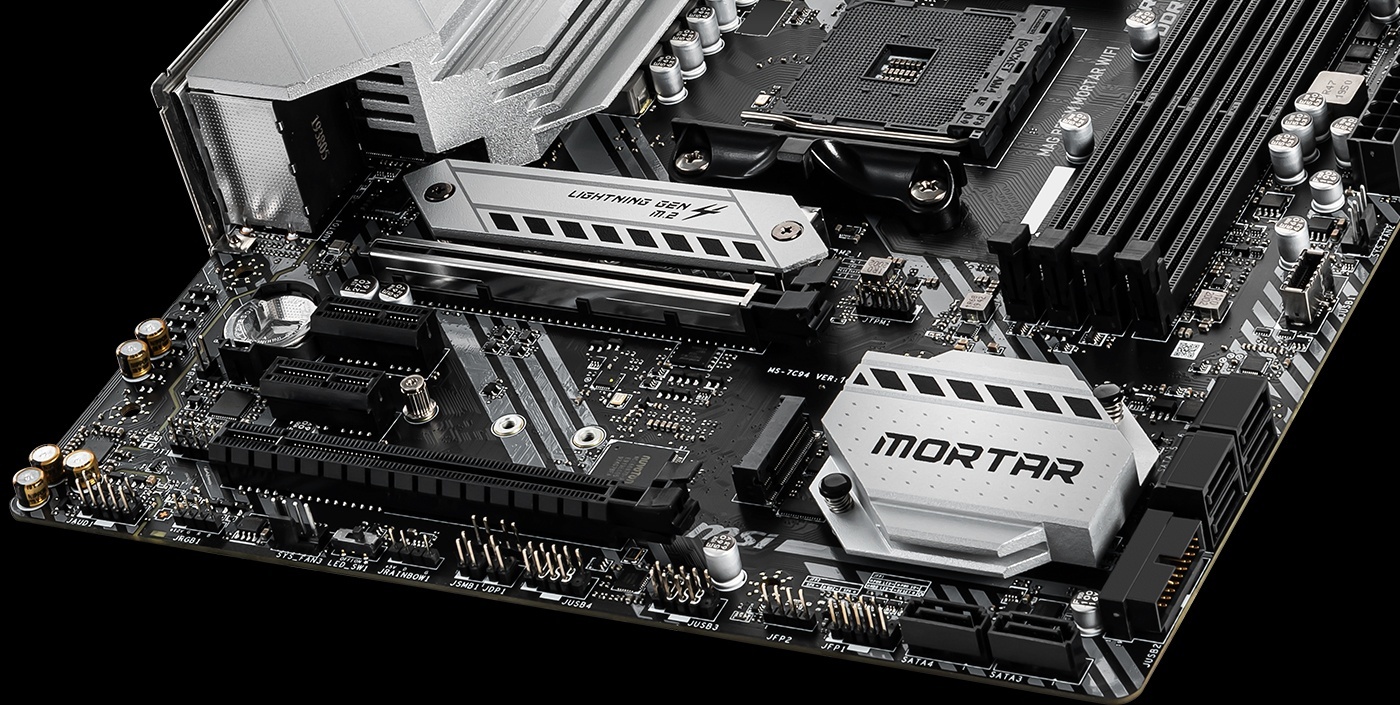

M.2 Shield Frozr
Prevent SSD thermal throttling and sustain maximum high-speed M.2 SSD data transfer with M.2 Shield Frozr.
LIGHTNING GEN 4
Lightning Gen 4 M.2
Powered by 3rd Gen Ryzen processors, MSI B550 motherboards strike fast with Lightning Gen 4 M.2, capable of SSD transfer speeds up to 64 Gb/s.
Lightning Gen 4 PCI-E
Gen 4 is the latest and the fastest PCI Express standard, allowing for up to 64 GB/s of unidirectional data transfer, double compared to the previous generation.
High-Performance Circuits
Core Boost and DDR4 Boost each combine a reserved zone of optimized circuits and premium components to unleash maximum performance from AMD Ryzen processors.

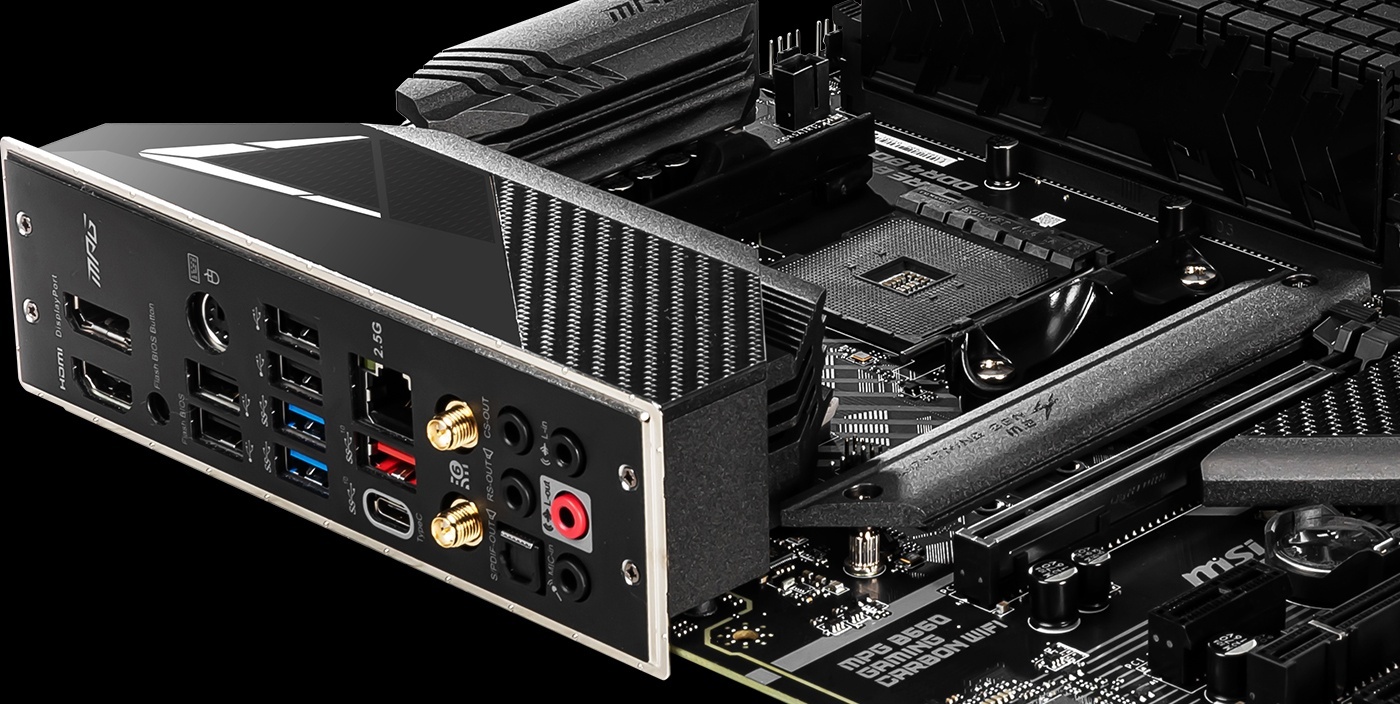

PREMIUM CONNECTIVITY
2.5G LAN and Wi-Fi 6
Connect and rapidly move data over networks with high-bandwidth and low-latency 2.5Gbps Ethernet LAN and 2.4Gbps Wi-Fi 6.
Flash BIOS Button and Optimized Clear CMOS Function
Flash BIOS Button allows users to flash the BIOS in a few steps. Optimized Clear CMOS function helps to restore the BIOS to default settings in only one step.
Front Type-C
All MSI B550 motherboards feature USB Front Type-C connectors allowing compatibility with the latest USB devices and synergy with MSI cases.
MPG series motherboards are loaded for high-performance gaming with slick looks, dazzling colors, and customizable tuning options.
 |
 |
 |
 |
|

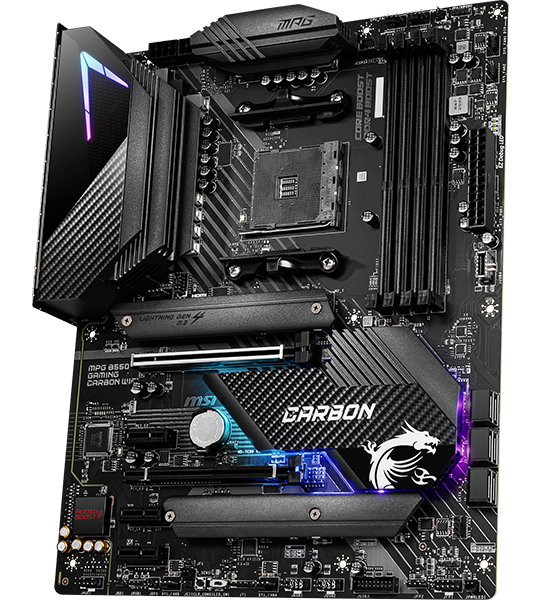

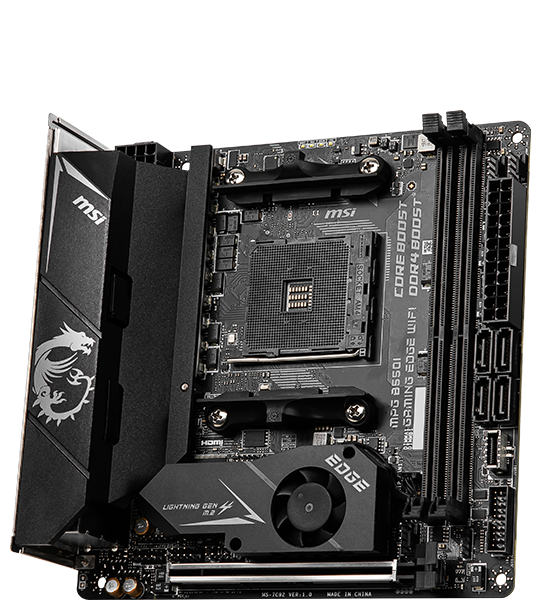

| MPG B550 GAMING CARBON WIFI | MPG B550 GAMING EDGE WIFI | MPG B550 GAMING PLUS | MPG B550I GAMING EDGE WIFI | |
| CPU Compatibility | Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update | |||
| Memory | 4 x DIMM; Max. 128GB DDR4; 4866+ MHz | 4 x DIMM; Max. 128GB DDR4; 4866+ MHz | 4 x DIMM; Max. 128GB DDR4; 4400+ MHz | 2 x DIMM; Max. 64GB DDR4; 4866+ MHz |
| PCIe x16 Slots | 1x PCIe 4.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 3x PCIe 3.0 x1 slots |
1x PCIe 4.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
1x PCIe 4.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
1x PCIe 3.0 x16 slot (x16) |
| Display Output | HDMI, DisplayPort (requires processor graphics) | HDMI, DisplayPort (requires processor graphics) | HDMI, DisplayPort (requires processor graphics) | HDMI 2.1 (requires processor graphics) |
| M.2 | 2x M.2 | 2x M.2 | 2x M.2 | 2x M.2 |
| Wireless | Wi-Fi 6 & Bluetooth | Wi-Fi 6 & Bluetooth | N/A | Wi-Fi 6 & Bluetooth |
| Mystic Light RGB | 16.8 million colors | 16.8 million colors | 16.8 million colors | N/A |
| Form Factor | ATX | ATX | ATX | Mini-ITX |
|
|
|
|
|
|
| Order Now | Order Now | Order Now | Order Now | |
MAG motherboards are ready to conquer any battlefield, built with durable materials, decorated in metallic livery, and developed with essential specifications for hardened PC builds.
 |
 |
 |
 |
|

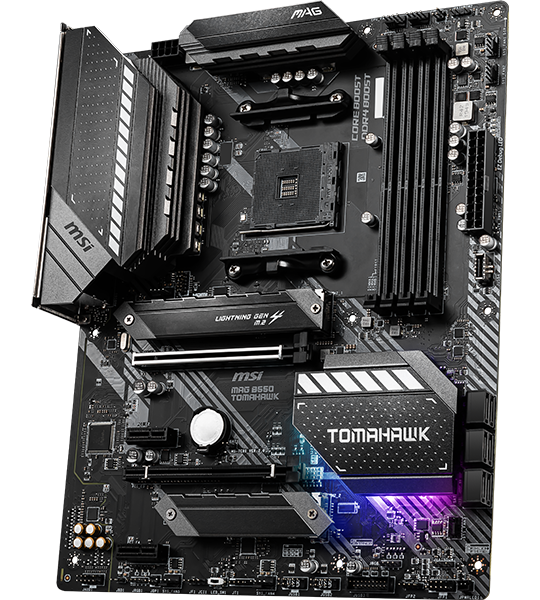

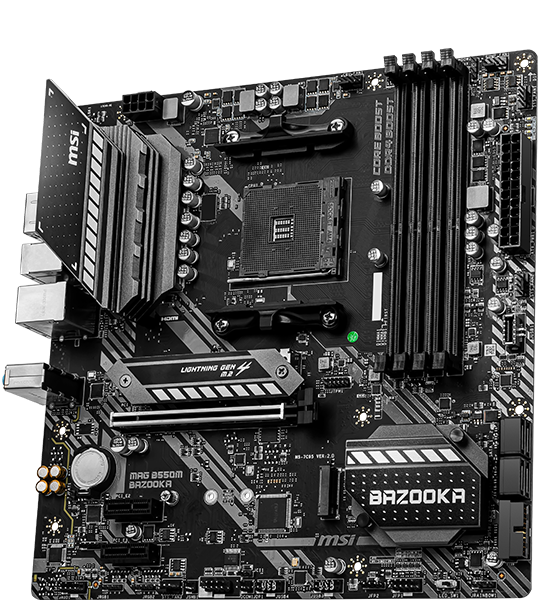

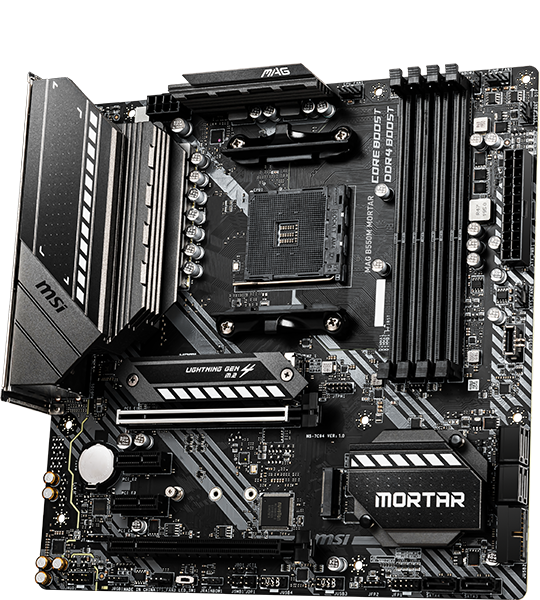

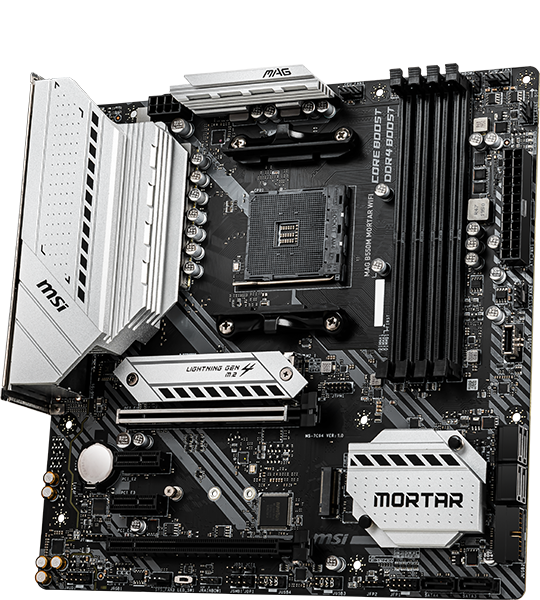

| MAG B550 TOMAHAWK | MAG B550M MORTAR WIFI | MAG B550M MORTAR | MAG B550M BAZOOKA | |
| CPU Compatibility | Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update | |||
| Memory | 4 x DIMM; Max. 128GB DDR4; 4866+ MHz | 4 x DIMM; Max. 128GB DDR4; 4400+ MHz | 4 x DIMM; Max. 128GB DDR4; 4400+ MHz | 4 x DIMM; Max. 128GB DDR4; 4400+ MHz |
| PCIe x16 Slots | 1x PCIe 4.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
1x PCIe 4.0 x16 slot (@x16) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
1x PCIe 4.0 x16 slot (x16) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slot |
1x PCIe 4.0 x16 slot (x16) 2x PCIe 3.0 x1 slots |
| Display Output | HDMI, DisplayPort (requires processor graphics) | HDMI, DisplayPort (requires processor graphics) | HDMI, DisplayPort (requires processor graphics) | HDMI, DisplayPort (requires processor graphics) |
| M.2 | 2x M.2 | 2x M.2 | 2x M.2 | 2x M.2 |
| Wireless | N/A | Wi-Fi 6 & Bluetooth | N/A | N/A |
| Mystic Light RGB | 16.8 million colors | N/A | N/A | N/A |
| Form Factor | ATX | mATX | mATX | mATX |
|
|
|
|
|
|
| Order Now | Order Now | Order Now | Order Now | |
Pro series motherboards are loaded for high-performance gaming with slick looks, dazzling colors, and customizable tuning options.
 |
 |
|

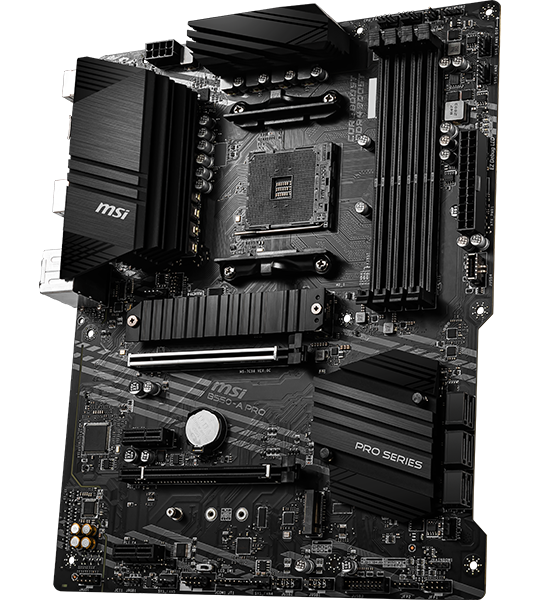

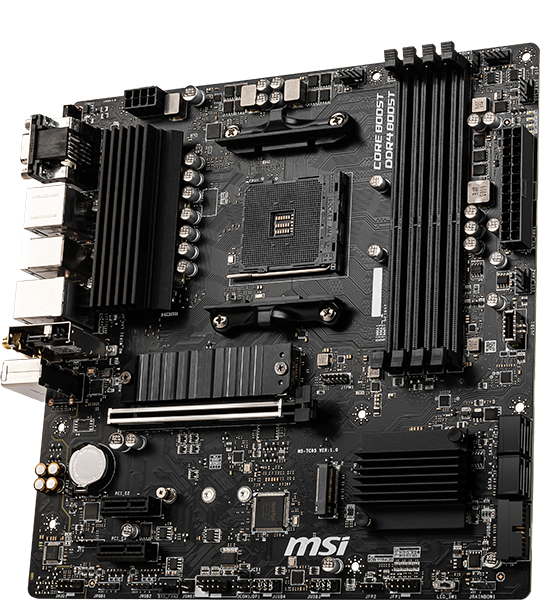

| B550-A PRO | B550M PRO-VDH WIFI | |
| CPU Compatibility | Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update | |
| Memory | 4 x DIMM; Max. 128GB DDR4; 4400+ MHz | 4 x DIMM; Max. 128GB DDR4; 4400+ MHz |
| PCIe x16 Slots | 1x PCIe 4.0 x16 slot (x16 / x4) 1x PCIe 3.0 x16 slot (x4) 2x PCIe 3.0 x1 slots |
1x PCIe 4.0 x16 slot (x16) 2x PCIe 3.0 x1 slots |
| Display Output | HDMI, DisplayPort (requires processor graphics) | HDMI, DisplayPort (requires processor graphics) |
| M.2 | 2x M.2 | 2x M.2 |
| Wireless | N/A | Wi-Fi 6 & Bluetooth |
| Mystic Light RGB | N/A | N/A |
| Form Factor | ATX | mATX |
|
|
|
|
| Order Now | Order Now | |
All prices reflect the final price after savings.
