Q-See 4 MP Resolution & 4K Output Surveillance Security Camera System: 8 Ch. Analog HD DVR 6 x 4 MP Bullet Camera (No HDD Included)
Be the first to review this product...

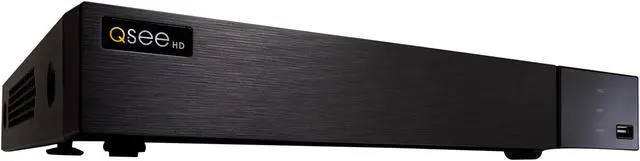

8Ch. 4MP Recording DVR w/ 4K Output.
4 MP Resolution (2688 x 1520): Twice the Picture Quality of 1080p
Night Vision Up to 100 ft.
IP66 Waterproof, Metal Housing
Plug and Play, Easy DIY
Remote Viewing, Playback & Motion Detection
Supports 1 SATA, up to 6TB (No HDD Included, Sold Separately)
Overview
Specs
Reviews
See all Q & A
Learn more about the Q-See QTH85-6DY
Model
Brand
Q-See
Model
QTH85-6DY
Type
Surveillance System / Security Camera Kit
Recording
Camera Type
Analog Camera
Camera inputs
8 Channel

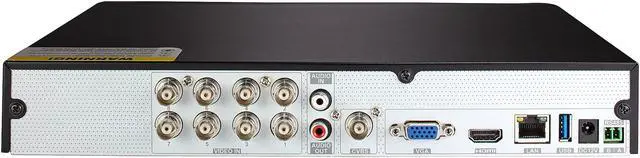

Video Input
8 x BNC
Audio Input
1 x RCA
Resolution Recording
4 MP / 3 MP / 1080p / 720p / 960H
Recording Mode
Manual, Time Schedule, Motion Detection, Sensor
Display
Video Output
HDMI, VGA, CVBS
Audio Output
1 x RCA
Details
Backup Device
1 x USB 2.0 (front panel)
1 x USB 3.0 (back panel)
Network
Network Connection
RJ45 10/100 Mbps
Network Protocol
COC, Null, Pelco D, Pelco D, Lilin, Minking, Neon, Star, VIDO, DSCP, VISCA, Samsung, RM110, HY
Features
Power Supply
Power Supply: 12V 2A
Power Consumption: <15w (w/o HD)
Bundle
Bundled Camera Number
6

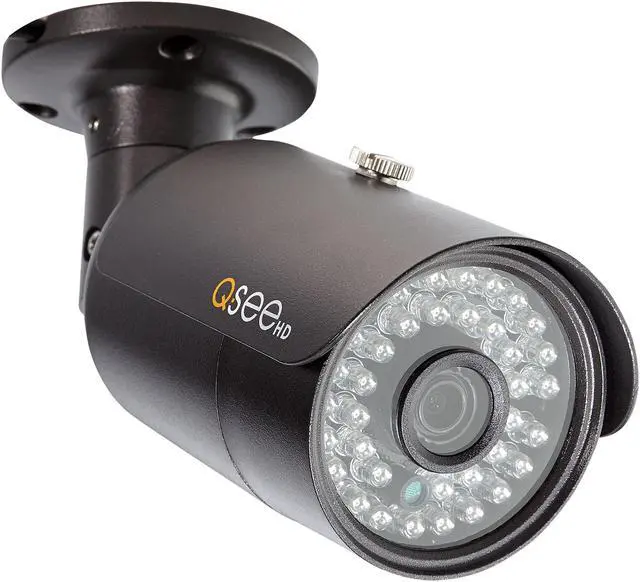

Bundled Camera Spec
Camera Type: Bullet
Camera Technology: BNC HD
Image Sensor Size: 1/3"
Image Sensor Type: CMOS
Megapixels (digital): 4 MP High Definition
Effective Pixels: 2688 x 1520
Lens Size: 3.6 mm
Angle of View: 70 degree
IR Cut Filter: Yes
IR LEDS: 36
Infrared Wavelength: 850 nm
Min Lux Illumination: .002 Lux (Color) / 0 Lux with IR on (B&W)
Night Vision Rang: Up to 100 ft.
Electronic Shutter: 1/30 - 1/10,000s
Gain Control: Auto
Compatible Systems: QTH45, QTH85 and QTH165
Weatherproof: Yes
IP Rating: IP66
Body Construction: Metal
Mounting Hardware: Screws
Dimensions & Weight
Dimensions
DVR: 2.00" x 11.75" x 9.75"
Camera: 3.36" x 2.70" x 6.40"
Weight
DVR: 3.30 lbs.
Camera: 0.87 lb.
Additional Information
First Listed on Newegg
January 11, 2017
Customer Reviews of the
Q-See QTH85-6DY
There are no reviews yet.
Do you own this product?
write a review
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details
Return Policies
Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
Manufacturer Contact Info
Manufacturer Product Page
Support Phone: 1-877-998-3440
Support Website
