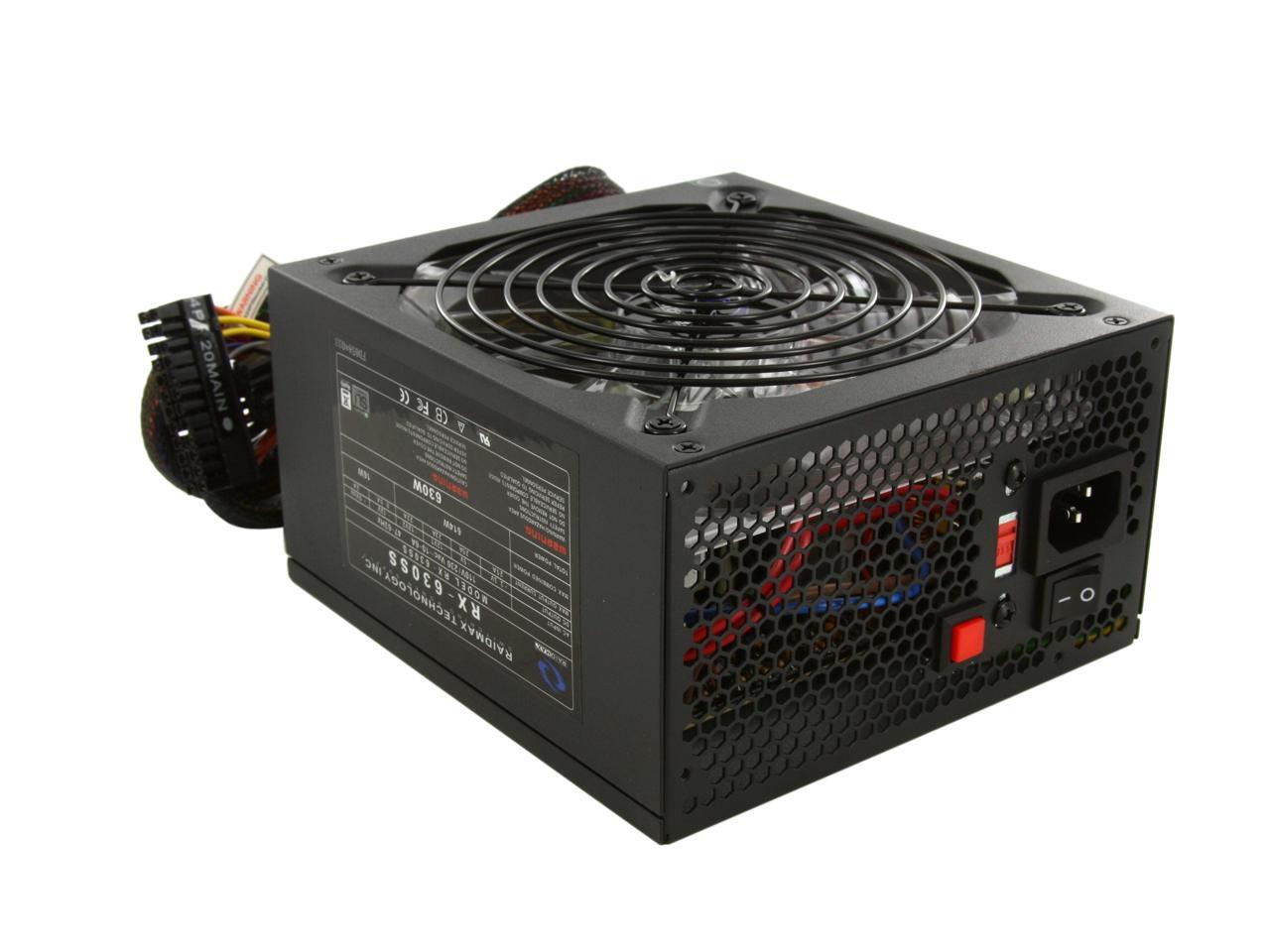

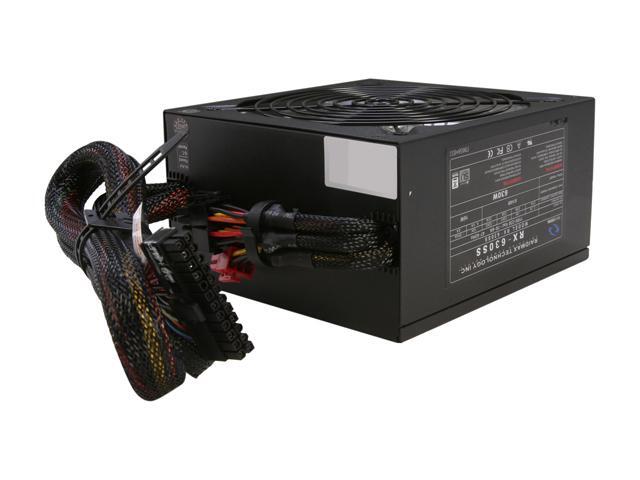

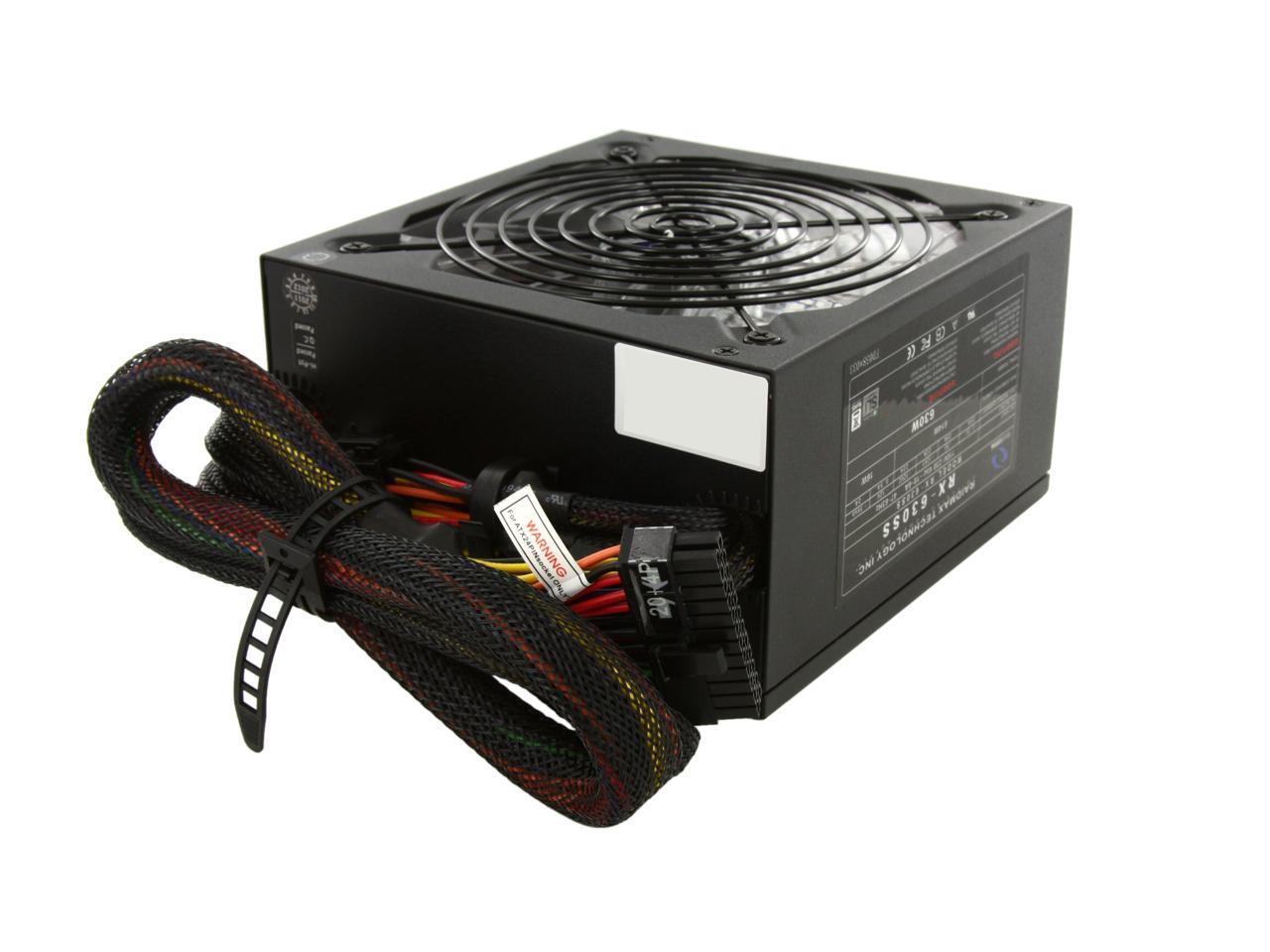

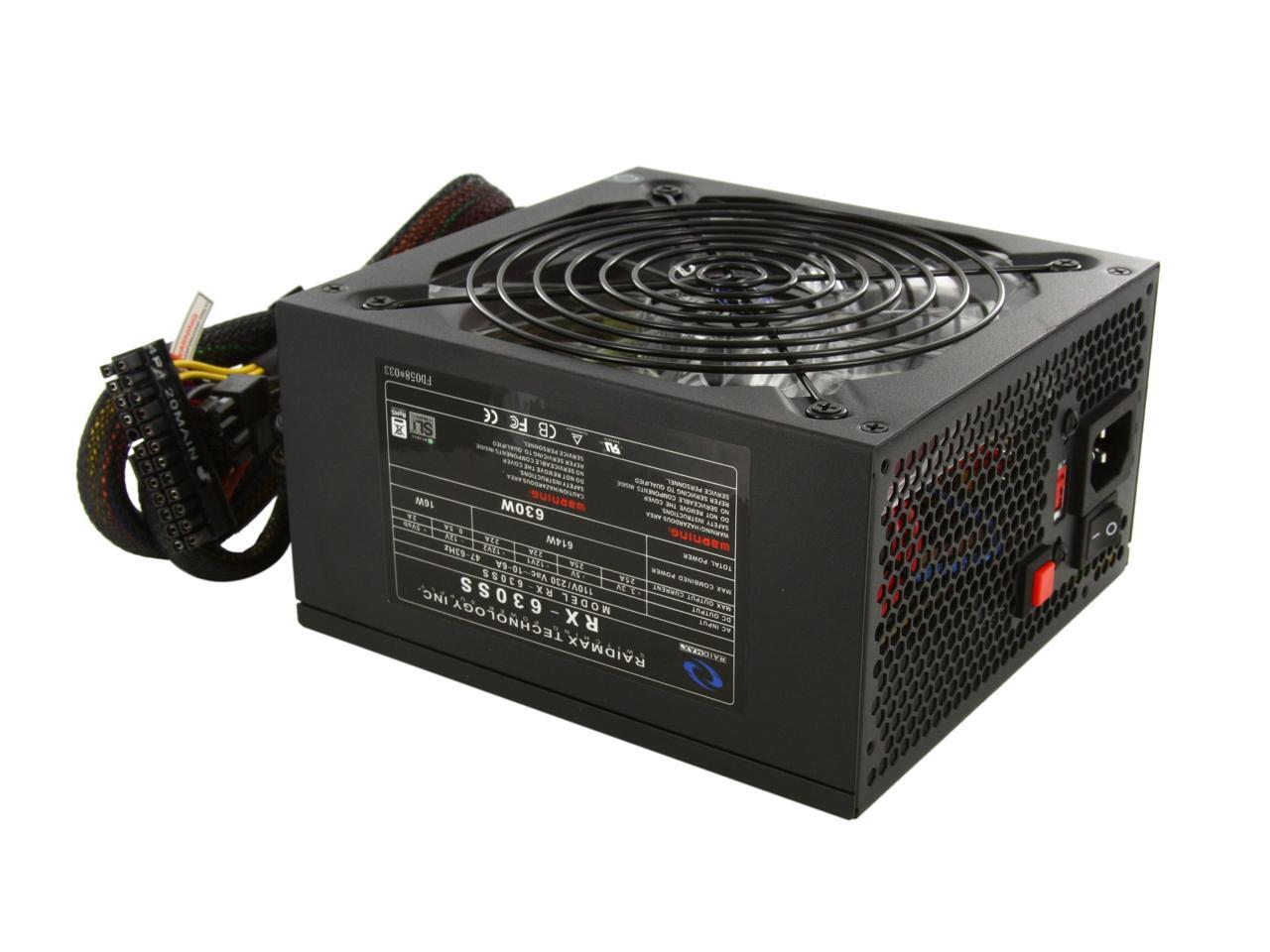

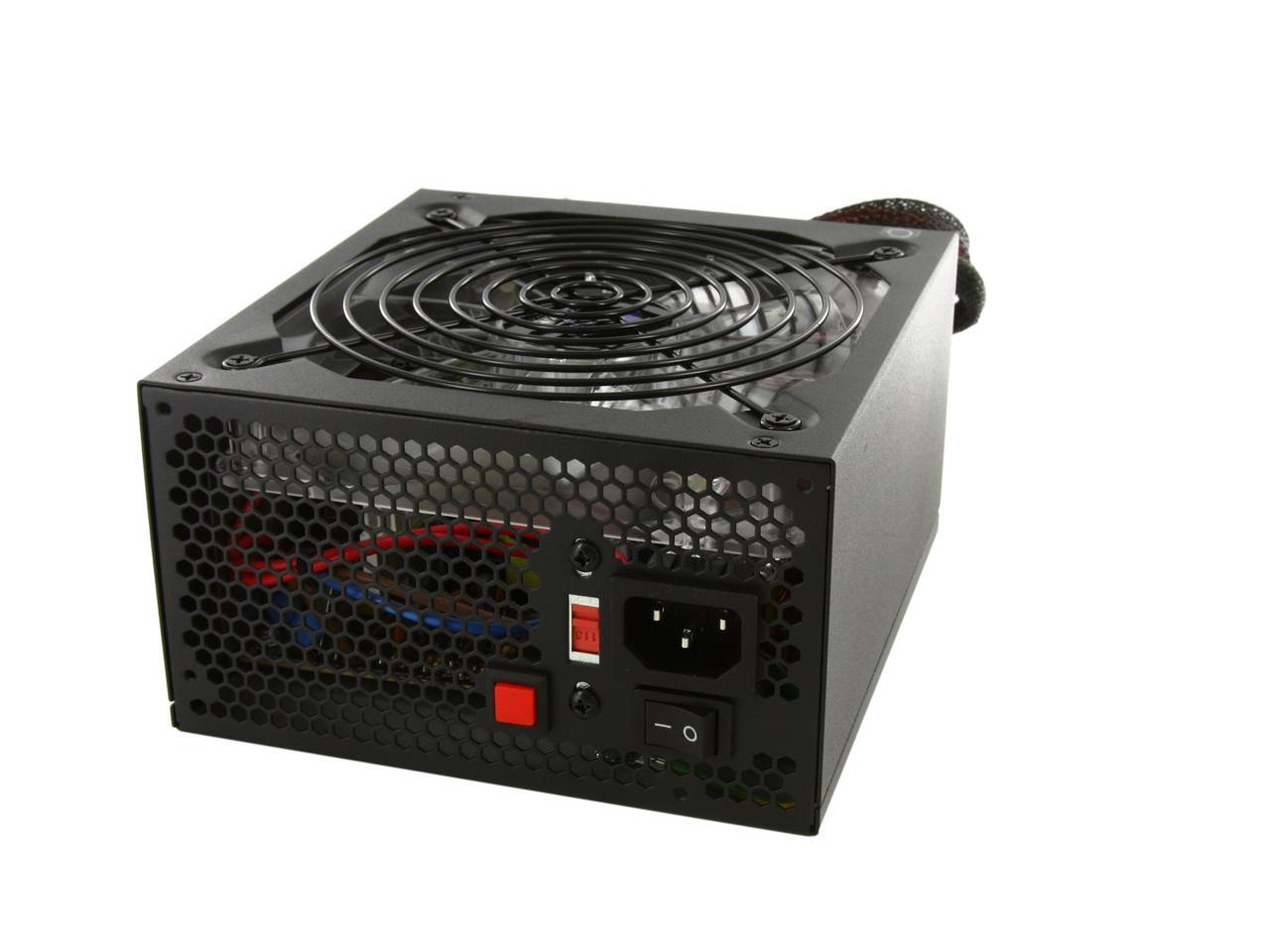

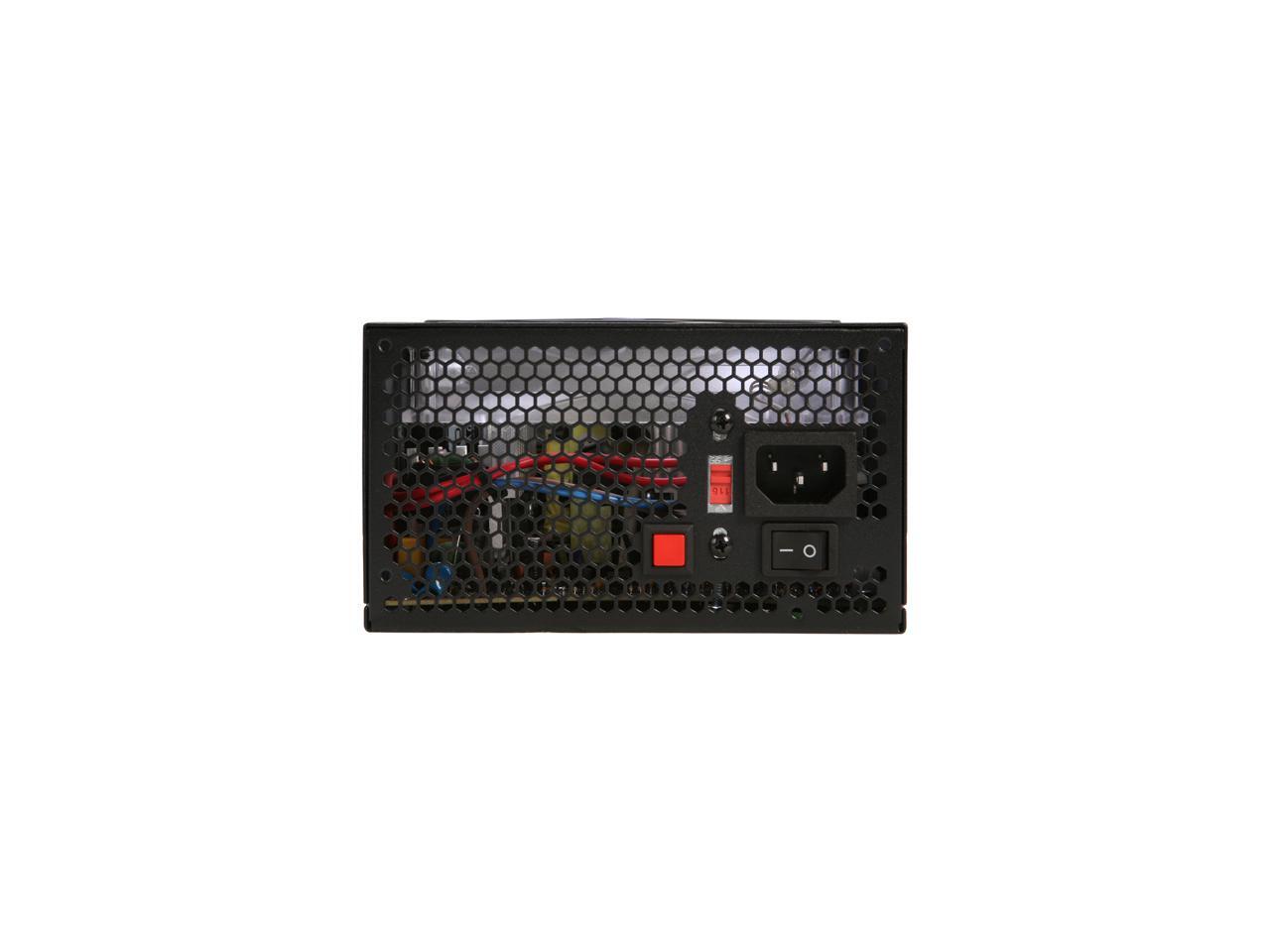

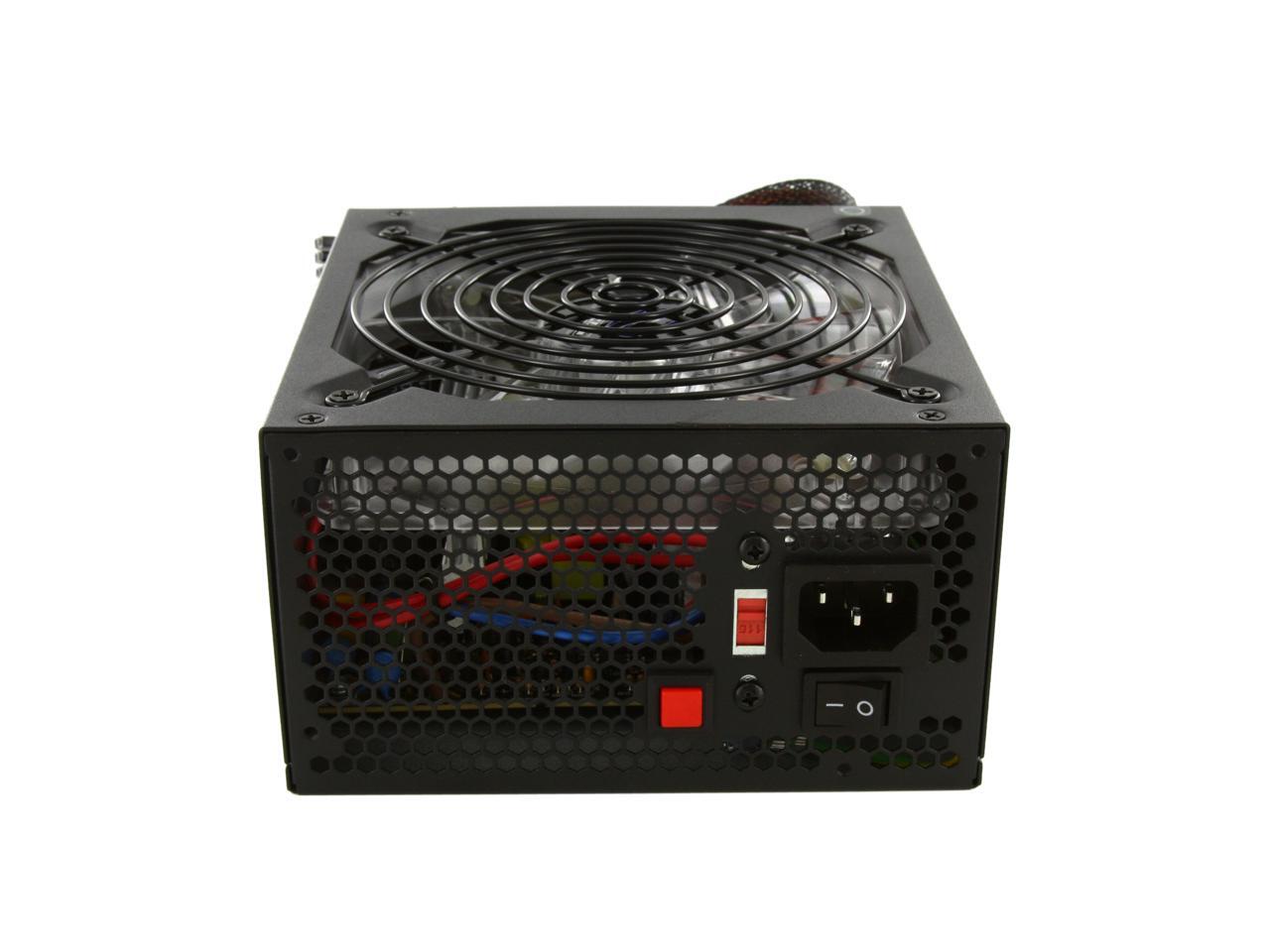

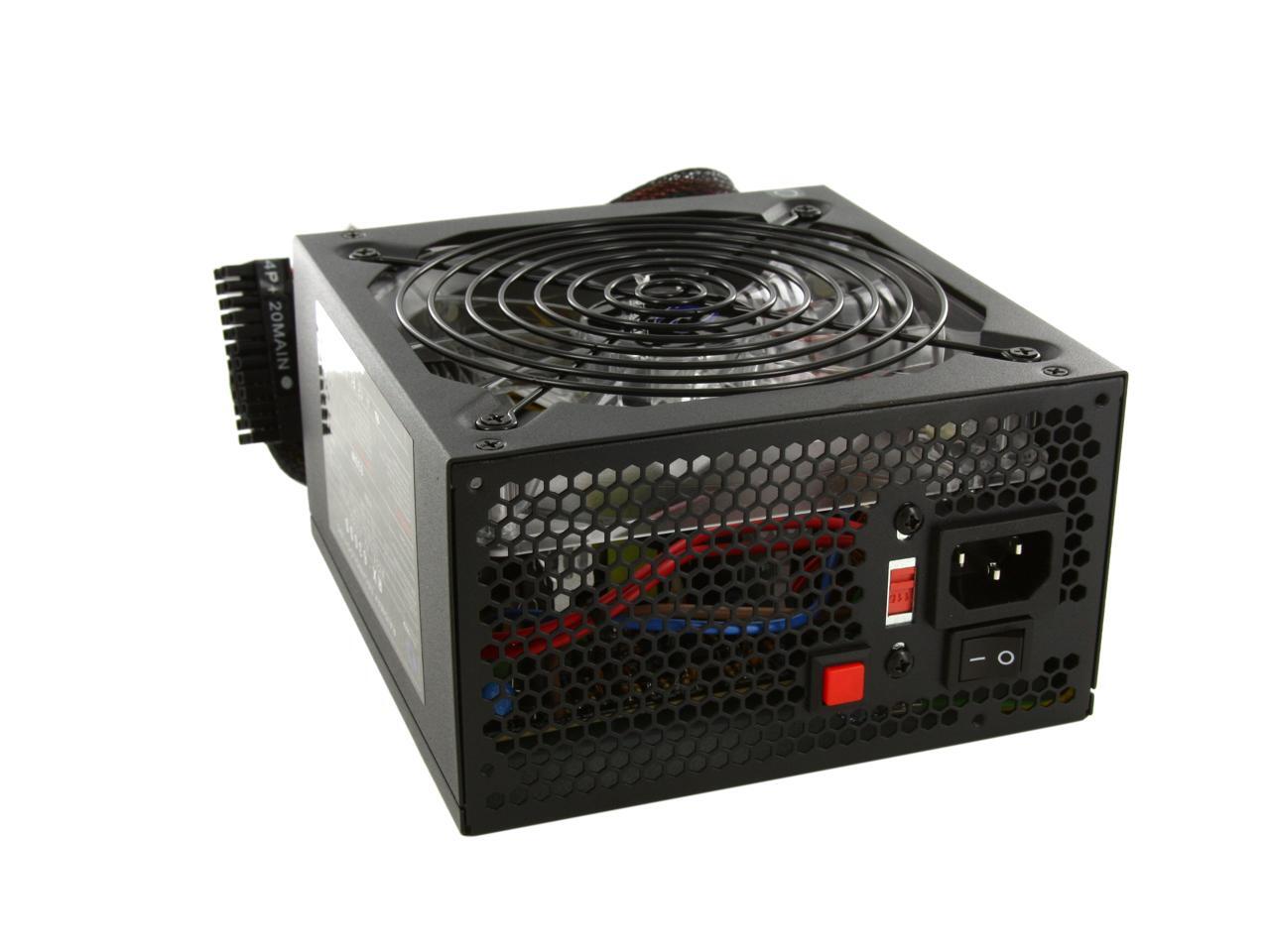

RAIDMAX HYBRID 2 RX-630SS 630W ATX12V V2.2/ EPS12V SLI Ready CrossFire Ready Modular Power Supply, New Version with Build-in LED Fan On/Off Switch

360°

RAIDMAX HYBRID 2 RX-630SS 630W ATX12V V2.2/ EPS12V SLI Ready CrossFire Ready Modular Power Supply, New Version with Build-in LED Fan On/Off Switch

Name: RAIDMAX HYBRID 2 RX-630SS 630W ATX12V V2.2/ EPS12V SLI Ready CrossFire Ready Modular Power Supply, New Version with Build-in LED Fan On/Off Switch
Brand: Raidmax
SKU: N82E16817152035
Rating: 4 (3027 reviews)

(3,027)(1) Write a Review

See more "modular power supply"

OUT OF STOCK.

ATX12V V2.2/ EPS12V
100 - 240 V
SLI/CrossFire Ready

Overview

Specs

Reviews

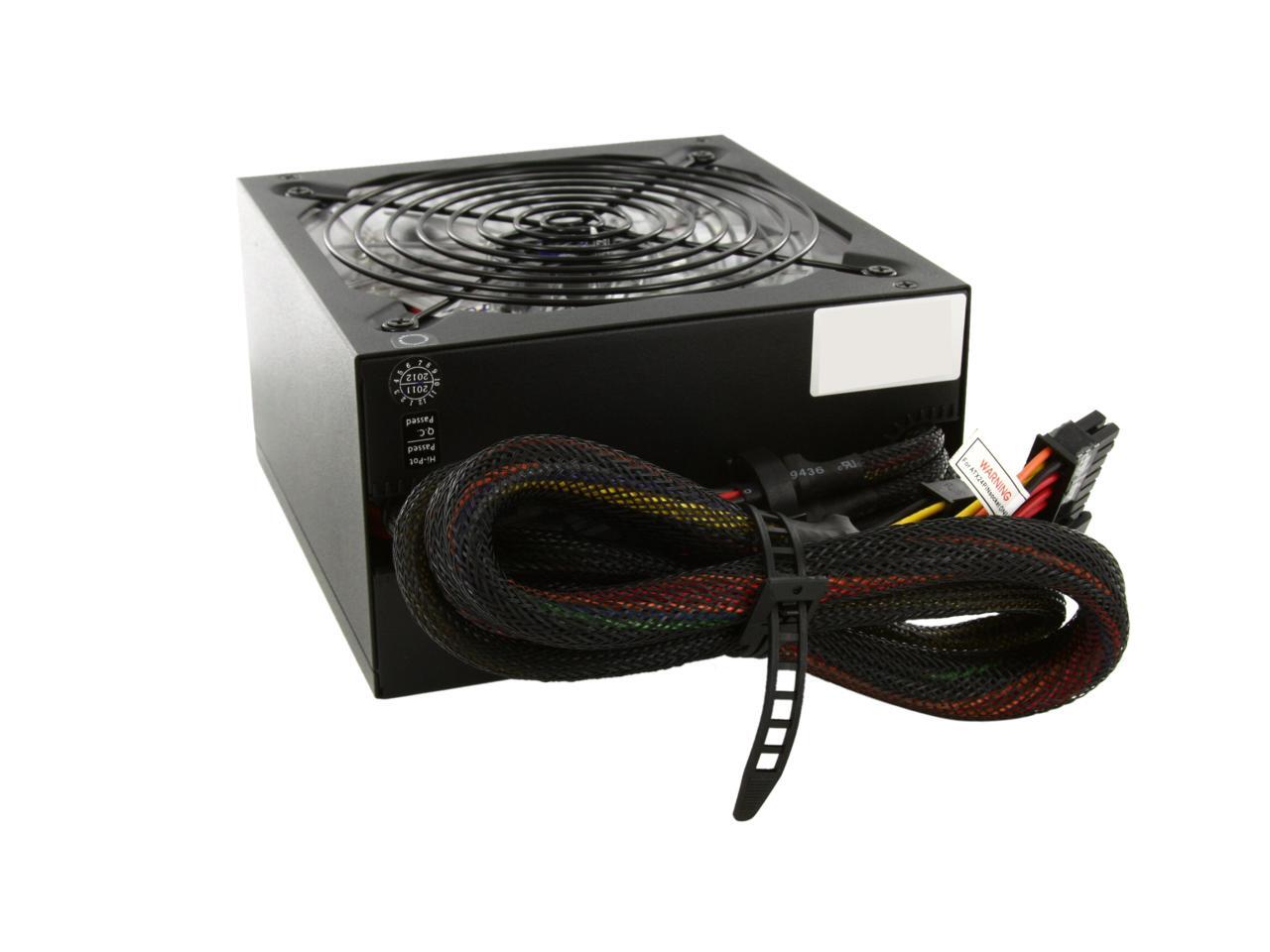

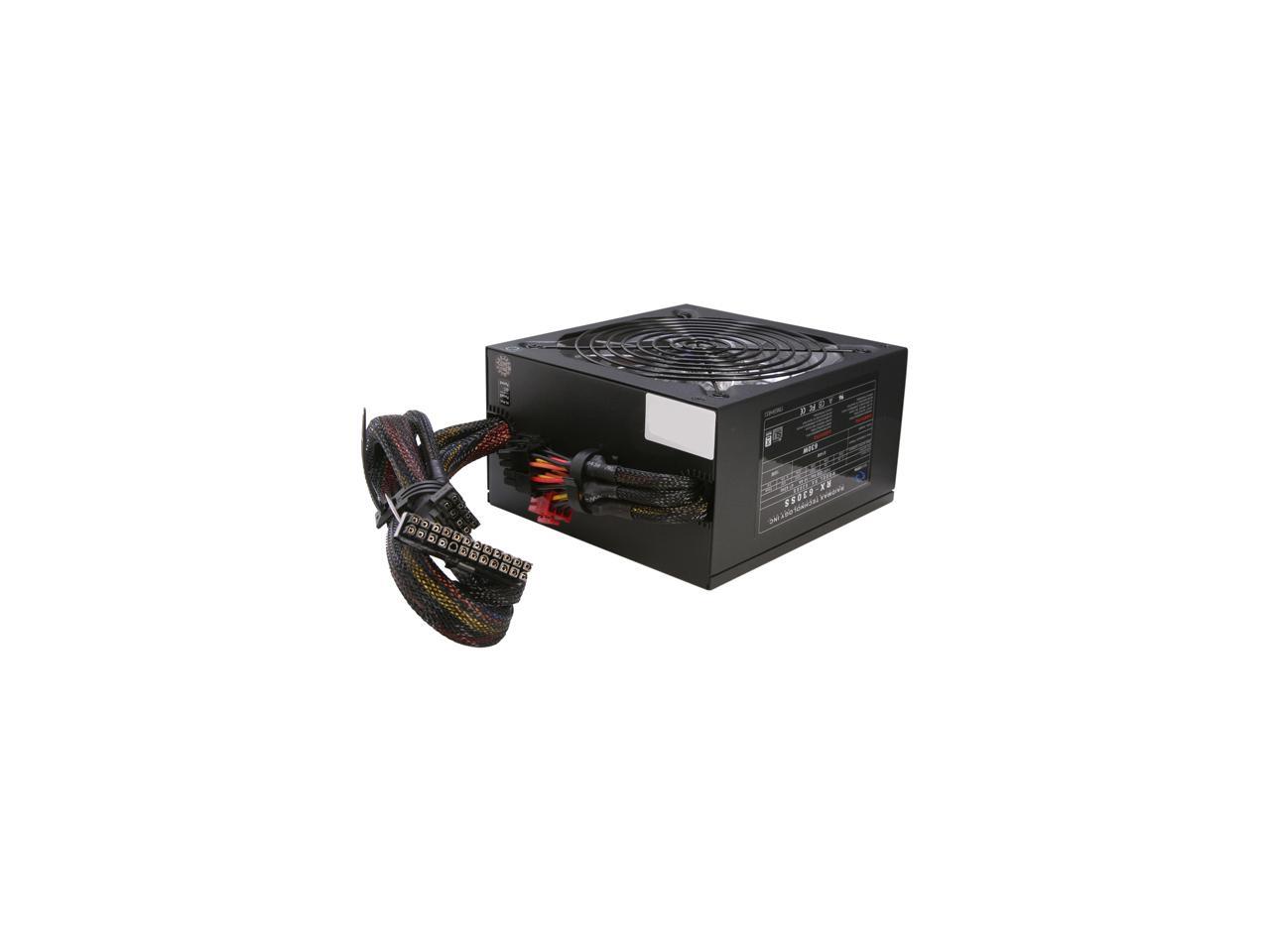

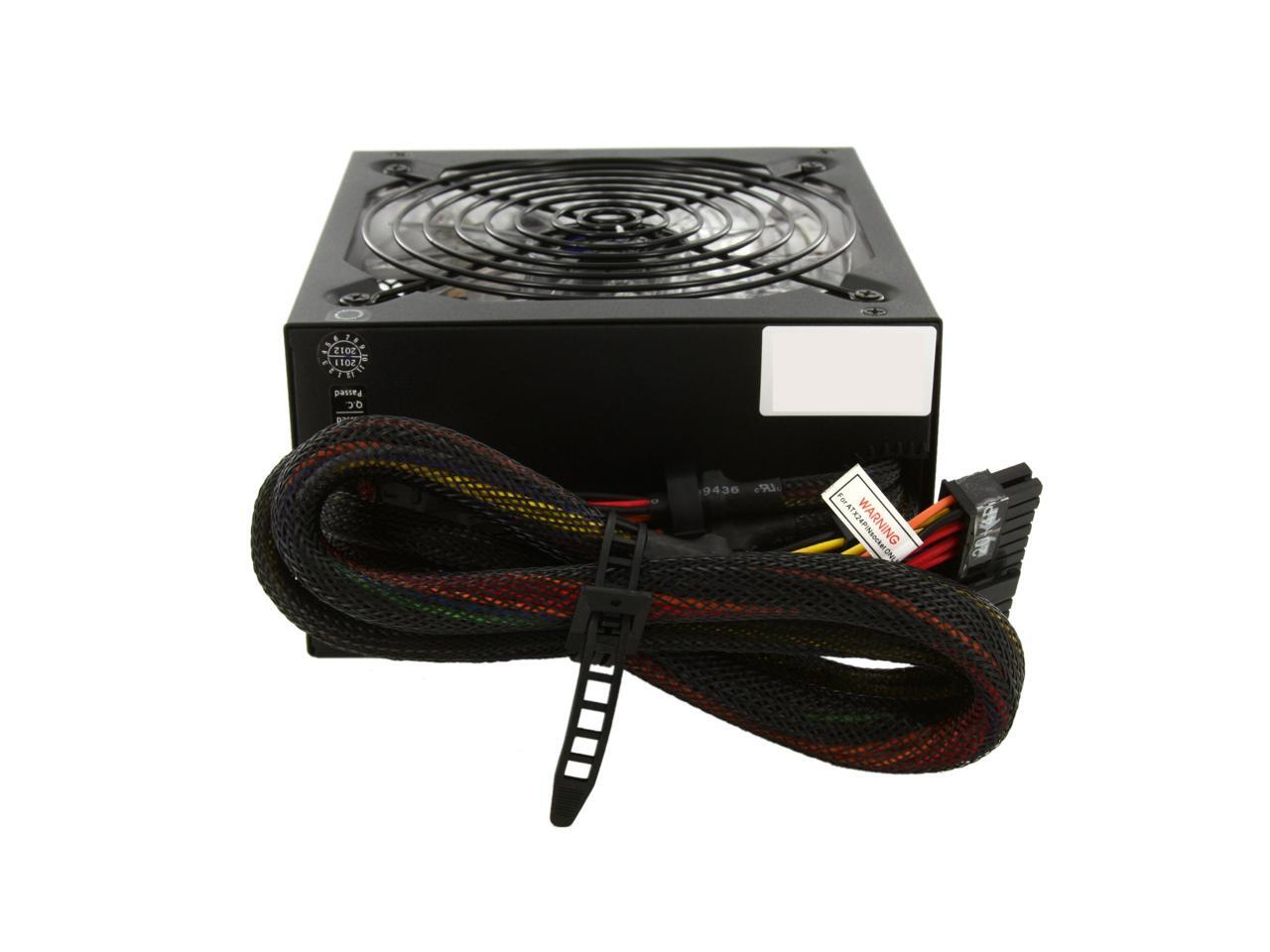

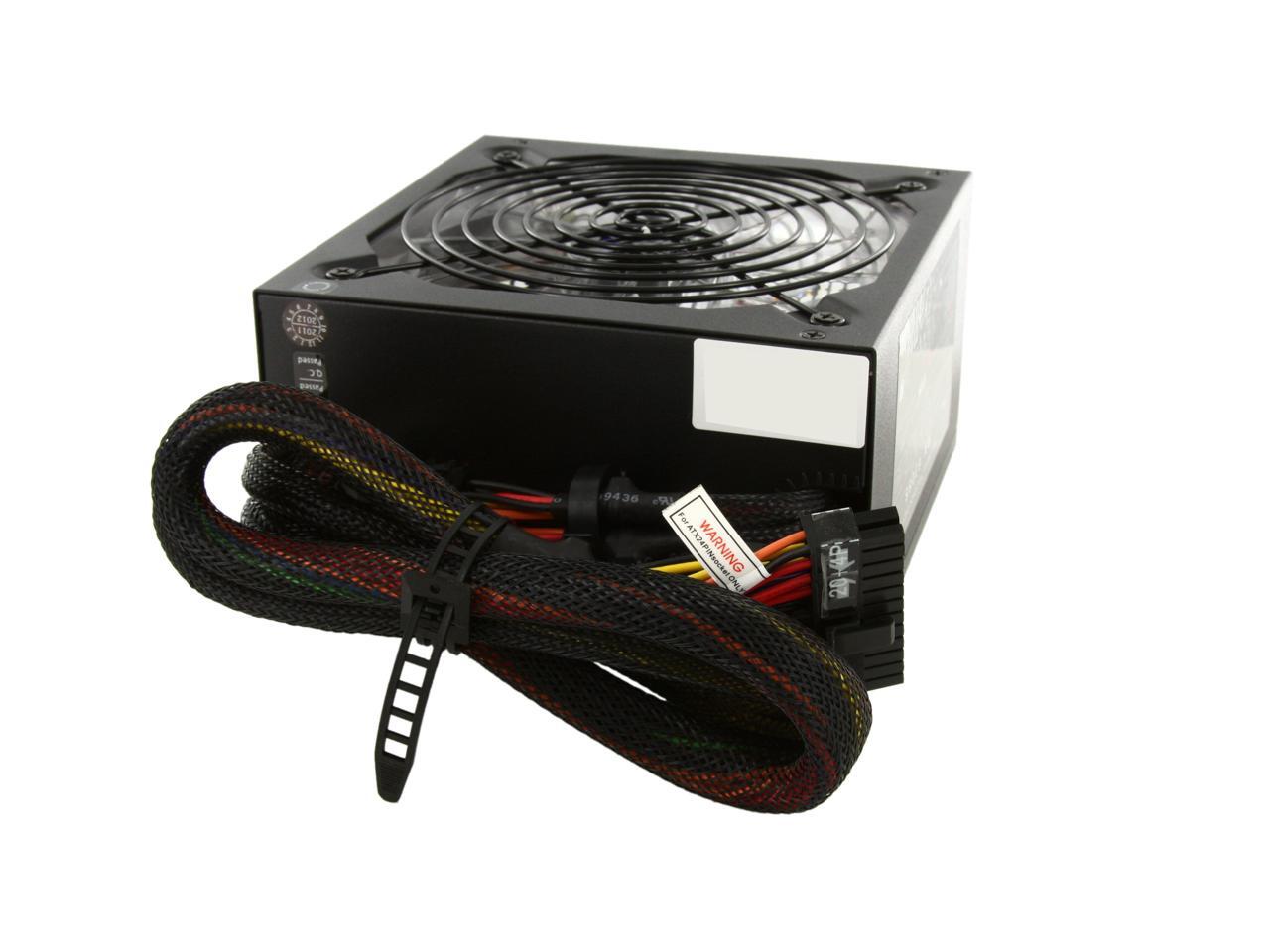

Raidmax HYBRID 2 CrossFire Ready Modular Power Supply

Raidmax presents the HYBRID 2 RX-630SS power supply that pumps 630W to your vital components, such as advanced video cards. Not only does it perform well, but it looks great, too, with its durable black satin finish and stained black SECC steel. Multi video card setups are also accommodated by dual 6 + 2-pin PCI-E connectors. The power supply's modular design maximizes air flow by allowing you to connect only the cables you need.

The RX-630SS also features a bright blue LED 135mm fan to keep your system cool. Hexflo hexagonal ventilation allows for maximum airflow. You'll also appreciate the high grade black mesh that wraps the cabling to help protect your power supply and components. Make the Raidmax RX-630SS the power supply for all of your PC needs today!

Features

630 Watts total output
A huge 135mm blue LED fan
Durable black satin finish
Power Material: Stained Black SECC Steel
Komodo smart modular cabling system
3 x ATX 4-pin molex connectors
6 x SATA connectors
1 x 4-pin aux. connectors
Hexflo hexagonal ventilation maximizes airflow
High grade black mesh wrapped cabling
ON/OFF switch for fan LED lights

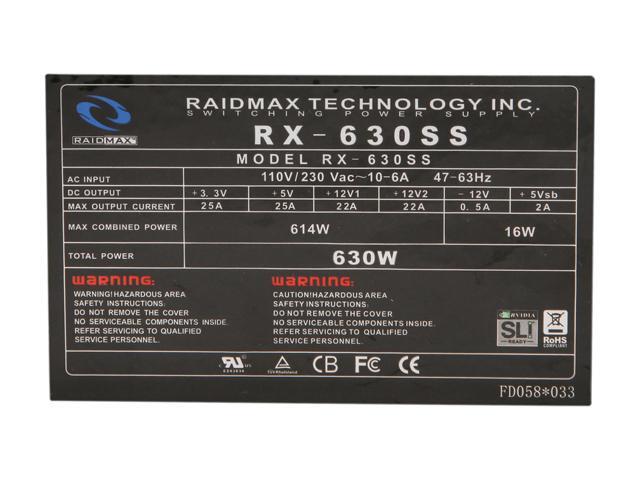

SPECIFICATIONS

Model	RX-630SS
AC Input	110 ~ 230V / 10A - 6A / 47 - 63Hz
DC Output:	+3.3V	+5V	+12V1	+12V2	-12V	+5VSB
Max. Output Current:	25A	25A	22A	22A	0.5A	2A
Max. Combined Power:	614W				16W
Total Power:	630W
Dimensions (W x L x H):	5.9 x 6.2 x 3.3 inches (150 x 158 x 86mm)

CONNECTORS

MB 20 + 4-Pin

x 1

PCI-E 6 + 2-Pin

1 with 2 connectors

CPU 4 + 4-Pin

x 1

SATA

x 6

Molex 4-Pin

x 3

Aux.

x 1

Gallery

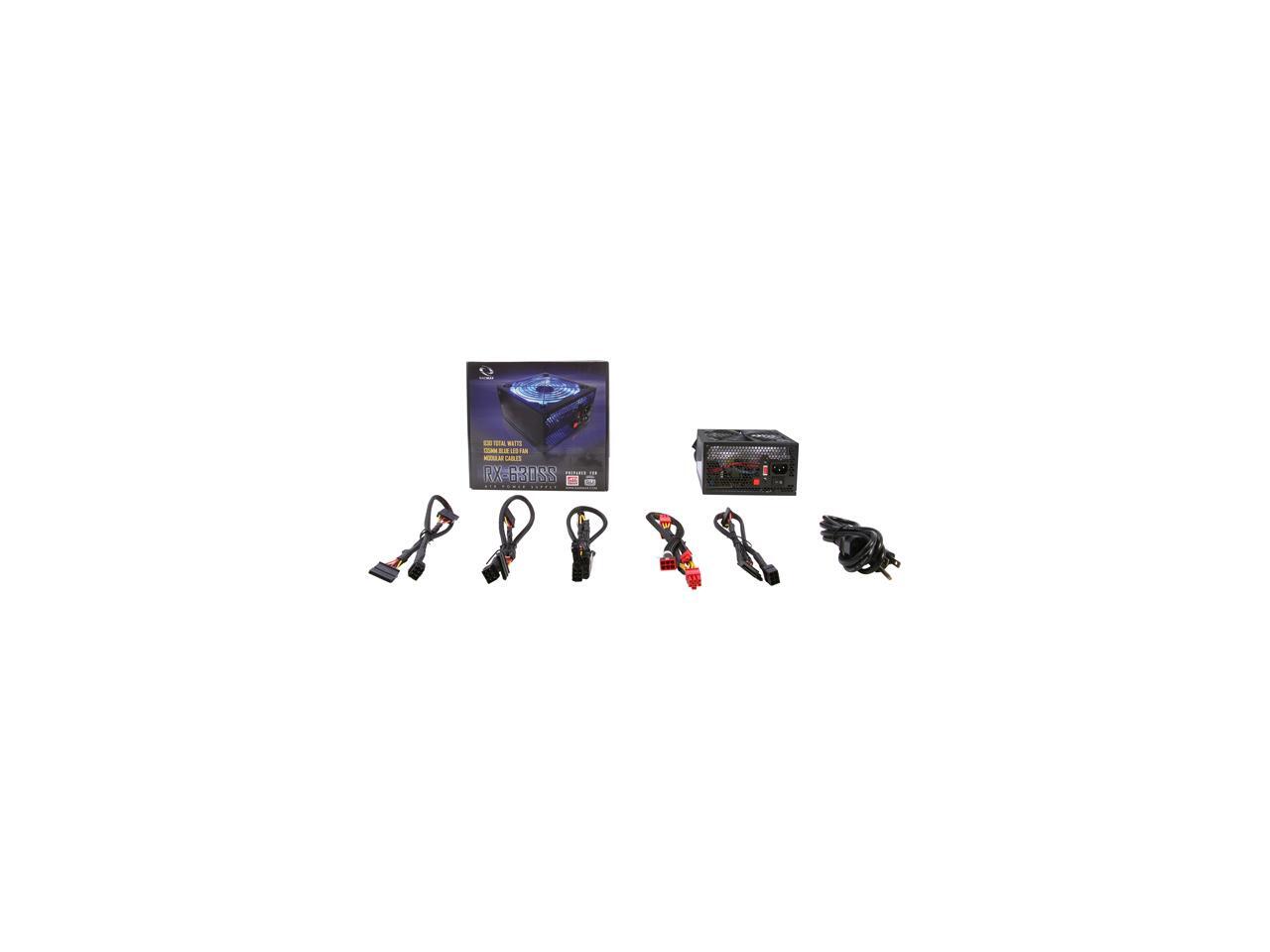

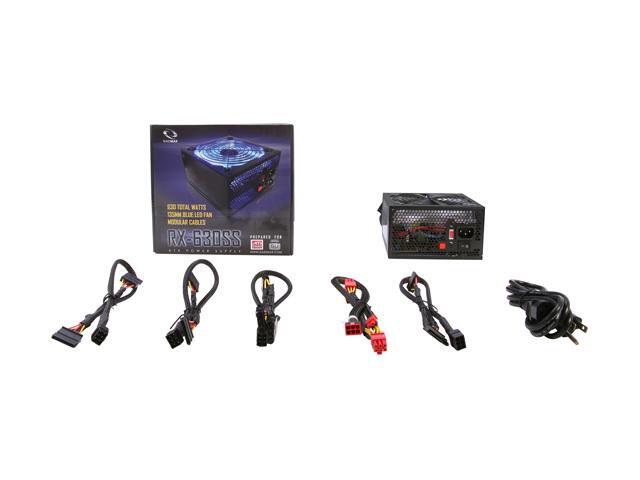

What's in the Box

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Type	ATX12V V2.2 / EPS12V
Maximum Power	630 W
Fans	1 x 135mm Blue Glowing LED Fan
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Yes
CrossFire	CrossFire Ready
Modular	Semi-Modular
Efficiency	Up to 85%
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10A @ 115V, 5A @ 230V
Output	+3.3V@25A, +5V@25A, +12V1@22A, +12V2@22A,, -12V@0.5A, +5VSB@2.0A
Approvals	UL, CUL, FCC, TUV, CE, C-tick, CCC, CB
Connectors	1 x 20+4 pins Main Connector 1 x 4+4 pins ATX 12V/EPS 12V Connector 2 x 6+2 pins PCI-E Connectors 6 x 5 pins SATA Connectors 3 x 4 pins Peripheral Connector 1 x 4 pins Floppy Connector
