RAIDMAX Vampire RX-1000GH Continuous 1000 watts ATX12V / EPS12V SLI CrossFire 80 PLUS GOLD Certified Modular PFC Power Supply Intel Haswell Platform Ready
- 80+ Gold Certified
- Modular
- ATX12V / EPS12V SLI CrossFire Ready
- Intel Haswell Platform Ready
- Maximum 1000W
Overview
Specs
Reviews (43)
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Features:
80 Plus Gold Certified
Compatible with Latest PC Technology
Supports the newest specifications of ATX12V
Created for usage with current and next-generation multi-core CPU platforms
Intel Haswell platform ready
Support Multi-GPU Technology
Supports PCI Express 2.0 next-generation graphic card with PCI-E connector
Active Power Factor Correction (Active PFC)
PF Value up to 99%- provides clean and reliable power
Ultra-Quiet & Temperature-Controlled fan
Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level- the fan is still quiet enough to be barely noticeable
5VSB OVP design
Provide full protection for your USB devices
Full protections with SCP- OVP- UVP and OPP
Maximum Power: 1000 W
Input:
Voltage: 110 - 240 V
Current: 15 A
Frequency Range: 50 - 60 Hz
Type: ATX12V v2.3 / EPS12V
Power Factor Correction: Active PFC
Efficiency: Up to 91.18%
Fan: 1x 135mm Fan
MTBF: >100-000 Hours
Output: +3.3V @ 25A- +5V @ 25A- +12V1 @ 60A- +12V2 @ 60A- -12V @ 0.8A- 5VSB @ 3A
Connectors: 1x 20+4pin Main Connector; 1x 4+4pin ATX12V/EPS12V Connector- 6x 6+2pin PCI-Express Connectors- 8x 5pin SATA Connectors- 6x 4pin Peripheral Connectors- 2x 4pin Floppy Connectors
Safety Approval: UL- CUL- FCC- TUV- CE
Dimensions (WxDxH): 6.0 x 6.5 x 3.5 inch
Weight: 6.86 Ibs
Features:
80 Plus Gold Certified
Compatible with Latest PC Technology
Supports the newest specifications of ATX12V
Created for usage with current and next-generation multi-core CPU platforms
Intel Haswell platform ready
Support Multi-GPU Technology
Supports PCI Express 2.0 next-generation graphic card with PCI-E connector
Active Power Factor Correction (Active PFC)
PF Value up to 99%- provides clean and reliable power
Ultra-Quiet & Temperature-Controlled fan
Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level- the fan is still quiet enough to be barely noticeable
5VSB OVP design
Provide full protection for your USB devices
Full protections with SCP- OVP- UVP and OPP
Maximum Power: 1000 W
Input:
Voltage: 110 - 240 V
Current: 15 A
Frequency Range: 50 - 60 Hz
Type: ATX12V v2.3 / EPS12V
Power Factor Correction: Active PFC
Efficiency: Up to 91.18%
Fan: 1x 135mm Fan
MTBF: >100-000 Hours
Output: +3.3V @ 25A- +5V @ 25A- +12V1 @ 60A- +12V2 @ 60A- -12V @ 0.8A- 5VSB @ 3A
Connectors: 1x 20+4pin Main Connector; 1x 4+4pin ATX12V/EPS12V Connector- 6x 6+2pin PCI-Express Connectors- 8x 5pin SATA Connectors- 6x 4pin Peripheral Connectors- 2x 4pin Floppy Connectors
Safety Approval: UL- CUL- FCC- TUV- CE
Dimensions (WxDxH): 6.0 x 6.5 x 3.5 inch
Weight: 6.86 Ibs
RAIDMAX Vampire 80 PLUS GOLD Certified Modular PFC Power Supply
FEATURES
- 80-Plus Gold Certified
- Compatible with Latest PC-Technology
- Supports the newest specifications of ATX 12V
- Created for usage with current and next-generation multi-core CPU platforms
- Intel Haswell platform ready
- Supports Multi-GPU Technology
- Supports PCI Express 2.0 next-generation graphic card with PCI-E connector
- Active Power Factor Correction (Active PFC)
- PF value up to 99%, provides clean and reliable power
- Ultra-Quiet & Temperature-Controlled Fan
- Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level the fan is still quiet enough to be barely noticeable.
- 5VSB OVP Design
- Provide full protection for your USB devices
- Full Protections with SCP, OVP, UVP, OPP
- Active PFC, Quad+12v Rails. Design supports all HIGH-END Multi-Core GPU graphics cards.

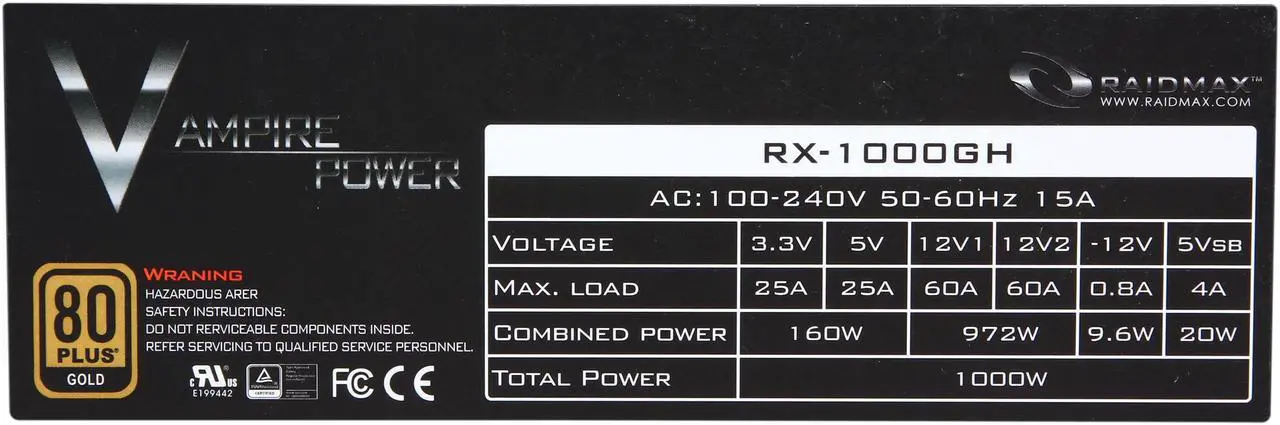

Basic Specifications
| Model | RX-1000GH | |||||
|---|---|---|---|---|---|---|
| AC Input | AC: 100 ~ 240V, 15A, 50 - 60HZ | |||||
| DC Output | 3.3V | 5V | 12V1 | 12V2 | -12V | 5VSB |
| Max Output Current | 25A | 25A | 60A | 60A | 0.8A | 4A |
| Max Combined Power | 160W | 972W | 9.6W | 20W | ||
| Total Power | 1000W | |||||

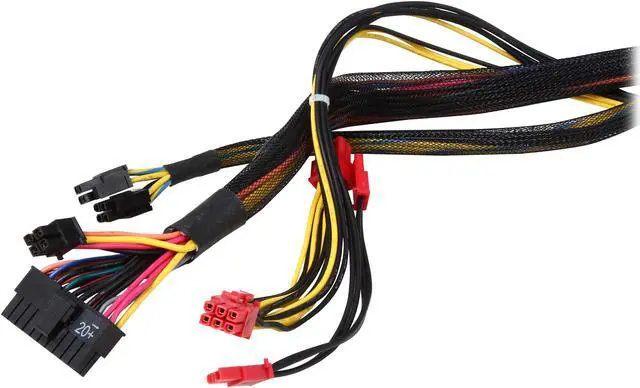

Connectors
| M/B 20 + 4-Pin | 1 |
| CPU 4 + 4-Pin | 1 |
| PCI-E 6 + 2-Pin | 8 |
| SATA | 8 |
| MOLEX 4-Pin | 6 |
| Aux. | 1 |

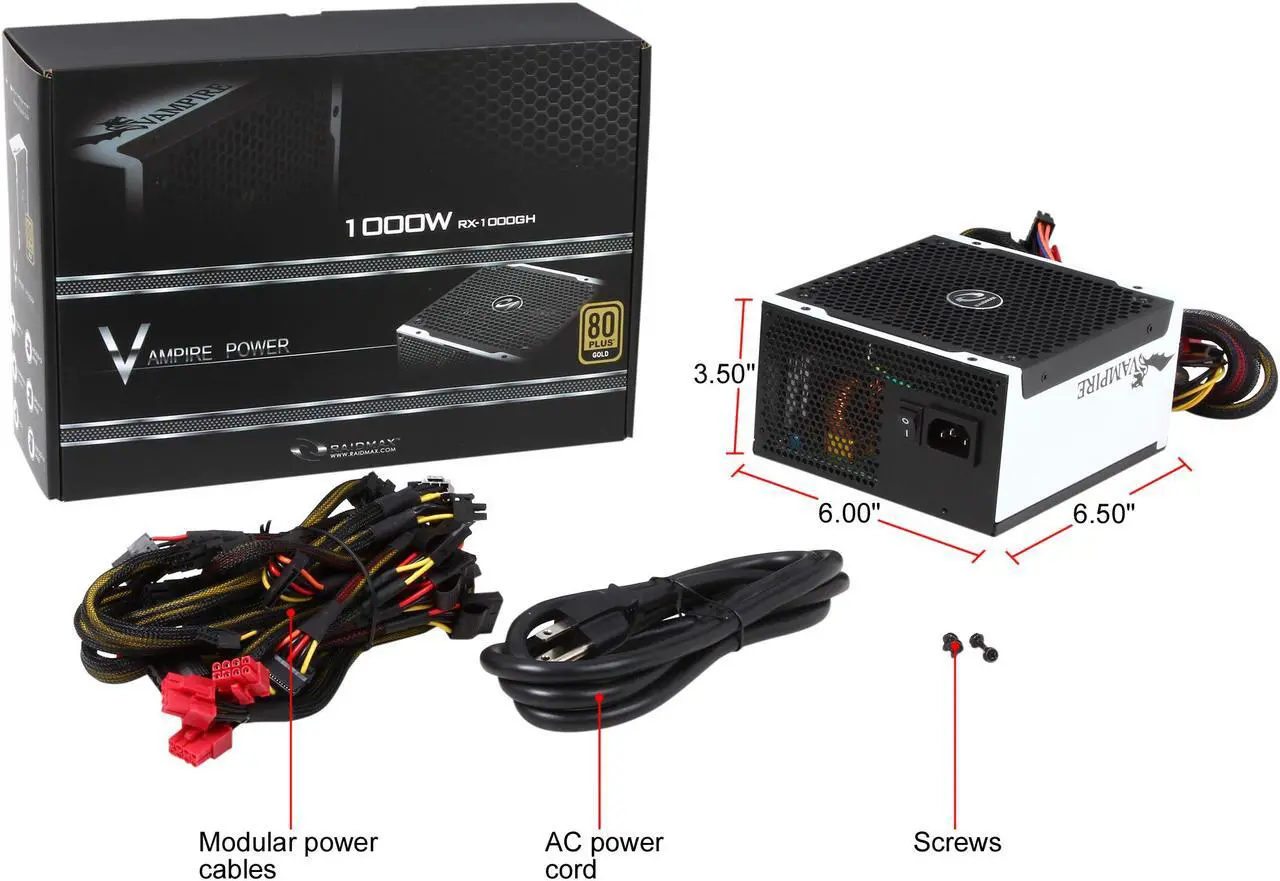

Dimensions (L x W x H)
5.9 x 6.5 x 3.3 inches (150 x 165 x 86mm)
