Important Notes:
1.Reolink NVRs with the hardware version of N2MB02/H3MB18/N3MB01 support the smart detection/playback for the RLC-510A. You can verify the compatibility via the System Information of the NVR.
2.The RLC-510A IP camera can be added to some third-party software/NVR such as Blue Iris or Synology. But currently, we could only ensure the full compatibility between this camera and the Reolink NVR/software.

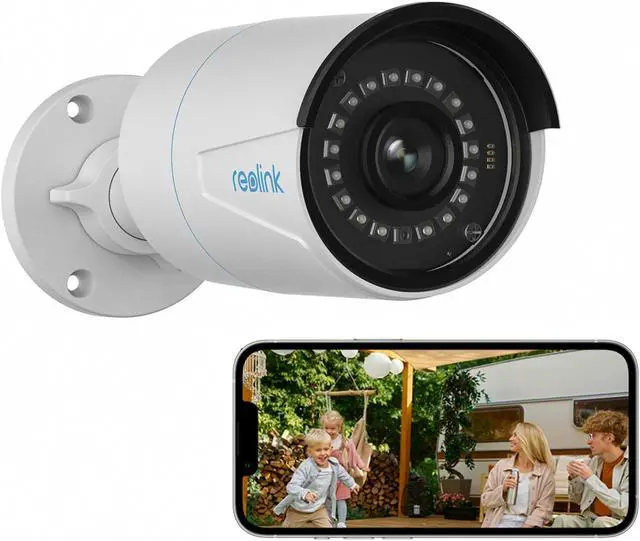

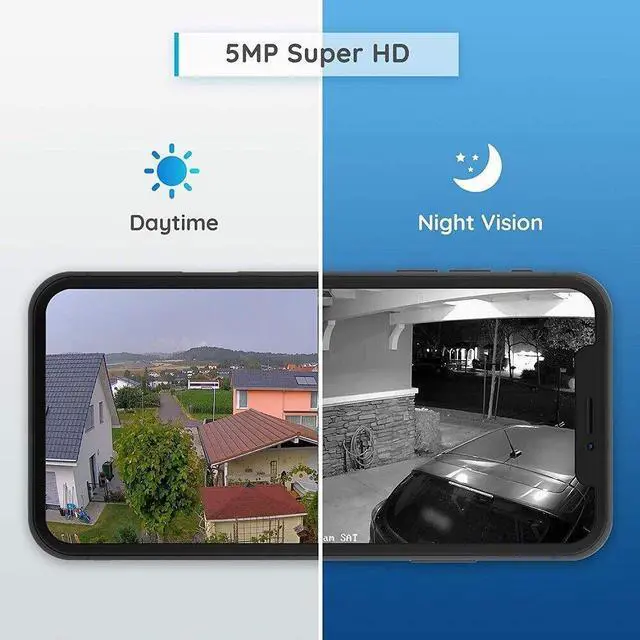

These IP cameras capture 5MP HD videos, therefore bringing an ultra-crisp and detailed on-screen experience that makes every detail vivid and inescapable. With advanced 3D-DNR and IR technology, the cameras are capable of capturing stable and sharp night vision up to 100ft.
These security cameras can optionally record 24/7 or motion-triggered videos to a micro SD card (up to 256GB, not included), Reolink NVR, FTP server, or NAS system. Let the Reolink security camera help you save the key moments and keep them safe.
Once the surveillance security cameras detect something suspicious, they will immediately send you a push notification and an email alert with a picture/video attachment. This helps you stay in the know of the important events happening on your property.
Try to quickly filter videos by person/vehicle events via intuitive Reolink App/Client, then locate the moments you need by the timeline, all within a few clicks. Each camera supports up to 12 users using different devices to live stream simultaneously (with 2 mainstreams & 10 substreams).
It cannot be easier to control home security cameras that work with sound demand. Just tell your smart device to show you the cameras, and you will see live feeds from the cameras on your Chromecast-enabled TVs. No further subscription or fee will be needed for this function.
Use these security cameras to record time-lapse videos. Keep track of your 3D printing, see the whole construction process in a few minutes, or capture beautiful views from sunrise to sundown. It allows you to capture the dynamic processes vividly and visually. (Timelapse only works on Reolink App)

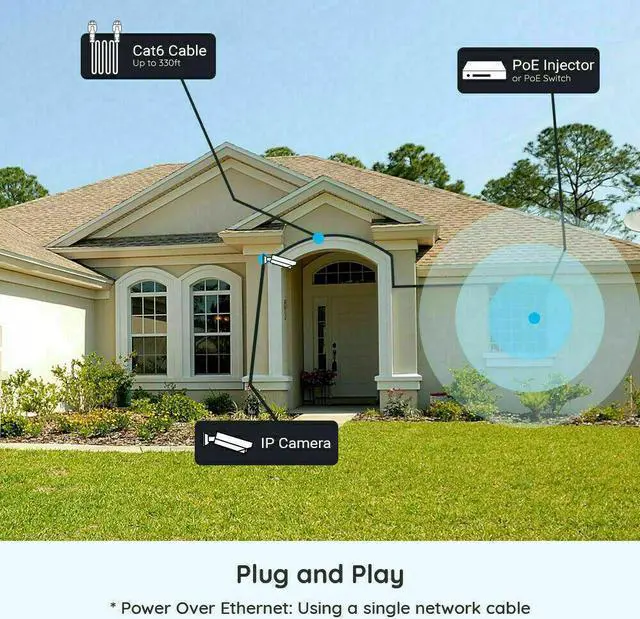

Utilizing PoE technology, the RLC-510A can load 5MP HD images in unmatched stability under high bitrates. These surveillance cameras use one single cable (Up to 330ft via CAT6,7 cable) to transmit both data and power, also save you the trouble from the instability of wireless network.
With a metal rugged enclosure, these home security cameras are designed to withstand any harsh weather conditions. Even under torrential downpours or scorching sun, they stays safe and sound.
- Working Temperature: -10°C - +55°C (14°F - 131°F)
- Humidity: 10% - 90%
| Image Sensor | 1/2.7" CMOS Sensor |
|---|---|
| Video Resolution | 2560 x 1920 (5.0 Megapixels) |
| Lens | f=4.0mm fixed, F=2.0, with IR Cut |
| Night Vision | 30 Meters (100 ft) |
| POE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V/1A, <12W |
| Cable Supported | Up to 260ft CAT5(5e), up to 320ft CAT6, and CAT7 Ethernet cables with T-568B connectors and 8 PIN |
|---|---|
| Browser Supported | Edge, Chrome, Firefox, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart Alarm | Motion detection/Human detection/Vehicle detection |
| Field of View | Horizontal: 80° Vertical: 42° |
