Note:
Please do NOT connect system disk, only work with extended HDDs.
- SATA Card 6 Port (NOT compatible PCIe x1 slot, please note!)
- SATA Card PCI-e 4x
- 6 * SATA III (6 Gbps) ports through PCI Express x4
- Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
- Compliant with PCI Express 3.0 standards
- Port Multiplier Command-based switching supported
- Natively supported single chipset design
- Support Native Command Queuing (NCQ)
- Support SSC for both PCIe and SATA

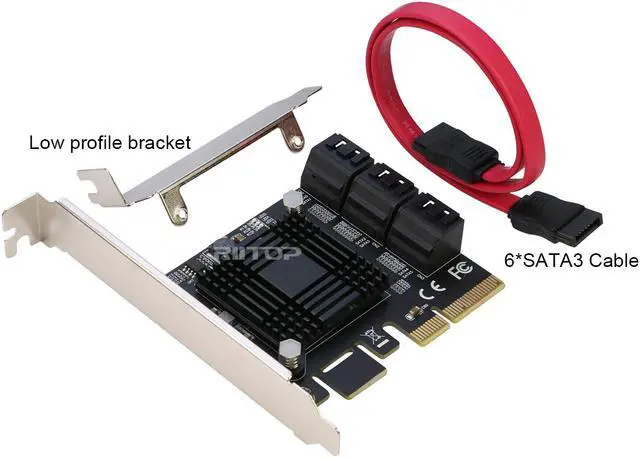

- Includes Low Profile/Half-Height installation bracket
6 AHCI SATA III (6 Gbps) ports through PCI Express x4.
Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps).
Compliant with PCI Express 3.0 standards.
Port Multiplier Command-based switching supported.
For Natively supported single chipset design.
Support For Native Command Queuing (NCQ).
Support For SSC for both PCIe and SATA.
Includes Low Profile/Half-Height installation bracket.
Note:
Please do NOT connect system disk, only work with extended HDDs.
Chipset: For ASMedia ASM1166.
Interface: PCI Express 4x.
Port Number: 6 Port SATA 3.0.
Dimension: 80*22 mm.
Note:
- Suiltable for PCIe x4 slot or above, DO NOT support PCIe x1.
- Please do NOT connect system disk, only work with extended HDDs.

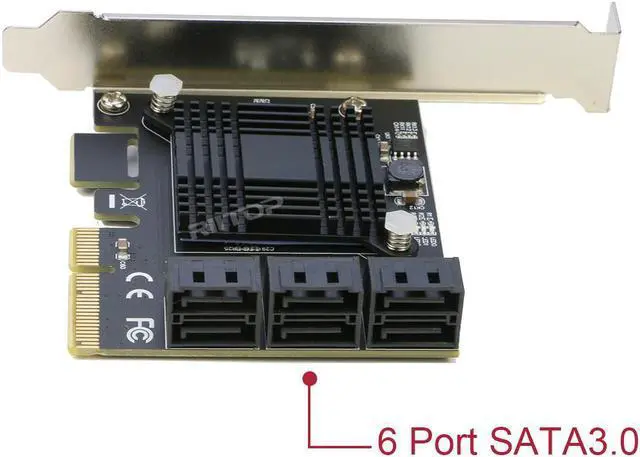

The RIITOP 6 port SATA controller based on ASMedia 1166 chip, more stable and wider compatible.
Support OS:
For Windows 7, 8.x, 10,
For Windows Server 2008 R2, 2012, 2016,2019,
For Linux 2.6.x to 4.x.
Note:
Please do NOT connect system disk, only work with additional HDDs.
