What kind of protection features does the Rosewill VNG 650W power supply offer?

The Rosewill VNG 650W power supply offers a six-protection suite, including OCP (Over Current Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), and UCP (Under Current Protection).

What is the maximum power output of the Rosewill VNG 650W power supply?

The maximum power output of the Rosewill VNG 650W power supply is 650 W.

$59^.99

Free 30-day Returns

Limit 999999 per customer.

Add to PC build list

Sold by Newegg

Shipped by Newegg

Price alert

Add to wish list

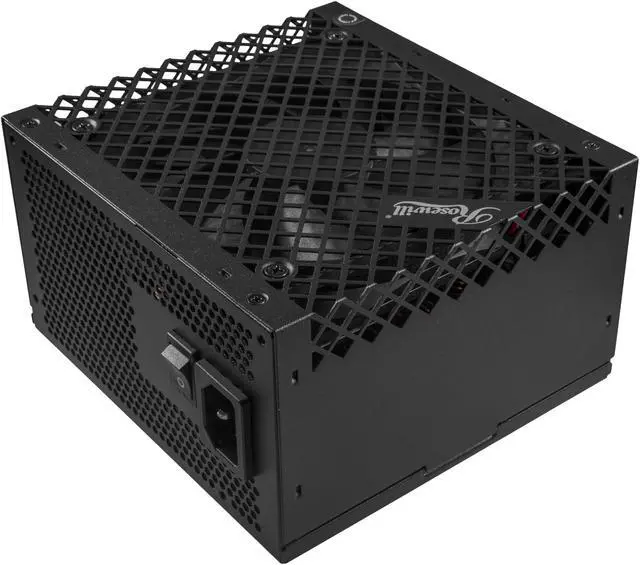

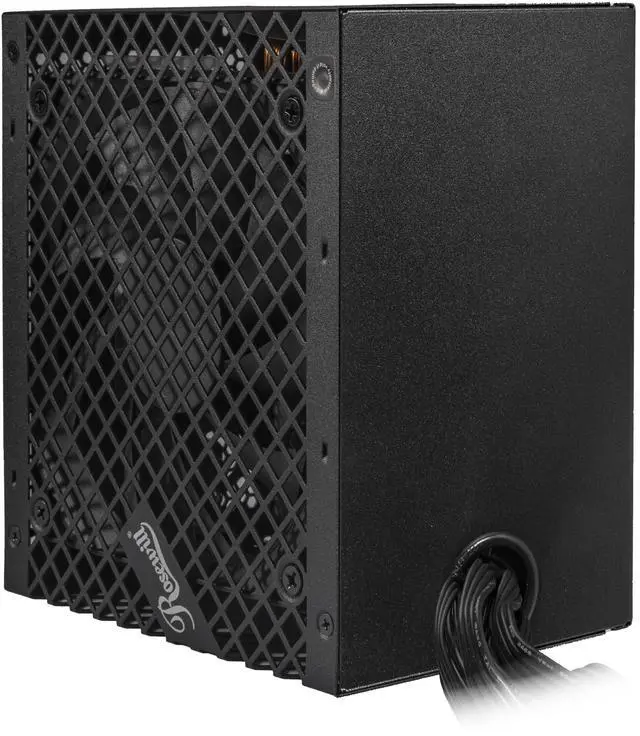

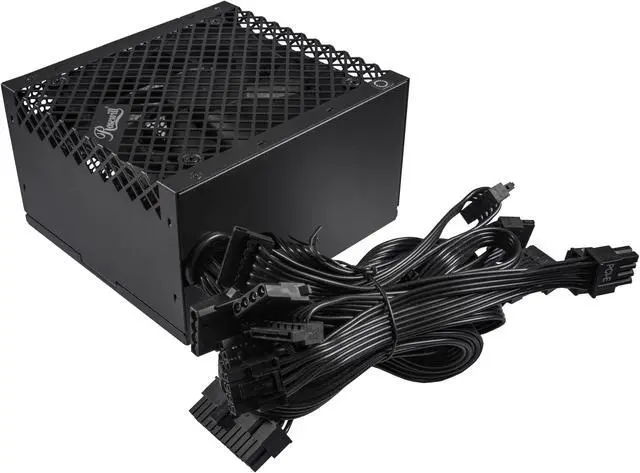

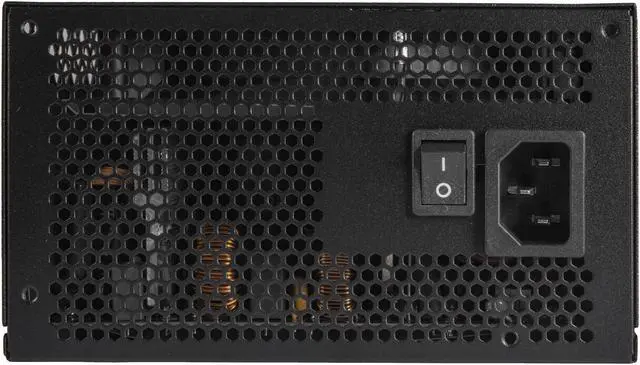

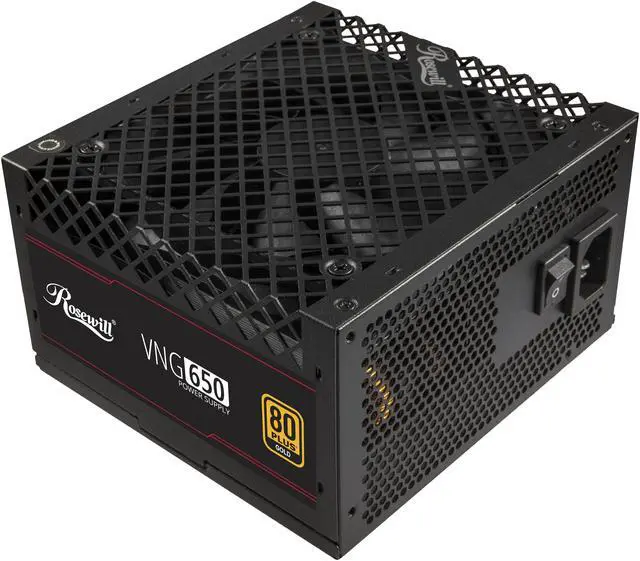

Main image of Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 2 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 3 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 4 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 5 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 6 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 7 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 8 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Alt view image 9 of 9 - Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

Shop All Rosewill Products

Rosewill VNG 650W 80+ Gold Certified, ATX 3.0 & 3.1 Compatible, Non-Modular, Low-Noise Power Supply, 450W PCIe 5.1 12V-2x6 Connector, High Quality Electrolytic Capacitor - 5 Year Warranty - VNG650

(19) Write a Review

Options: ATX 3.1 80+ Gold (650W) Native

ATX 3.1 80+ Gold (1000W)
ATX 3.1 80+ Gold (850W)
ATX 3.1 80+ Gold (750W)
ATX 3.1 80+Gold (650W) Native

Intel ATX 3.0 & 3.1 Ready.
80 PLUS® Gold Certified Non-Modular
Native PCIe 5.1 / Gen 5 12+4 Pin 12V-2x6 Cable
Up to 235% Power Excursion & 300% GPU Power Excursion
Optimized Thermal Control: Steel shell with large vents
Next-Gen GPU Support: Dedicated PCIe 5.1 cable delivers 450W direct power to new graphics cards
Compact Build Ready: 140×150×86mm chassis (35% smaller) enables flexible small-form-factor integration
Safety Shield: Six-protection suite (OCP/OPP/OTP/OVP/SCP/UCP) ensures complete system security

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

View User Manual Details

Overview

Specs

Reviews (19)

See all Q & A

Type	ATX 3.1 Compatible
Maximum Power	650 W
Fans	1 x 120 mm
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	1 x 16-Pin, 2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Max PSU Length	140 mm
Modular	Non-Modular
Hold-up Time	16.6ms min.
Efficiency	Up to 85%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Overload Protection	Yes

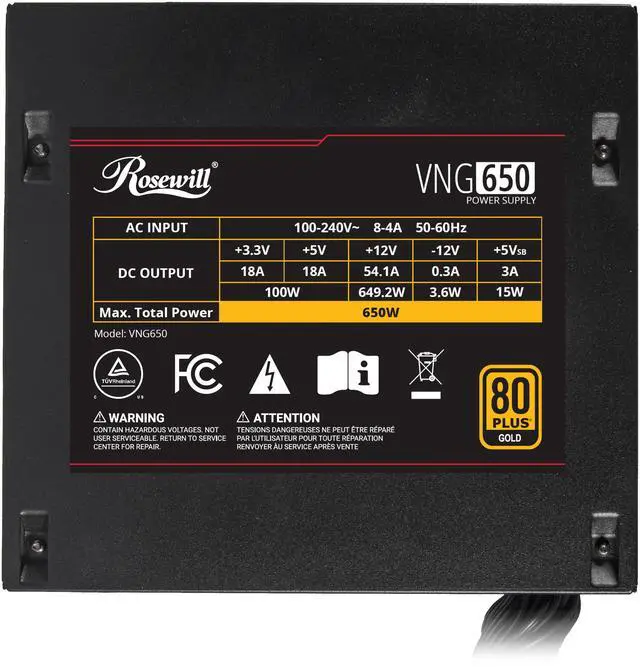

Output	+3.3V@18A, +5V@18A, [email protected], [email protected], +5VSB@3A
Connectors	1 x 20+4-Pin Main Connector 2 x 4+4-Pin ATX12V / EPS12V Connector 2 x 6+2-Pin PCI-E Connector 1 x 12+4-Pin 12V-2x6 Connector 6 x 15-Pin SATA Connector 3 x 4-Pin Peripheral Connector
