|Type||SATA II (3.0Gb/s)|
|Internal Connectors||4 x SATA II|
|Transfer Rate||Up to 3Gb/s|
|Operating Systems Supported||Completely with drivers for Windows 2000 ,XP and 2003 Server. Supports 64bit / 32bit Windows Vista.|
Mac OS X v10.3.9 and v10.4 Non-booting driver supported by SiliconImage SiI3124.
Linux 32bit / 64bit drivers supported for RHEL 4.0 Up2, RHEL 4.0 Up3, SuSE9.0 SP2, SuSE9.0 SP3 by SiliconImage SiI3124.
|Features||Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card|
48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB.
Fully compliant with Serial ATA 1.0a and Serial ATA II Extensions to Serial ATA 1.0a Specifications revision 1.1.
Supports SATA II First-party DMA commands for Native Command Queuing (NCQ).
Supports Serial ATA II Port Multiplier 1.0 Specifications revision 1.1.
Plesiochronous, Single PLL architecture, 1 PLL for 4 ports.

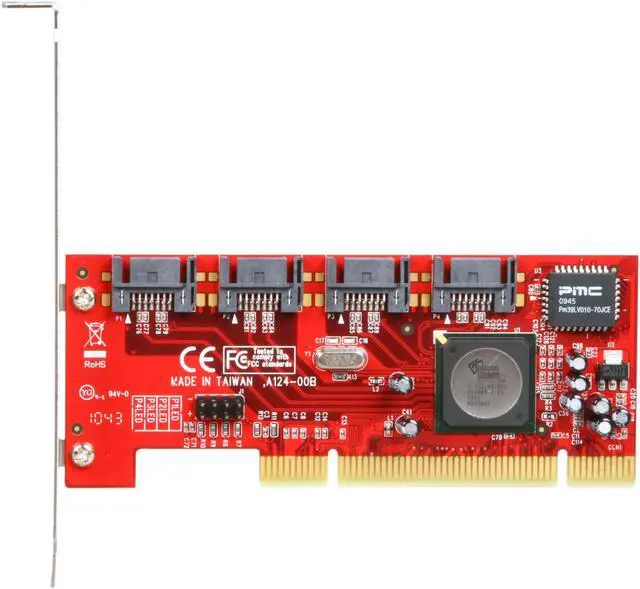

Supports four independent Serial ATA channels.
Independent Link, Transport, data FIFO, command fetch, scatter/gather, and command execution.
31 Commands and Scatter/Gather Tables per Port.
Supports bootable drive.

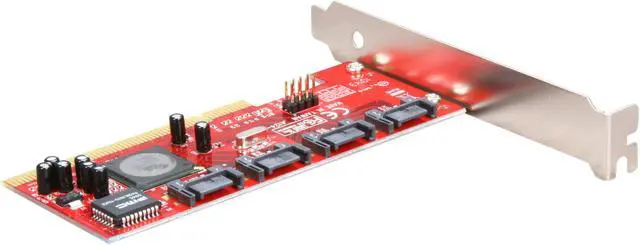

Four Pin header on board for LED connection.
Fully RoHS compliant.
*Note: HDD Controllers are capable to support all HDD sizes, but different OS may limited the HDD sizes that can be supported. For example, XP 32-bit supports only up to 2TB.

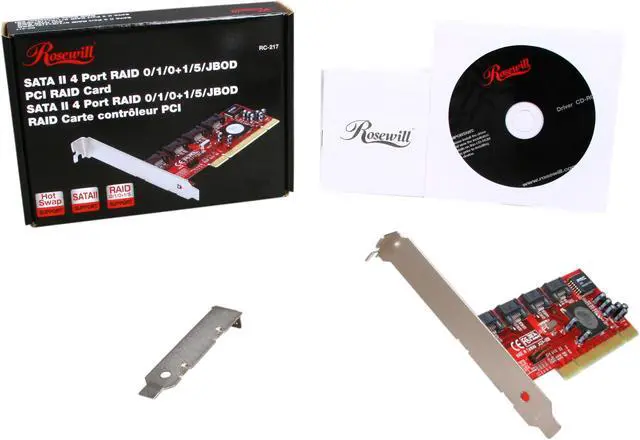

|Package Contents||RC-217 x1|
User Manual x1
Driver CD x1

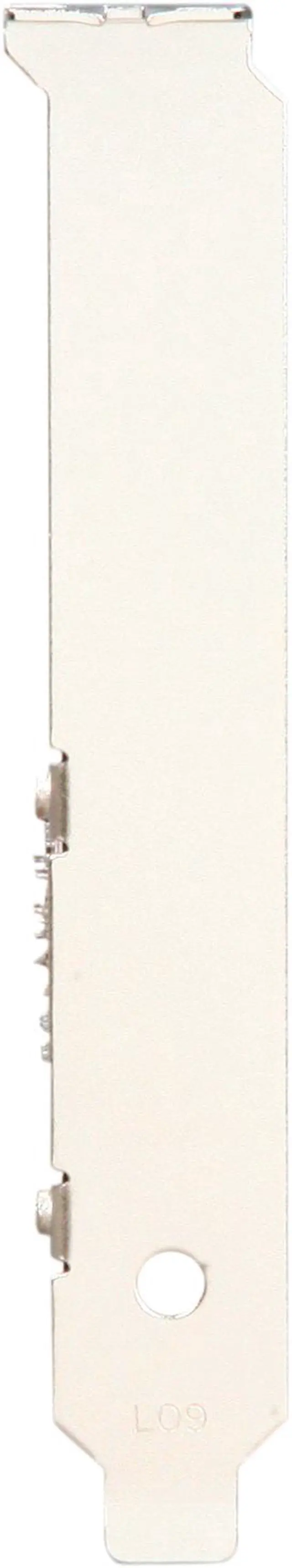

Low profile bracket x1
|Date First Available||March 31, 2008|
