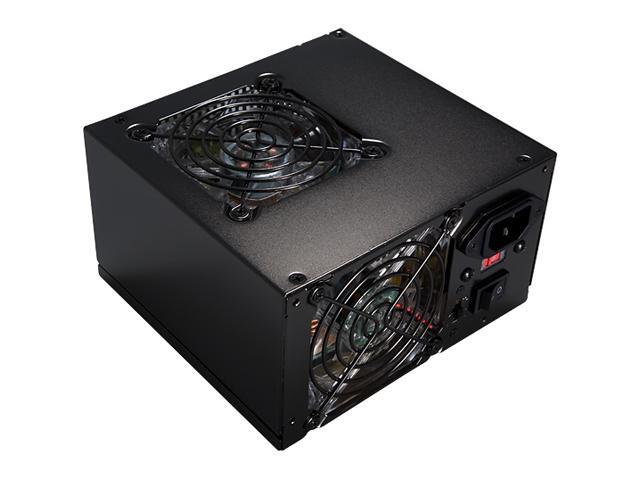

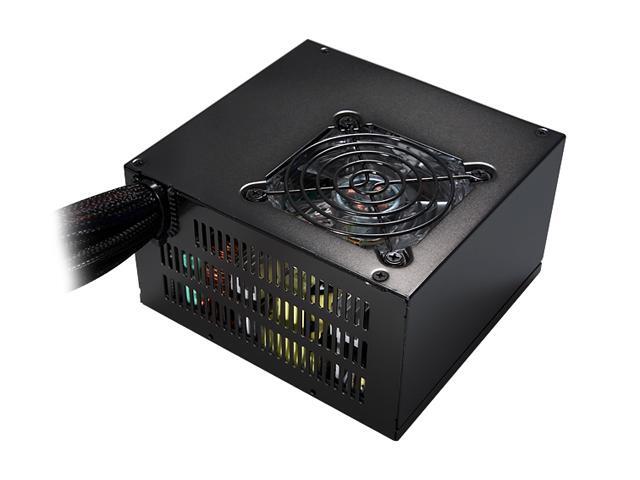

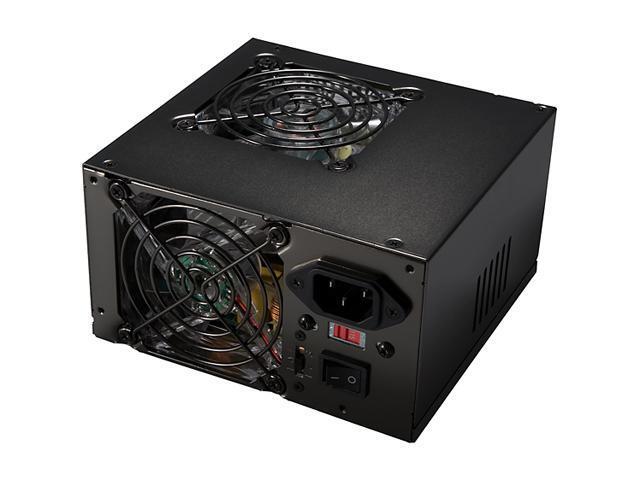

Rosewill RP550V2-D-SL 550 W ATX12V v2.01 SLI Ready CrossFire Ready Power Supply

OUT OF STOCK.
  • ATX12V v2.01
  • 115/ 230 V
Specs
Reviews

Learn more about the Rosewill RP550V2-D-SL

General
Brand Rosewill
Model RP550V2-D-SL
Details
Type ATX12V v2.01
Maximum Power 550 W
Fans 2 x Silent 80mm Ball-bearing Blue LED Fan
PFC No
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 2 x 6-Pin
SATA Power Connector 4
SLI SLI Ready
CrossFire CrossFire Ready
Modular No
Power Good Signal 100-500ms
Hold-up Time > 16ms
Efficiency > 72%
Over Voltage Protection +3.3V, +5V, +12V1, +12V2
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A/ 5.5A

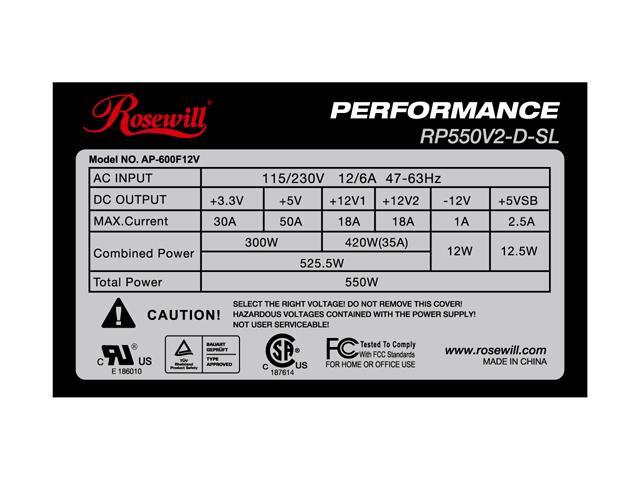

Output +3.3V@30A,+5V@50A,+12V1@18A,+12V2@18A,-12V@1A,+5VSB@2.5A
MTBF 100k hours at 25°C, max. load, nominal input
Approvals CSA, UL, TUV, FCC

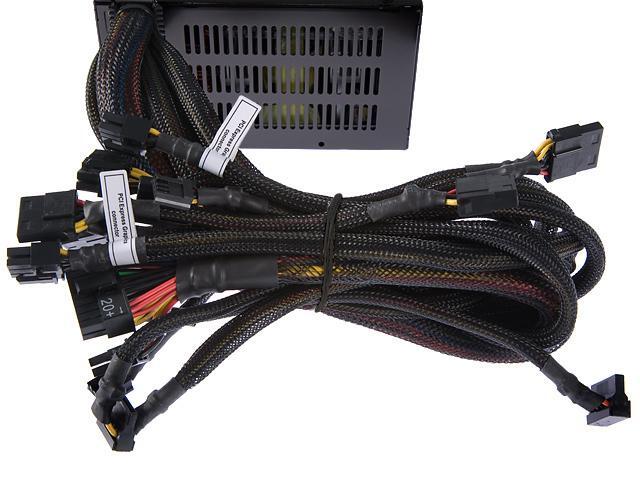

Connectors 1 x 20+4Pin Main Connector
1 x 4/8Pin +12V Connector (ATX12V/EPS12V)
2 x 6Pin PCI-Express Connector
4 x 5Pin SATA Connector
6 x 4Pin Peripheral Connector
2 x 4Pin Floppy Connector
Features
Features Supports ATX12V v2.01 standard

Supports both Intel and AMD Systems

Dual 12V Rails provide independent reliable power

SLI Ready - Dual PCI-Express 6-pin Connector

Silent Dual 80mm 2 Ball-bearing Blue LED Fans with Fan Speed Control Switch (low, auto, and high)

20+4 pin main connector for universal motherboard compatibility

4+4 pin connector for 4/8 pin ATX12V/EPS12V

Black Shiny Finish

Mesh sleeving on all cables for easier cable routing and better ventilation

Built-in Short Circuit protection, Over Voltage/Current/Power Protection circuits

Safety & EMI Approval : UL, FCC, CE, TUV, CSA
Dimension & Weight
Dimensions 5.91" x 3.39" x 5.51"
Weight 2.34 lbs.
Additional Information
Date First Available April 04, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
