Brand | Intel |
---|---|
Model | S5000PSLSATA |
CPU Socket Type | Dual LGA 771 |
---|---|
CPU Type | Dual Intel Xeon |
System Bus | 1333/1066 MHz |
North Bridge | Intel 5000P |
---|---|
South Bridge | Intel 6321 ESB |
Number of DDR2 Slots | 8 x 240Pin |
---|---|
Maximum Memory Supported | 32GB |
Channel Supported | Dual Channel |
ECC Supported | Yes |
Registered | FBDIMM |
PCI Express x8 | 2 x PCI Express x8 |
---|---|
PCI Express x4 | 2 x PCI Express x4 |
PCI-X Slots (64-bit 133MHz) | 1 |
PCI-X Slots (64-bit 100MHz) | 1 |
PATA | 1 x ATA 100 2 Dev. Max |
---|---|
SATA | 6 x SATA 3.0Gb/s |
SATA RAID | 0/1/10 |
Onboard Video Chipset | ATI ES1000 |
---|
LAN Chipset | Intel 82563EB |
---|---|
LAN Speed | 10/100/1000Mbps |
Second LAN Chipset | Intel 82563EB |
Second LAN Speed | 10/100/1000Mbps |
Max LAN Speed | Dual 10/100/1000Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
Video Ports | 1 |
USB 1.1/2.0 | 4 x USB 2.0 |
Onboard USB | 2 x USB 2.0 |
---|
Form Factor | SSI EEB 3.6 (Extended ATX) |
---|---|
Dimensions (W x L) | 13.0" x 12.0" |

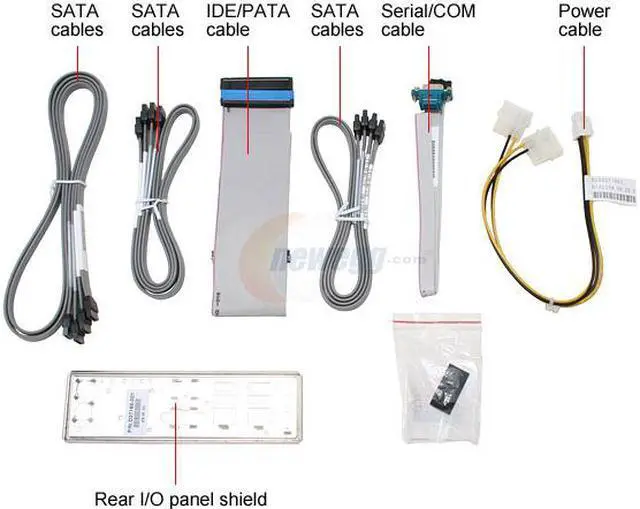

Package Contents | S5000PSLSATA 3 x SATA Cable IDE Cable Power Cable Rear I/O Panel Shield COM Port Bracket User Manual |
---|
Date First Available | August 01, 2006 |
---|
Pros: Very stable board, easy setup. Up and running great with dual quad cores and 4GB of RAM.
Cons: Lack of a floppy connect may throw some for a loop. You just have a USB drive to install SATA RAID drivers.
Overall Review: The long boot time as mentioned by the previous reviewer is so the board can run boot diagnostics. This is how a real server board is supposed to boot and is not a con. It improves server stablity and integrity. A server should not be rebooted regularly, so the delay shouldn't happen often.
