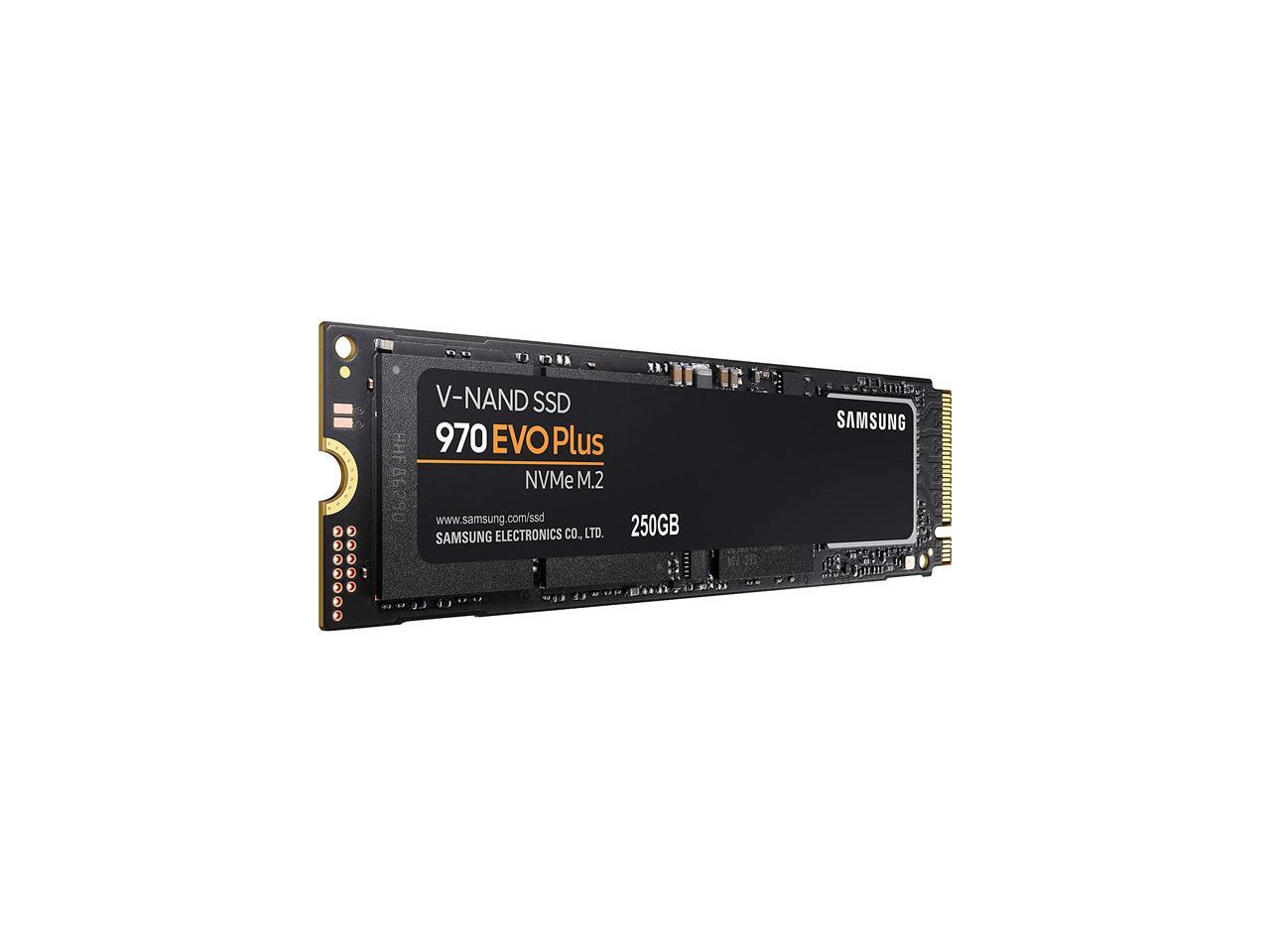

|Series||970 EVO PLUS|
|Device Type||Internal Solid State Drive (SSD)|
|Form Factor||M.2 2280|
|Memory Components||V-NAND 3-bit MLC|
|Interface||PCIe Gen 3.0 x4, NVMe 1.3|
|Cache||Samsung 512MB Low Power DDR4 SDRAM|
|Max Sequential Read||Up to 3500 MBps|
|Max Sequential Write||Up to 2300 MBps|
|4KB Random Read||QD32: Up to 250,000 IOPS|
QD1: Up to 17,000 IOPS
|4KB Random Write||QD32: Up to 550,000 IOPS|
QD1: Up to 60,000 IOPS
|Features||Reliability: 150 TBW|
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing.
Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/2,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology - which brings greater NAND performance and higher power efficiency - along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.
The next advancement in NVMe SSDs. The 970 EVO Plus fits up to 1TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.
The new standard in sustainable performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.
Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
|Power Consumption (Idle)||Max. 30 mW|
|Power Consumption (Active)||Average: 5W|
Maximum: 8W (Burst mode)
|Operating Temperature||0°C ~ +70°C|
|Max Shock Resistance||1,500G & 0.5 ms (Half sine)|
|Date First Available||October 19, 2022|
