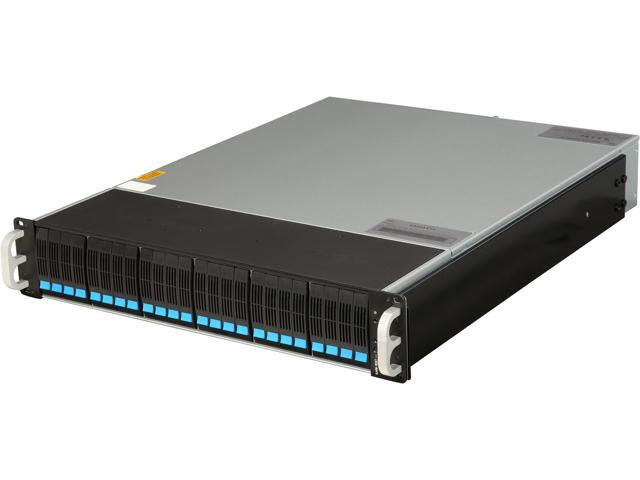

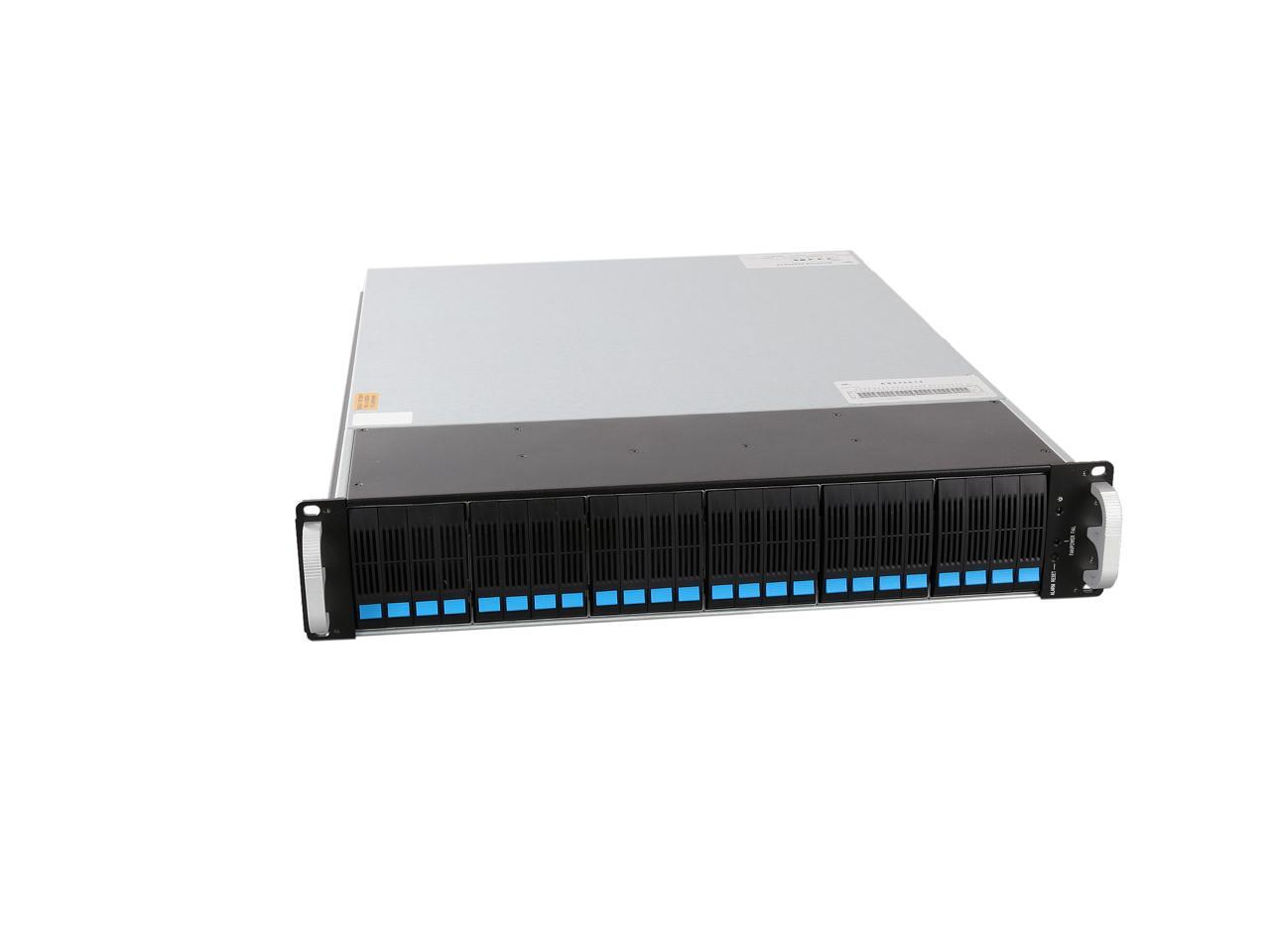

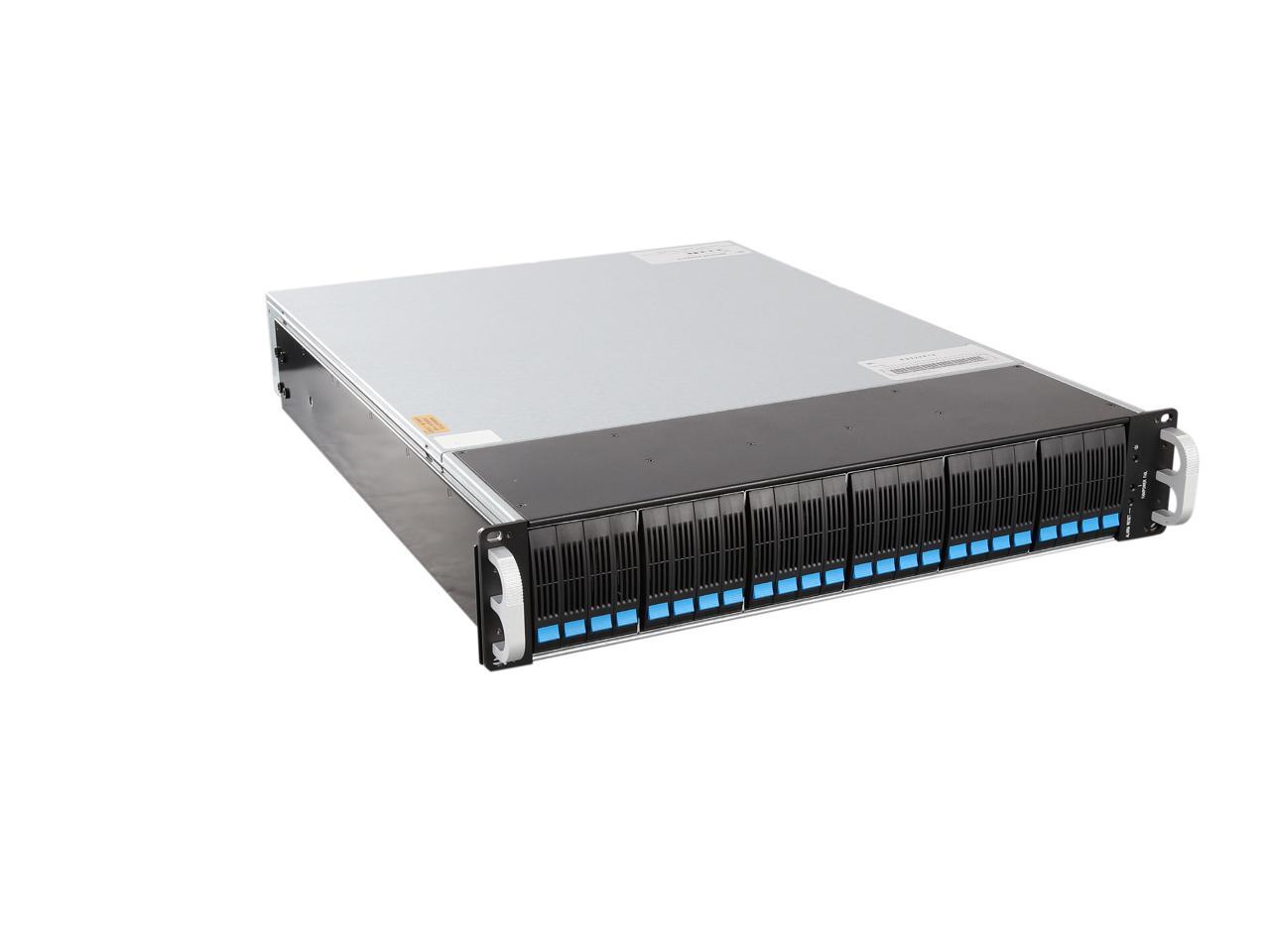

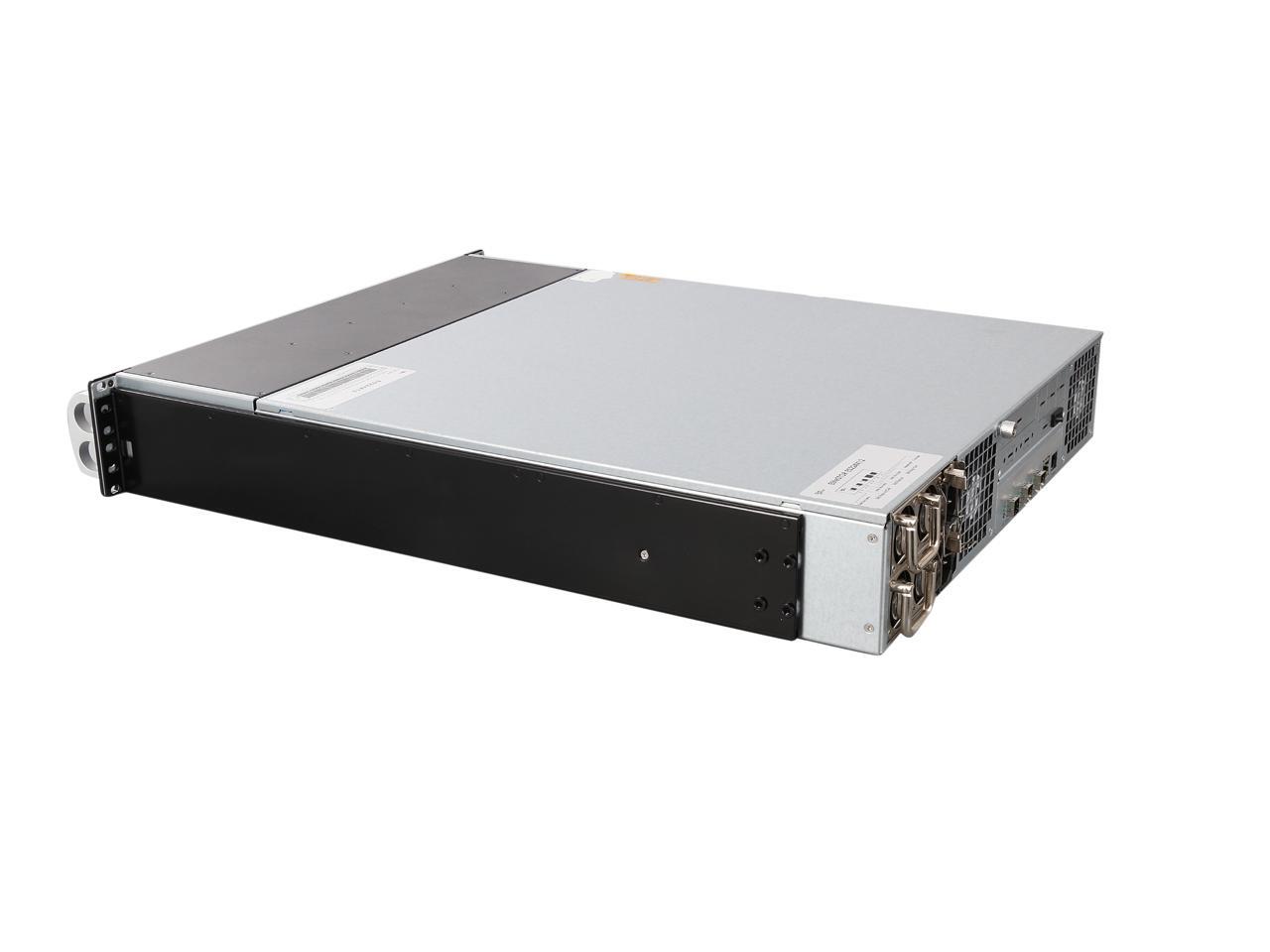

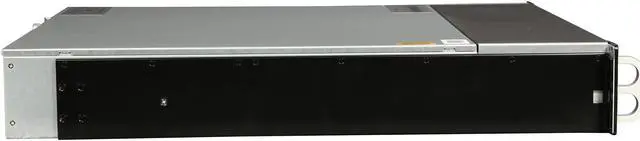

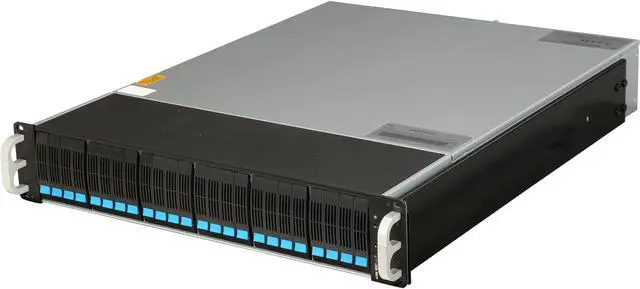

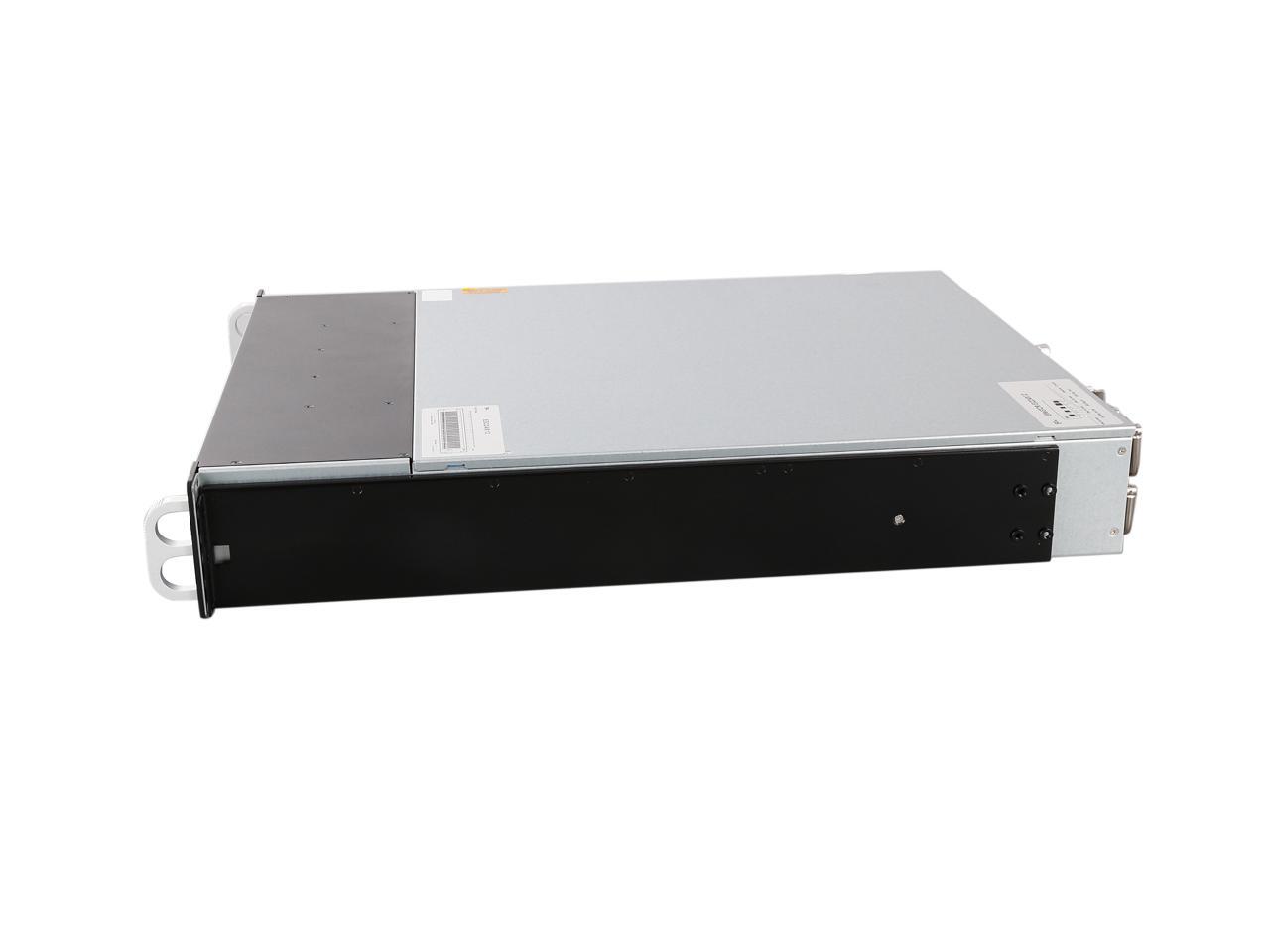

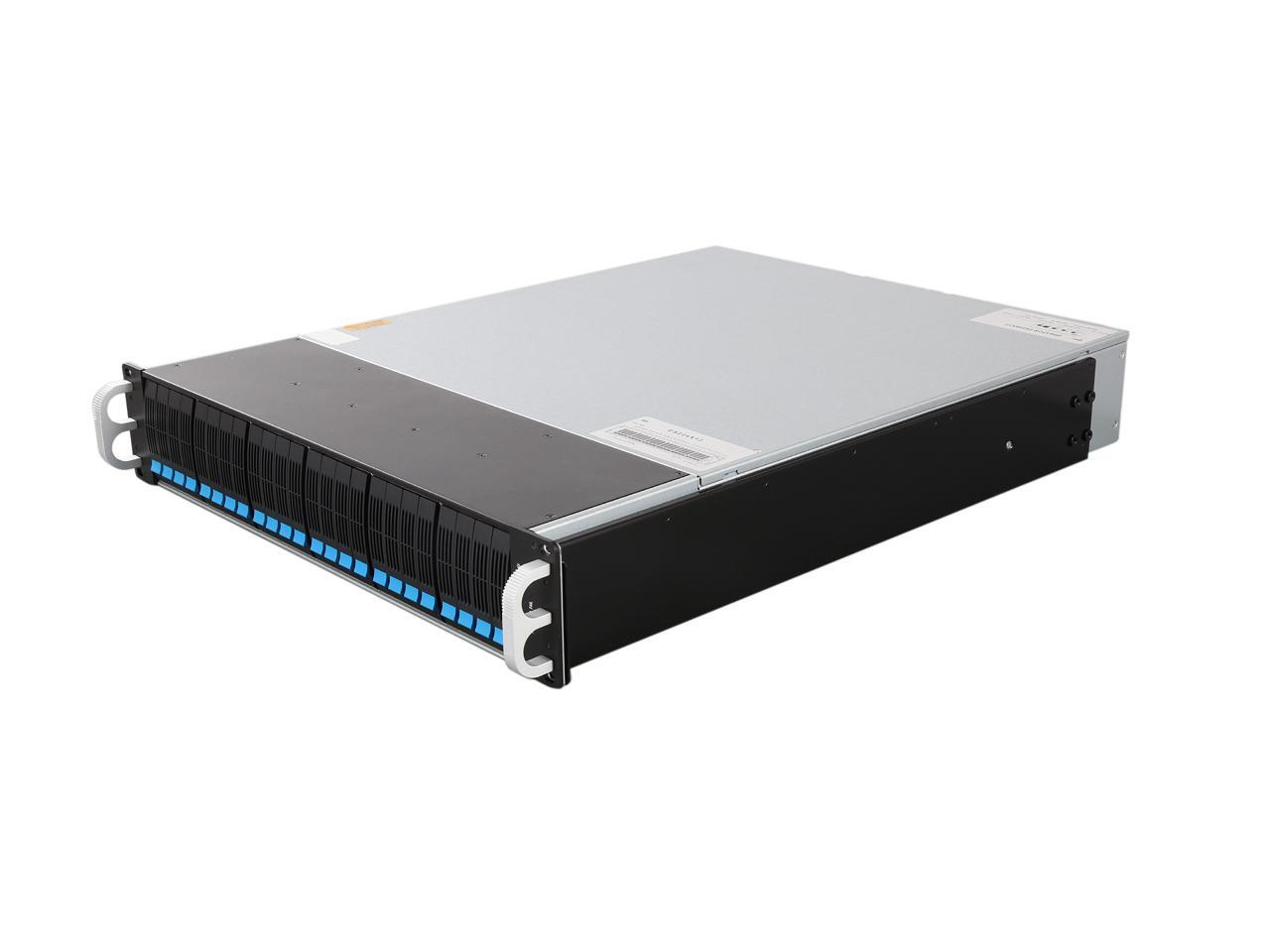

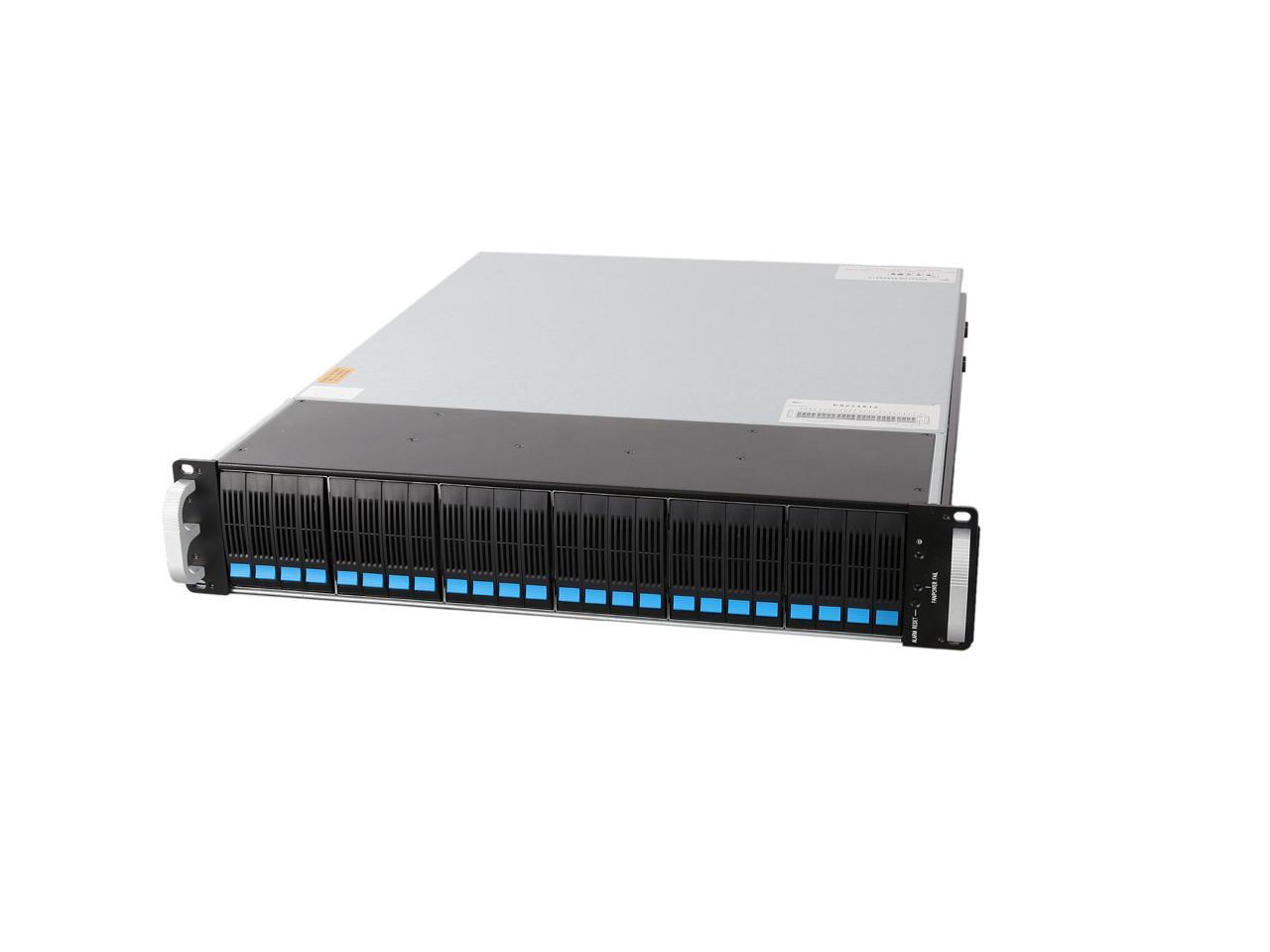

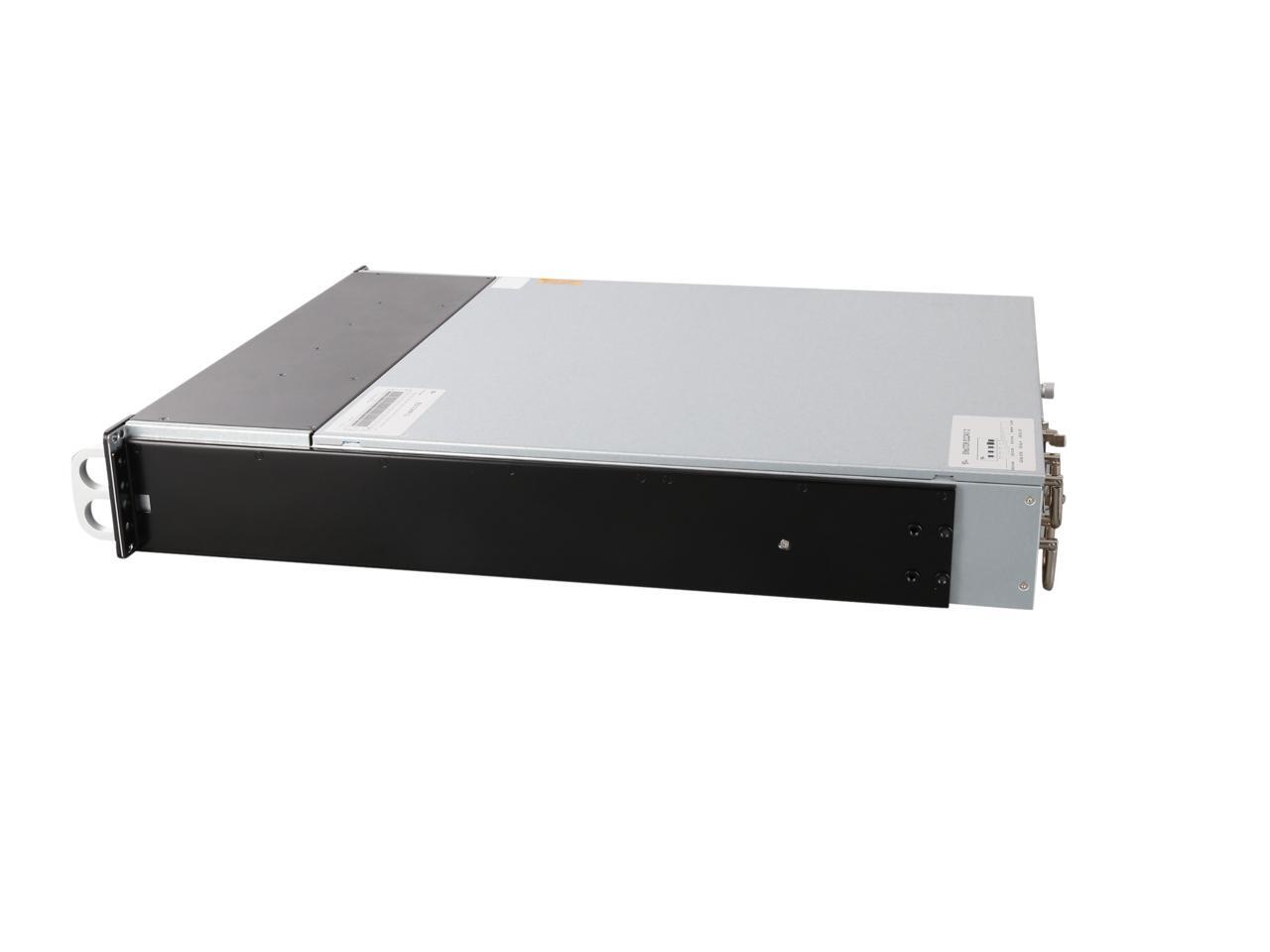

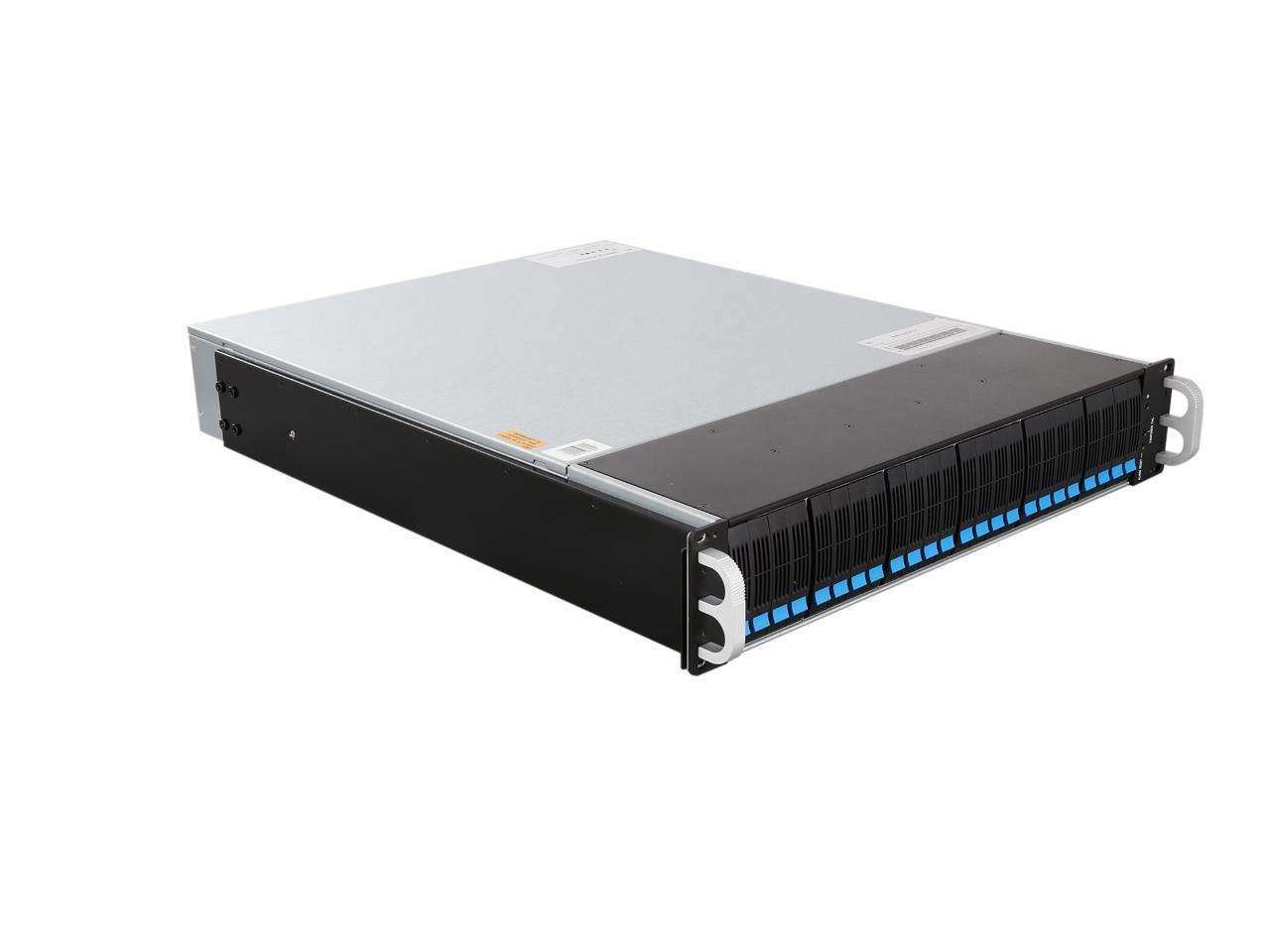

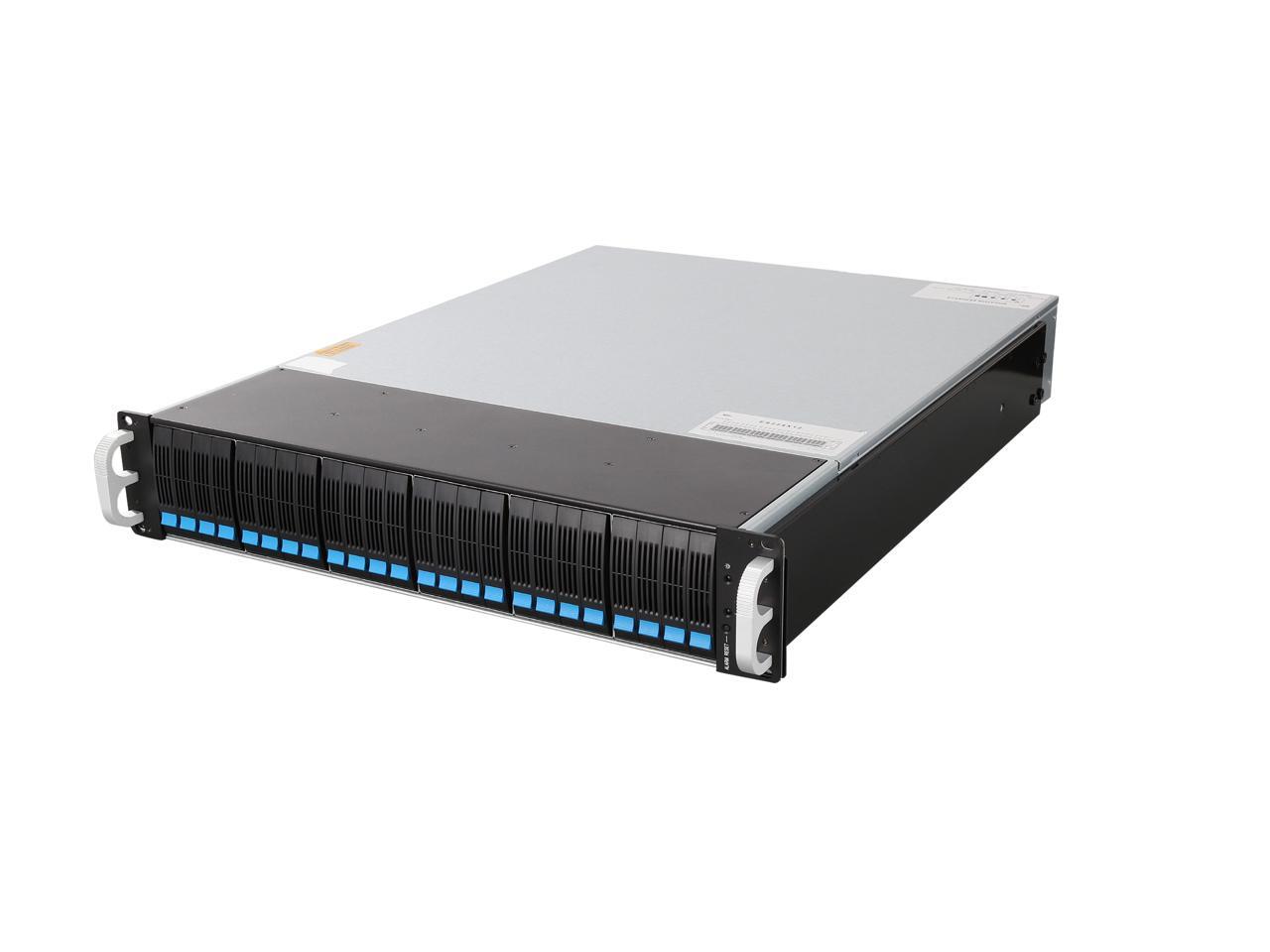

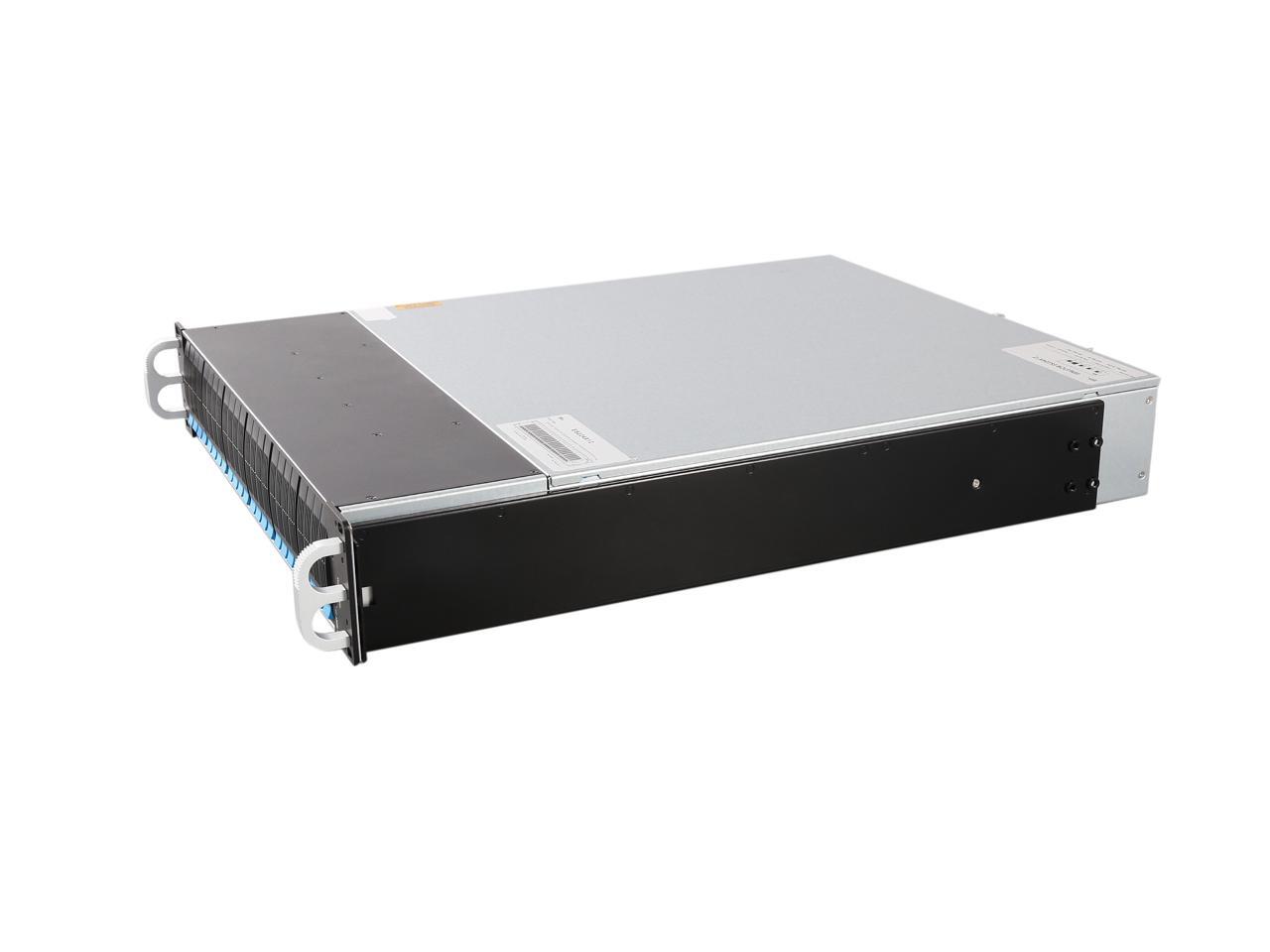

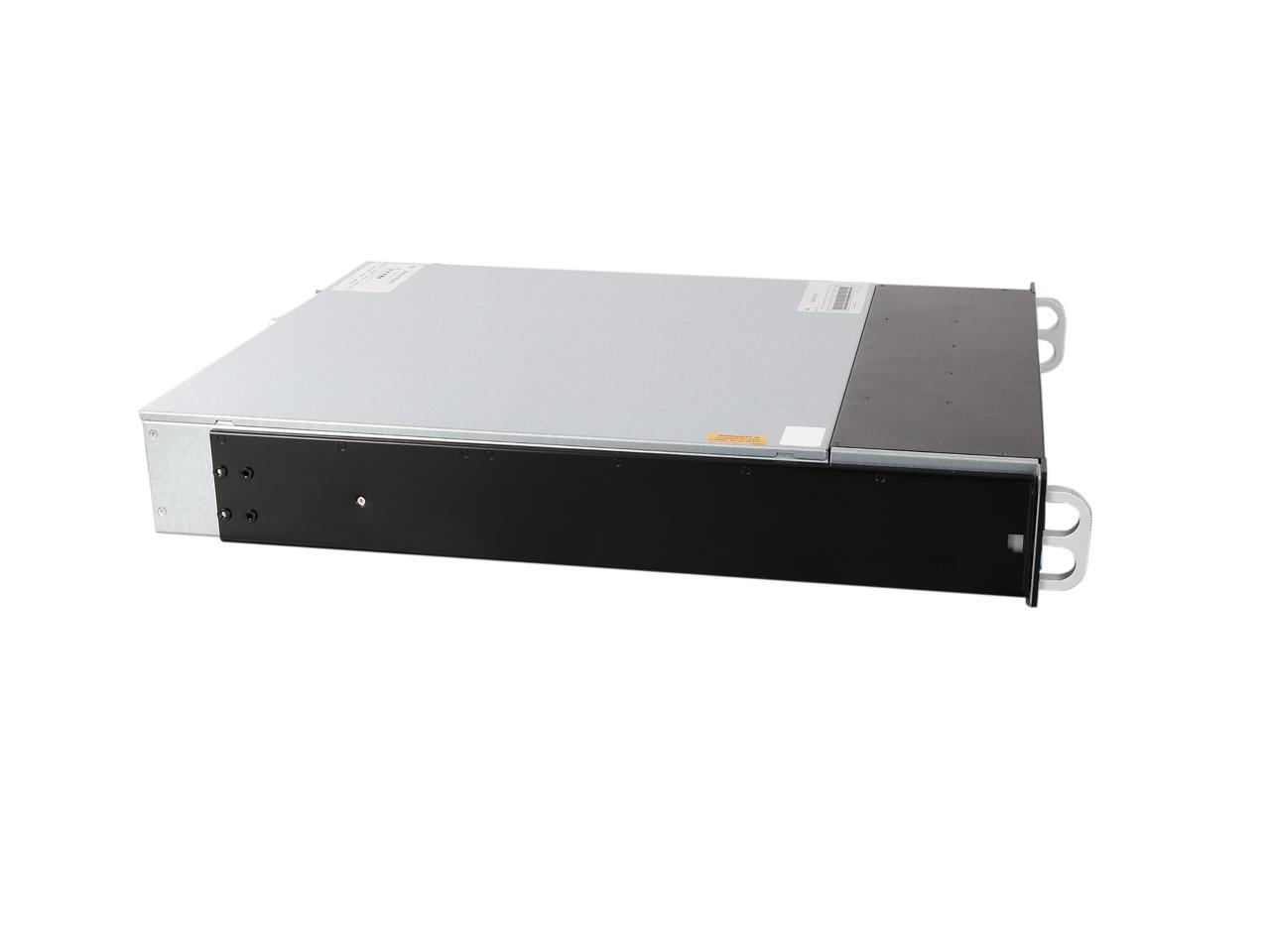

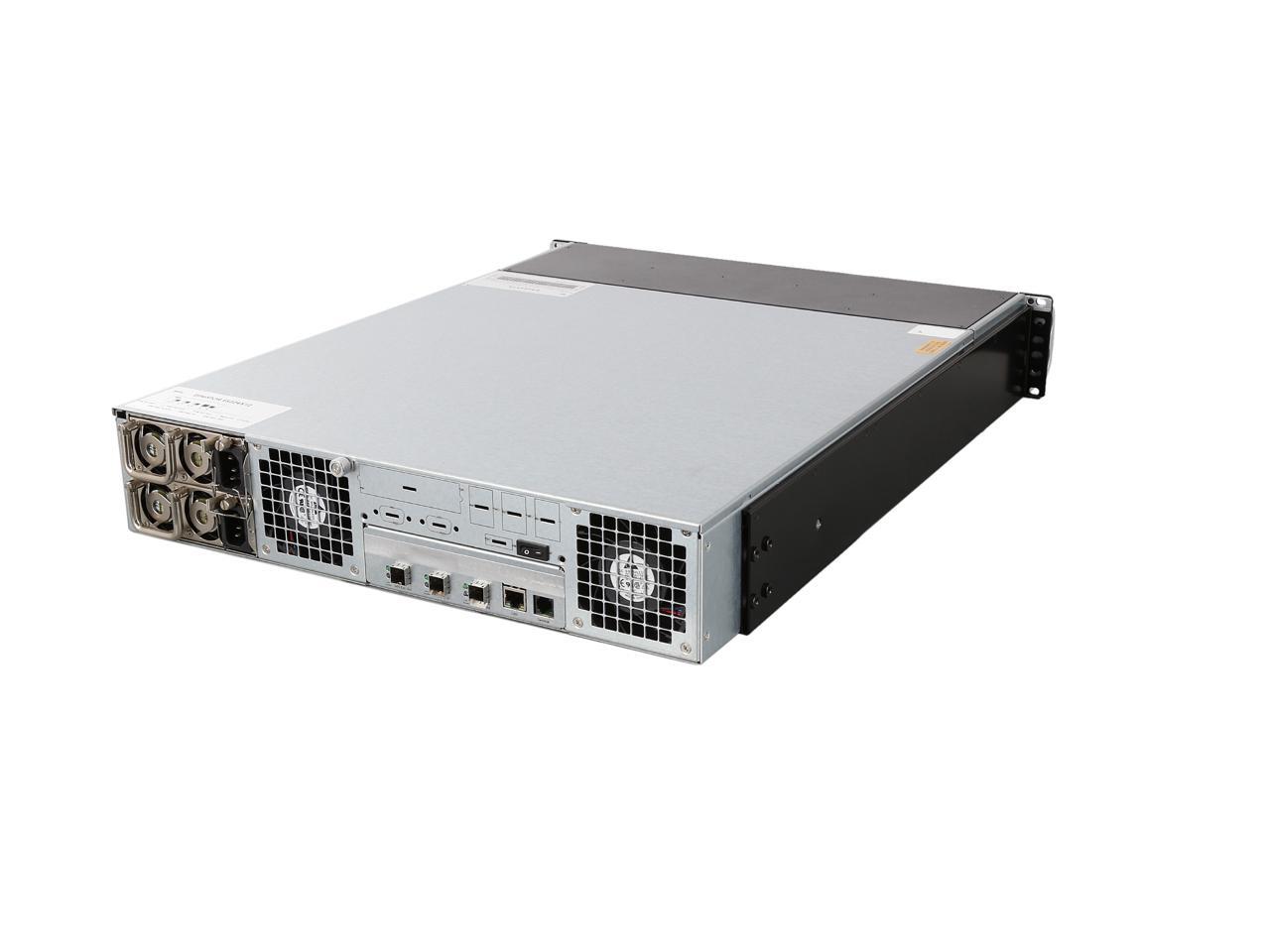

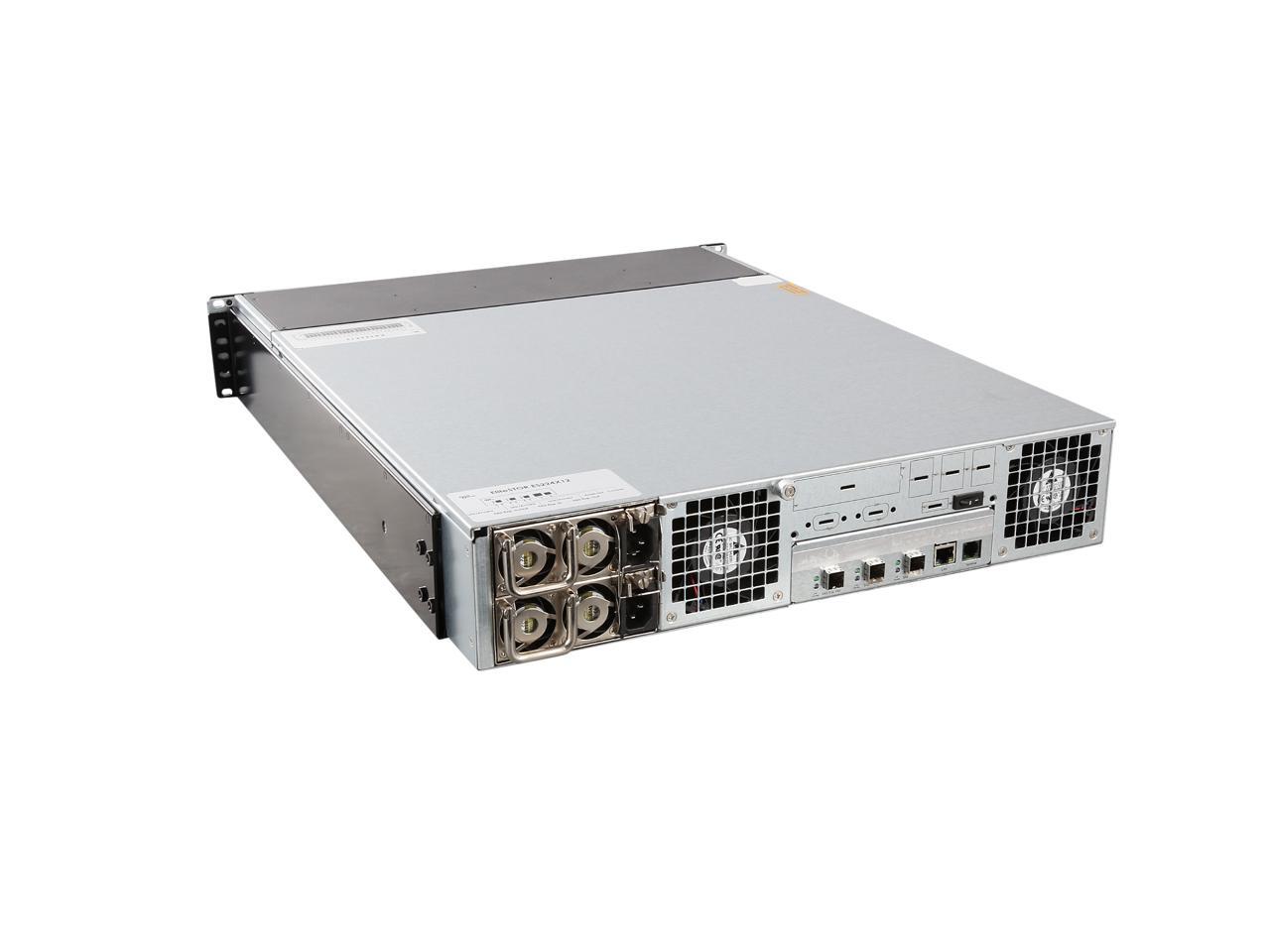

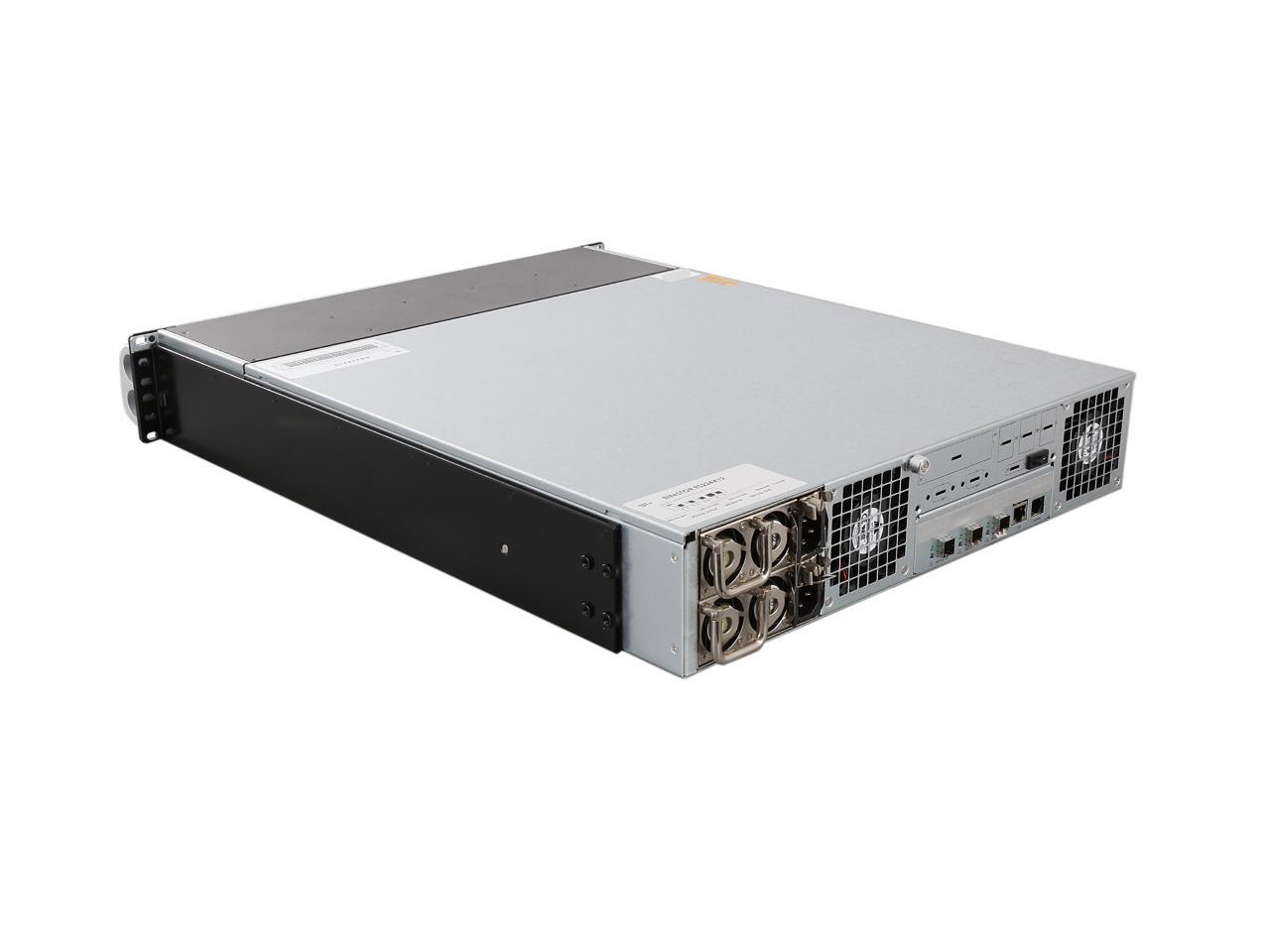

SANS DIGITAL ES224X12 JBOD (RAID is supported by additional RAID card) 24 Hot-Swappable 2.5" Drive Bay 3.5" Drive Bays 12G SAS Expander, Mini-SAS HD / SFF-8644 x 3 2U SAS 12G JBOD Rackmount

In stock.
Ships from United States.
Most customers receive within 3-9 days.
  • SAS 12G or SATA 6G

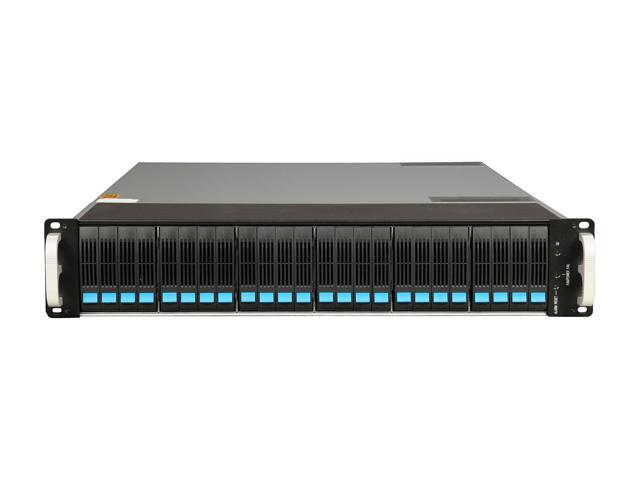

  • 24 Hot-Swappable 2.5" Drive Bay 3.5" Drive Bays
  • JBOD (RAID is supported by additional RAID card)
Specs
Reviews

Learn more about the SANS DIGITAL ES224X12

Model
Brand SANS DIGITAL
Model ES224X12
Details
Drive SAS 12G or SATA 6G

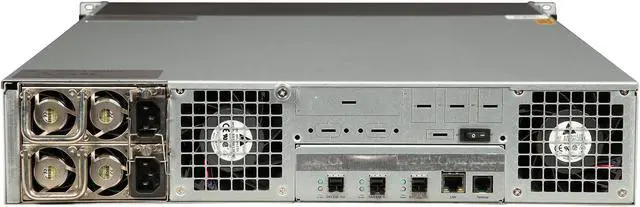

External I/O 12G SAS Expander, Mini-SAS HD / SFF-8644 x 3
RAID Levels JBOD (RAID is supported by additional RAID card)
Expansion
3.5" Drive Bays 24 Hot-Swappable 2.5" Drive Bay
Mechanical Spec

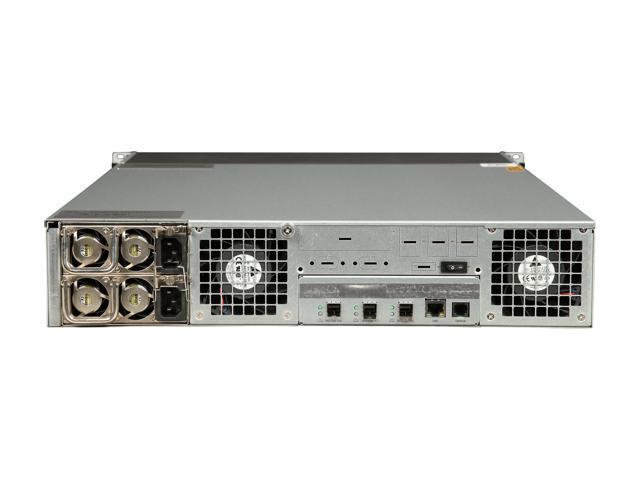

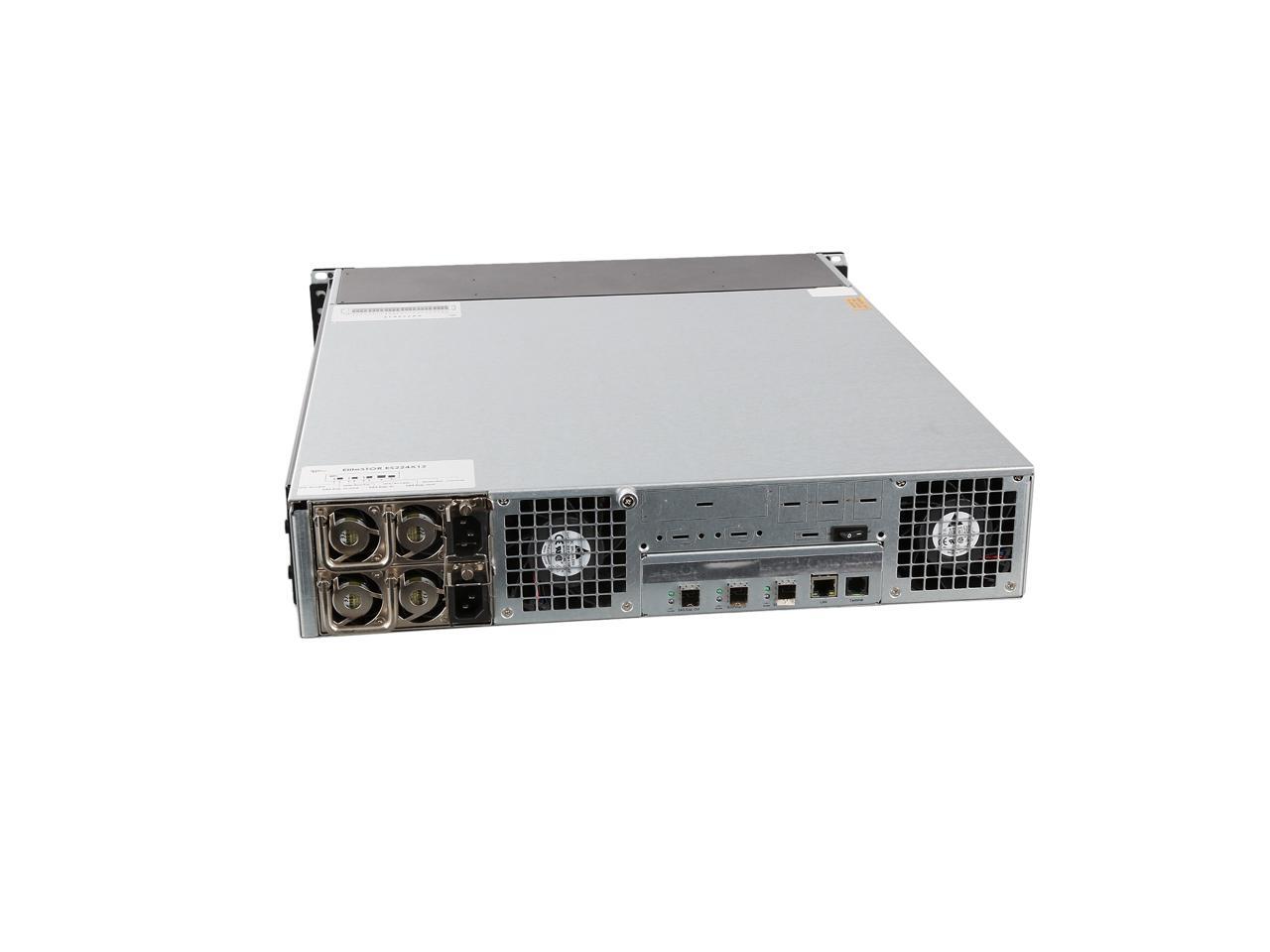

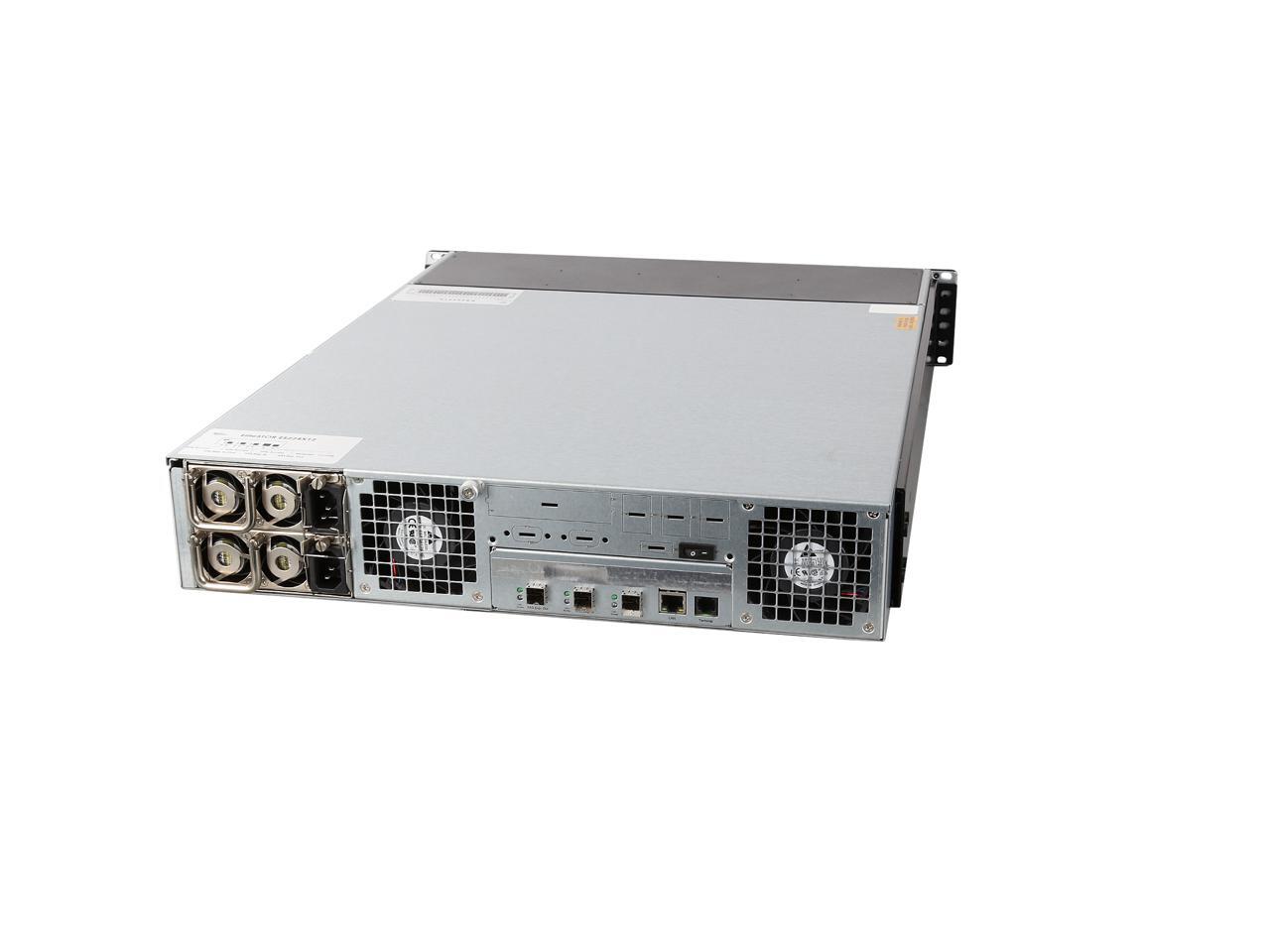

Power Supply 2 x Redundant 460W Power Supply
Features
Features Supports 12G SAS and 6G SATA Technology - Supports both latest 12G SAS and SATA Drives.

Supports standard height and 12.5mm height hard drives.

12G SAS Expander Technology - Connect 24 SAS or SATA drives with only one single SFF-8644 to SFF-8644 Mini-SAS HD cable to HBA (Host Bus Adapter) or RAID card.

Superior Performance - With support of SATA 6G or SAS 12G hard drives and 48Gb/s bandwidth, performance can reach over 2,000MB/s performacne.

Staggering Spin-Up - Built-in staggering spin-up for hard drives during power up. Thus, extending the life / duty cycle of the hard drives and power supply.

Support Industry Standard SGPIO - Serial General Purpose Input / Output (SGPIO) is utilized to provide the hard drives health & enclosure real-time information via the mini-SAS HD connection cable to the HBA (host Bus Adapter) or RAID card without additional serial cable.

Scalability - Supports up to 5 enclosures or up to 120 hard drives daisy-chained together for capacity expansion.

Multi-purposes - Supports both SAS (Serial SCSI) and SATA hard drives to meet the requirements of different applications with different price / performance characteristics. Cost-effective SATA drives could be used for capacity orientated storage such as disk-to-disk backup, data-archiving, and digital video editing. Enterprise level SAS drives could be employed for I/O intensive applications such as transactional databases.

Standard Redundant Power Supply - Hot-swappable, redundant power is included for protection against power failure. Power supply status can be easily monitored by the status LED and audible alarm alert.

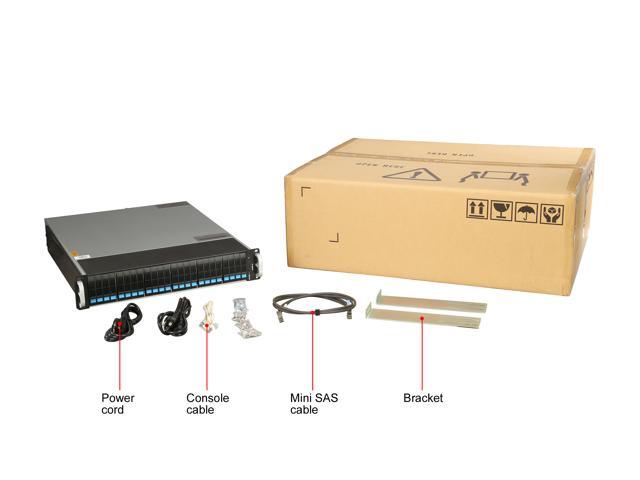

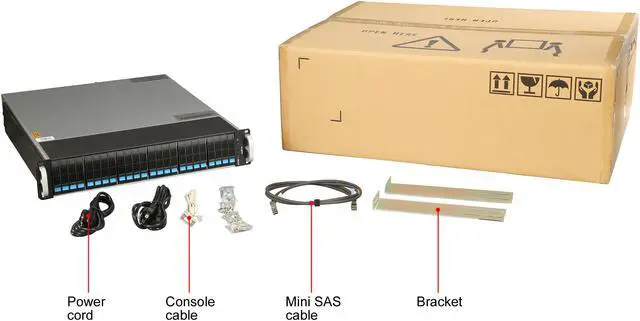

All hardware is included - Mini-SAS HD cable, cooling fan, tray modules and build-in mounting rail are included. By connecting to a SAS controller and hard drives will instantly increase the storage space.
Dimensions & Weight
Dimensions 3.50" x 19.00" x 23.00"
Weight 35.00 lbs.
Additional Information
Date First Available November 07, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
