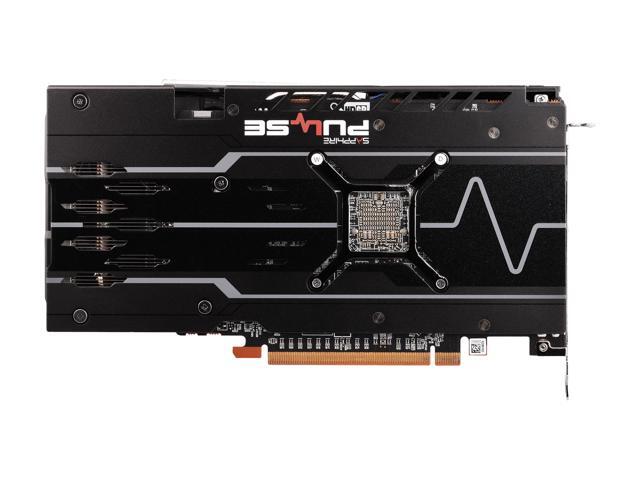

Sapphire Pulse RX 5600 XT BE 6GB GDDR6 PCI-E DUAL HDMI / DUAL DP OC w/ Backplate (UEFI)

OUT OF STOCK.
  • 6GB 192-Bit GDDR6
  • Boost Clock 1620 MHz
  • 2 x HDMI 2 x DisplayPort 1.4
  • 2304 Stream Processors
  • PCI Express 4.0 x16
Specs
Reviews

Learn more about the Sapphire Tech 11296-05-20G

Model
Brand SAPPHIRE
Series PULSE
Model 11296-05-20G
Interface
Interface PCI Express 4.0 x16
Chipset
Chipset Manufacturer AMD
GPU Series AMD Radeon RX 5600 Series
GPU Radeon RX 5600 XT
Boost Clock 1620 MHz
Stream Processors 2304 Stream Processors
Memory
Effective Memory Clock 14 Gbps
Memory Size 6GB
Memory Interface 192-Bit
Memory Type GDDR6
3D API
DirectX DirectX 12
OpenGL OpenGL 4.6
Ports
HDMI 2 x HDMI
Multi-Monitor Support 4
DisplayPort 2 x DisplayPort 1.4
Details
Max Resolution HDMI: 4096x2160@60Hz
DisplayPort1.4: 5120x2880@60Hz
Virtual Reality Ready Yes
Cooler Double Fans
Thermal Design Power 150W
System Requirements PCI Express compliant motherboard with one x16 PCIe slot.
NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power.
OEM and other pre-assembled PCs may have different power requirements.
Minimum 4GB of system memory. 8GB recommended.
- Minimum 450W or greater power supply (RX5600XT)
Installation software requires a keyboard, a mouse, and a display.
A display with digital input (HDMI or DisplayPort) is required.
Supported operating systems include Linux, Windows 10, and Windows 7.
64-bit operating system required.
DirectX 12 and Vulkan support.
For information on Radeon VR Ready Premium visit amd.com/VRready.
Power Connector 8-Pin
Features
Features RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeon Software
Radeon Boost
Radeon Image Sharpening
Radeon Anti-Lag
AMD FidelityFx
Async Compute
Radeon Rays Audio + True Audio Next
Radeon FreeSync 2 HDR
Radeon VR Ready Premium
Driver Optimization
TriXX Boost
Form Factor & Dimensions
Form Factor ATX
Max GPU Length 231 mm

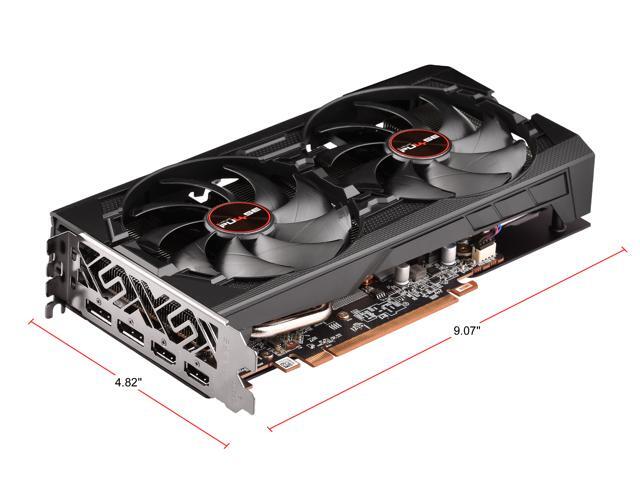

Card Dimensions (L x H) 9.07" x 4.82"
Slot Width Dual Slot
Additional Information
Date First Available June 10, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
