|Interface||PCI Express 3.0 x16|
|GPU Series||AMD Radeon RX 500 Series|
|GPU||Radeon RX 570|
|Boost Clock||1275 MHz|
|Stream Processors||2048 Stream Processors|
|Effective Memory Clock||Up to 1900 MHz, Effective 7600 Mbps|

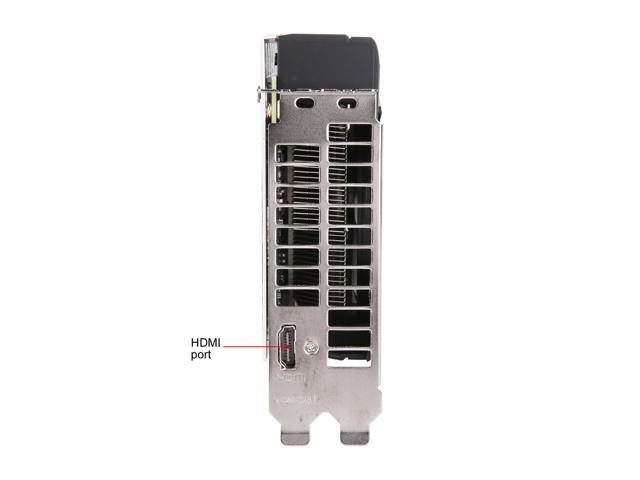

|HDMI||1 x HDMI|
|Max Resolution||HDMI: 4096 x 2160 @ 60 Hz|
|Operating Systems Supported||Supported operating systems include Windows 10, and Windows 7. |
64-bit operating system required.
|Thermal Design Power||225W|
|System Requirements||PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. |
NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power.
500W (or greater) power supply with minimum one PCIE 8-pin power connector is required.
OEM and other pre-assembled PCs may have different power requirements.
Minimum 4GB of system memory. Recommended 8GB.
Installation software requires a keyboard, a mouse, and a display.
DVD playback requires DVD drive and a DVD.
Blu-ray playback requires Blu-ray drive.
Requires motherboard/CPU with integrated graphics processor and at least one display output.
|Recommended PSU Wattage||500W|
|Features||ROCM 2.0 accelerated Grin Miner for PCIE 3.0 platform|
OpenCL accelerated Grin Miner for PCIE 2.0 platform
Will mine Cuckatoo 32+ (with driver update)
Miner supports both Cuckaroo 29+ and Cuckatoo 31+
Will also support different Blockchain algorithms
Discrete control board for easy swap and upgrade
Dual Ball Bearing Fan with SAPPHIRE Quick Connect Fan technology
|Max GPU Length||230 mm|
|Card Dimensions (L x H)||9.06" x 4.96"|
|Slot Width||Dual Slot|
|Date First Available||March 18, 2019|
