Brand | SAPPHIRE |
---|---|
Model | 100600-Red |
Interface | PCI Express x16 |
---|
Chipset Manufacturer | ATI |
---|---|
GPU | Radeon X800PRO |
Core Clock | 475 MHz |
PixelPipelines | 12 |
Effective Memory Clock | 900 MHz |
---|---|
Memory Size | 256MB |
Memory Interface | 256-Bit |
Memory Type | GDDR3 |
DirectX | DirectX 9 |
---|---|
OpenGL | OpenGL 2.0 |
D-SUB | 1 x D-SUB |
---|---|
DVI | 1 x DVI |
TV-Out | HDTV Out |
VIVO | Yes |
Tuner | None |
---|---|
RAMDAC | 400MHz |
Max Resolution | 2048 x 1536@85Hz |
Cooler | With Fan |
Operating Systems Supported | Windows 2000/XP |
System Requirements | A 300w power supply or greater is recommended to ensure normal system operation where a number of other internal devices are installed Intel Pentium, AMD or compatible CPUs 128 MB system memory or more PCI Express compliant motherboard |
Features | * SMARTSHADER HD increased maximum shader instruction count to 1,536 from 160, new high-performance shader compiler * SMOOTHVISION HD improved AA and AF performance for HD resolutions, 12X effective Temporal MSAA generates the sharpest and clearest images * VIDEOSHADER HD integrated shader features to provide unprecedented support for digital and high definition video * HYPER Z HD enhanced Hi-Z buffer for improved performance at HD resolutions * 3Dc provided image enhancement, acceleration technology resulting in high polygon characters and scenes * 128-bit, 64-bit, 32-bit per pixel floating point color formats |
---|

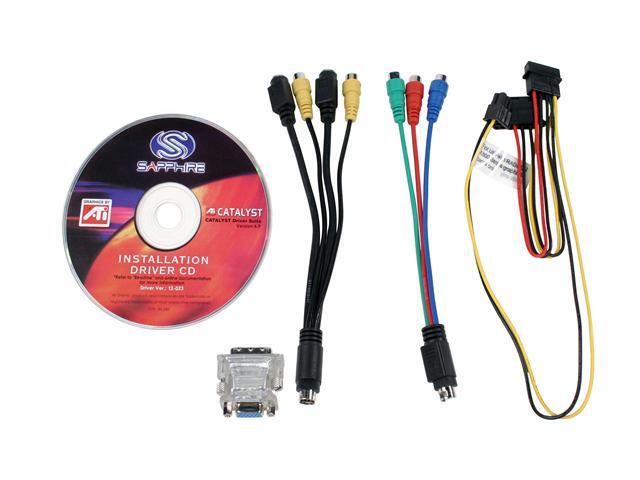

Package Contents | DVI to VGA Adapter HDTV cable VIVO cable Power extension cord Driver CD |
---|
Date First Available | December 27, 2004 |
---|
Comments: I've had this thing for 3 months now and everything is just fine. I've overclocked it to 550/575 on stock cooling and it runs stable, versus the stock 475/450. Go to techpowerup .com for a great overclocking utility. I'm buying a set of RAM heatsinks for it today, and possibly a new HS/Fan for the core. Everything looks great, can run max settings on Half-Life 2 Lost Coast demo, which uses the new HDR lighting effects. Alot better card than the Nxxxia 6600 series, which runs for roughly the same price.
