Sapphire brings the power of graphics ‘supercomputing’ to enthusiasts with their 100251SR Radeon HD 4870 X2 card. With 1600 (800 x 2) Stream Processing Units, the card delivers unapproachable graphics performance for complicated 3D rendering or gaming.
The Sapphire 100251SR Radeon HD 4870 X2 card has 2GB of high-throughput GDDR5 memory, clocked at 750MHz and the GPU core is clocked at 900MHz. Supporting AMD CrossFireX technology, the high-speed connectors on each card allow two cards to be used together for enhanced performance when installed in a CrossFireX compatible motherboard.
The Radeon HD 4870 X2 incorporates the latest ATI Avivo HD Technology for enhanced video display, and a second generation built-in UVD 2 (Unified Video decoder 2) for the hardware accelerated decoding of Blu-ray and HD DVD content for VC-1, H.264 and MPEG-2 codecs, reducing CPU load. Via the included DVI-to-HDMI adapter, this card supports multi-channel audio formats (up to 7.1) and combines audio and video output on a single cable for direct connection to an HDMI-ready display. Support for DirectX10.1 ensures optimal compatibility with all DirectX10.1 applications, and enables stunning 3D graphics and shading effects in the latest games.
Sapphire brings the power of graphics ‘supercomputing’ to enthusiasts with their 100251SR Radeon HD 4870 X2 card. With 1600 (800 x 2) Stream Processing Units, the card delivers unapproachable graphics performance for complicated 3D rendering or gaming.
The Sapphire 100251SR Radeon HD 4870 X2 card has 2GB of high-throughput GDDR5 memory, clocked at 750MHz and the GPU core is clocked at 900MHz. Supporting AMD CrossFireX technology, the high-speed connectors on each card allow two cards to be used together for enhanced performance when installed in a CrossFireX compatible motherboard.
The Radeon HD 4870 X2 incorporates the latest ATI Avivo HD Technology for enhanced video display, and a second generation built-in UVD 2 (Unified Video decoder 2) for the hardware accelerated decoding of Blu-ray and HD DVD content for VC-1, H.264 and MPEG-2 codecs, reducing CPU load. Via the included DVI-to-HDMI adapter, this card supports multi-channel audio formats (up to 7.1) and combines audio and video output on a single cable for direct connection to an HDMI-ready display. Support for DirectX10.1 ensures optimal compatibility with all DirectX10.1 applications, and enables stunning 3D graphics and shading effects in the latest games.
TeraScale Graphics EngineThe dual TeraScale engines combines 2.4 teraFLOPs of graphics horse power, 1600 stream processors and next generation GDDR5 memory, so you can enjoy the high resolutions and seamless frame rates previously only available with dual-card systems.
Full Microsoft DirectX 10.1 SupportThe DirectX 10.1 GPU with full Shader Model 4.1 support delivers unparalleled levels of graphics realism and film-quality effects.
Enhanced Anti-Aliasing and Anisotropic FilteringEnhanced anti-aliasing (AA) and anisotropic filtering (AF) smooth jagged edges and create striking graphics with unparalleled realism so you can max out the settings of the most demanding next-generation games.
PCI Express 2.0 InterfaceThe PCI Express 2.0 x16 interface delivers an ultra-high data rate of up to 16 GB/s, and is backward compatible with PCI Express x16 (PCI-E 1.0), so you can upgrade the graphics of your existing system with the Sapphire 100251SR Radeon HD 4870 X2.
ATI Avivo HDIntegrated into ATI's next-generation ATI Radeon HD graphics processors, ATI Avivo HD is AMD's new reference for advanced HD image processing, delivering flawless smooth HD video playback with hardware-based Unified Video Decoding 2 (UVD 2) capability. ATI Avivo HD also introduces a new era in PC to CE connectivity with built-in HDMI and 5.1 surround audio, which enables a truly easy, one-cable connection to your big-screen TV or home theatre receiver.
ATI CrossFireXATi CrossFireX is the ultimate multi-GPU performance gaming platform, enabling two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.
Learn more about the Sapphire Tech 100251SR
Model
Brand
SAPPHIRE
Model
100251SR
Interface
Interface
PCI Express 2.0 x16
Chipset
Chipset Manufacturer
AMD
GPU
Radeon HD 4870 X2
Stream Processors
3200 (1600 x 2) Stream Processors
Memory
Memory Size
2GB
Memory Interface
512-bit (256-bit x 2)
Memory Type
GDDR5
3D API
DirectX
DirectX 10.1
OpenGL
OpenGL 2.1
Ports
HDMI
1 x HDMI (via Adapter)
DVI
2 x DVI
TV-Out
HDTV / S-Video Out
Details
RAMDAC
400MHz
Max Resolution
2560 x 1600
CrossFireX Support
Yes
Cooler
With Fan
System Requirements
PCI ExpressR based PC is required with one X16 lane graphics slot available on the motherboard 650 Watt or greater power supply with one 2x3-pin PCIeR power connector and one 2x4-pin PCIeR power connector is required (1K Watt with two 2x3-pin and two 2x4-pin connectors for ATI CrossFireX technology in dual mode) Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSUfor a list of Certified products Minimum 1GB of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
Power Connector
1 x 6-Pin + 1 x 8-Pin
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Packaging
Package Contents

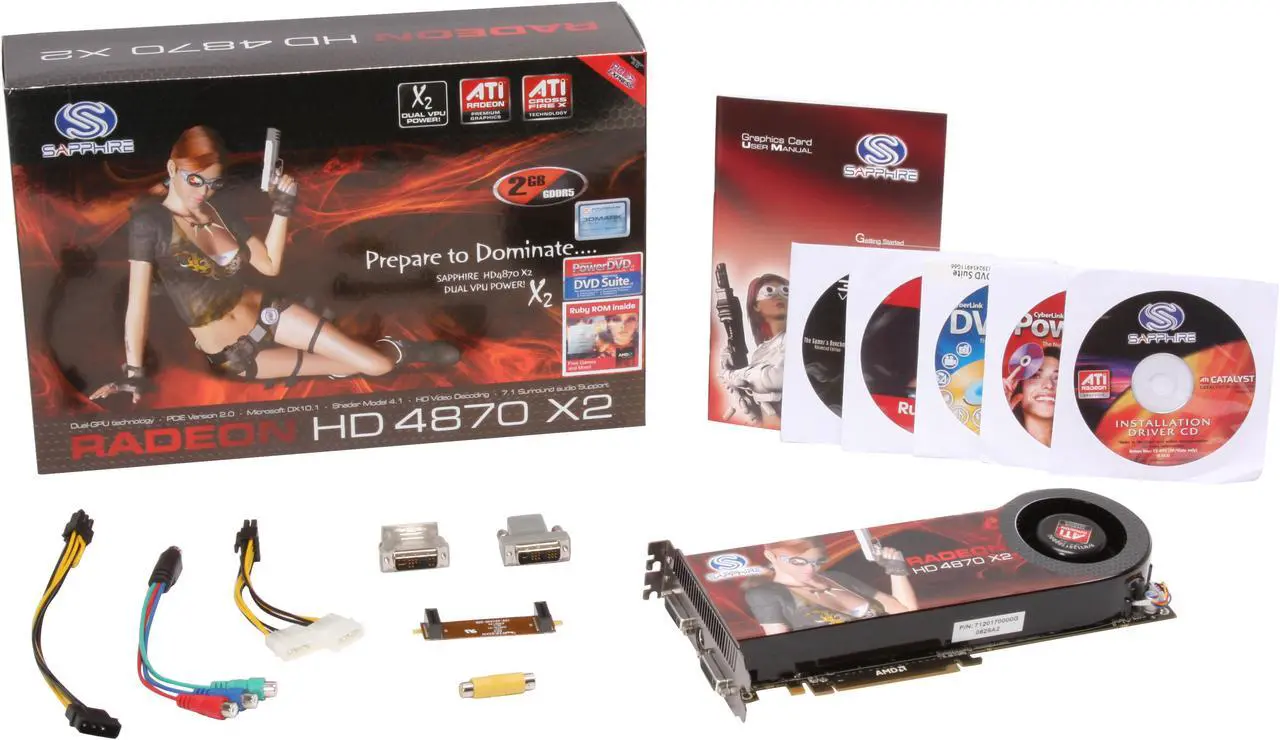

100251SR Driver Disk User's Manual HDTV Cable Power Cable DVI to VGA/D-sub Adapter DVI to HDMI Adapter CrossFire Bridge S-Video to Composite Adapter Software Disk
