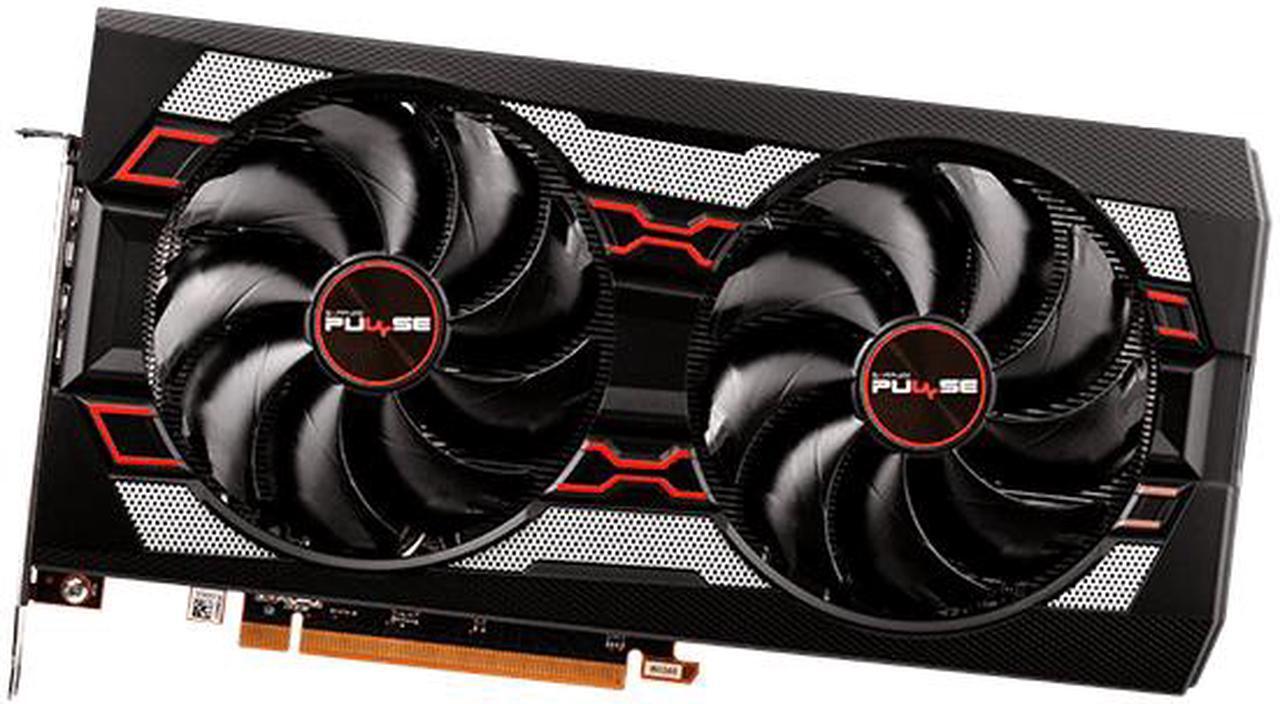

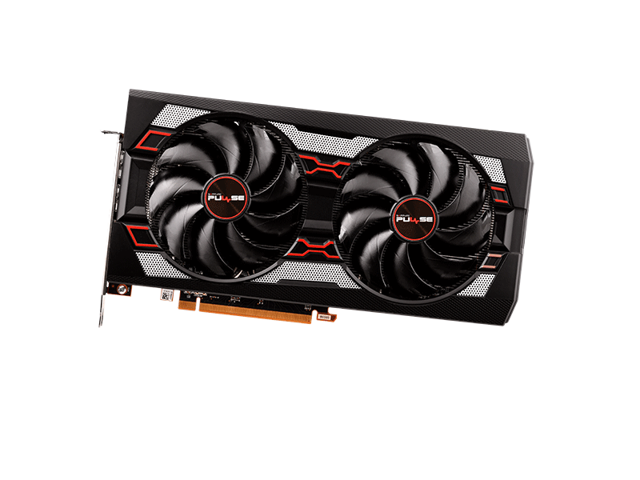

SAPPHIRE PULSE Radeon RX 5700 XT 11293-01-20G 8GB 256-Bit GDDR6 PCI Express 4.0 x16 ATX Video Card
REFURBISHED Product Type
- 8GB 256-Bit GDDR6
- Core Clock 1670 MHz
- Boost Clock 1925 MHz
- 1 x HDMI 3 x DisplayPort 1.4
- 2560 Stream Processors
- PCI Express 4.0 x16
+
+
Specs
Reviews
Learn more about the Sapphire Tech 11293-01-20G
| Brand | SAPPHIRE |
|---|---|
| Series | PULSE |
| Model | 11293-01-20G |
| Interface | PCI Express 4.0 x16 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 5700 Series |
| GPU | Radeon RX 5700 XT |
| Core Clock | 1670 MHz |
| Boost Clock | 1925 MHz |
| Stream Processors | 2560 Stream Processors |
| Effective Memory Clock | 14 Gbps |
|---|---|
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI |
| DisplayPort | 3 x DisplayPort 1.4 |
| Max Resolution | HDMI: 4096 x 2160 @ 60 Hz DisplayPort1.4: 5120 x 2880 @ 60 Hz |
|---|---|
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Operating Systems Supported | Supported operating systems include Linux, Windows 10, and Windows 7. 64-bit operating system required. |
| Thermal Design Power | 225W |
| System Requirements | PCI Express compliant motherboard with one x16 PCIe slot. NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements. Minimum 8GB of system memory. 16GB recommended. - Minimum 600W or greater power supply. (RX5700XT / RX5700) Installation software requires a keyboard, a mouse, and a display. A display with digital input (HDMI or DisplayPort) is required. DirectX 12 and Vulkan support. For information on Radeon VR Ready Premium visit amd.com/VRready. |
| Recommended PSU Wattage | 600W |
| Power Connector | 1 x 8-pin and 1 x 6-pin |
| Features | RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon Software Radeon Boost Radeon Image Sharpening Radeon Anti-Lag AMD FidelityFx Async Compute Radeon Rays Audio + True Audio Next Radeon FreeSync 2 HDR Radeon VR Ready Premium |
|---|
| Form Factor | ATX |
|---|---|
| Max GPU Length | 254 mm |
| Card Dimensions (L x H) | 10.00" x 5.31" |
| Slot Width | 2.3 slot |
| Date First Available | October 31, 2023 |
|---|
