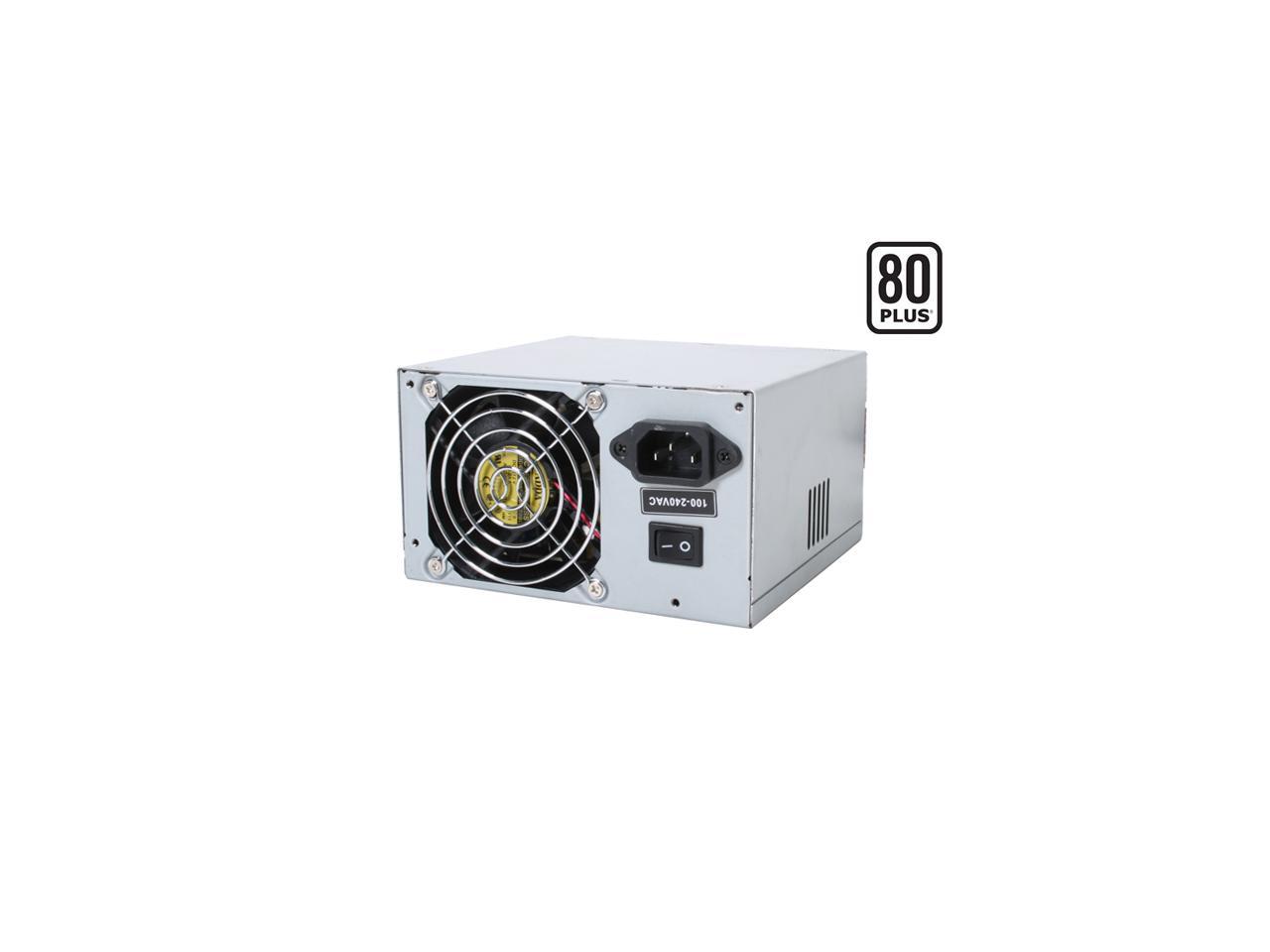

SeaSonic SS-500ES 500W ATX12V 2.2 / EPS12V 2.91 SLI Ready CrossFire Ready 80 PLUS Certified Active PFC Power Supply - OEM
OUT OF STOCK.
- ATX12V 2.2 / EPS12V 2.91
- 80 PLUS Certified
- 100 - 240 V 50/60 Hz
- +5V@24A, +3.3V@24A,+12V1@17A, +12V2@17A, -12V@0.8A, +5VSB@2.5A
Specs
Reviews
Learn more about the SeaSonic USA SS-500ES
| Brand | SeaSonic |
|---|---|
| Model | SS-500ES |
| Type | ATX12V 2.2 / EPS12V 2.91 |
|---|---|
| Maximum Power | 500W |

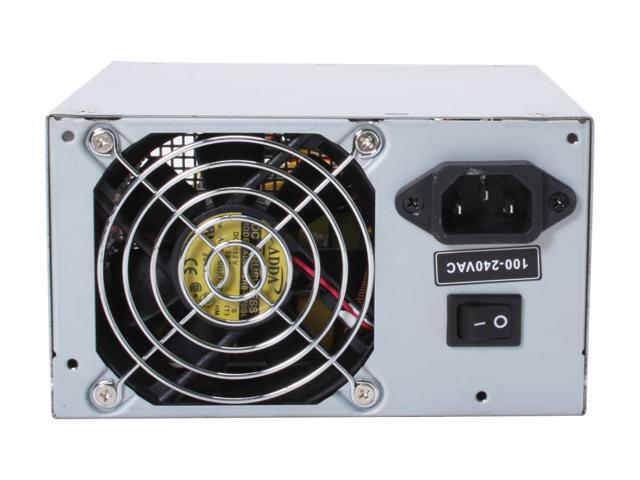

| Fans | One Double Ball Bearing 8cm fan |
| PFC | Active |

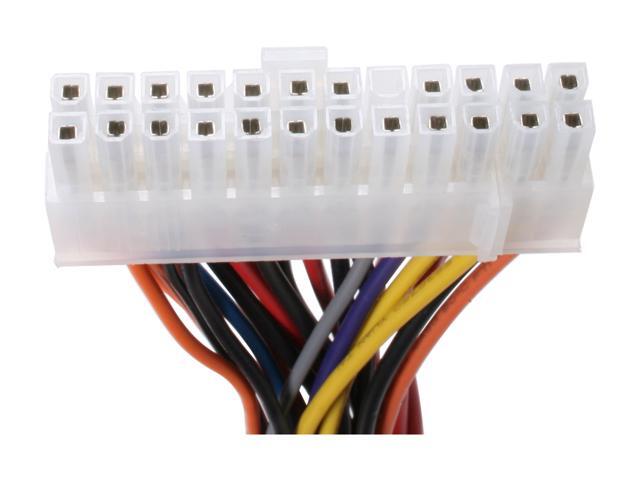

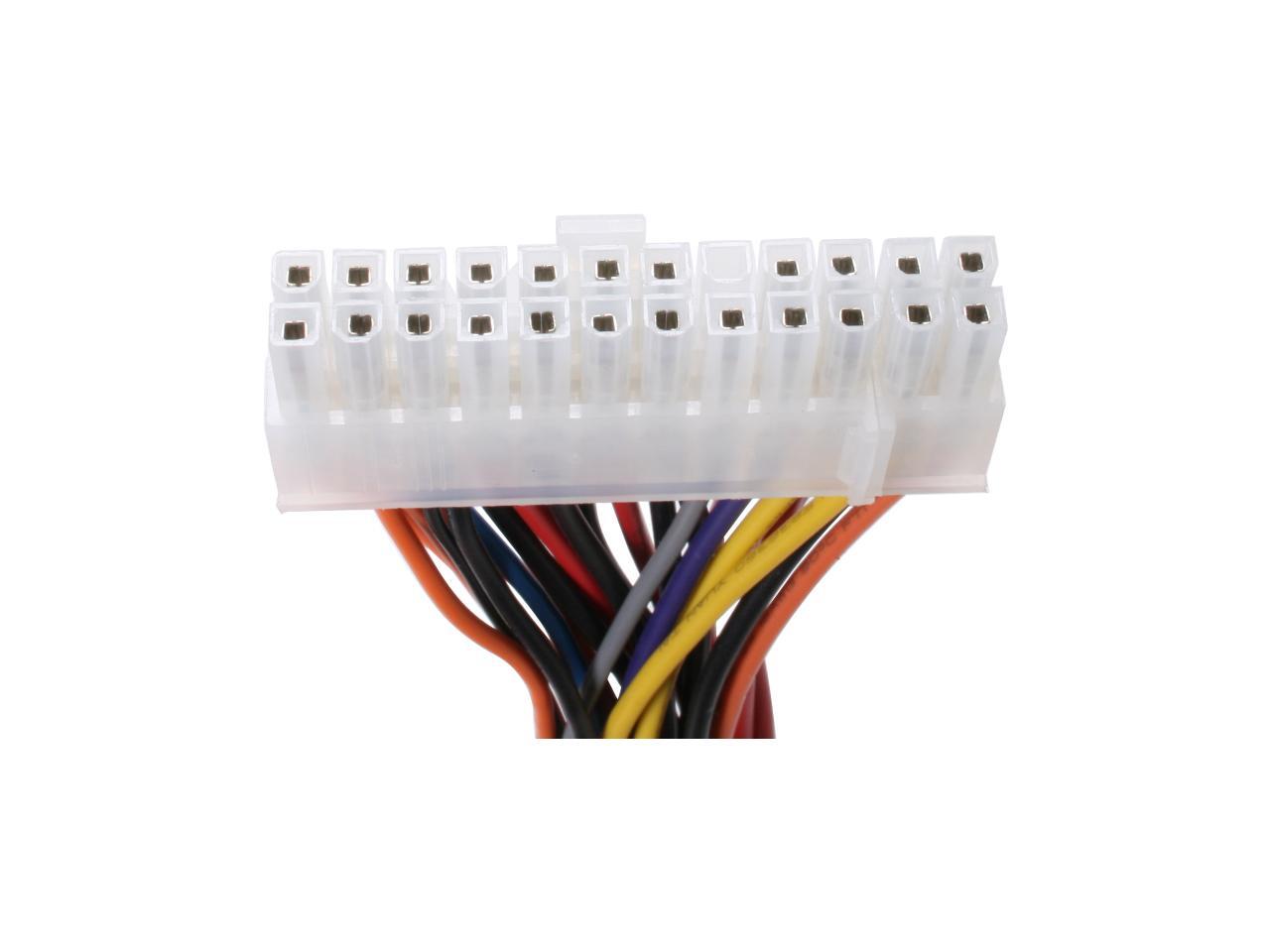

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SATA Power Connector | 2 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | No |
| Power Good Signal | Signal Type: open collector +5DC, TTL compatible. Logic Level: <0.4V while sinking 4 mA. Logic Level High: between 2.4VDC and +5V output while souring 200 uA. |
| Efficiency | > 80% |
| Energy-Efficient | 80 PLUS Certified |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 9A |

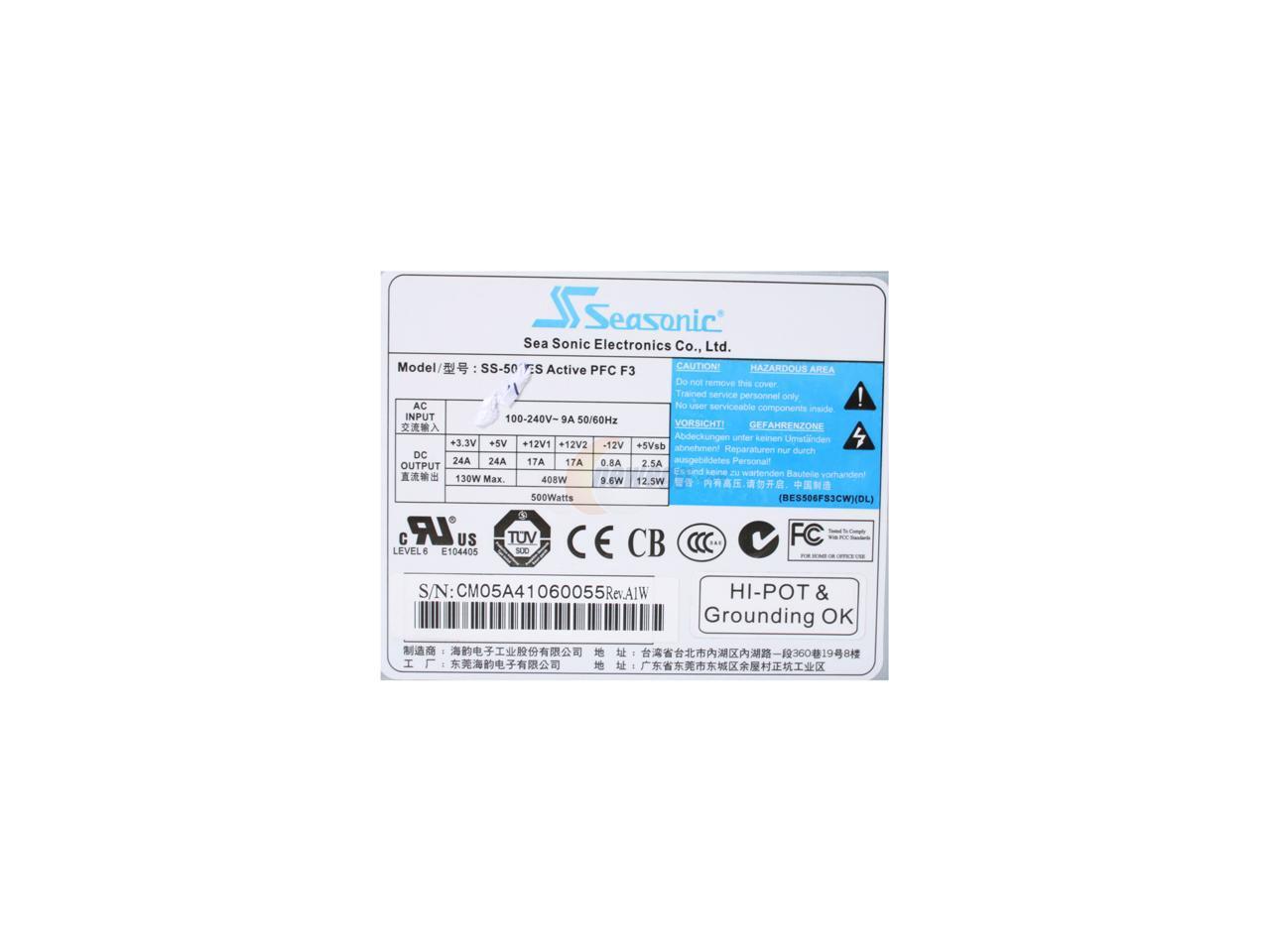

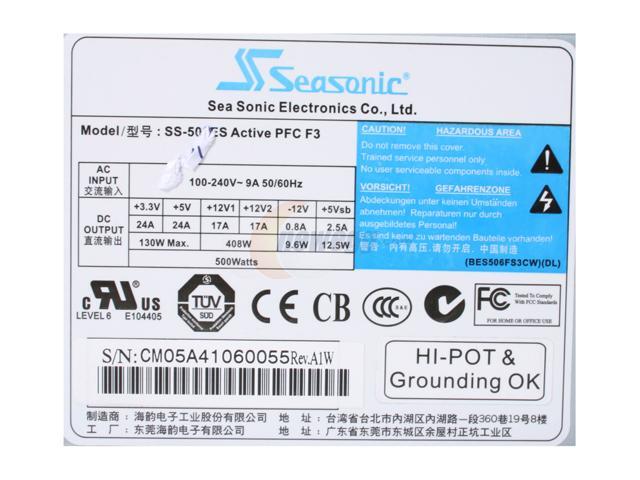

| Output | +5V@24A, +3.3V@24A,+12V1@17A, +12V2@17A, -12V@0.8A, +5VSB@2.5A |
| MTBF | Over 100,000 hours at 25 Deg C. excluding the DC Fan |
| Approvals | CB, CUL, UL, CCC, DEMKO, FIMKO, NEMKO, SEMKO, TUV |

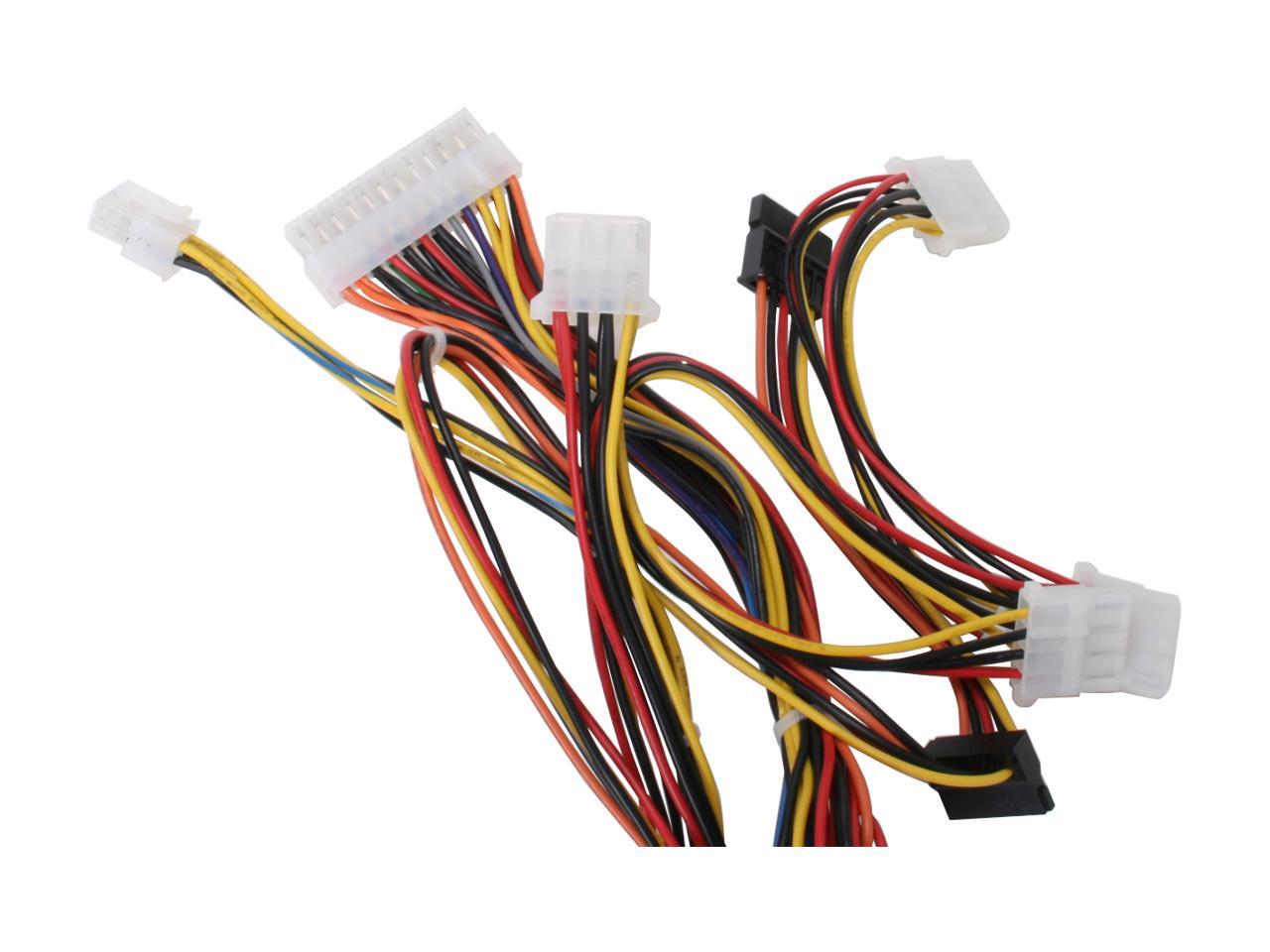

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 6 x peripheral 2 x SATA 2 x Floppy 2 x PCI-E |
|---|---|
| Features | PCI Express & Serial ATA ready Double forward converter circuit High efficiency and reliability Low ripple & noise Super low noise fan control Short circuit protection on all outputs Over voltage protection Over power protection 100% hi-pot test 100% burn in, high temperature cycled on/off |
| Date First Available | September 21, 2007 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-969-9966
- Support Email: http://www.seasonicusa.com/atx.htm
- Support Website
- View other products from SeaSonic USA
LOADING...




















Pros: Efficient, quiet, powerful (34 amps on the 12V rail---408 watts divided by 12 volts for those who don't understand the math), solid rails at all loads, durable, Seasonic quality.
Cons: Only two SATA power leads. No sleeves.
Overall Review: I got this on sale for 7 Jeffersons from NewEgg--thanks guys, what a steal, I feel kinda dirty! Most "2-rail" power supplies are really a single 12V source with 2 sets of leads, which is a good thing because many higher end cards demand high 12V rail amperage. Google for reviews of the @ntec ea500, which is identical (earthpower series is made by seasonic), for all the postive and detailed reviews. This power supply will comfortably run ANY single card and most sli/crossfire rigs. It does have 2 pci-6 plugs, btw.
