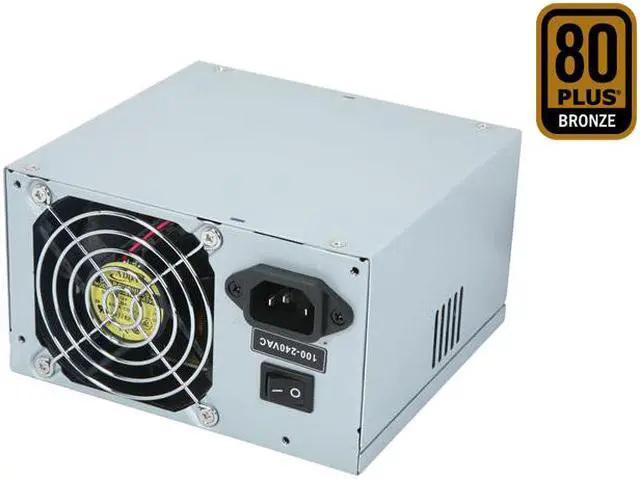

Seasonic SS-350ES Active PFC, 350W ATX compatible with 2U Rackmount, Japanese capacitor, Operating temperature 0-50°C, 80+ Bronze
- ATX12V v2.31
- 80 PLUS BRONZE Certified
- 47 - 63 Hz
Overview
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Mfr Part Number: SS-350ES BRONZE
Features:
Specification compliance: ATX 12V v2.2 & EPS 12V v2.9
Support the latest Intel & AMD Socket
PCI-Express & SATA ready
Double forward converter circuit
High efficiency and reliability
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
100% hi-pot test
100% burn in- high temperature cycled on/off
Energy-Efficient : 80 PLUS BRONZE Certified
Total Power: 350 W
Input Voltage: 100~240 V
Input Frequency Range: 47 ~ 63 Hz
In-rush Current- Cold Start: 100A max
Hold Up Time- Full Load: 10 ms
Power Factor Correction: Active PFC- 99% typical
Safety: CUL- TUV- CB- CCC
EMI/RFI: CE- FCC- C-tick

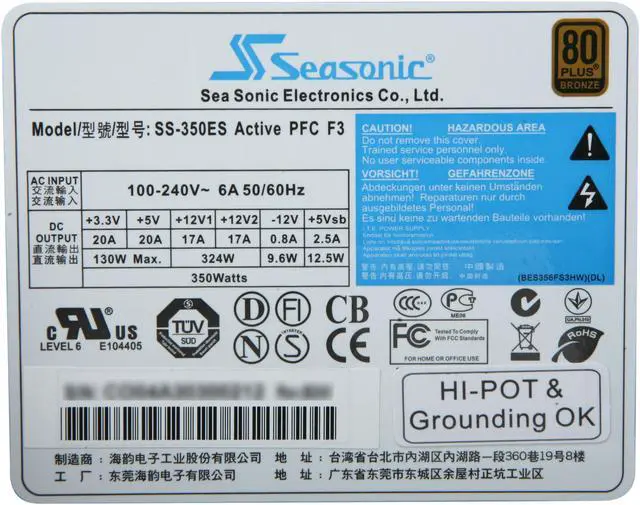

Output: +3.3V @ 20A- +5V @ 20A- +12V1 @ 17A- +12V2 @ 17A- -12V @ 0.8A- +5Vsb @ 2.5A
Cooling System: 1x 8cm Double Ball Bearing Fan
Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
RoHS Compliant
Mfr Part Number: SS-350ES BRONZE
Features:
Specification compliance: ATX 12V v2.2 & EPS 12V v2.9
Support the latest Intel & AMD Socket
PCI-Express & SATA ready
Double forward converter circuit
High efficiency and reliability
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
100% hi-pot test
100% burn in- high temperature cycled on/off
Energy-Efficient : 80 PLUS BRONZE Certified
Total Power: 350 W
Input Voltage: 100~240 V
Input Frequency Range: 47 ~ 63 Hz
In-rush Current- Cold Start: 100A max
Hold Up Time- Full Load: 10 ms
Power Factor Correction: Active PFC- 99% typical
Safety: CUL- TUV- CB- CCC
EMI/RFI: CE- FCC- C-tick
Output: +3.3V @ 20A- +5V @ 20A- +12V1 @ 17A- +12V2 @ 17A- -12V @ 0.8A- +5Vsb @ 2.5A
Cooling System: 1x 8cm Double Ball Bearing Fan
Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
RoHS Compliant
