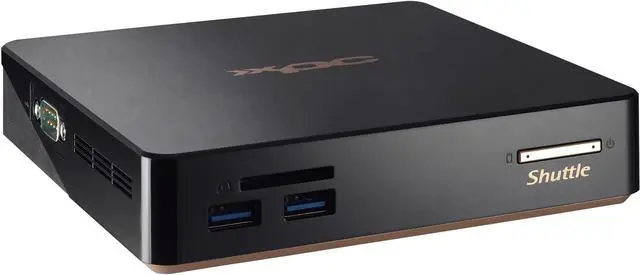

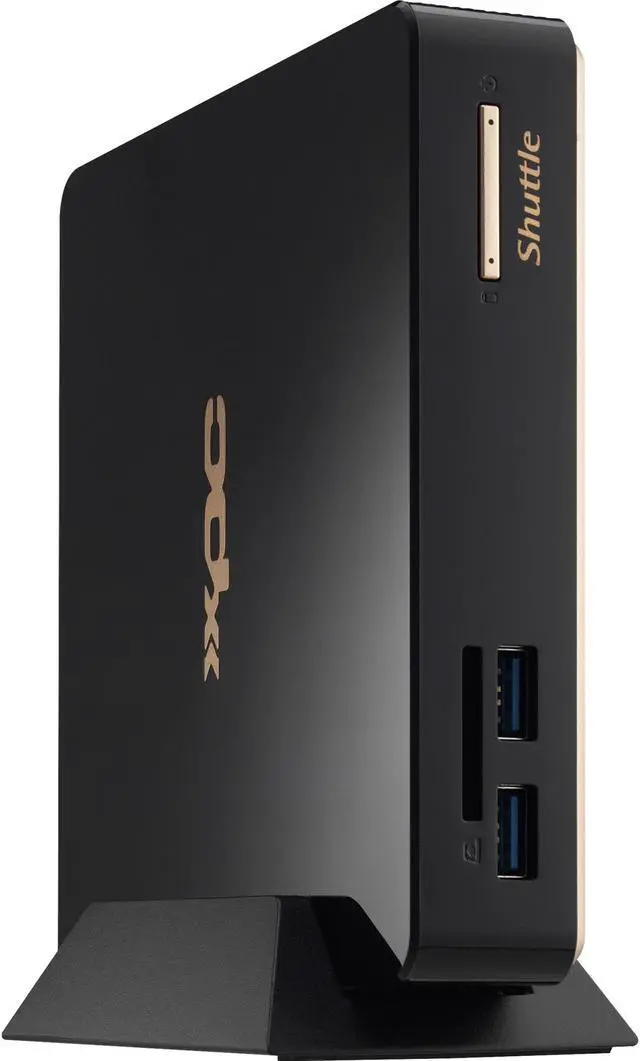

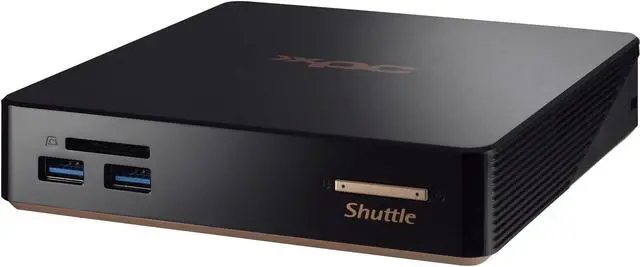

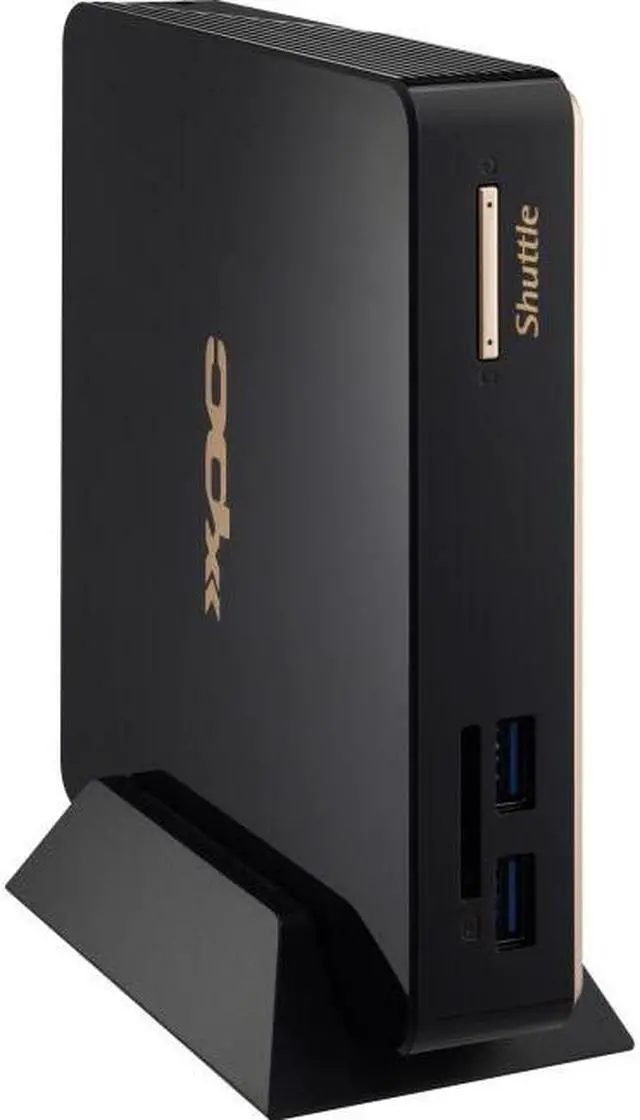

Shuttle XPC nano NC01UBING PC
Be the first to review this product...
Intel Celeron 3205U Processor installed
2 x 204Pin SO-DIMM DDR3L 1333/ 1600
Overview
Specs
Reviews
Learn more about the Shuttle Computer NC01UBING
General
Brand
Shuttle
Series
XPC nano
Model
NC01UBING
Form Factor
0.57L
CPU Supported
CPU Type
Intel Celeron 3205U Processor installed
Memory Supported
Memory installed
2GB
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3L 1333/ 1600
Max Memory Supported
16GB
Dual Channel Memory Supported
Yes
Expansion Slots
Other
M.2 2230 AE key
M.2 2242 M key (SATA interface only)
2.5" 7mm SATA
Storage
Hard Drive Installed
32GB SSD
Serial ATA
1 x SATA 6.0Gb/s
Graphics
Integrated Graphics
Intel HD Graphics
Audio
Onboard Audio
Realtek ALC269
Communications
LAN
Intel I218LM
Max LAN Speed
10/100/1000Mbps
Wireless LAN
802.11a/b/g/n/ac
Bluetooth
Bluetooth 4.0
Extension Bays
2.5" Internal Bays
1 x 2.5" 7mm HDD / SSD
Front Panel Ports
Front USB
2 x USB 3.0
Card Reader
1 x SD cardreader
Other Front Ports
1 x Power button
1 x Power LED
1 x HDD LED

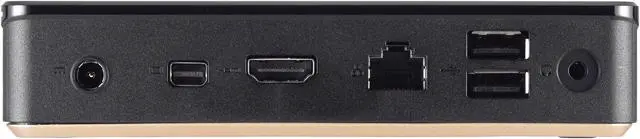

Back Panel Ports
HDMI
1
DisplayPort
1 x Mini DisplayPort
Rear USB
2 x USB 2.0
Rear Audio Ports
1 x Headphone+Mic in combo jack
Other Rear Ports
1 x Ethernet
1 x DC-in Jack
1 x RS232
1 x Kensington Lock
Power Supply
Power Supply
Automatics Voltage adjustment between 100 and 240VAC 50/60Hz
65 Watts (19V/3.42A), 2-pin
Physical SPEC
Dimensions
1.14" x 5.55" x 5.55"
