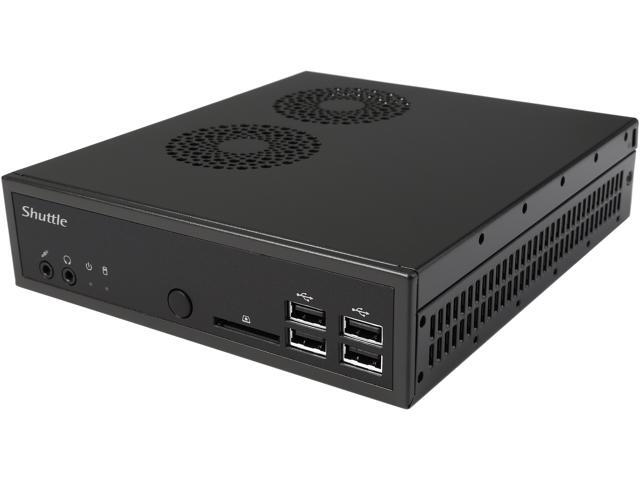

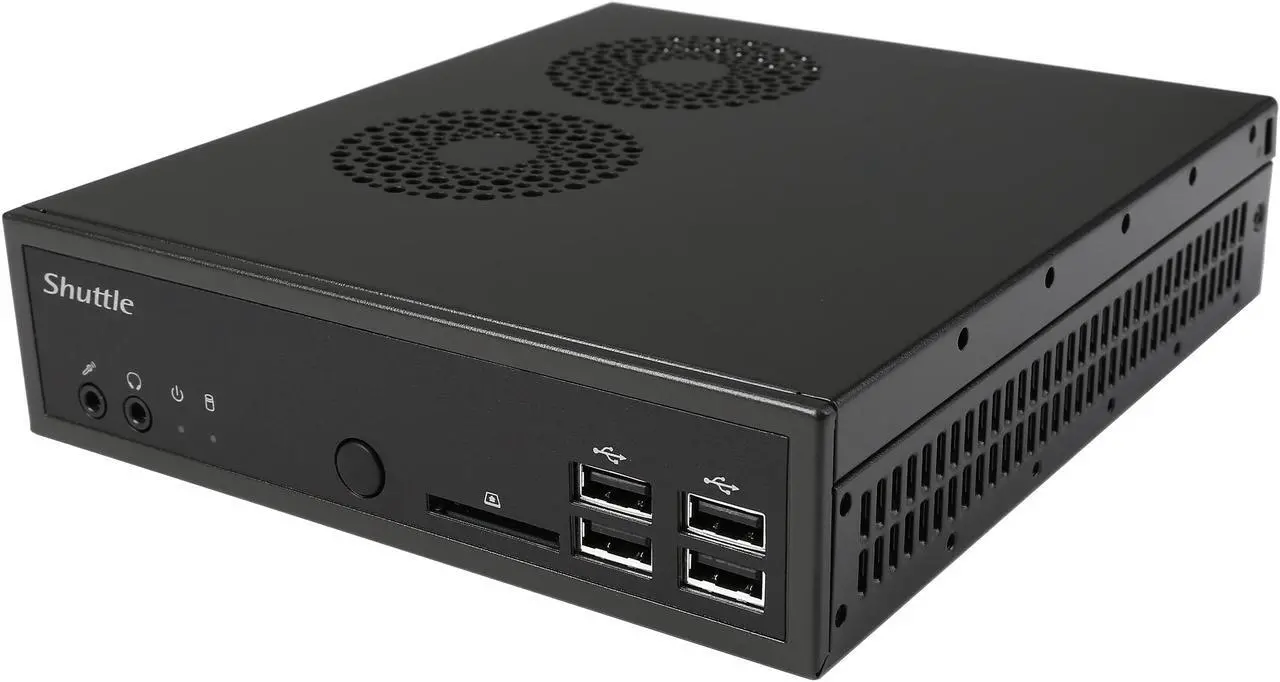

Shuttle DS81L Intel H81 Black Mini / Booksize Barebone System
- Support Intel Haswell Core i3/i5/i7 Processor
- 2 x 204Pin SO-DIMM DDR3 1600
Specs
Reviews (8)
Learn more about the Shuttle Computer DS81L
| Brand | Shuttle |
|---|---|
| Model | DS81L |
| Color | Black |
|---|---|
| Form Factor | 1.3L chassis |
| CPU Type | Support Intel Haswell Core i3/i5/i7 Processor |
|---|
| North Bridge | Intel H81 |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 2 x 204Pin SO-DIMM |
| Memory Type Supported | DDR3 1600 |
| Max Memory Supported | 16GB |
| Dual Channel Memory Supported | Yes |
| Other | 1 x Full size Mini-PCIE socket (Only support m-SATA ) 1 x Half size Mini-PCIE socket |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 1 x SATA 6.0Gb/s + 1 x SATA 3.0Gb/s |
| Onboard Audio | Realtek ALC892 |
|---|
| LAN | Realtek 8111G x2 |
|---|---|
| Max LAN Speed | 100Mb/s and 1Gb/s operation |
| 2.5" Internal Bays | 1 x 2.5" HDD / SSD bay |
|---|

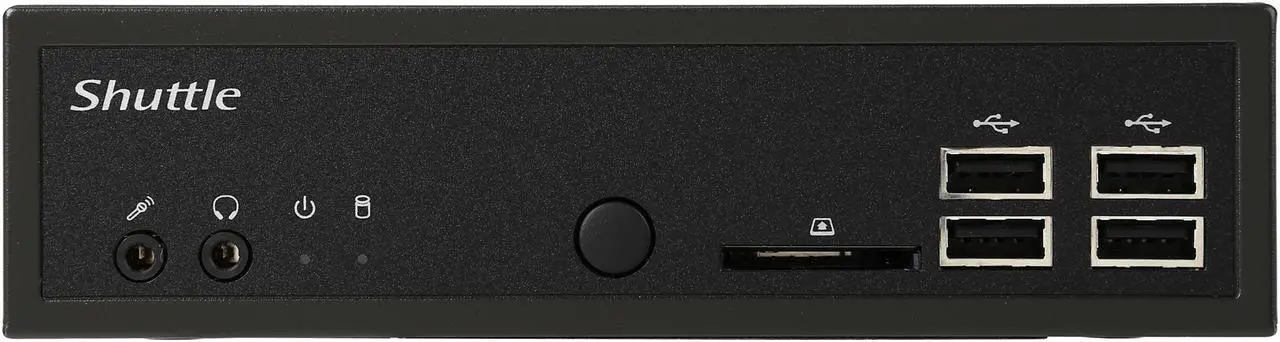

| Front USB | 4 x USB 2.0 ports |
|---|---|
| Front Audio Ports | 1 x Microphone-In 1 x Earphone-Out |
| Card Reader | 1 x SD Card reader |
| Other Front Ports | 1 x Power-On button 1 x Power LED 1 x HDD LED 1 x SATA power connector 1 x LPC header 1 x 4pin fan connector 1 x D-sub connector |
| HDMI | 1 |
|---|---|
| DisplayPort | 2 x DisplayPort |

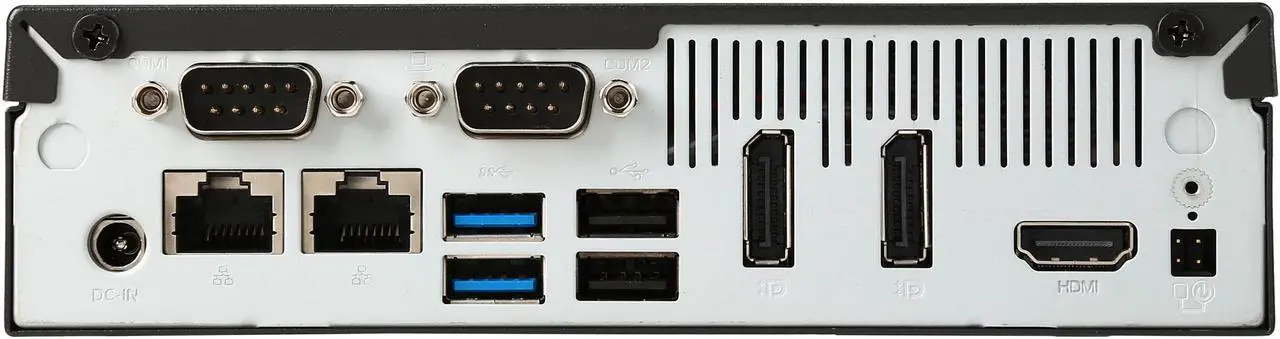

| Rear USB | 2 x USB 3.0 ports 2 x USB 2.0 ports |
| RJ45 | 2 x RJ45 Gigabit LAN port |
| Other Rear Ports | 1 x RS232 1 x RS232/RS422/RS485 1 x Clear CMOS 1 x External power on header 1 x DC in 1 x Kensington lock 2 x Wireless Antenna fixture |
| Power Supply | 84W Power Adapter Input:100- 240V AC Output: 12V 7A DC |
|---|
| Features | High-performance 12V Slim PC for commercial application Featuring the all-new DS81L, a more energy efficient version of the DS81 made for automotive and robotics application. The DS81L features the same support for high-performance processors, including Intel's 4th generation Core, Pentium, and Celeron 65W series, but with lower power consumption. It runs on a mere 12 Volts and consumes a maximum of 84Watts while it's older brother, DS81 runs on 19V and consumes a max 90Watts. The difference in energy consumption is essential for commercial applications that require long-term operation. The system memory supports dual-channel DDR3 1600 with maximum capacity up to 16GB and is able to deliver 4K Ultra HD video content depending on the CPU. OS SUPPORT: Windows 8.1 Windows 7 Linux |
|---|

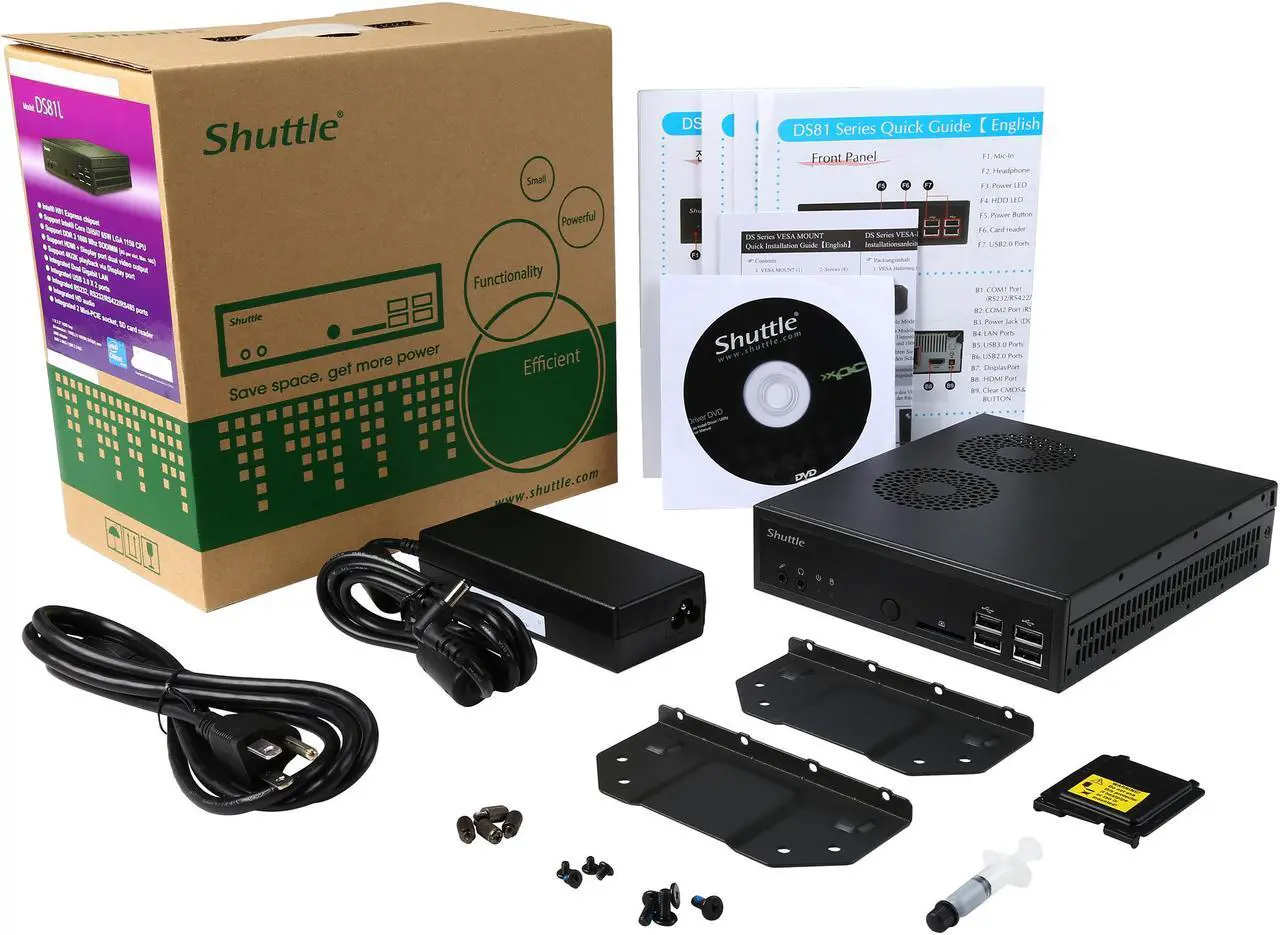

| Packaging | ACCESSORIES: XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA mount quick installation guide 1 x Power cord 1 x SATA cable Screws Optional 802.11b/g/n WLAN module |
|---|
| Date First Available | March 23, 2015 |
|---|
