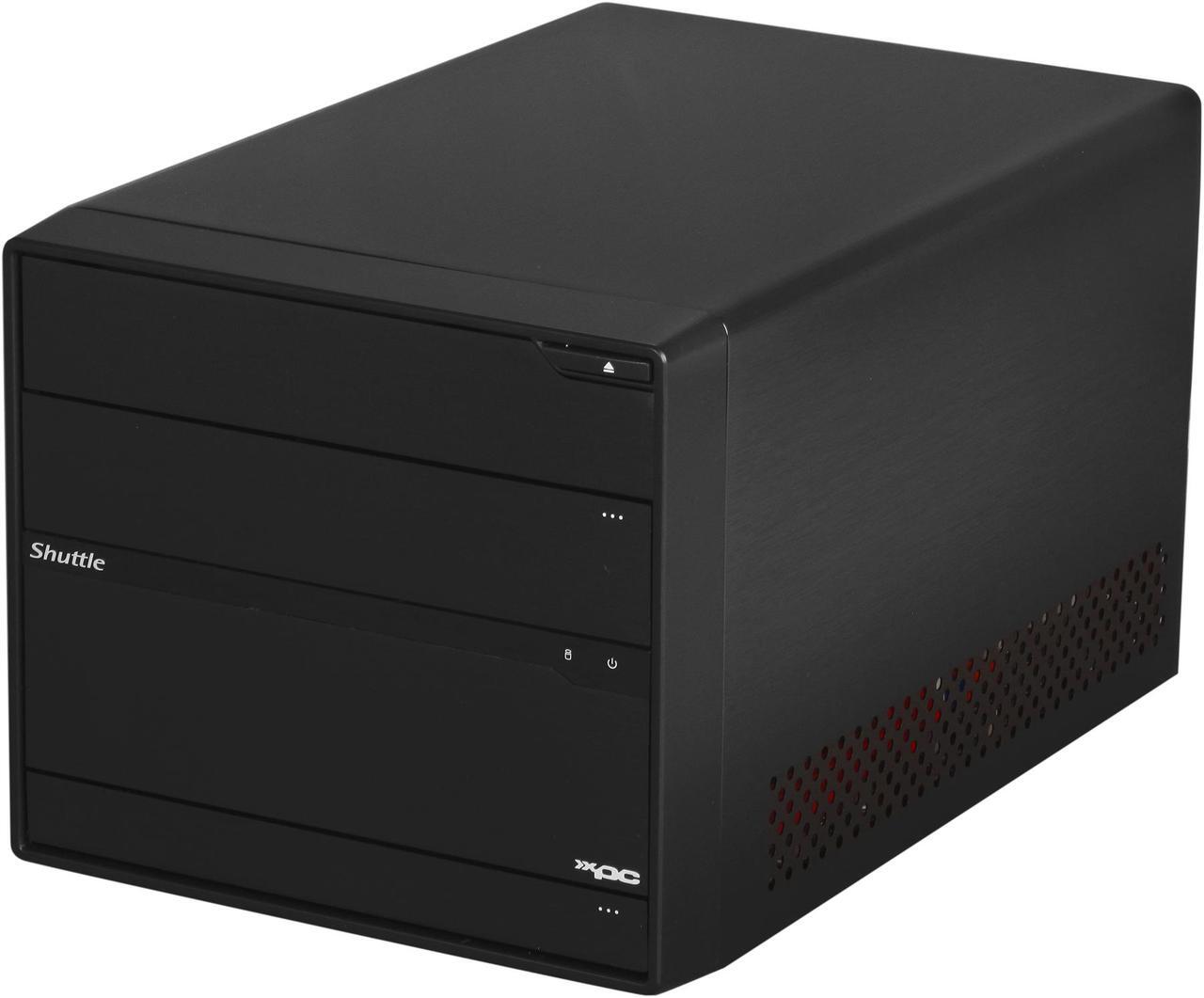

Shuttle SX79R5 Intel Socket LGA2011 Intel X79 Barebone

(6) Write a Review
  • Intel Core i7 (LGA2011) Intel Socket LGA2011
  • Intel X79
  • 4 x 240Pin DIMM DDR3 1333/1066 (Quad channel)
  • none
Specs
Reviews (6)

Learn more about the Shuttle Computer SX79R5

General
Brand Shuttle
Model SX79R5
Color Black
CPU Supported
CPU Type Intel Core i7 (LGA2011)
CPU Socket Intel Socket LGA2011
Chipset
North Bridge Intel X79
Memory Supported
Memory slot 4 x 240Pin DIMM
Memory Type Supported DDR3 1333/1066 (Quad channel)
Max Memory Supported 32GB
Expansion Slots
PCI Express 3.0 x16 2
Other 1 x Mini-PCIE (long) socket support mSATA
1 x Mini-PCIE (Short) socket
Storage
Serial ATA 2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
Graphics
Onboard Video none
Audio
Onboard Audio Realtek ALC888S
Channel 8-CH
Communications
First LAN Realtek 8111E(10/100/1000Mbps)
Second LAN Realtek 8111E(10/100/1000Mbps)
Max LAN Speed Dual 10/100/1000Mbps

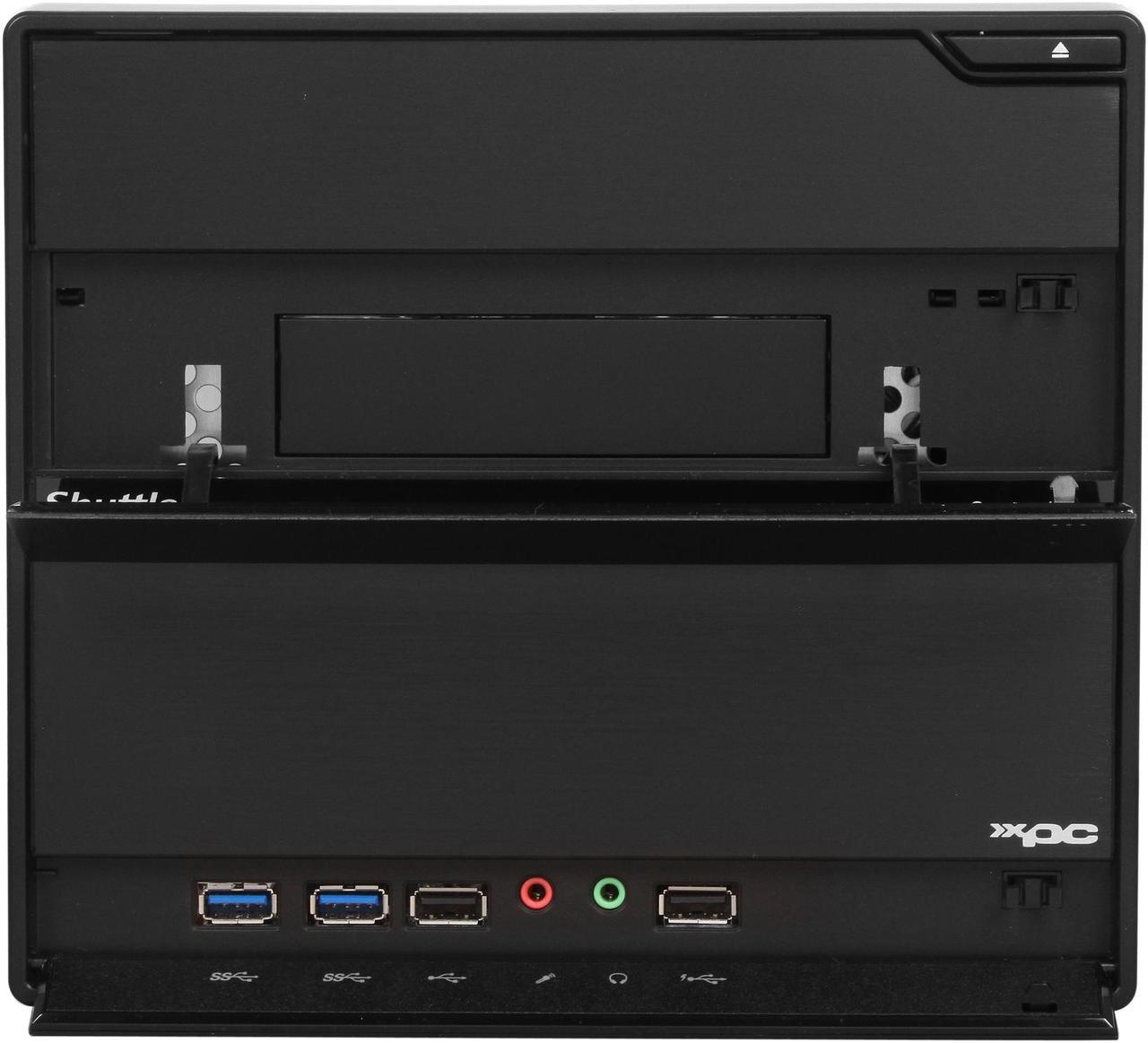

Front Panel Ports
Front USB 2 x USB 2.0 Port
2 x USB 3.0 Port
Front Audio Ports 2 jacks

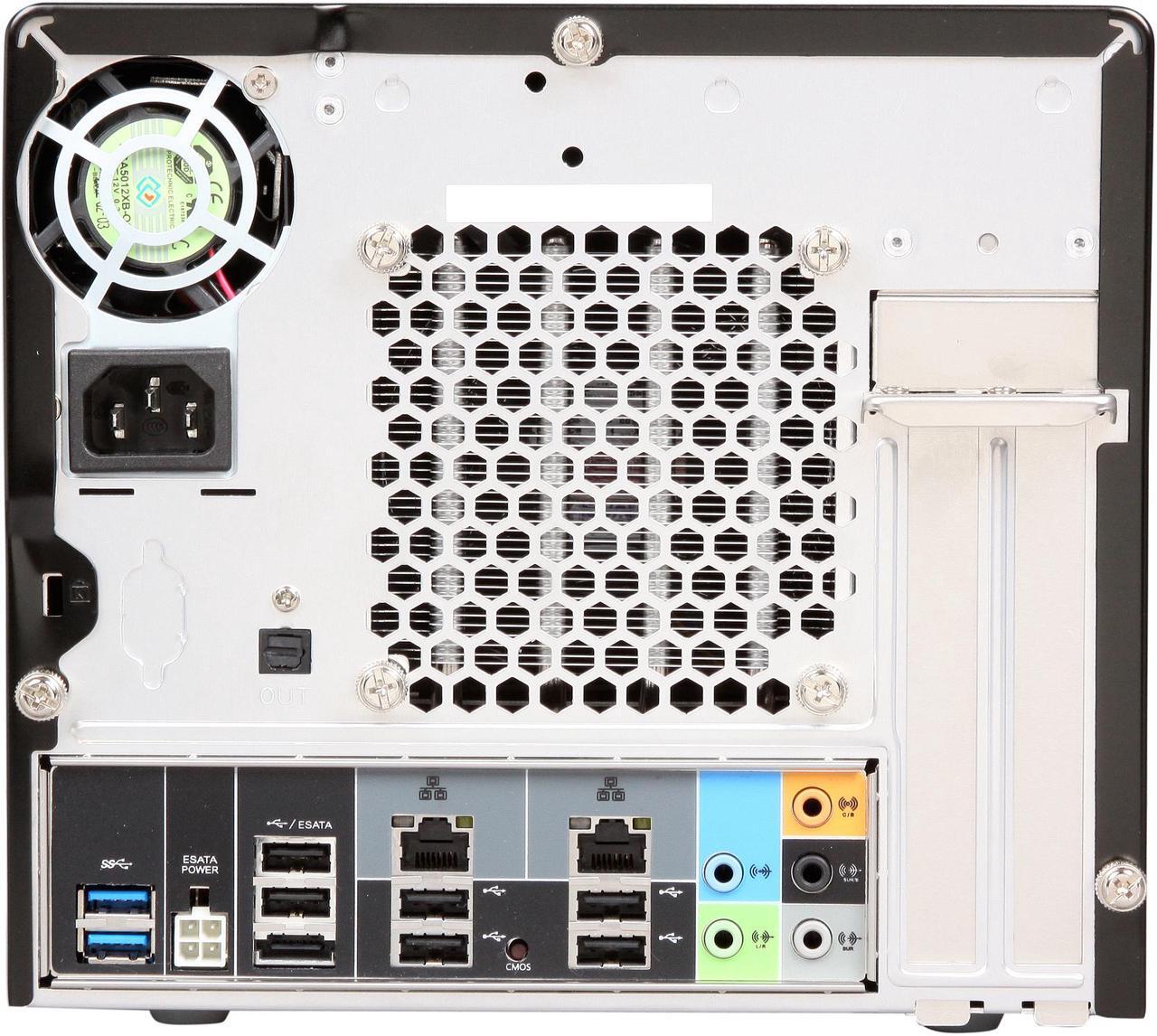

Back Panel Ports
Rear USB 6 x USB 2.0 Ports
2 x USB 3.0 Ports
Rear e-SATA Ports 1 x Esata Port
1 x Esata power connector
RJ45 2
Rear Audio Ports 5 jacks

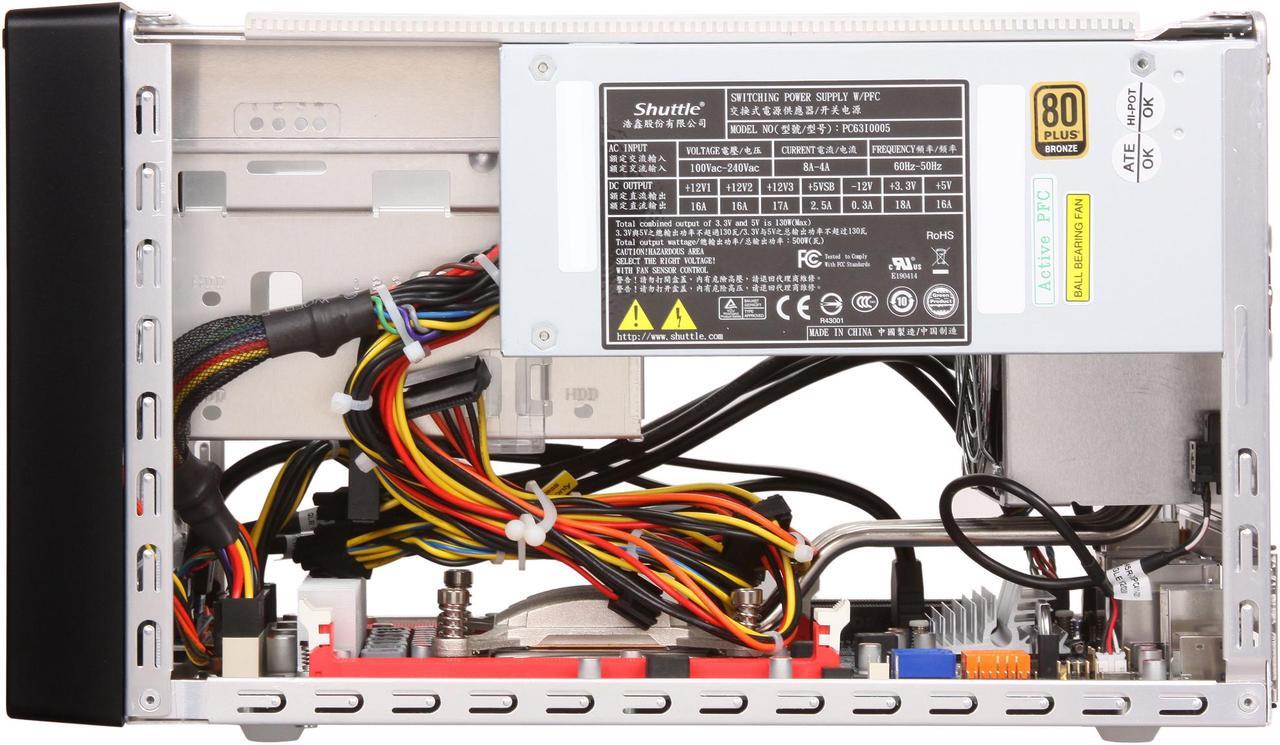

Power Supply
Power Supply 500W 80 Plus PFC active power supply
Physical SPEC
Dimensions 13.07" x 8.5" x 7.8"
Features
Features Feel an Extraordinary Experience

The First LGA 2011 Based Platform in a Cube Size

Intel X79 Express Chipset

The New R5 Chassis Design

Quick Charge USB Port

Support Dual Gigabit LAN

Support 2x mini card slots

Support Dual Slot Graphic Card

Integrated Cooling Engine Technology (I.C.E.)

Mini-ITX Mainboard Support

80 PLUS BRONZE certified 500W Power Supply
Additional Information
Date First Available April 26, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
