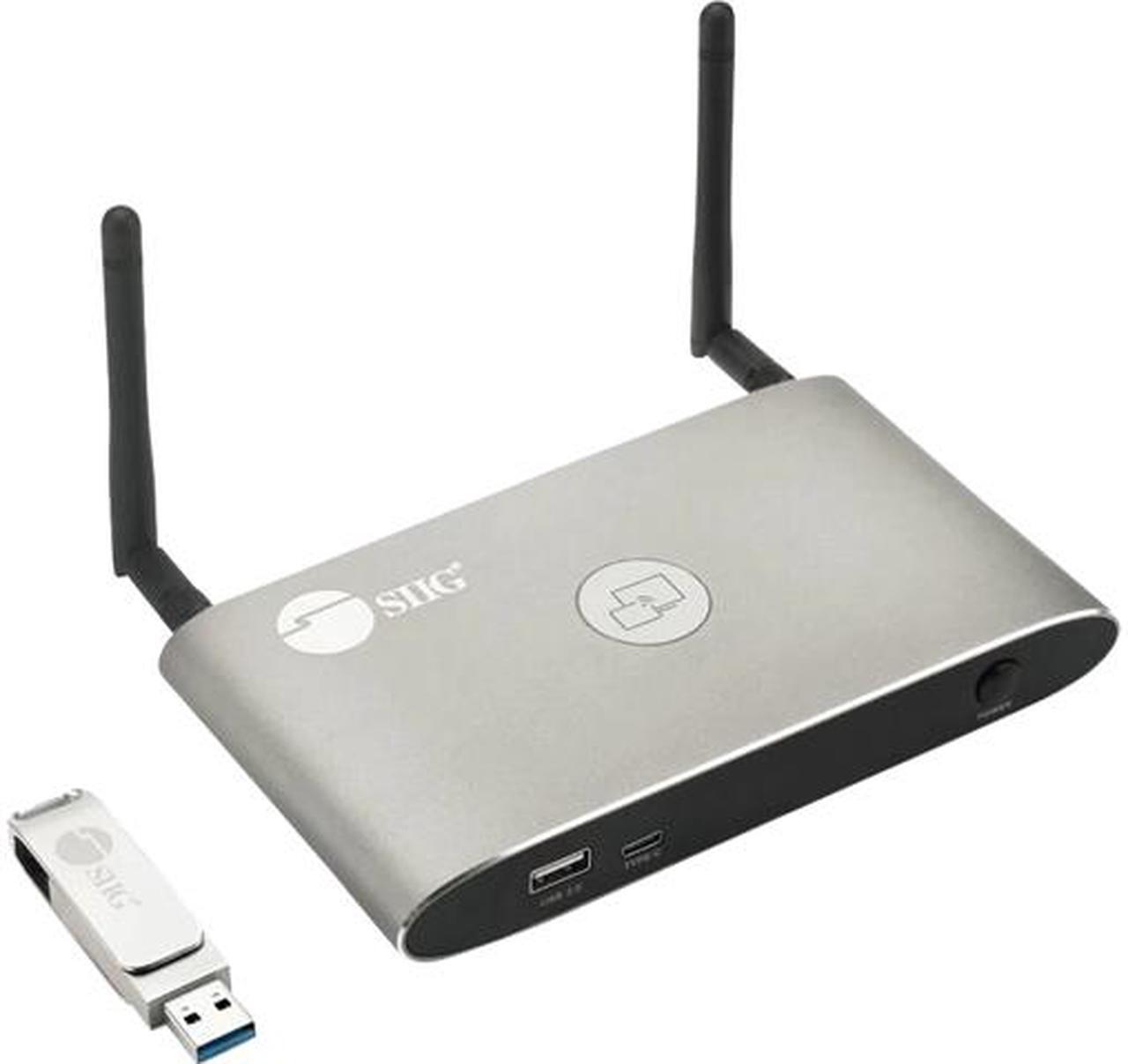

SIIG CE-H25Y11-S1 Wireless Dual View Wireless Media Presentation Switch Gateway
- Wireless
+
+
Specs
Reviews
Learn more about the SIIG, Inc CE-H25Y11-S1
| Brand | SIIG |
|---|---|
| Model | CE-H25Y11-S1 |
| Interface | Wireless |
| Color | Silver |
|---|
| HDMI | 1 x 19-pin, HDMI Type-A, Female, Output |
|---|---|
| Network Interface | 1 x 8-pin, RJ45, 100Mbps 1 x 8-pin, RJ45, 1000Mbps, support POE |
| USB Port | 1 x USB 2.0 Type-A, Female 1 x 24-pin, USB-C , Female 1 x USB 3.0 Type-A, Female |
| Other Connector | 1 x Back-lit LED 1 x Power Switch 1 x Line audio output 1 x Reset button 1 x RS232, 3-pin 3.5mm Phoenix terminal 1 x DC power jack, 12V/1.5A, UL: E24161885WU, VI 2 x Antenna fixture points |
| System Requirements | Dual View Wireless Media Presentation Kits (part # CE-H26611-S1) Wireless Media Presentation Transmitter - HDMI Dongle (part # CE-H26711-S1 |
|---|
| Specification | HDMI standard: Up to HDMI 2.0 HDCP version: Up to HDCP 2.2 HDMI output: 1x HDMI 19-pin female connector Video resolution (output): 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz Video playback frame rate: 20-60 FPS Video capacity: 1080P @ <60Hz Airplay for IOS devices / app; 1080P @ <60Hz "WirelessMedia" app; 1080P @ <30Hz for all show-me button Audio input: Airplay, DLNA, Windows/MAC, WMH Analog audio output: 1 x 3.5mm PC audio female connectors Control connectors: 3.5mm Phoenix terminal/ RS232 interface USB interface: USB 3.0 x1, USB 2.0 x1, Type-C x1 Number of window simultaneously on screen (max): 2 + 14 (2 main windows + 14 thumbnail windows) Latency: <100ms, Min 20ms Network connectivity: Wireless data rate: Up to 1200Mbps Wireless transmission protocol: WIFI IEEE 802.11 a/g/n/ac Frequency band: 2.4 GHz & 5 GHz WIFI Antenna: MIMO 2x2 LAN Ethernet port 1: 100Mbps LAN Ethernet port 2: 1Gbps, with POE POE standard: IEEE 802.3af Housing material: Metal USB A/C Dongle: Dimensions: 2.76" (W) x 0.39" (H) x 0.67" (D) Weight: 0.18 lb. Color: Golden Housing material: Metal Connector: 1 x USB 3.0 Type-A, Female 1 x USB 3.0 Type-C, Female |
|---|
| Feature | Allows sharing laptop, tablet, smart phone wirelessly, easily join meeting room and board room presentations Supports Dual view on-screen display and up to 16 simultaneous connections. Note: Requires Dual View Wireless Media Presentation Kits (part # CE-H26611-S1) and additional Wireless Media Presentation Transmitter - HDMI Dongle (part # CE-H26711-S1), each sold separately Supports Whiteboard and Annotation allows documents to be easily written, edited, captured and shared, more productive and effective collaboration Three different security levels to satisfy different security requirements, according to different security sensitive environments or security policies Provides two segmented routing options to connect to the base unit simultaneously and separately, including wireless WI-FI network and wired LAN network Provides nearly zero latency mouse operation on the main screen Supports VESA PC resolution input with auto-detect Supports HDMI/USB plug-in auto configuration/pairing for wireless media presentation. Note: Additional Wireless Media Presentation Transmitter - HDMI Dongle (part # CE-H26711-S1) sold separately Supports remote mouse to control the active source devices from other smart devices Supports "Airplay" for Apple iPhone or MacBook devices |
|---|
| Dimensions | 0.87" x 6.50" x 3.54" |
|---|---|
| Weight | 0.80 lb. |
| Date First Available | January 12, 2021 |
|---|
