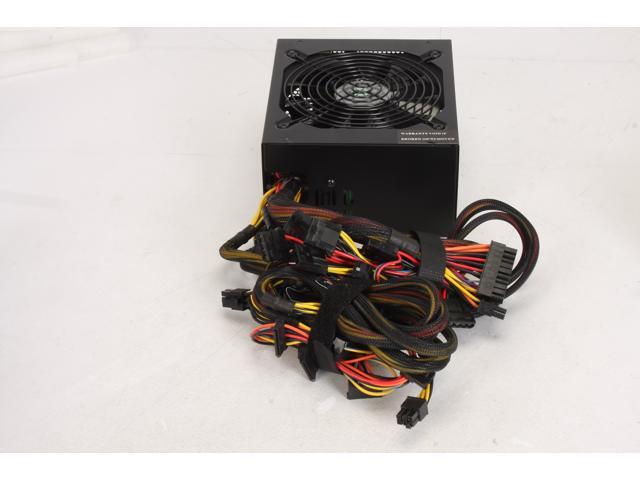

SilverStone ELEMENT ST70EF 700 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS SILVER Certified Active PFC Power Supply

OUT OF STOCK.
  • ATX12V / EPS12V
  • 80 PLUS SILVER Certified
  • 100V~265V 47 - 63 Hz
  • +3.3V@24A,+5V@30A,+12V1@18A,+12V2@18A, +12V3@18A,+12V4@18A,+12V5@18A, -12V@0.5A,+5VSB@3.5A
Specs
Reviews

Learn more about the Silverstone ST70EF

General
Brand SilverStone
Series ELEMENT
Model ST70EF
Details
Type ATX12V / EPS12V
Maximum Power 700 W
Fans Silent 135mm Fan
PFC Active

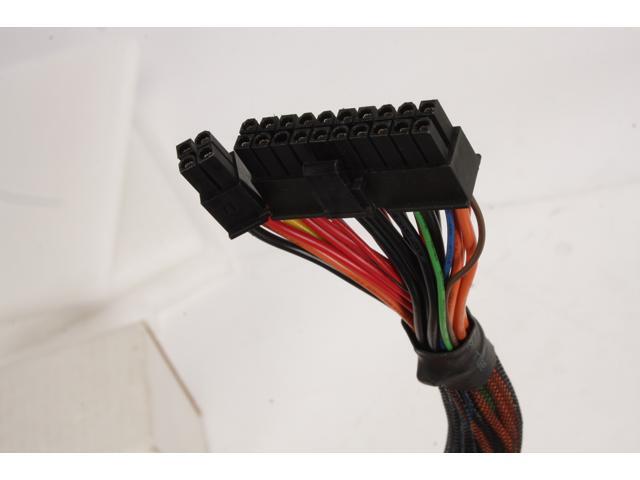

Main Connector 20+4Pin
+12V Rails 5
PCI-Express Connector 4 x 6-Pin, 1 x 8-Pin
SATA Power Connector 6
SLI SLI Ready
CrossFire CrossFire Ready
Efficiency 85% ~ 88% Efficiency at 20% ~ 100% Loading
Energy-Efficient 80 PLUS SILVER Certified
Over Voltage Protection Yes
Input Voltage 100V~265V
Input Frequency Range 47 - 63 Hz

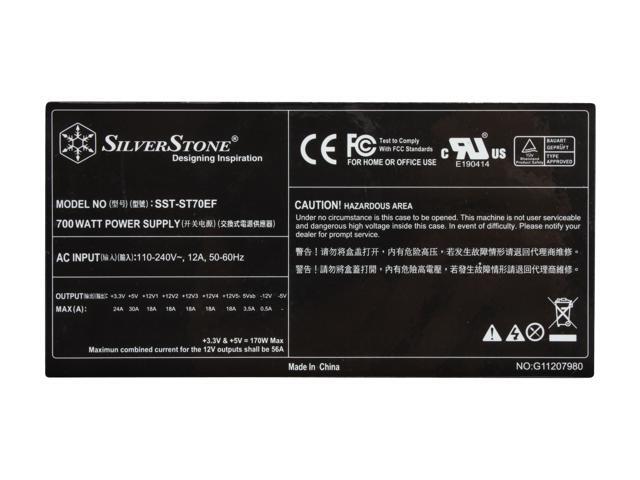

Output +3.3V@24A,+5V@30A,+12V1@18A,+12V2@18A,
+12V3@18A,+12V4@18A,+12V5@18A,
-12V@0.5A,+5VSB@3.5A
MTBF >100,000 Hours

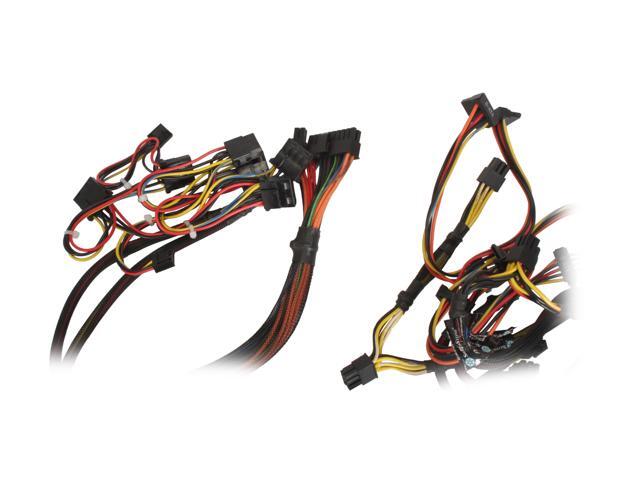

Connectors 1 x Main connector (20+4Pin)
1 x 12V(4/8Pin)
6 x Peripheral
6 x SATA
2 x Floppy
4 x PCI-E 6Pin
1 x PCI-E 8Pin
Features
Features Efficiency 85%~90% at 20%~100% loading
700W continuous power output rated
High performance five +12V rail(s) with 56A
Quad PCI-E 6Pin, Single PCI-E 8Pin

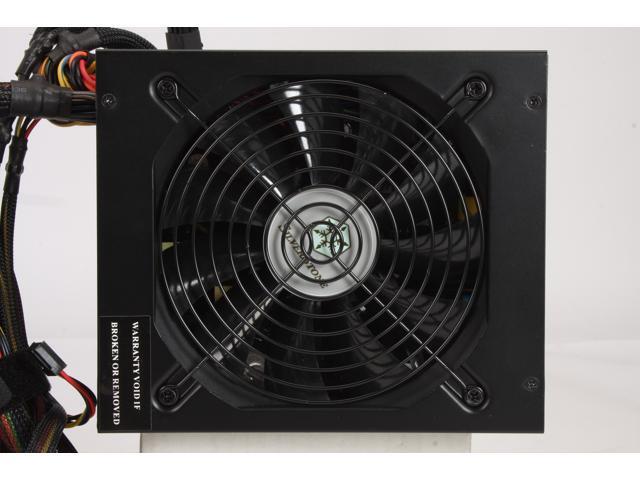

Ultra silent running 135mm Fan with 16.5dBA minimum
Dimension & Weight
Dimensions 5.9" x 3.39" x 6.89"
Additional Information
Date First Available March 18, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
