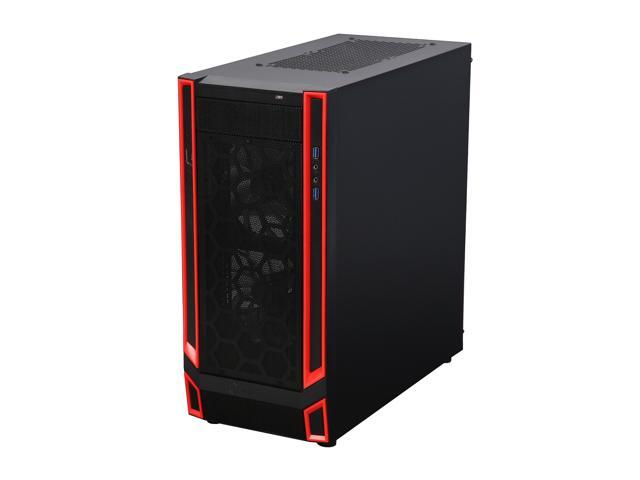

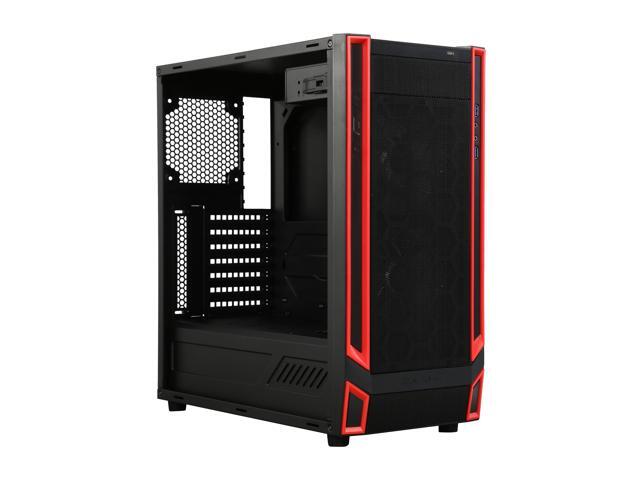

The Redline series RL05 was created with the goal of exceeding user experience and expectation for affordable PC chassis by offering punchy styling and features reserved often for more expensive models. RL05 includes two 140mm LED fans as intakes to inject large amount of air flow through filter for SilverStone’s signature positive pressure setup that not only provides great cooling but also minimal dust buildup. PSU and drive bay areas have covers to clearly section off individual components inside for separate cooling zones while also letting users hide cables for pristine look on the interior. Lastly, a USB 3.0 Type-C port is located in the front I/O cluster to provide convenient connection to this reversible plug-in technology. For enthusiasts looking to build a PC with top-notch features and styling on a budget, the RL05 is an outstanding choice.

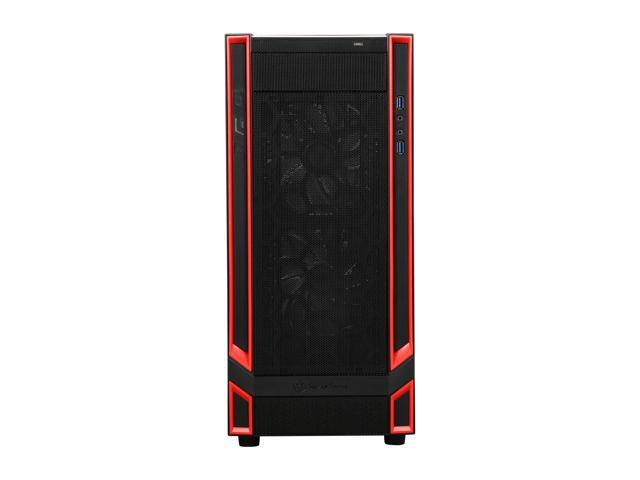

Includes front mounted USB 3.0 Type-C port

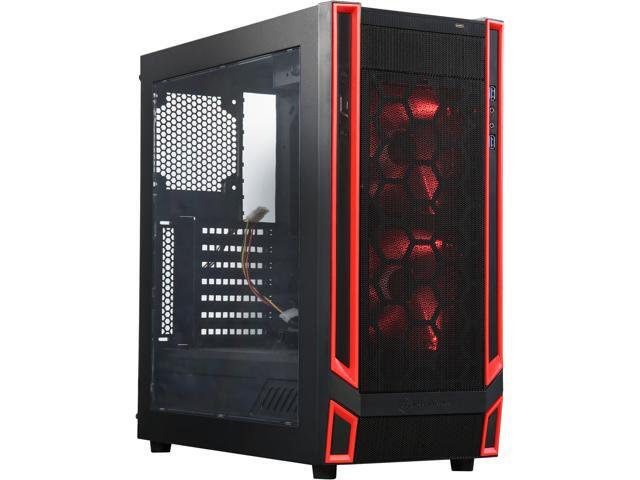

Includes two 140mm LED fans designed to generate positive pressure

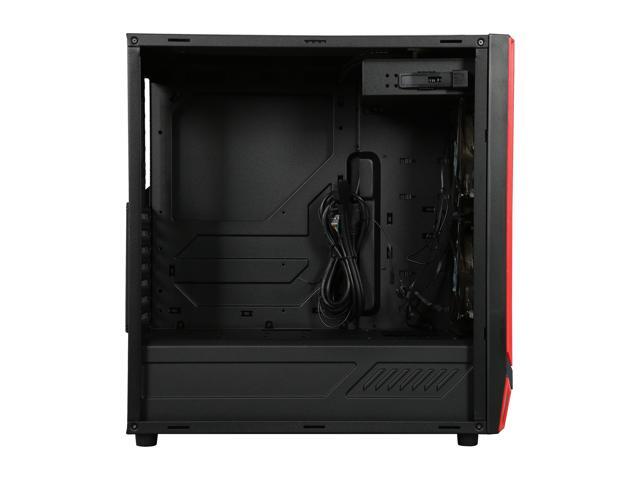

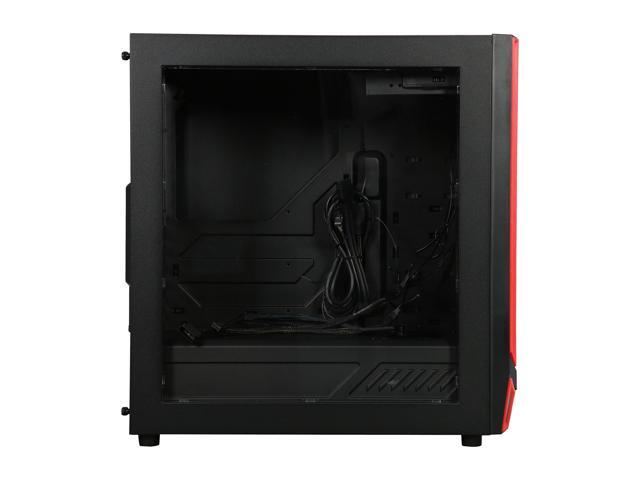

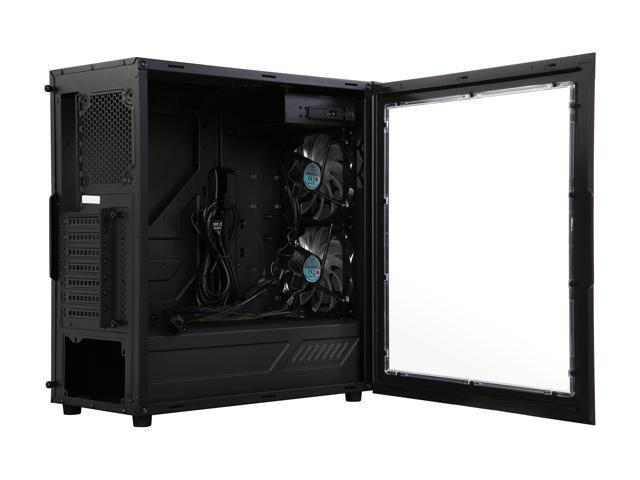

Super clean internal look with PSU and drive bay cover
Quick access filters for easy cleaning
Motherboard back plate opening for quick CPU cooler assembly
All black painted interior for stylish look
Supports graphics cards up to 14.7"
Support standard PS2 (ATX) power supply
Support one external 5.25" drive
One 120mm fan slot
Two 120/140mm fan slot
Two USB 3.0 Type-A, One Audio, One MIC
Power and reset botton
Classic SilverStone styling
Model No. | SST-RL05BR-W | |
Material | Plastic panel, steel body | |
Motherboard | ATX (up to 12" x 10.2") , Micro-ATX | |
Drive Bay | External | 5.25" x 1 |
-- | ||
Internal | 2.5" or 3.5" HDD x 2, 2.5" x 2 | |
Cooling System | Front | 120/140mm fan slot x 2 (includes 140mm LED fan x 2), 80mm slot x 1 |

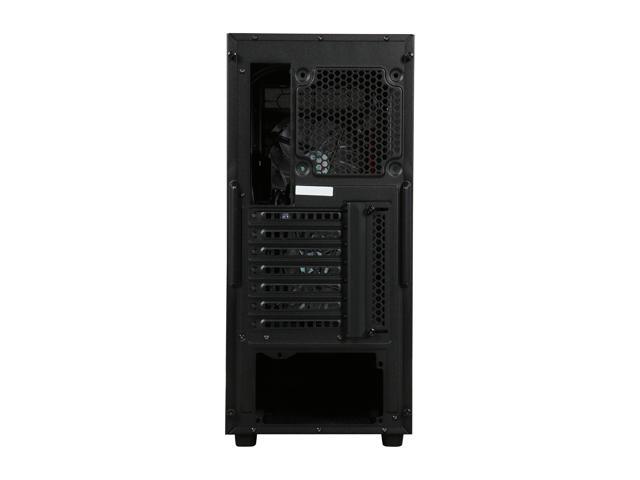

Rear | 120mm fan slot x 1 | |
Side | -- | |
Top | 120/140mm fan slot x 2* | |
Bottom | -- | |
Internal | -- | |
Expansion Slot | 7 | |
Front I/O Port | USB 3.0 Type-A x 2, Type-C** x 1 Audio x 1 MIC x 1 |
|
Power Supply | Standard PS2(ATX) | |
Expansion Card | Support graphics card up to 14.7", width restriction - 6.4" | |
Limitation of CPU cooler | 165mm | |
Limitation of PSU | 220mm | |
Net Weight | 5.9kg | |
Dimension | 210mm (W) x 465mm (H) x 450mm (D), 44.9 Liters | |
Extra | -- | |
Support VESA Mount | -- |
Remark
* Support one 120mm, 140mm, or 280mm radiator only.
** SuperSpeed USB (USB 3.1 Gen 1) requires total cable length to be 1 meter (1000mm) or shorter. So we recommend using external USB Type-C cable with length of 400mm or less due to RL05’s internal USB Type-C cable already taking up 600mm of the total length requirement.
Pros: Layout, design, colors are cool
Cons: Quality = D-
Overall Review: I haven't posted negative reviews on products before but, I ordered this Silver Stone computer case (RL05) for a new build and I'm disappointed in the quality. The cd-dvd player/burner wouldn't fit into its bay (too small) until I removed a rivet and spread the side out=now fits...next, both of the Silver Stone brand fans were broken...one I did a little surgery on but, it still hits its cage occasionally, the other was beyond repair and it's riding in a garbage truck right now. This is the third S.S case I've owned but, the first to be disappointing. I thought Silver Stone case quality was a little above the competition but, they need a little tightening up on quality control. I didn't call New Egg or Silver Stone as I wanted to finish this project and not have to go through the return delay/hassle. ***Update*** the second fan died, case is zero for two on case fans.
