Does this come with the bracket that allows it to be mounted as a atx power supply?

It does not come with an adapter plate for ATX mounting.

SilverStone SST-SX650-G 650 W Power Supply

SilverStone SST-SX650-G 650 W SFX 80 PLUS GOLD Certified Full Modular Active PFC (PF>0.9 at full load) PFC Power Supply

Support standard SFX form factor
Silent running 92mm fan with 18 dBA minimum
All Japanese capacitors
High efficiency with 80 PLUS Gold certification
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
100% modular cables
All cables made with flexible flat arrays

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

SX650-G 650W Power Supply

The Silverstone SX650-G will not disappoint those who are looking for a high-performance power supply. It features full modular design and offers ample connectors, getting you ready for various system configurations. Certified for 80 PLUS Gold, SX650-G delivers outstanding power efficiency while producing minimum heat. Its single +12V rail design is perfect for high-end components and overclocking.

FEATURES

80 PLUS Gold Certified

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

Quiet Fan

Built-in 92mm fan has excellent airflow and low noise, perfect for quiet home or office use.

Full Modular

100% modular cable design for easy removal in a case with cable routed and tied down.

Reliable Cables

SilverStone’s flexible flat cables have much greater flexibility to allow for tighter folding and management of cables.

Single +12V

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

Stable Output

±3% regulation and low ripple & noise performance for high stability.

Type	SFX
Maximum Power	650 W
Fans	Single 92mm silent fan
PFC	Active PFC (PF>0.9 at full load)
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	6
Max PSU Length	100 mm
Modular	Full Modular
Efficiency	87%~90%(20% to 100% loading)
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	90 - 264 V
Input Frequency Range	47 - 63 Hz
Output	+3.3V@22A, +5V@22A, [email protected], [email protected], [email protected]
MTBF	100,000 hours

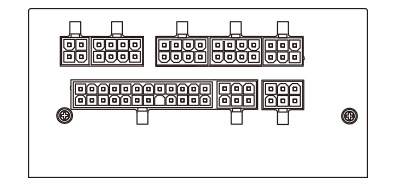

Connectors	1 x 24 / 20-Pin motherboard connector (300mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (400mm) 2 x 8 / 6-Pin PCIE connector (400mm / 150mm) 2 x 8 / 6-Pin PCIE connector (550mm / 150mm) 6 x SATA connector ("300mm / 220mm / 100mm" x 2) 3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm) 1 x 4-Pin Floppy connector (100mm)

Dimensions	4.92" x 3.94" x 2.50"
Weight	2.98 lbs.
