Brand | SilverStone |
---|---|
Series | Strider Platinum series |
Model | SST-ST1000-PTS |
Type | ATX12V |
---|---|
Maximum Power | 1000 W |
Fans | Single 120mm HYB fan |
PFC | Active |
Main Connector | 20+4Pin |
+12V Rails | Single |
PCI-Express Connector | 8 x 6+2-Pin |
SATA Power Connector | 8 |
Modular | Full Modular |
Efficiency | 89% - 92% at 20% - 100% loading |
Energy-Efficient | 80 PLUS PLATINUM Certified |
Over Voltage Protection | Yes |
Input Voltage | 90 - 264 V |
Input Frequency Range | 47 - 63 Hz |

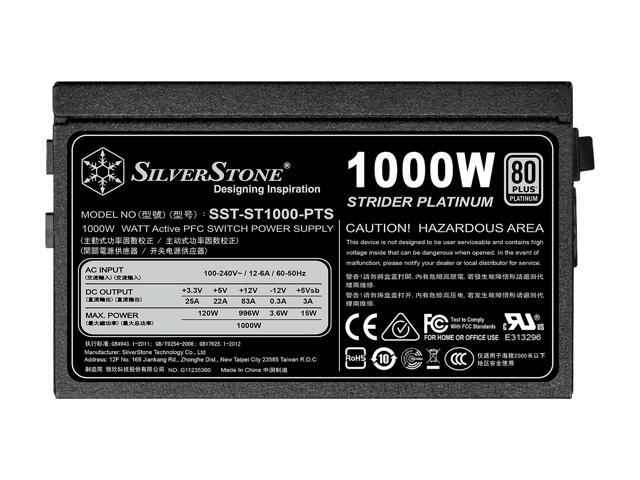

Output | +3.3V@25A, +5V@22A, +12V@83A, +5VSB@3A, -12V@0.3A |
MTBF | 100,000 hours |

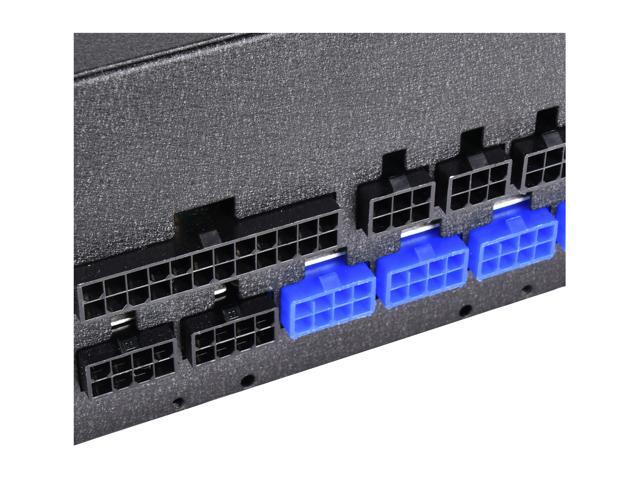

Connectors | 1 x 24 / 20-Pin motherboard connector ("600mm") 1 x 8 / 4-Pin EPS / ATX 12V connector ("550mm") 1 x 8 / 4-Pin EPS / ATX 12V connector ("750mm") 8 x 8 / 6-Pin PCIE connector ("550mm / 150mm" X4) 8 x SATA connector ("600mm / 150mm / 150mm / 150mm" X2) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" X2) 2 x 4-Pin Floppy connector ("150mm" X2) |
Features | Compact design with a depth of 140mm for easy integration High efficiency with 80 PLUS Platinum certification 100% modular cables 24/7 continuous power output with 40 degree C operating temperature Class-leading single +12V rail Strict +/-3% voltage regulation and low ripple & noise Built-in silent & durable hybrid ceramic bearing (HYB) fan FF122 magnetized fan filter included |
---|

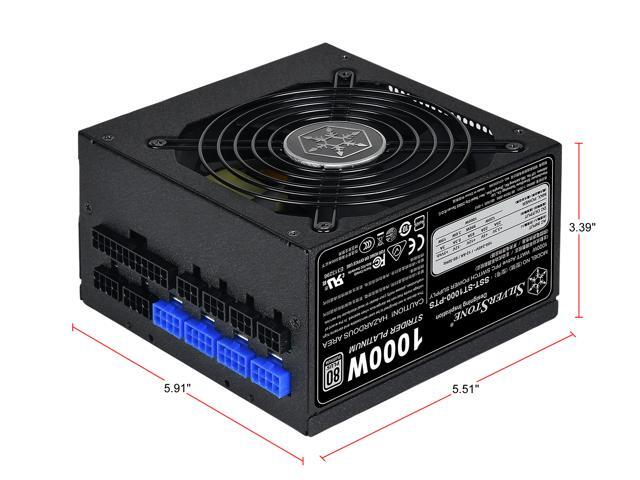

Dimensions | 3.39" x 5.91" x 5.51" |
---|---|
Weight | 4.37 lbs. |
Date First Available | June 04, 2019 |
---|
