How much air moves with minimum setting?

I put together two new pc's one using the 4930k processor with this cooler and one using the 4770k processor with the corsair 100i cooler. The fans on this one blow more air than the corsair but are slightly louder as the trade off. The radiator on this cooler is slightly thicker than the corsair but I was able to fit it into the same case with some extra effort . This cooler feels more solid than the Corsair but both offer excellent cooling and you cannot go wrong with either one. I put both the 4770 with an ASUS Sabertooth mobo and the 4930 with an ASUS X79 Deluxe mobo into identical Corsair Obsidian 650 D cases by the way. I have the fan controller on this case set at the low setting and both coolers cool the cpu's easily with temps in the low 70's with ambient air temps in the high 50's..

anyone kind enough to shed some light on whether you can fit this in a push/pull config on a corsair Air 540 case both on top and in the front?. thanks.

I had it installed in Arc Midi R2 from Fractal Design at the front of the case pushing fresh air in pulling air out of the top and back vents. Top or front vents should be OK.

Has anyone's pump stopped pumping, because I have heard some people including myself have this issue?

I have had mine in service since November of 2013 and it has ran without any issues at all. I quality of the radiator compared to something like the Corsair makes them seem like toys.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

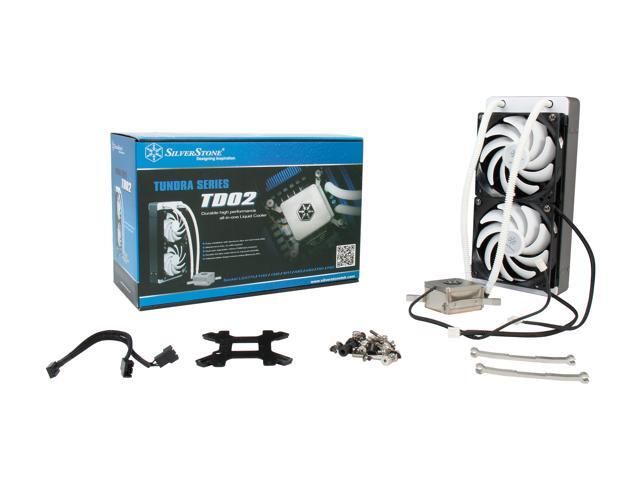

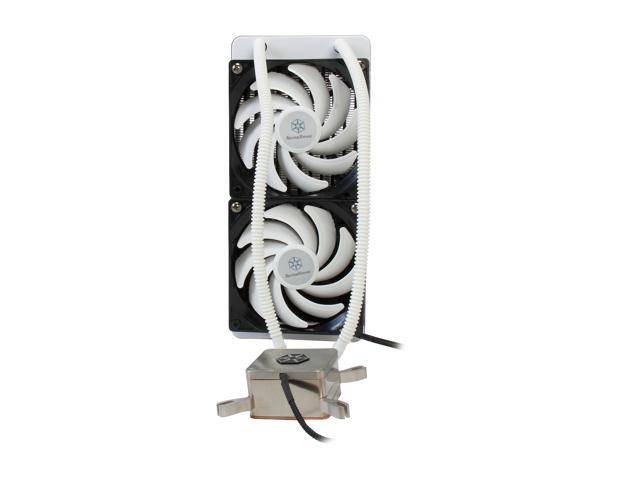

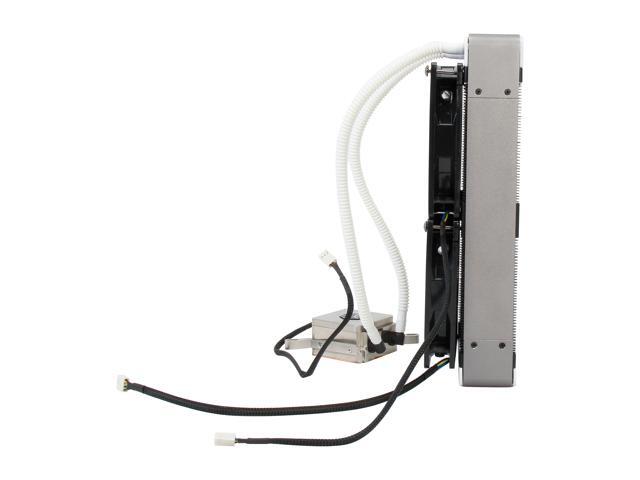

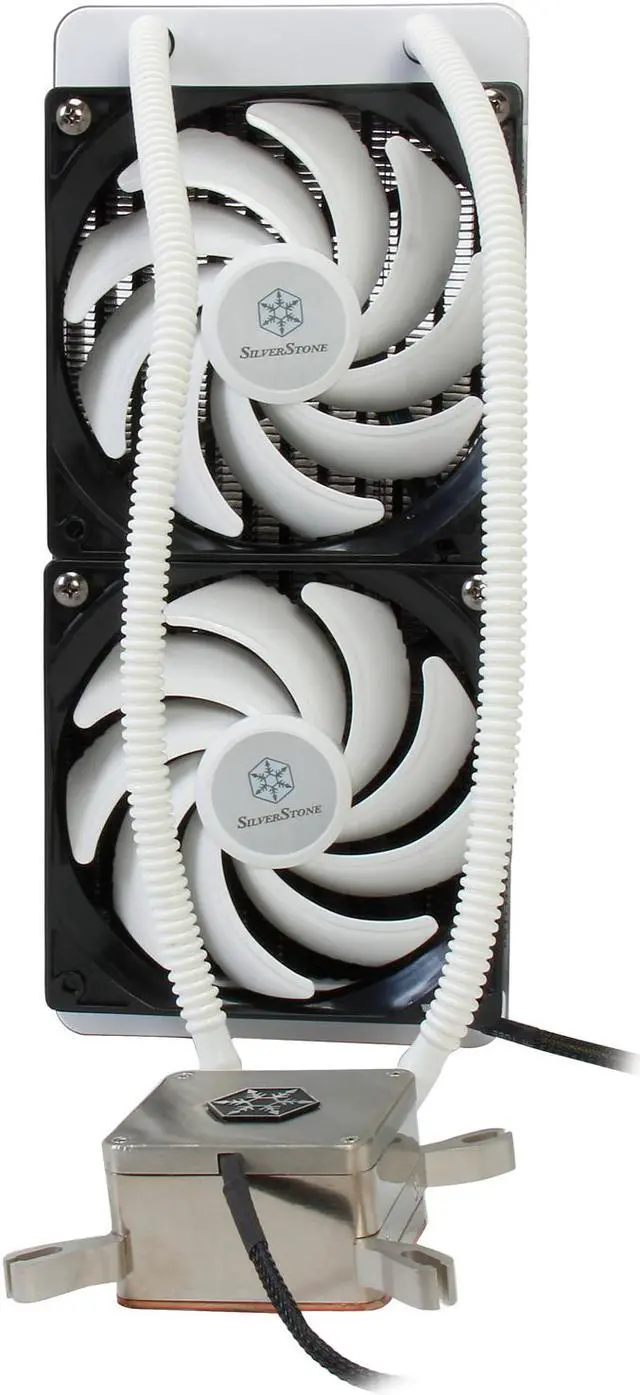

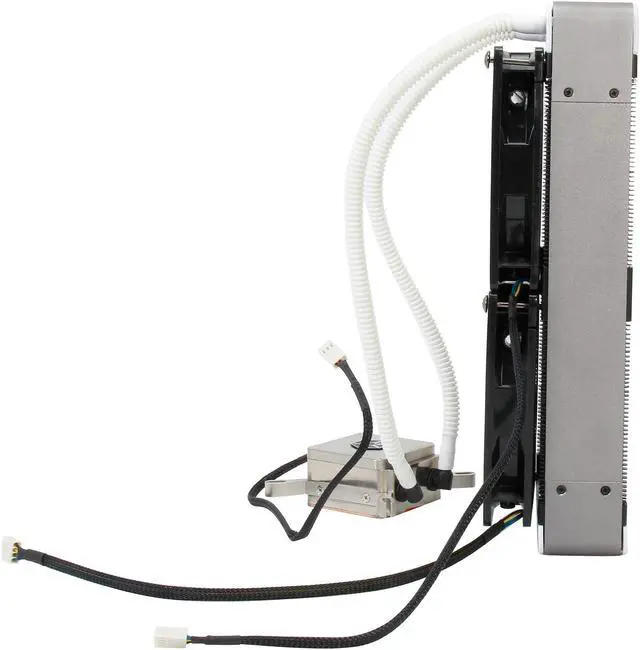

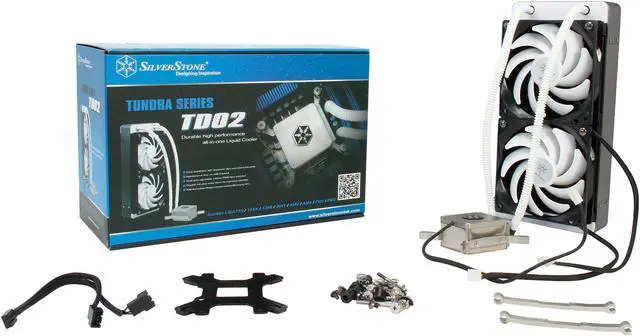

Main image of SILVERSTONE Tundra Series TD02 ALL-IN-ONE Water/Liquid CPU Cooler 240MM

Alt view image 2 of 6 - SILVERSTONE Tundra Series TD02 ALL-IN-ONE Water/Liquid CPU Cooler 240MM

Alt view image 3 of 6 - SILVERSTONE Tundra Series TD02 ALL-IN-ONE Water/Liquid CPU Cooler 240MM

Alt view image 4 of 6 - SILVERSTONE Tundra Series TD02 ALL-IN-ONE Water/Liquid CPU Cooler 240MM

Alt view image 5 of 6 - SILVERSTONE Tundra Series TD02 ALL-IN-ONE Water/Liquid CPU Cooler 240MM

Alt view image 6 of 6 - SILVERSTONE Tundra Series TD02 ALL-IN-ONE Water/Liquid CPU Cooler 240MM

Shop All Silverstone Products

SILVERSTONE Tundra Series TD02 ALL-IN-ONE Water/Liquid CPU Cooler 240MM

(11) Write a Review

1500~2500RPM 92.5CFM
Fan Dim. 120mm (L) x 120mm (W) x 25mm (D)
Fan Noise 16~33.5dBA

Overview

Specs

Reviews (11)

Any questions? Our AI beta will help you find out quickly.

Try me now

The Tundra TD02 is a breakthrough in a market segment filled with same-looking products. It is SilverStone’s first all-in-one liquid cooler.

Unique full alloy water-block construction with copper base and aluminum body ensures better durability compared to plastic-built competitors. The block also has a unique design that eliminates screws in its construction to provide excellent cooling performance and integration of a mounting bracket for easy installation. The radiator has another unique design that utilizes brazing fins similar to those used in top air coolers for increased heat transfer efficiency by up to 40% over traditional radiators. With it fully assembled, factory filled and sealed, the TD02 can be used immediately with no need to refill.

For those looking to finally have a unique all-in-one liquid cooler that is durable and well constructed, the TD02 is definitely it.

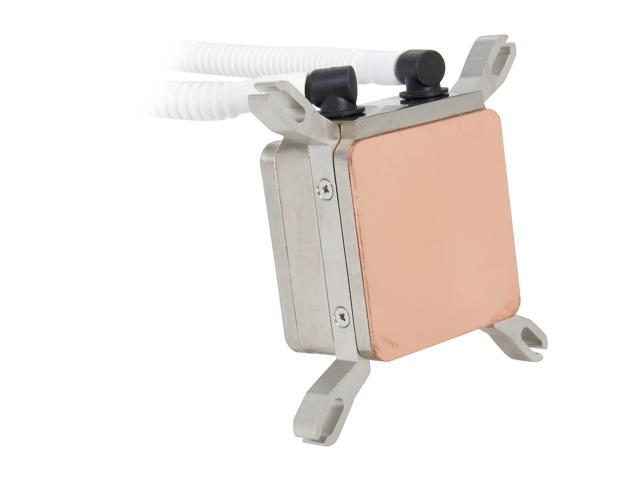

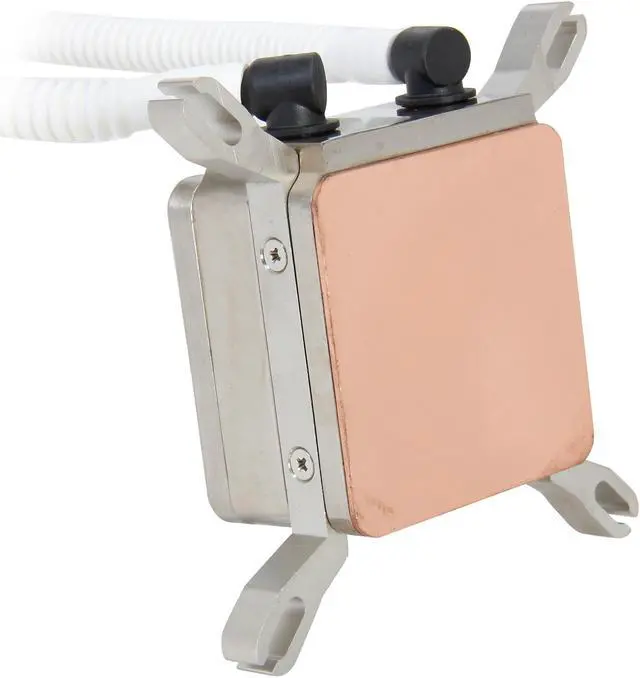

Durable Full Alloy Water-Block

Unique screw-less base design and durable full alloy water-block delivers improved reliability.

TD02/TD03

All Metal Construction With Copper Base

1. Extruded aluminum mounting bracket for exceptional rigidity

2. Patented screw-less base design for superior reliability

3. Nickel-coated unibody aluminum block for outstanding durability

Other Designs

Plastic Cap With Screw-On Copper Base

1. Thinner stamped steel more susceptible to bending

2. Copper base mounted with numerous screws

3. Less durable plastic cap

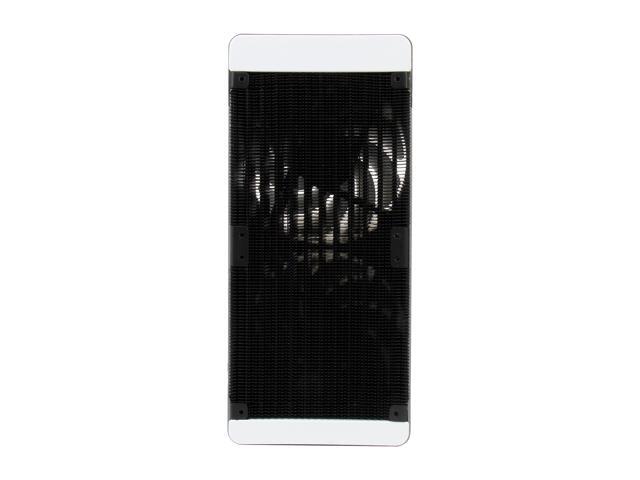

Unique Brazing-Fin Radiator

The Tundra TD02's radiator has a unique design with fins touching all sides of liquid piping for up to 40% higher efficiency than traditional radiators. Dual auto adjustable 120mm PWM fans are also applied for extra heat dissipation.

TD02/TD03

Premium Soldered Heatsink Fin Array

Higher heat transfer with fins touching all sides of liquid piping

Other Designs

Traditional Radiators From Non-PC Applications

Lower heat transfer with fins touching two sides of liquid piping.

Easy Installation

The Tundra TD02 is easy to install with aluminum clips and steel back-plate.

Universal Compatibility

The Tundra TD02 is compatible with all mainstream sockets including LGA775, 115X, 1366, 2011, AM2, AM3, FM1 and FM2.

Model
Brand	SILVERSTONE
Series	Tundra Series
Model	TD02
Type	Liquid Cooling System

Block
Block Compatibility - AMD	AM3 /AM2 /FM2 /FM1
Block Compatibility - Intel	2011 /1366 /1156 /1155 /1151 /1150 /775
Block Dim.	60mm (L) x 55mm (W) x 33.5mm (H)
Block Material	Copper base with nickel-plated aluminum unibody

Radiator
Radiator Size	278mm (L) x 124mm (W) x 45mm (H)
Radiator Material	Aluminum

Fan
Fan Size	2 Fan Slots (120 mm)
Fan Dim.	120mm (L) x 120mm (W) x 25mm (D)
Fan RPM	1500~2500RPM
Fan Air Flow	92.5CFM
Fan Noise	16~33.5dBA
Fan Connector	4 Pin PWM

Tube
Tube Dim.	Length: 310mm
Tube Material	FEP

Features
Features	Pump: Motor speed: 2500+/-200RPM Rated Voltage: 12V Rated Current: 0.28A Fan: Rated Voltage: 12V Rated Current: 0.3A Pressure: 3.5mm/H2O Net Weight: 1501g Easy installation with aluminum clips and steel back-plate Maintenance free, no refill required Dual auto adjustable 120mm PWM fans included Durable full alloy water-block for improved reliability Socket LGA775/115X/1366/2011/AM2/AM3/FM1/FM2.

Additional Information
First Listed on Newegg	July 08, 2013
