Main image of SPARKLE SPI600A8BB 600 W ATX12V 80 PLUS BRONZE Certified Active PFC ATX12V Switching Power Supply

Alt view image 2 of 6 - SPARKLE SPI600A8BB 600 W ATX12V 80 PLUS BRONZE Certified Active PFC ATX12V Switching Power Supply

Alt view image 3 of 6 - SPARKLE SPI600A8BB 600 W ATX12V 80 PLUS BRONZE Certified Active PFC ATX12V Switching Power Supply

Alt view image 4 of 6 - SPARKLE SPI600A8BB 600 W ATX12V 80 PLUS BRONZE Certified Active PFC ATX12V Switching Power Supply

Alt view image 5 of 6 - SPARKLE SPI600A8BB 600 W ATX12V 80 PLUS BRONZE Certified Active PFC ATX12V Switching Power Supply

Alt view image 6 of 6 - SPARKLE SPI600A8BB 600 W ATX12V 80 PLUS BRONZE Certified Active PFC ATX12V Switching Power Supply

Shop All Sparkle Power Inc. Products

SPARKLE SPI600A8BB 600 W ATX12V 80 PLUS BRONZE Certified Active PFC ATX12V Switching Power Supply

Be the first to review this product...

ATX12V
80 PLUS BRONZE Certified
90 ~ 265Vac (RMS), Full Range Input 47 - 63 Hz
+3.3V@25A, +5V@25A, +12V1@16A, +12V2@16A, +12V3@16A, +12V4@16A, -12V@0.5A, +5Vsb@4A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Output Power: 600 WForm Factor: InternalEnvironmentally Friendly: YesEnvironmental Certification: RoHS

General
Brand	SPARKLE
Model	SPI600A8BB

Details
Type	ATX12V
Maximum Power	600 W
Fans	1
PFC	Active
+12V Rails	4
Max PSU Length	140 mm
Power Good Signal	100-500ms
Hold-up Time	17ms minimum at nominal input voltage
Efficiency	82% minimum, typical up to 87%
Energy-Efficient	80 PLUS BRONZE Certified
Input Voltage	90 ~ 265Vac (RMS), Full Range Input
Input Frequency Range	47 - 63 Hz
Input Current	Max 12A (RMS) @ 115Vac, 6A (RMS) @ 230Vac

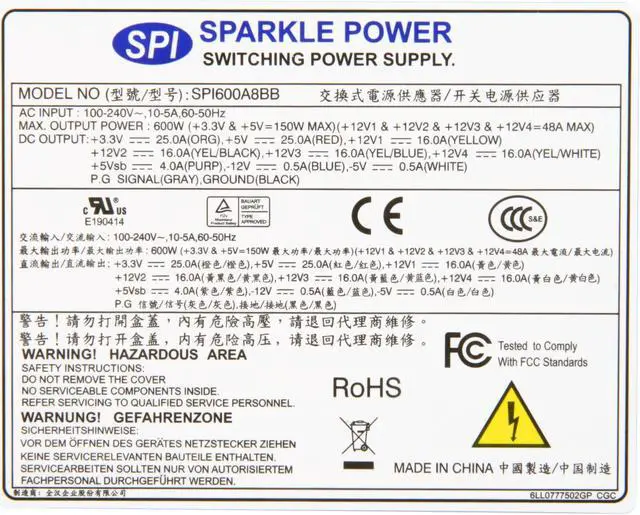

Output	+3.3V@25A, +5V@25A, +12V1@16A, +12V2@16A, +12V3@16A, +12V4@16A, -12V@0.5A, +5Vsb@4A
MTBF	100,000 hours on maximum load at +25°C

Features
Features	Complied with ATX12V standard Active Power Factor Correction (PFC) meet EN61000-3-2 High efficiency and reliability Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances). Remote ON/OFF function Internal 12V DC fan included Noise Killer (thermal fan speed control function) Low noise and ripple Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation

Dimension & Weight
Dimensions	5.50" x 5.90" x 3.40"

Additional Information
First Listed on Newegg	January 14, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Website
Support Phone: 1-626-839-7180
Support Website
