Brand | StarTech.com |
---|---|
Model | SV421DVI |
Type | DVI + PS/2 |
---|---|

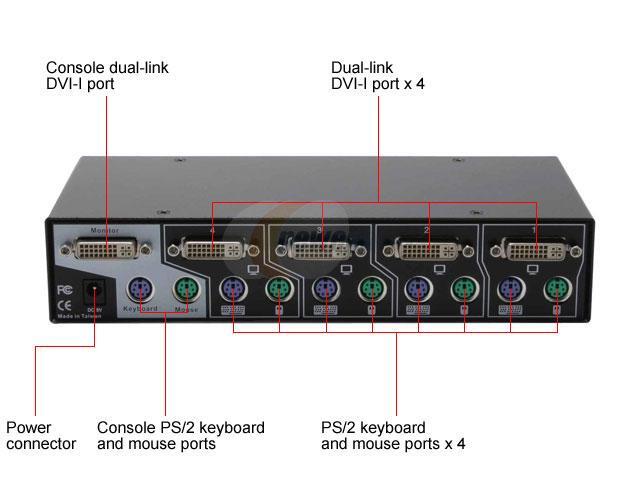

PC Connectors | Keyboard: 4 x PS/2 6-pin Mini Din (female) Mouse: 4 x PS/2 6-pin Mini Din (female) DVI: 4 x DVI-I Dual Link (female) |
Console Connectors | Keyboard: 1 x PS/2 6-pin Mini Din (female) Mouse: 1 x PS/2 6-pin Mini Din (female) DVI: 1 x DVI-I Dual Link (female) |
Computer Connections | 4 Ports |
Monitor Connections | 1 Port |
Video Resolution | 1280 x 1024 - Digital 1920 x 1440 - Analog |

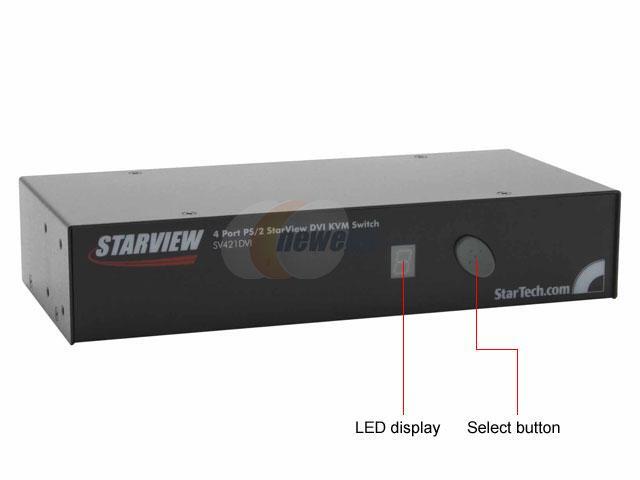

PC Selection | Push Buttons/Hot Keys |
Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
---|
Power Features | PS/2 interface & 9V 500mA Adapter (optional) |
---|---|
Features | Applications Enables users to control 4 computers from 1 Keyboard, Mouse and Flat Panel LCD monitor Ideal for environments using desktops, workstations and servers with Flat Panel LCD monitor Switches instantly between two PCs All cables are connected to the rear for a more secure and neat connection Buzzer sound for port switching confirmation DVI-I interface technology supports both digital and analog video signal transmission Front panel LED's indicate which computer is active HDCP Compliant Keyboard and mouse allow for hot plugging without having to turn either the KVM or the PC off Operating system independent, compatible with all operating systems Power-free operation draws power from your computer’s PS/2 port and requires no power adapters Supports high digital resolution of up to 1280x1024 and analog resolution of up to 1920x1440 Supports PS/2 keyboards and mouse including M/S IntelliMouse (Pro), Explorer and Optical mice |
Dimensions | 4.3" x 8.8" x 1.8" |
---|---|
Weight | 2.2 lbs. |
Date First Available | May 13, 2005 |
---|
Pros: Works for me on all resolutions with a GeForce 7900 GS, which is a plus since my monitor is widescreen and supposedly this unit does not support widescreen. Resolution is clear with no abnormal pixelation.
Cons: Loses PS2 connections when switching manually. I don't know if this problem would be resolved with a separate 9v power supply (not included).
Overall Review: I like that this unit takes power from the PS2 connection, but the fact that I must power down one computer to get PS2 on another is a big negative.
