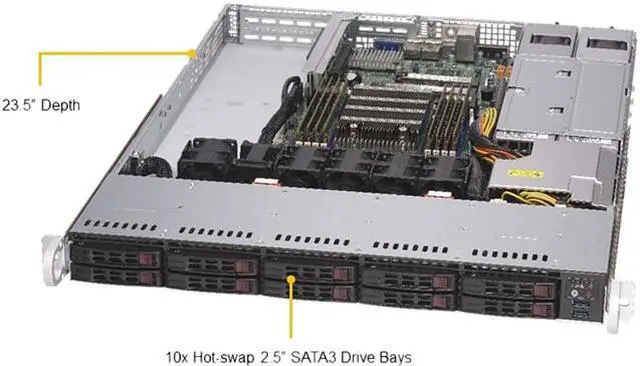

Supermicro AS-1114S-WTRT AMD UP 1U 500w Server with 8x DIMMs, 3x PCI-E 4.0, 10x 2.5" Hotswappable, 2x 10GbE NIC

Be the first to review this product...
  • 1 AMD EPYC ROME processor
  • 8 DIMMs, UP to 2 TB
  • 3 x PCI-E 4.0 x 16 expansion slots( 2 FHFL, 1 LP)
  • 10x Hotswaapable 2.5" front SSD bays
  • 2x 10GB Ports
  • 500w Redundant power supplies, Platinum Level
+
+
Specs
Reviews

Learn more about the Supermicro AS-1114S-WTRT

General
Brand SUPERMICRO
Model AS-1114S-WTRT
Form Factor 1U Rackmount
Workload General Purpose Server
CPU Supported
CPU Type Single AMD EPYC 7003/7002 Series Processor
(The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer)
CPU Socket Socket SP3
Memory Supported
Memory Slots 8 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported 2TB
Memory Type Supported DDR4 2666
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 2 x SATA 600
Graphics
GPU/VPU Aspeed AST2500 BMC
Expansion Slots
PCI Express 2 x PCI-E 4.0 x16 (FHHL) slots
1 x PCI-E 4.0* x16 (LP) slot
2 x PCI-E?/?SATA 3.0 x2 NVMe M.2 slots

*?Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
Communications
First LAN 2 x RJ45 10GBase-T ports
Second LAN 1 x RJ45 Dedicated IPMI LAN port
Max. LAN Speed 10 Gigabit
Expansion Bays
Hot-Swap Bays 10 x 2.5" Hot-swap SATA3 drive bays
Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Panel Ports
Front USB 2 x USB 3.0
VGA 1
Rear USB 4 x USB 3.0
1 x USB 3.0 Type A
RJ45 1
Other Ports 2 x SuperDOM (Disk on Module) ports
Power Supply
Max. Power 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)
Dimensions & Weight
Dimensions 1.70" x 17.20" x 23.50"
Additional Information
Date First Available February 17, 2021
