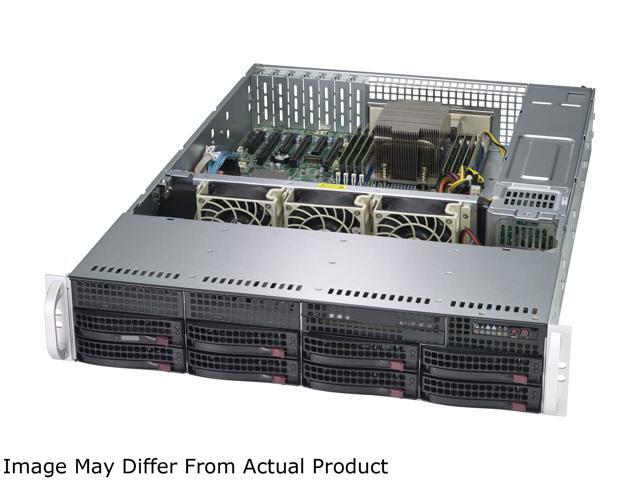

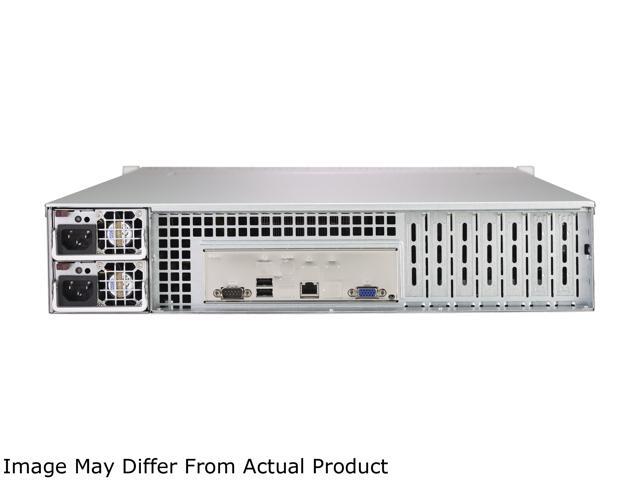

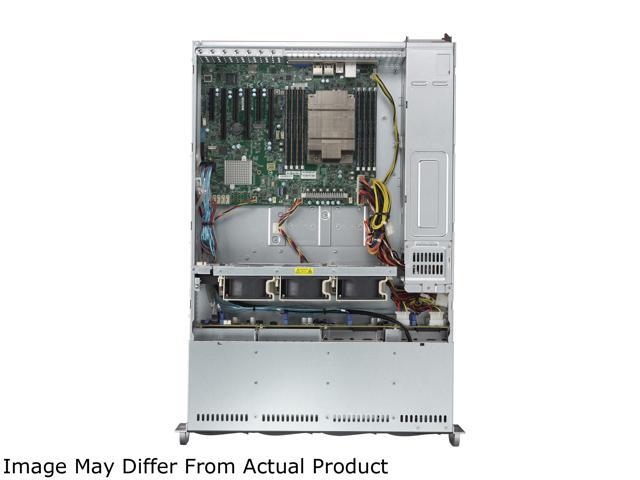

Supermicro 2U Barebone, with AMD Rome 64 Cores, 7702P CPU, 740W Redundant PS

OUT OF STOCK.
  • Supermicro Rackmount 2U Barebone 2013S-C0R
  • AMD Epyc Rome 7702P CPU, 64 Cores, 128 Threads, 2.0G, 256M cache
  • Up to 1TB Registered ECC DDR4 2666 MHz SDRAM in 8 x DIMMs
  • 1 x NVMe M.2 Drive Space
  • 8 x SAS3 ports via Broadcom 3008
  • 3 x PCIE 3.0 x16, 3 x PCIe 3.0 x8 expansion slots
  • 2 x 1 GbE LAN ports via Intel I210
  • Integrated IPMI 2.0 + KVM with dedicated LAN
  • 8 x 3.5" SAS 3 Hotswappable Drive bays
  • 740W Redundant Platinum Level high-efficiency Power Supplies
Specs
Reviews

Learn more about the Supermicro AS -2013S-C702P-MA015

Model
Brand SUPERMICRO
Model AS -2013S-C702P-MA015
CPU Supported
CPU Type Single AMD EPYC 7000-series Processor (up to 200W)
Socket SP3
CPU Socket Socket SP3
Memory Supported
Memory Slots 8 x 240Pin
Max Memory Supported Supports up to 1TB Registered ECC DDR4 2666 MHz SDRAM
Memory Type Supported DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 8 x SATA 600
Expansion Slots
PCI Express 3 x PCI-E 3.0 x16 (low profile)
3 x PCI-E 3.0 x8 (low profile)
Expansion Bays
Hot-Swap Bays 8 x hot-swap 3.5" SAS3 / SATA3 Drive Bays
Panel Ports
COM 1
RJ45 2 x 1 GbE LAN ports
1 x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 740W Redundant high-efficiency power supply with PMBus
Features
Features Single AMD EPYC 7000-Series Processor

Up to 1TB Registered ECC DDR4 2666 MHz SDRAM in 8 DIMMs

Expansion slots:
3 x PCI-E 3.0 x16 (low profile);
3 x PCI-E 3.0 x8 (low profile)
M.2 Interface: PCI-E 3.0 x4 (NVMe based)
M.2 Form Factor: 2280, 22110
M.2 Key: Onboard M-key
Number of M.2: Single

Integrated IPMI 2.0 + KVM with dedicated LAN
Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management

2 x 1 GbE LAN ports via Intel I210

8 x hot-swap 3.5" SAS3 / SATA3 Drive Bays (on-board Broadcom 3008 IR mode), 1 x M.2 NVMe SSD slot Supported

740W Redundant Platinum Level high-efficiency Power Supplies (Full redundancy based on configuration and application load)
Details
Form Factor 2U Rackmount
Additional Information
Date First Available September 18, 2019
