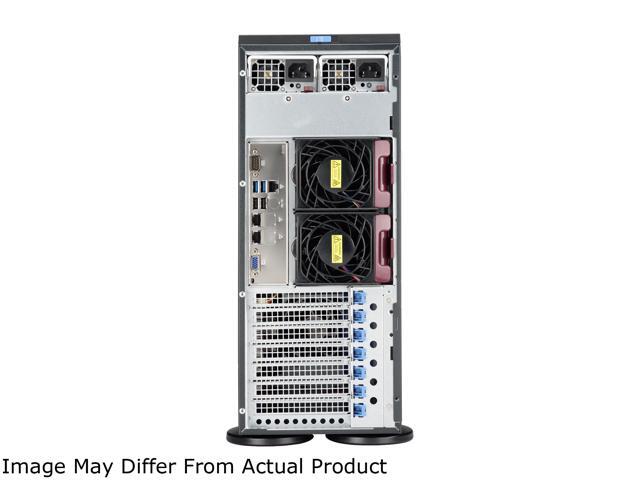

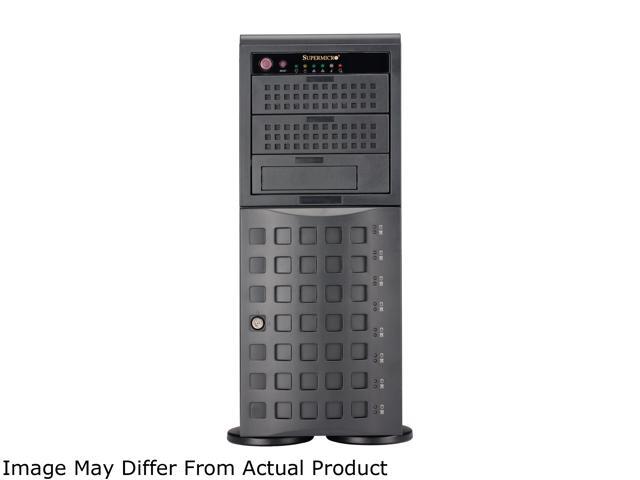

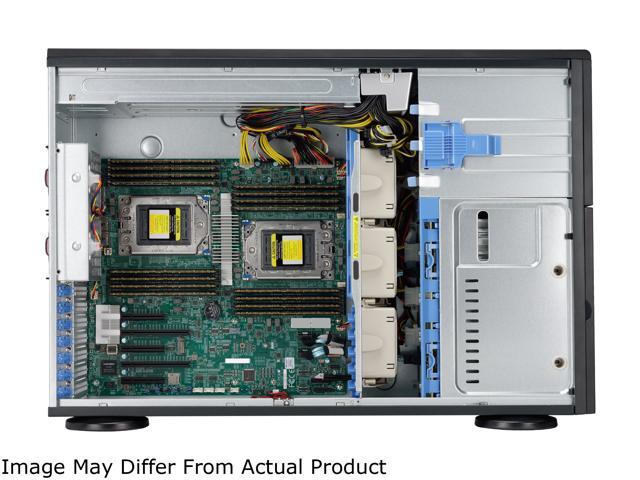

SUPERMICRO AS-4023S-TRT Tower / 4U Rackmountable Server Barebone Socket SP3 DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs

OUT OF STOCK.
  • Socket SP3
  • Dual AMD EPYC 7000-series Processors
  • Socket SP3
  • 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
Specs
Reviews

Learn more about the Supermicro AS-4023S-TRT

Model
Brand SUPERMICRO
Model AS-4023S-TRT
CPU Supported
CPU Type Dual AMD EPYC 7000-series Processors
Socket SP3
CPU Socket Socket SP3
Memory Supported
Max Memory Supported Supports up to 2TB Registered ECC DDR4 2666 MHz SDRAM in 16 DIMMs
Memory Type Supported DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
Storage Supported
Serial ATA 10 x SATA 600
SAS 8 x SAS3 ports support via optional Add-on Card
Expansion Slots
PCI Express 2 x PCI-E x16 slots
3 x PCI-E x8 slots
Communications
Number of LAN 2 x Intel X550 10GBase-T Ethernet Controllers
First LAN Intel X550
Second LAN Intel X550
Max. LAN Speed Dual 10 Gigabit
Panel Ports
COM 1
Rear USB 2 x USB 3.0 ports (rear)
2 x USB 2.0 ports (rear)
RJ45 Dual 10G LAN ports
1 x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
Features
Features Dual AMD EPYC 7000-Series Processors

Up to 2TB Registered ECC DDR4 2666 MHz SDRAM in 16 x DIMMs

Expansion slots:
2 x PCI-E x16 slots
3 x PCI-E x8 slots
M.2 Interface: 1 x SATA/PCI-E 3.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: M-key

Integrated IPMI 2.0 + KVM with dedicated LAN

Dual 10G LAN ports

8 x hot-swap 3.5" SATA3 drive bays; 3 x peripheral 5.25" drive bays; 1 x M.2 NVMe SSD supported

1280W Redundant Power Supplies Platinum Level (Full redundancy based on configuration and application load)
Details
Form Factor Tower / 4U Rackmountable
Dimensions & Weight
Dimensions 17.80" x 7.00" x 25.50"
Additional Information
Date First Available June 13, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
