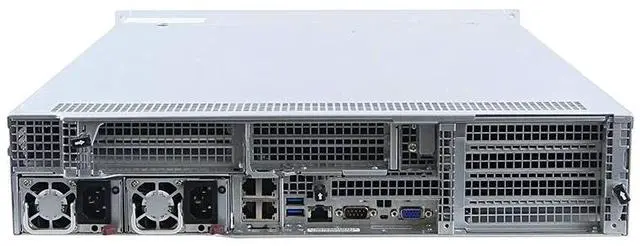

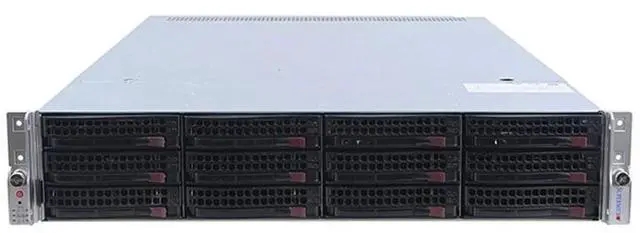

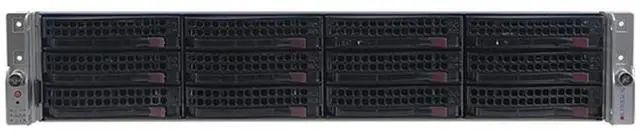

Supermicro SYS-6029U-E1CR4T - 12 Bay 3.5" 2U Server
High-Performance 2U Rackmount Server for Enterprise Workloads
The Supermicro SYS-6029U-E1CR4T is a robust and scalable 2U server designed to meet the demands of virtualization, hyper-converged storage, and cloud computing environments. Equipped with dual Intel® Xeon® Scalable processors and high-speed networking, it delivers exceptional performance and flexibility for data-intensive applications.
Key Features:
Dual Socket P (LGA 3647) Supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) with up to 28 cores per CPU and TDP up to 205W.
24 DIMM Slots Accommodates up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; supports Intel® Optane DC Persistent Memory Modules (DCPMM).
12 Hot-Swap 3.5" Drive Bays Supports SAS3/SATA3 drives via optional AOC; 4 hybrid bays can be configured for NVMe SSDs (requires storage add-on card).
High-Speed Networking Integrated 4x 10GBase-T LAN ports via Intel® X710 controller; includes 1 dedicated IPMI LAN port for remote management.
Expansion Slots Offers 2 PCI-E 3.0 x16 slots and 4 PCI-E 3.0 x8 slots (both full-height, 10.5" length), plus 1 low-profile PCI-E 3.0 x8 slot and 1 internal PCI-E 3.0 x8 slot (requires both CPUs installed for full access).
Redundant Power Supply 1000W high-efficiency (96%) redundant power supplies with PMBus support; Titanium Level certified.
Advanced Cooling Features 4 heavy-duty 8cm PWM fans for optimal thermal performance.
Comprehensive Management Includes IPMI 2.0 with virtual media over LAN and KVM-over-LAN support; ASPEED AST2500 BMC for remote management.
Technical Specifications:
Form Factor: 2U Rackmount
Motherboard: Super X11DPU
Chipset: Intel® C621
Memory Capacity: Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Storage Controller: SATA3 (6Gbps) with RAID 0, 1, 5, 10 support
Networking: 4x 10GBase-T LAN ports, 1x dedicated IPMI LAN port
USB Ports: 3 USB 3.0 ports (2 rear, 1 Type A)
Video Outputs: 2 VGA ports (1 rear, 1 onboard)
Serial Port: 1 Serial header
DOM Ports: 2 SuperDOM (Disk on Module) ports
BIOS: AMI 32Mb SPI Flash ROM
Power Supply: 1000W Redundant Power Supplies with PMBus
Dimensions (W x H x D): 17.2" x 3.5" x 28.46" (437mm x 89mm x 723mm)
Weight: Net Weight: 36 lbs (16.4 kg); Gross Weight: 72 lbs (32.7 kg)
Why Choose Supermicro?
Supermicro is renowned for delivering high-quality, energy-efficient servers with advanced features and robust support. The SYS-6029U-E1CR4T offers the perfect balance of performance, scalability, and reliability for demanding enterprise workloads.
Optimize your data center with the Supermicro SYS-6029U-E1CR4T engineered for high-performance computing and enterprise scalability.
Do you need assistance custom configuring a system for a certain use case scenario? No problem, we are here to help and can create a custom listing for you. Contact Us Today at (844) 338-0285
PLEASE NOTE - STOCK PHOTOS ARE SHOWN AND MAY NOT BE THE ACTUAL UNIT SHIPPED.
