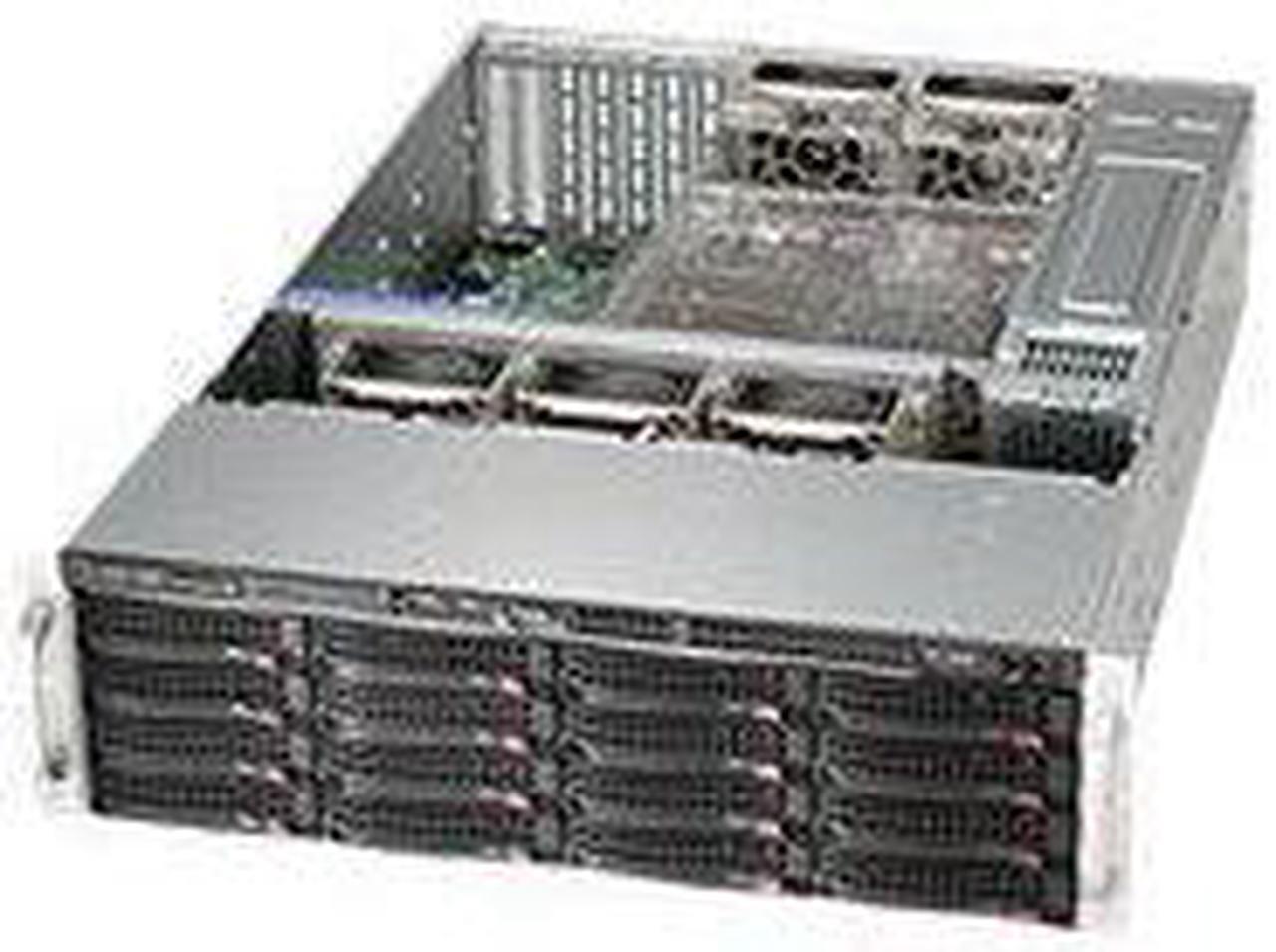

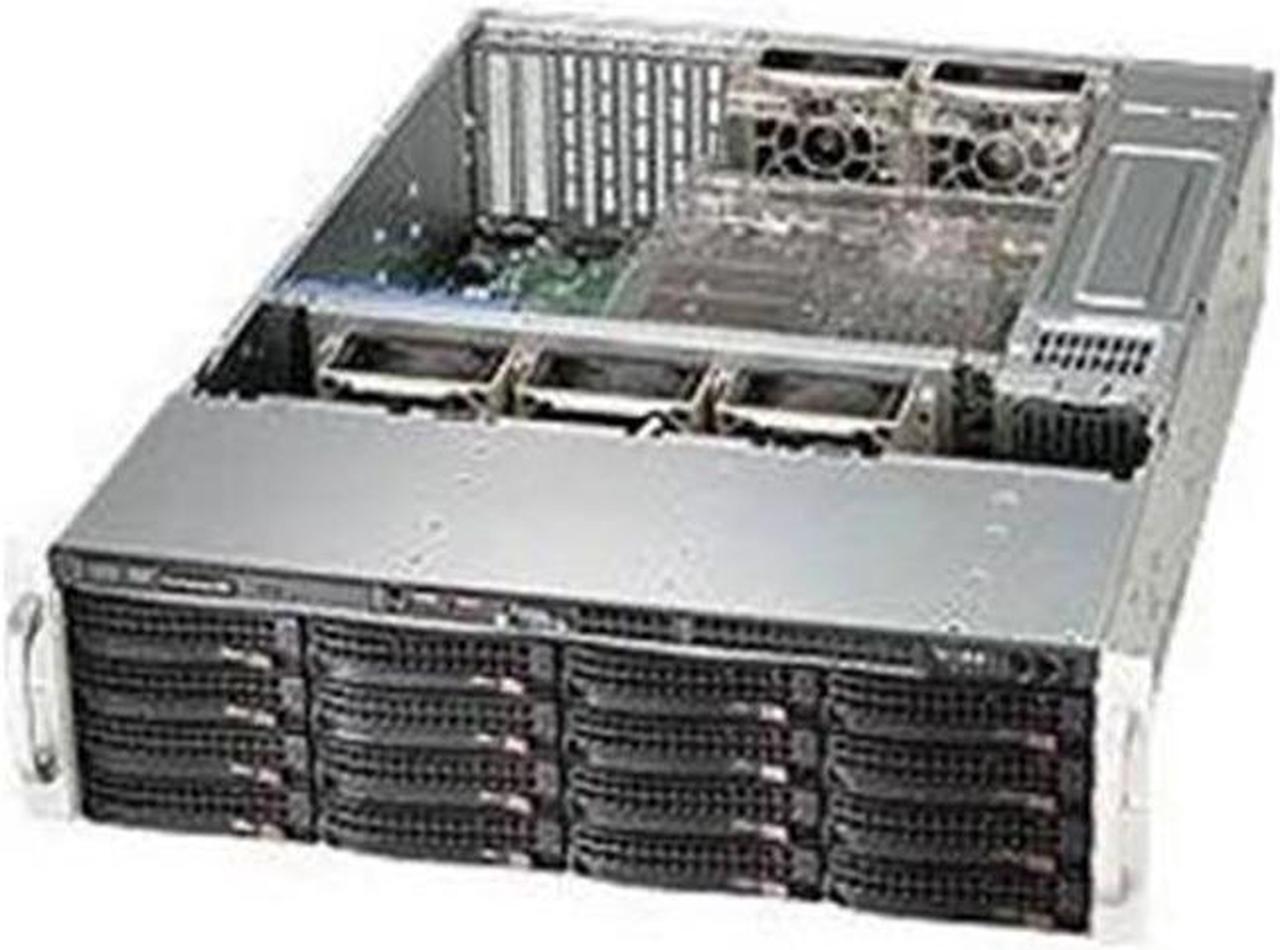

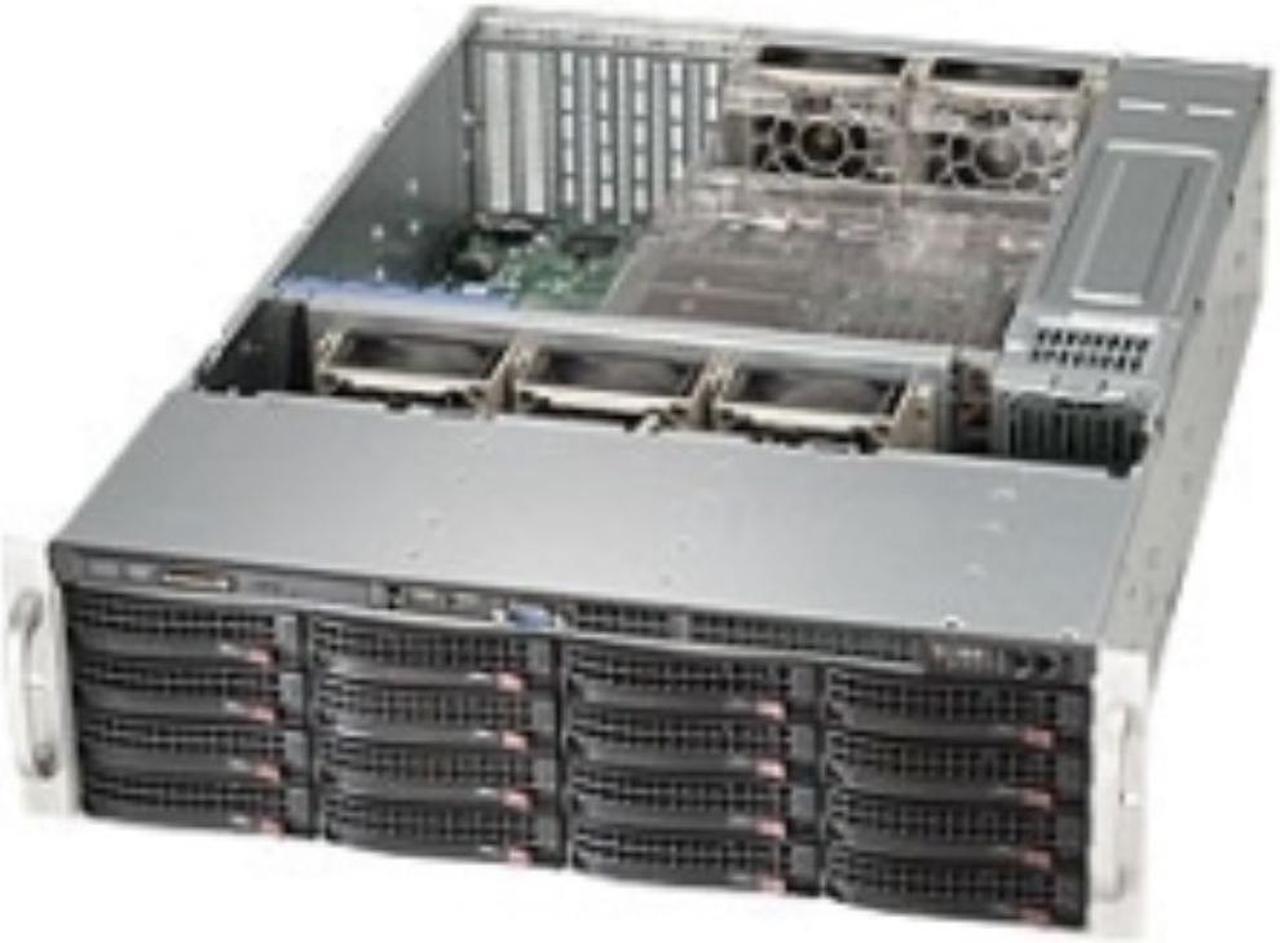

Supermicro SuperChassis CSE-836BE2C-R1K03B
- 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX
- 16 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
- 16-port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
- 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
- 7 full-height & full-length expansion slot(s)
- 3 x 8cm hot-swap redundant PWM cooling fan(s)
- 2 x 8cm hot-swap exhaust fan(s) & air shroud
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES: Motherboard
Supported: EATX
Number of
Fans Supported: 5Number of
Fans Installed: 5Installed
Fan Size: 3.15"N umber of External 3.5"
Bays: 16Number of Total
Expansion Bays: 16Number of Total
Expansion Slots: 7Power
Supply Installed: Yes
Power Supply Wattage: 1000
WColor: Black
Compatible Rack Unit: 3UForm
Factor: Rack-mountable
Height: 5.2"W
idth: 17.2"D
epth: 25.5"P ackage
Contents: Super
Chassis 836BE2C-R1K03B (Black) 1 xSAS3 12Gb/s Dual Expander backplane with 16 SAS3 3.5" drive slots connected through 8 mini-SAS3 HD cable connectors, 4 for uplink and 4 for downlink, RoHS/REACH, PBF 2 x 1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm, RoHS/REACH 1 x PDB with longer 24pin for SC826B 1 x 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG 1 x Black DVD dummy cover for SC825, 836 1 x 836B rear dummy cover for 2 X 2.5" HDD cage 1 x set Silver chassis handle for SC836/835 1 x Rail screw bag 1 x 836B chassis rear window (to support the optional MCP-220-83605-0N) 1 x Black USB/COM port tray for SC825, 836 2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing 16 x Black gen 5.5 hot-swap 3.5" HDD tray 1 x SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB 1 x Rail set, quick/quick, default for 2, 3U 17.2"W
Supported: EATX
Number of
Fans Supported: 5Number of
Fans Installed: 5Installed
Fan Size: 3.15"N umber of External 3.5"
Bays: 16Number of Total
Expansion Bays: 16Number of Total
Expansion Slots: 7Power
Supply Installed: Yes
Power Supply Wattage: 1000
WColor: Black
Compatible Rack Unit: 3UForm
Factor: Rack-mountable
Height: 5.2"W
idth: 17.2"D
epth: 25.5"P ackage
Contents: Super
Chassis 836BE2C-R1K03B (Black) 1 xSAS3 12Gb/s Dual Expander backplane with 16 SAS3 3.5" drive slots connected through 8 mini-SAS3 HD cable connectors, 4 for uplink and 4 for downlink, RoHS/REACH, PBF 2 x 1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm, RoHS/REACH 1 x PDB with longer 24pin for SC826B 1 x 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG 1 x Black DVD dummy cover for SC825, 836 1 x 836B rear dummy cover for 2 X 2.5" HDD cage 1 x set Silver chassis handle for SC836/835 1 x Rail screw bag 1 x 836B chassis rear window (to support the optional MCP-220-83605-0N) 1 x Black USB/COM port tray for SC825, 836 2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing 16 x Black gen 5.5 hot-swap 3.5" HDD tray 1 x SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB 1 x Rail set, quick/quick, default for 2, 3U 17.2"W
