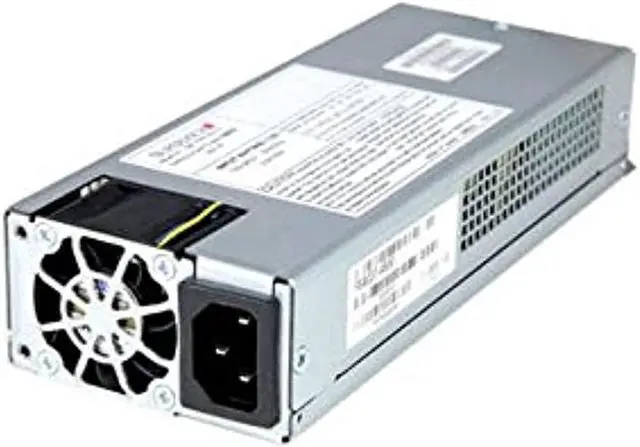

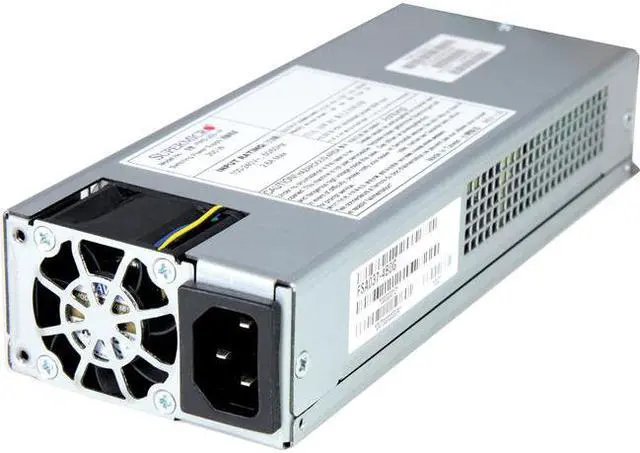

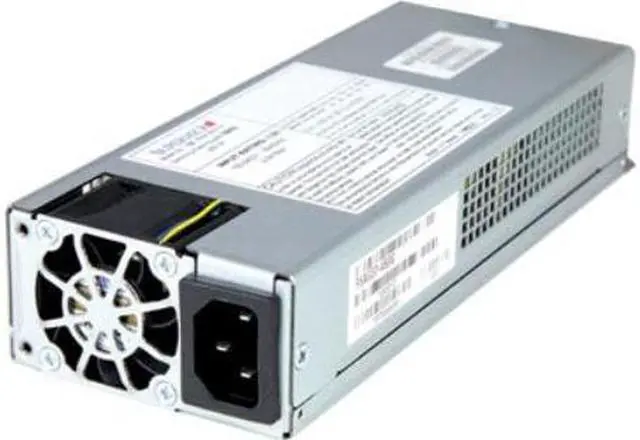

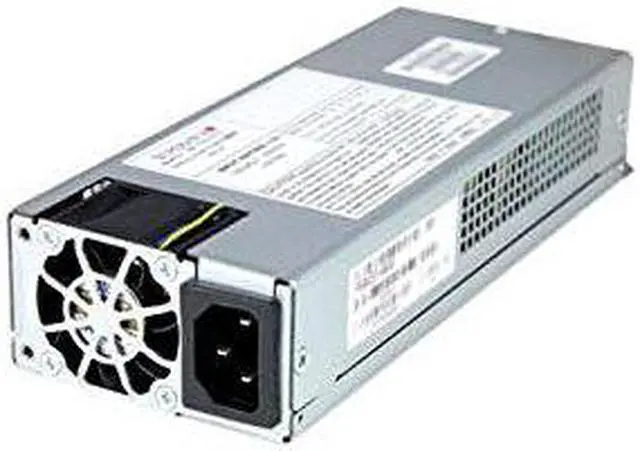

SUPERMICRO PWS-203-1H Supermicro PWS-203-1H 200W 80 PLUS Gold 1U Single Power Supply w PFC
- EPS12V
- 80 Plus Gold
- 110 V AC 220 V AC
- EPS12V Power Supply
- 110 V AC 220 V AC
- 80 Plus Gold
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Information
- Specification Compliance: EPS12V
- Number of Fans: 1
- Number of +12V Rails: 1
- Input Voltage Type: AC
- Input Voltage: 110 V AC
- Input Voltage: 220 V AC
- Input Voltage Range: 100 V AC - 240 V AC
- Output Voltage: 3.3 V DC @ 8 A
- Output Voltage: 5 V DC @ 8 A
- Output Voltage: 12 V DC @ 16 A
- Output Voltage: -12 V DC @ 500 mA
- Output Voltage: 5 V @ 2 A
- Input Current: 2.6 A
- Output Power: 200 W
- Receptacles: 20-pin ATX
- Receptacles: 8-pin EPS12V
- Form Factor: Rack-mountable
- Height: 1.6"
- Width: 3"
- Depth: 7.6"
- Compatibility: Supermicro SuperChassis SC504-203B Chassis
- Certifications & Standards: Safety / EMC:
- USA - UL listed, FCC
- Canada - CUL listed
- CCC Certification
- EN 60950/IEC 60950-Compliant
- Europe/CE Mark
- Germany - TUV Certified
- Environmentally Friendly: Yes
- Environmental Certification: 80 Plus Gold
- Limited Warranty: 3 Year
