Question 1

According to power supply calculators, I need a 344 watt power supply (2x12 core cpus, 8x16GB RAM sticks, AMD radeo hd 5450 (low-middling) graphics card). I have a 500W supply and the system is failing to start. Do I in fact require higher wattage than this?

Accepted Answer

Have you tried connecting the monitor to the onboard graphics to see if you get anything? Try with and without the RadeonHD installed.

How is the memory installed? Do you have 4 dimms installed for each CPU or are all 8 dimms installed into the dimm slots of just one of the CPU's?

Why are you using offboard graphics? What are you trying to accomplish with this build?

When you say failing to start. At which point does it fail? Does the system at least POST, etc?

Question 2

Will this fit 2 AMD Phenom II X6 1090T's?

Accepted Answer

No it can not the Phenom II X6 1090Ts are socket AM3 this motherboard is socket G34 you will need a AMD Opteron 6100/6200/6300 cpu and a cpu cooler that fits the motherboard the Noctua NH-U9DO A3 is a good cooler if you can get it and if you are using a case that fits it.

Question 3

I have 2 processors - Opteron 6100 and 6200.
Each works fine as single processor in CPU1 socket.
When I put both into CPU1/CPU2 sockets then my MBD will not POST (Power LED DP3 remains OFF).
My BIOS version is 3.5
Question:
Is this an issue with my MBD or mixing of 6100/6200/6300 processors is not allowed on this board?

Accepted Answer

I would call supermicro on this. The two obvious possibilities are:

1) Unlike processors are not supported.
2) CPU socket 2 is bad. The pins in those sockets seem very delicate.

dub-dub-dub.supermicro.c-o-m/support/contact.cfm

Although they are sometimes difficult to reach, I have had nothing but good definitive answers from them.

Good luck.

-steph

Question 4

I plan to buy this motherboard. But I need clarification on the meaning of phrase "Raid 5 optional". I plan to setup a server with Raid 5 configuration, but these words makes me wonder if I need more hardware in addition to the MB to make raid 5 work with this MB? Can someone clarify this ?

Accepted Answer

You need this part to do RAID five through the SAS connector on the board... AOC-SAS2-RAID5-KEY

Question 5

Would this motherboard be fit for gaming? I plan on purchasing four GTX Titans, and I want to know if they would fit, and if the two CPUs would greatly help with gaming

Accepted Answer

Yes they will work. Making game comes from a workstation. You can SLI them. You can game on them. Only down side is that the memory will work slow on ECC registered type rams as CL 11. You can get ECC unregistered to reduced slowness. It all driver that does the work of what it needed to be done. But you can't put 4 Titan on this board. The titan are PCIex16 slotable type of connections to be seated on to a slot. You can add three titian. This board have 3x PCIe 2.0x16 slots. But you will need a three way SLI connections. AMD CPU Opteron runs just about a phenom as a gaming solutions. Best is 2.8GHZ level and above. Anything slower than a 2.6 will be to slow to preform.

Question 6

Is this motherboard compatible with Microsoft Windows Server 2012 R2 Essentials? I would like to use this mobo for a new server build for my small business.

Accepted Answer

Hey, I was going to use that, but my needs didn't call for it. I wound up using windows 7 Ultimate and works great.

From everything I read 2012 essentials will work though. But keep asking around. Like I said, I'm not using it. Sorry I couldn't help more.

Question 7

I bought this and the NZXT H630 Case. The case does not have the required mounting holes. Can anyone recommend a case that this and at least 6 3.5 HDDs will fit into? Having trouble trusting the cases that say they fit EATX after this one not.

Accepted Answer

I purchased the following case for the same board you are using.... "Cooler Master HAF 932 Advanced Blue Edition - High Air Flow Full Tower Computer Case with USB 3.0 and All-Black Interior".  The case is excellent! Board fits great in the case... plenty of room to work with... I have six 4TB drives in there now and one 500GB drive and there is still plenty of room left in the bays.

Question 8

Does the on-board LSI raid controller have an option for a battery backup to enable the write through feature?

Thanks
John

Accepted Answer

The onboard controller is a native SAS meaning no cache and therefore no battery. The controller does allow write through and disk caching. The feature you are looking for if I had to guess is called write back. Write back allows the controller to cache it's write process into the memory of the controller. If you want to protect the write cache from deletion in the event of power failure then you use a battery and enable the feature called Write back with BBU. Then your controller can finish the write out of the cached data after the machine is started and the firmware initializes on the controller. To answer your question NO there is no battery backup or cache but the write through feature doesn't require it. Write through simply moves the data directly to the hard drives cache buffer only when you enable disk caching.

Question 9

What power supply are you using? Does this require a proprietary power supply or will any ATX power supply with dual 8 pin connectors work? (e.g. Corsair AX860)

Accepted Answer

I am using a Corsair 750watt power supply... has been running great for months.

Question 10

I'm trying to install A Raid 10 With 4 2 TB HDDs, It's only allowing me to use 2 of the 4 TB's, Will this motherboard with with a EFI/UEFI Boot ?

Accepted Answer

No EUFI, bios only. So if you have a raid controller or are using the onboard you are only going to get the native bios support for boot.

Product SKUs
MBD-H8DG6-F	H8DG6-F (Standard Retail Pack)
Physical Stats
Form Factor	E-ATX Form
Dimensions	12" x 13 " (30.5cm x 33.2cm)
Processor/Cache
CPU	Dual 1944-pin Socket G34 Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors HT3.0 Link support
Chipset	Dual AMD chipset SR5690/SP5100
System Memory
Memory Capacity	16 DIMM sockets Supports up to 512GB Registered ECC or 128GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 16 DIMMs Quad channel memory bus For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	DDR3 1600/1333/1066 MHz Registered ECC or unbuffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage	1.35V or 1.5V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	AMD SP5100 (RAID 0, 1, 10)
SAS	LSI 2008 8 port SAS controller RAID 0, 1, 10; RAID 5 Optional Optional: AOC-SAS2-RAID5-KEY RAID 5 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC
Network Controllers	Intel® 82576 controller, Dual-Port Gigabit Ethernet 10/100/1000BASE-T support
VGA	Matrox G200 16MB DDR2
Super I/O	Winbond® W83527 chip
Expansion Slots
PCI-Express	3 PCI-E 2.0 x16 1 PCI-E 2.0 x8 2 PCI-E 2.0 x4 (in x8 slots)
Input / Output
SATA	6x SATA2.0 (3Gb/s) Ports
SAS	Integrated LSI 2008 SAS2 Controller Each SAS port supports up to 4 SAS / SATA drives
LAN	2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI
USB	8x USB 2.0 ports 2x Rear and 2x header (4 ports), 2x TypeA
VGA	1x VGA port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Ports	1x Fast UART 16550 serial port 1x serial port header
Others	1 SATA DOM power connector, TPM header
System BIOS
BIOS Type	16Mb SPI Flash ROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, VBAT, HT, memory, chipset CPU switching voltage regulator
FAN	Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers Status monitor for speed control 3-pin fan support (w/o speed control) Low noise fan speed control (4-pin fan only) Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I2C Temperature Sensing Logic
LED	CPU / System Overheat LED +5V Standby Alert LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header
Chassis ( Optimized for H8DG6-F )
Tower / 4U Rackmount	CSE-745TQ-R920B
Server(s) ( with H8DG6-F )
Model(s)	AS -4022G-6F
Management
Software	IPMI (Intelligent Platform Management Interface) 2.0 Super Doctor III Watch Dog
Power Configurations	ACPI Power Management Wake-On-LAN (WOL) header Keyboard Wakeup from Soft-Off Power-on mode control for AC power loss recovery
Operating Environment / Compliance
RoHS	RoHS Compliant 6/6, Pb Free
Environmental Specifications	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
System BIOS
Regulatory	FCC

Brand	SUPERMICRO
Model	MBD-H8DG6-F-O

CPU Socket Type	Dual 1944-pin Socket G34
CPU Type	Dual AMD Opteron 6000 series (6300 ready) processors
Supported CPU Technologies	HT3.0 Link support

North Bridge	2 x AMD SR5690
South Bridge	2 x AMD SP5100

Number of DDR3 Slots	16 x 240pin
DDR3 Standard	DDR3 1600/1333/1066
Maximum Memory Supported	512GB
Channel Supported	Quad Channel
ECC Supported	Yes
Registered	Yes

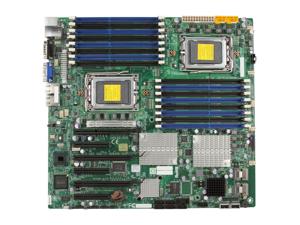

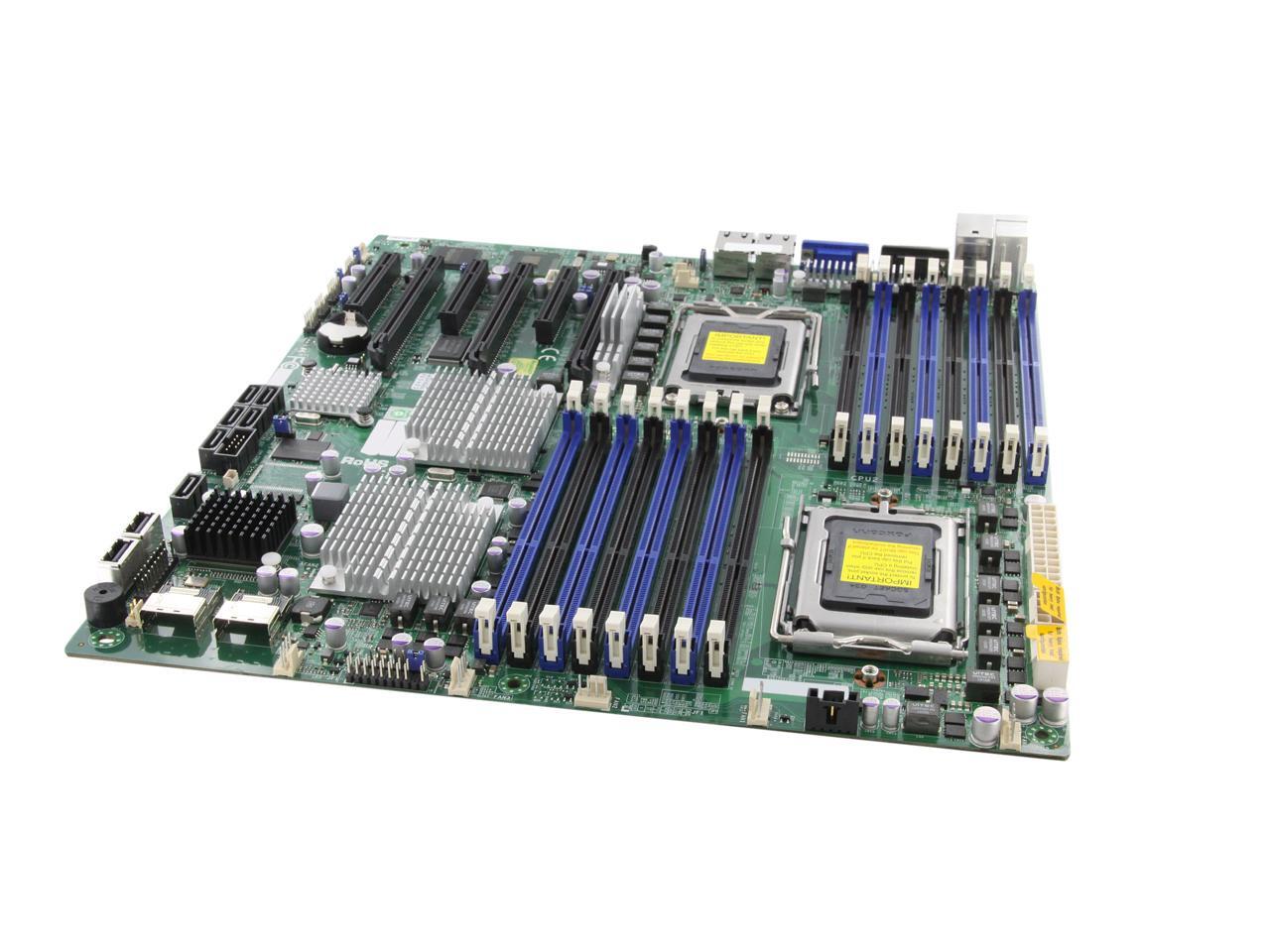

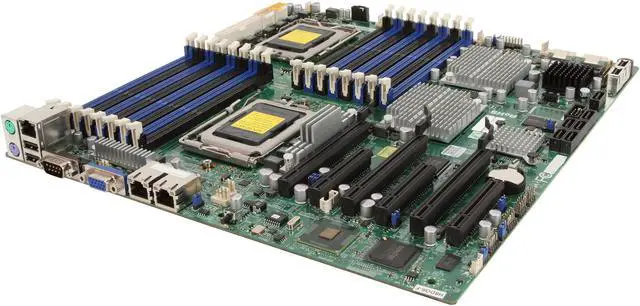

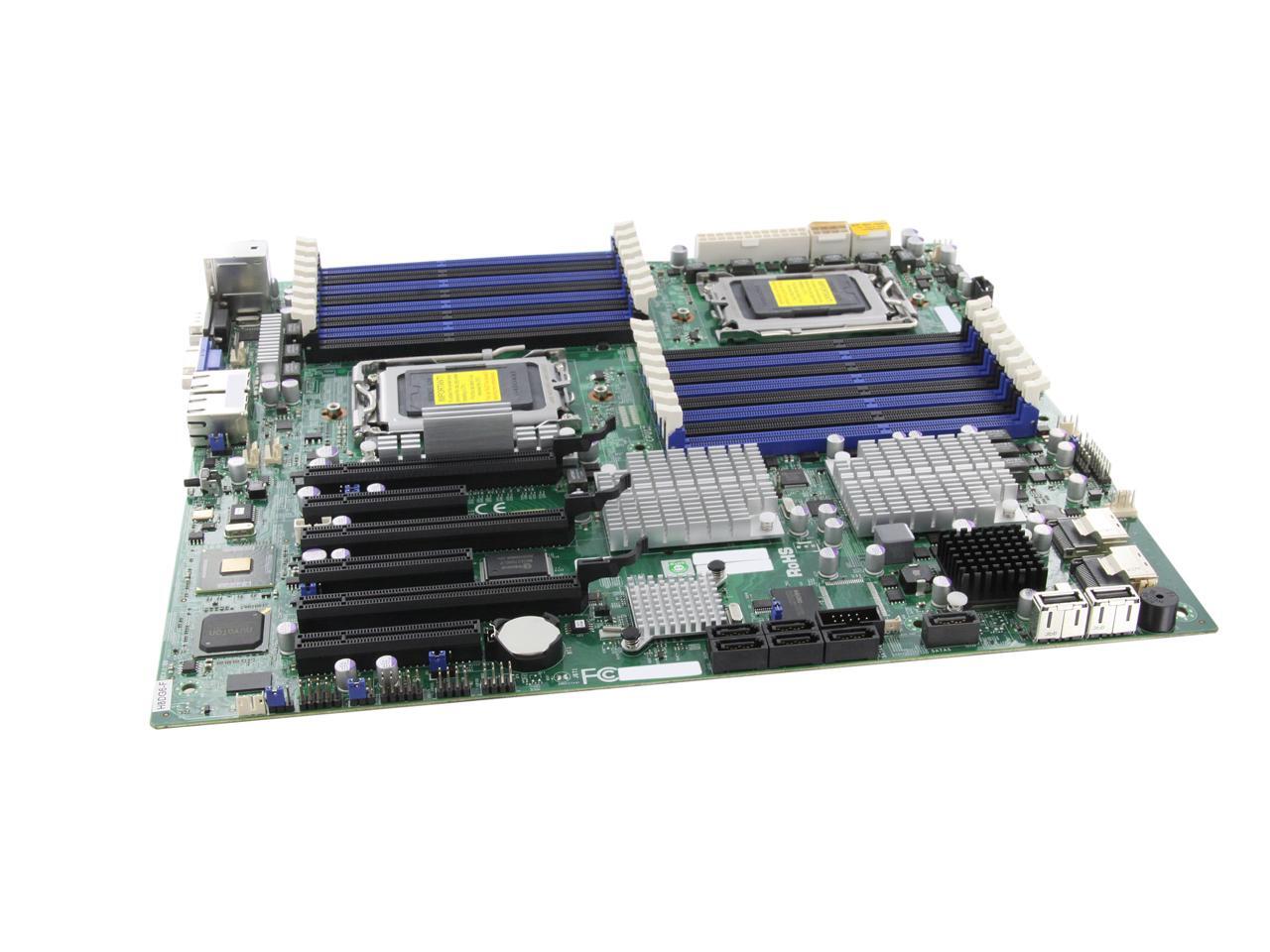

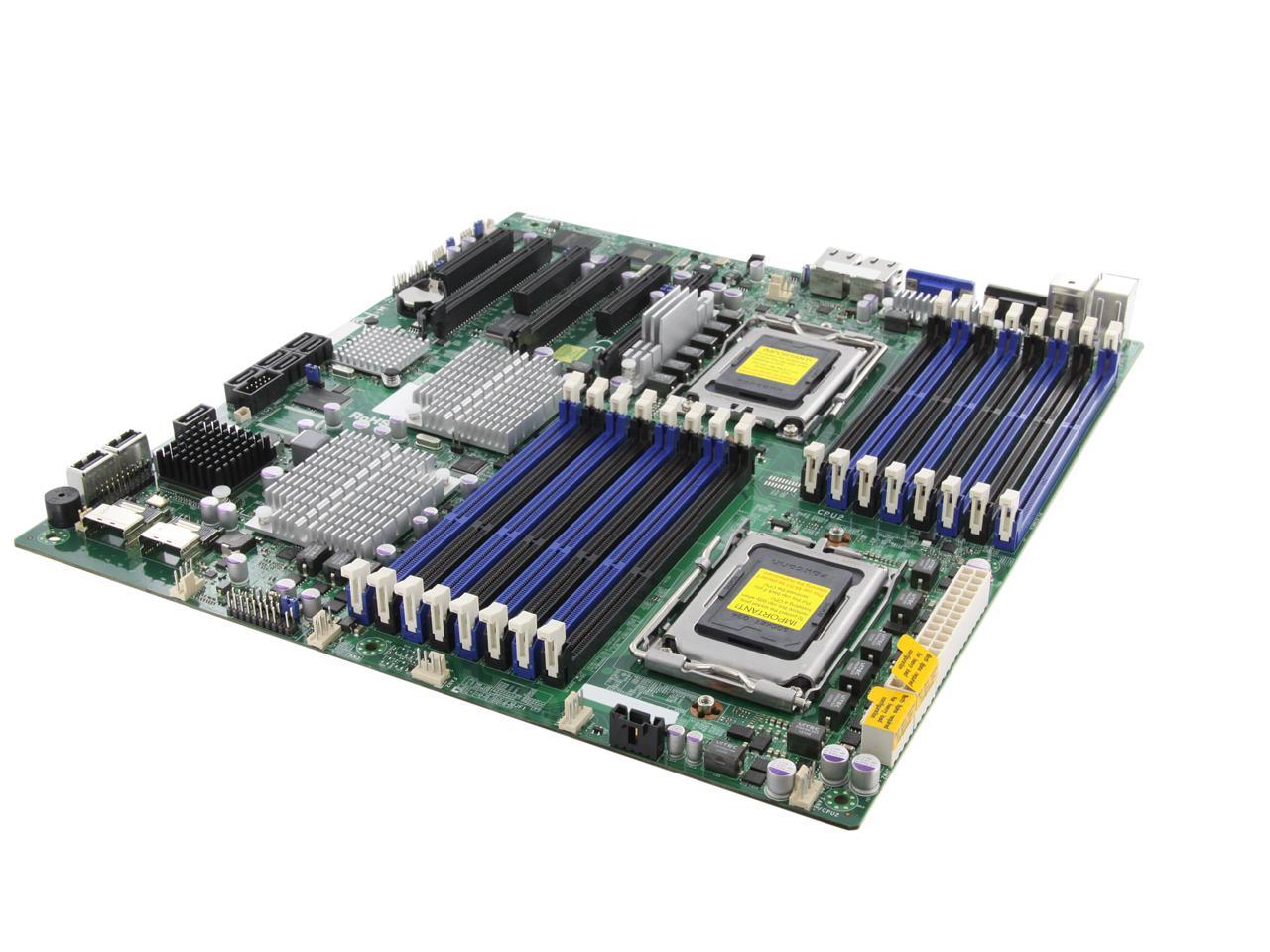

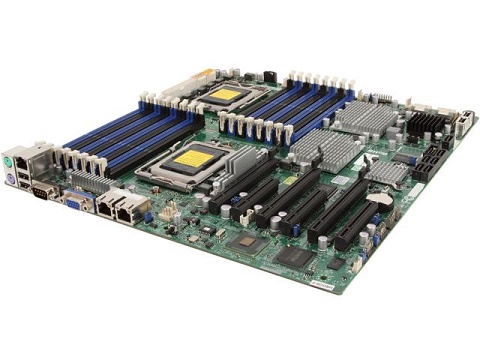

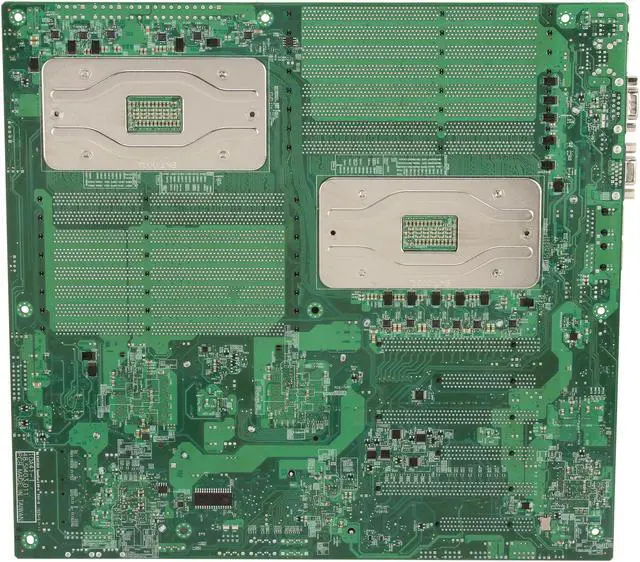

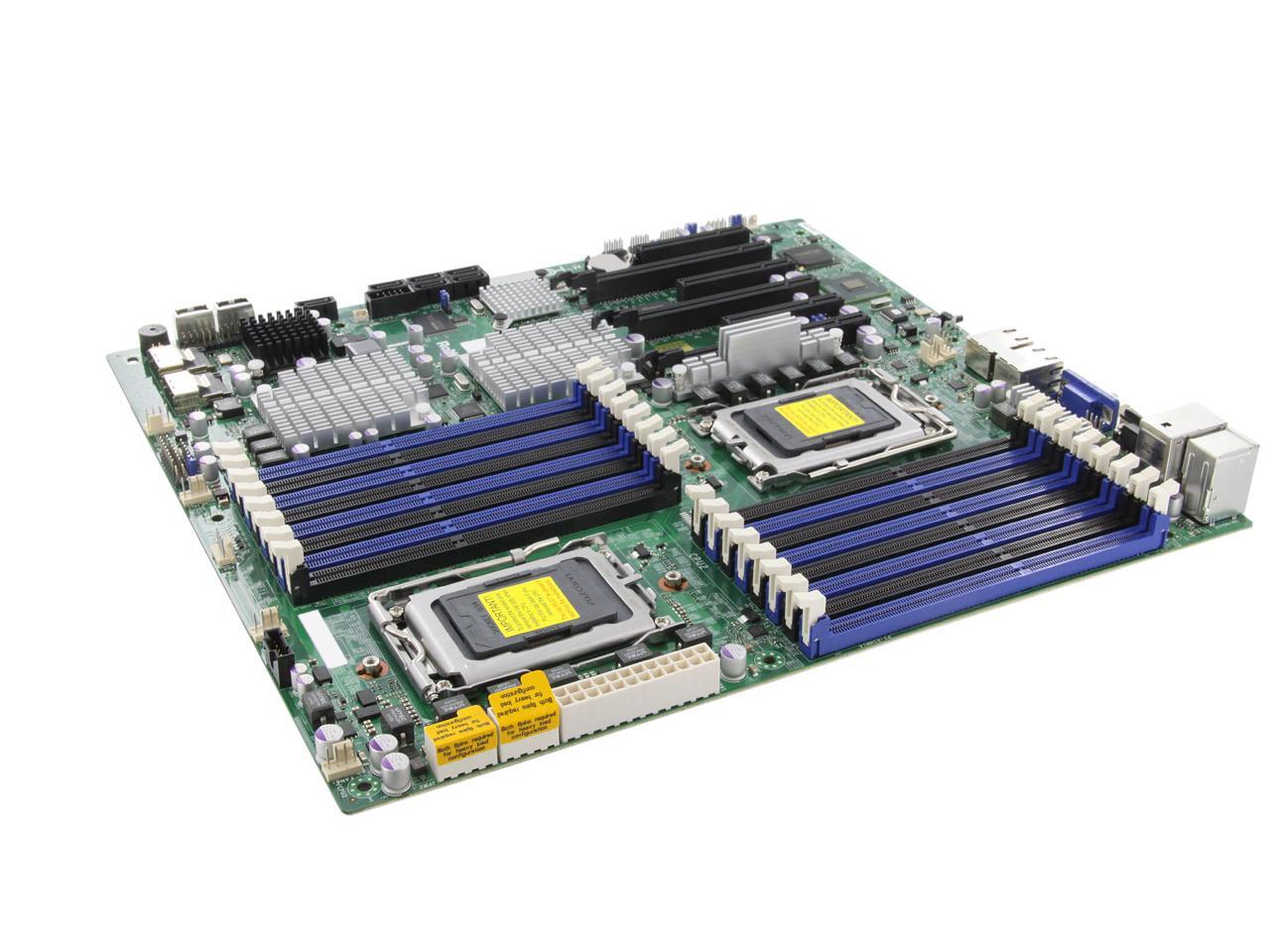

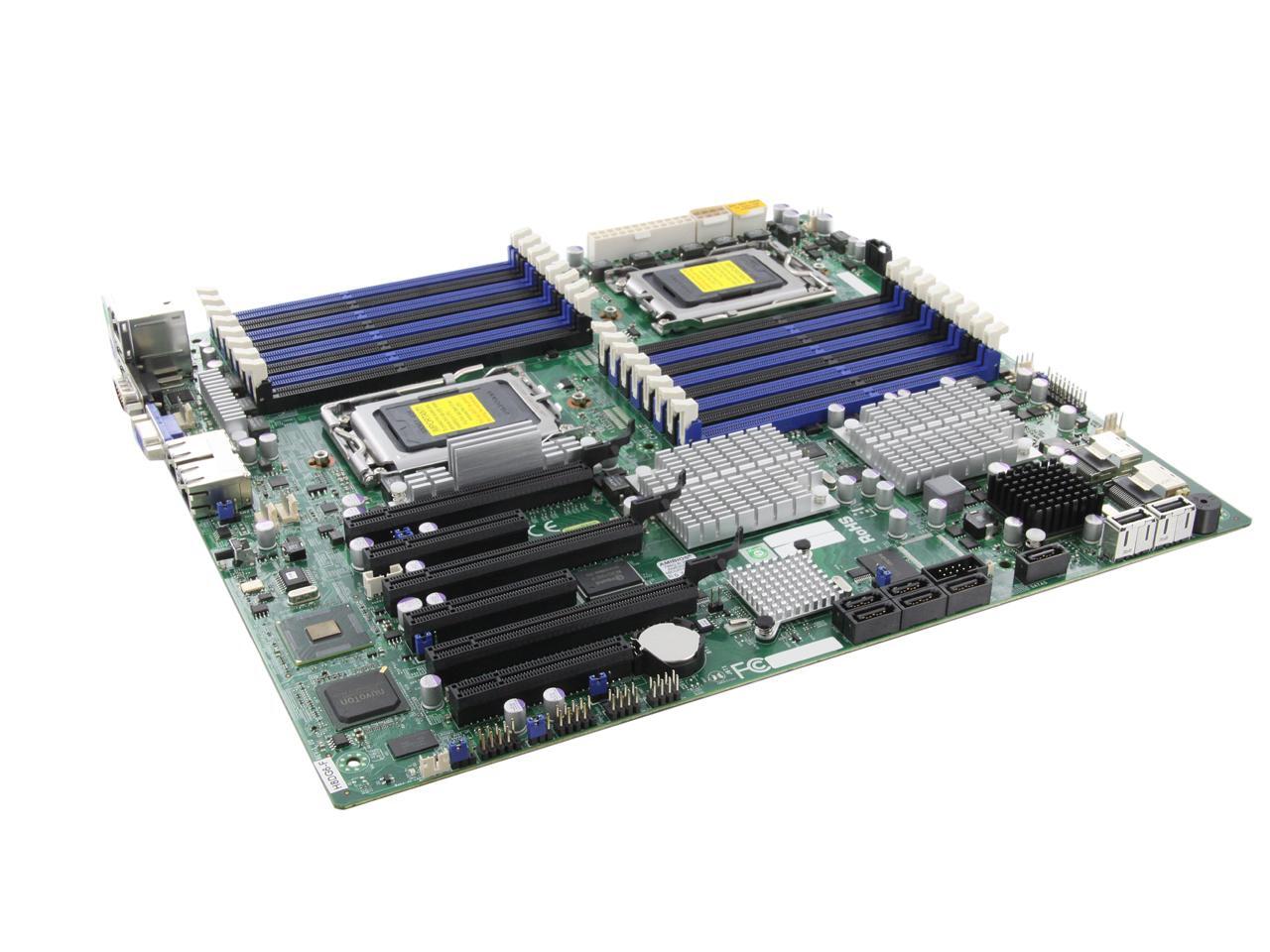

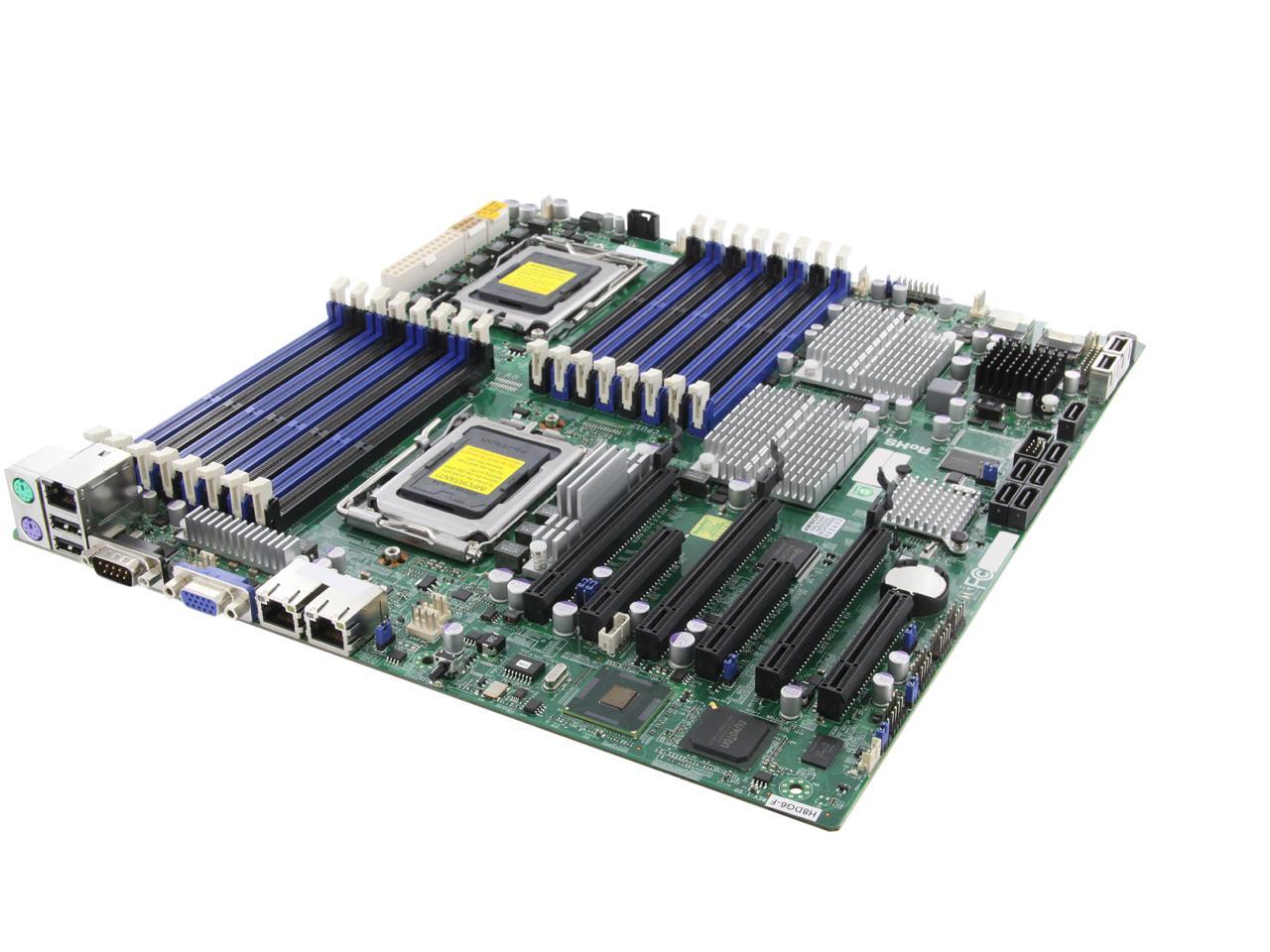

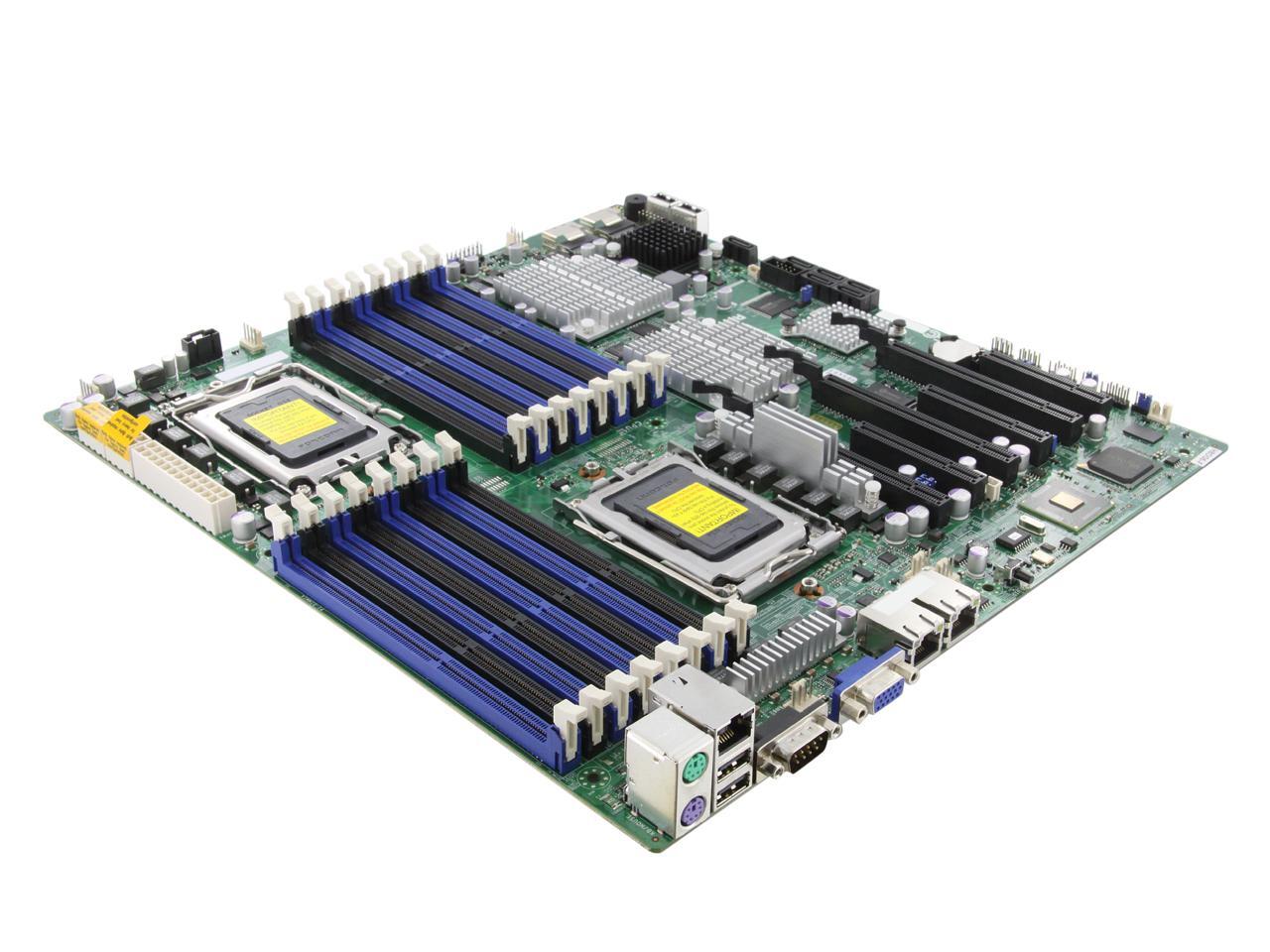

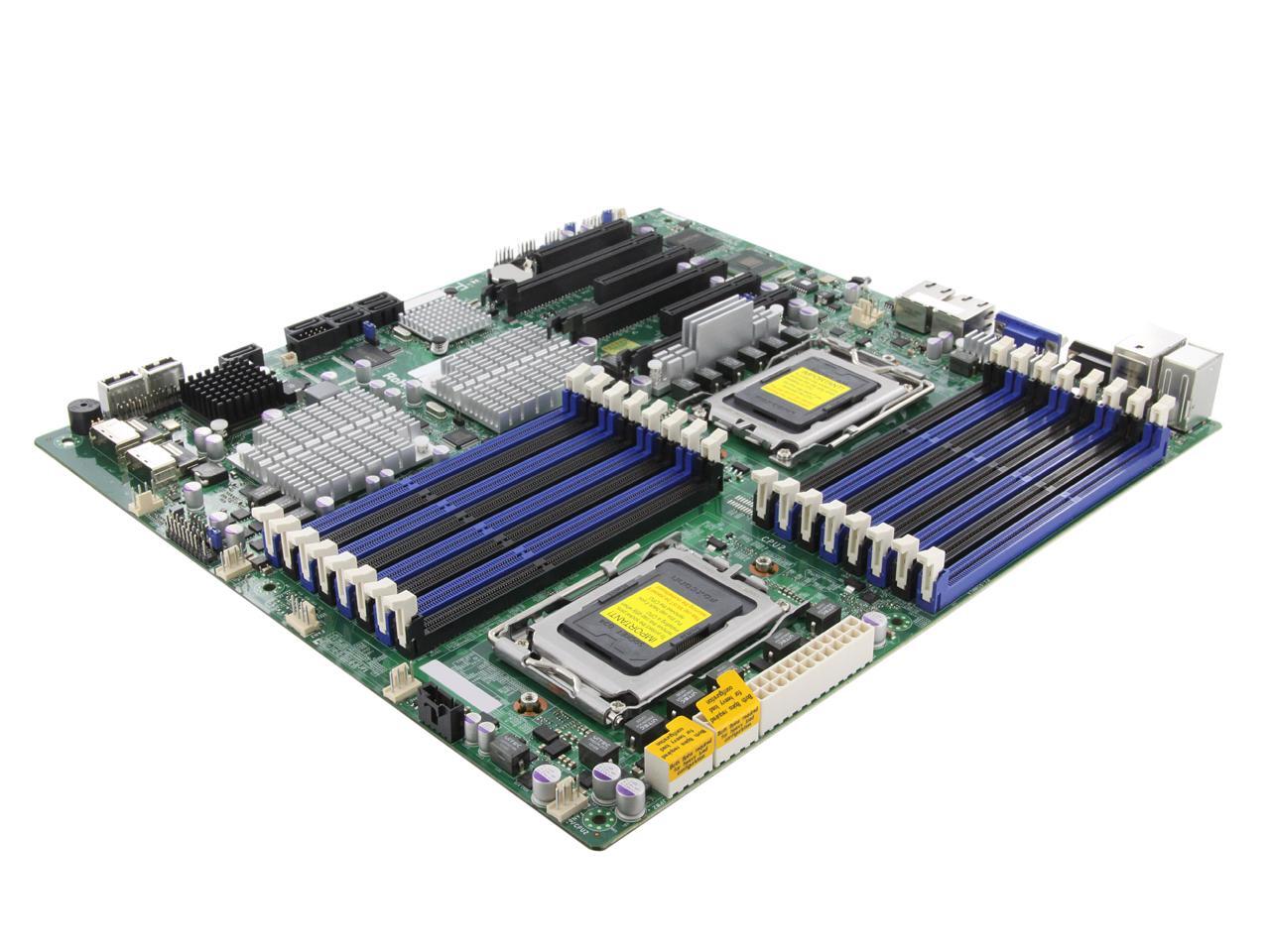

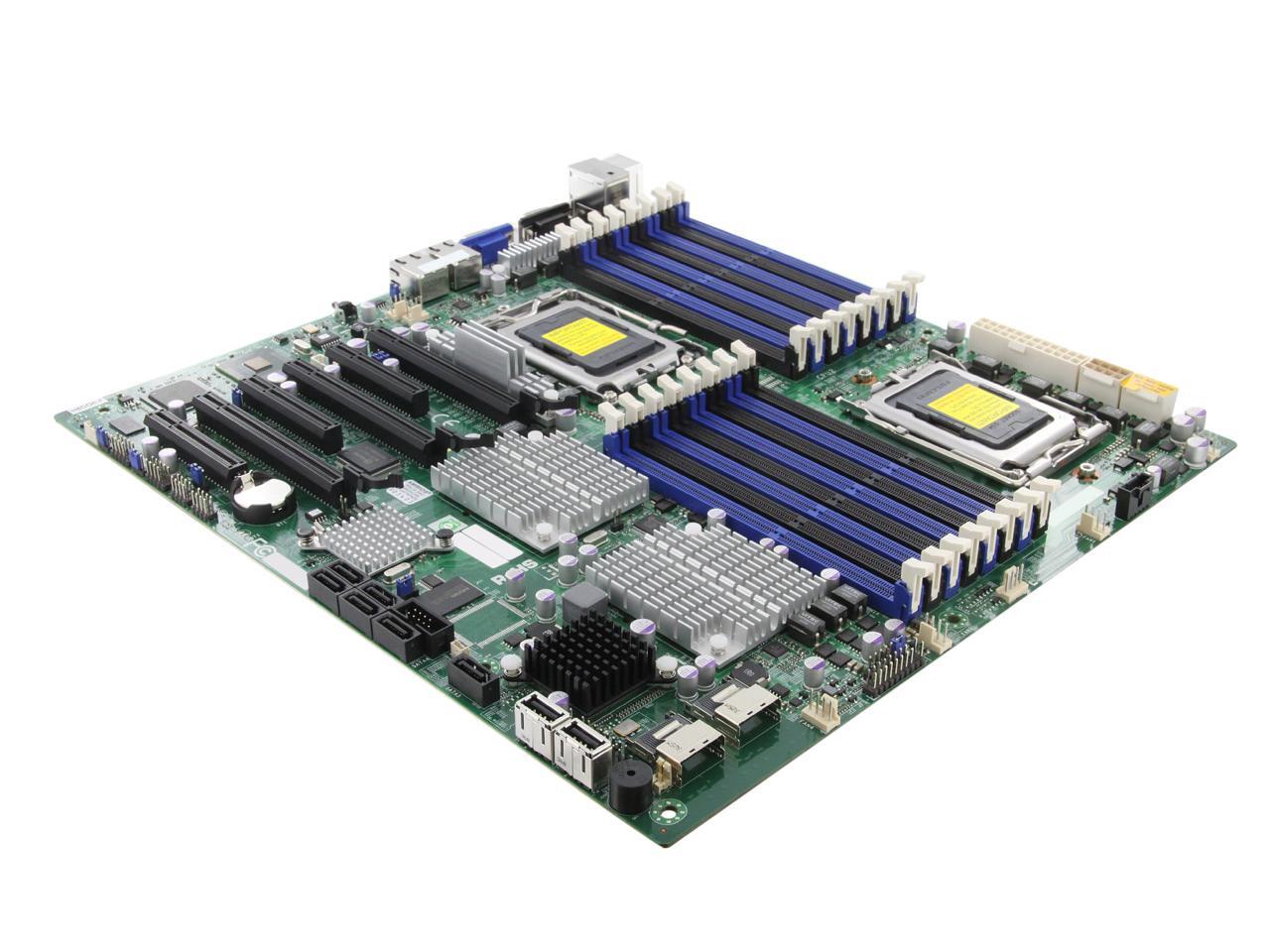

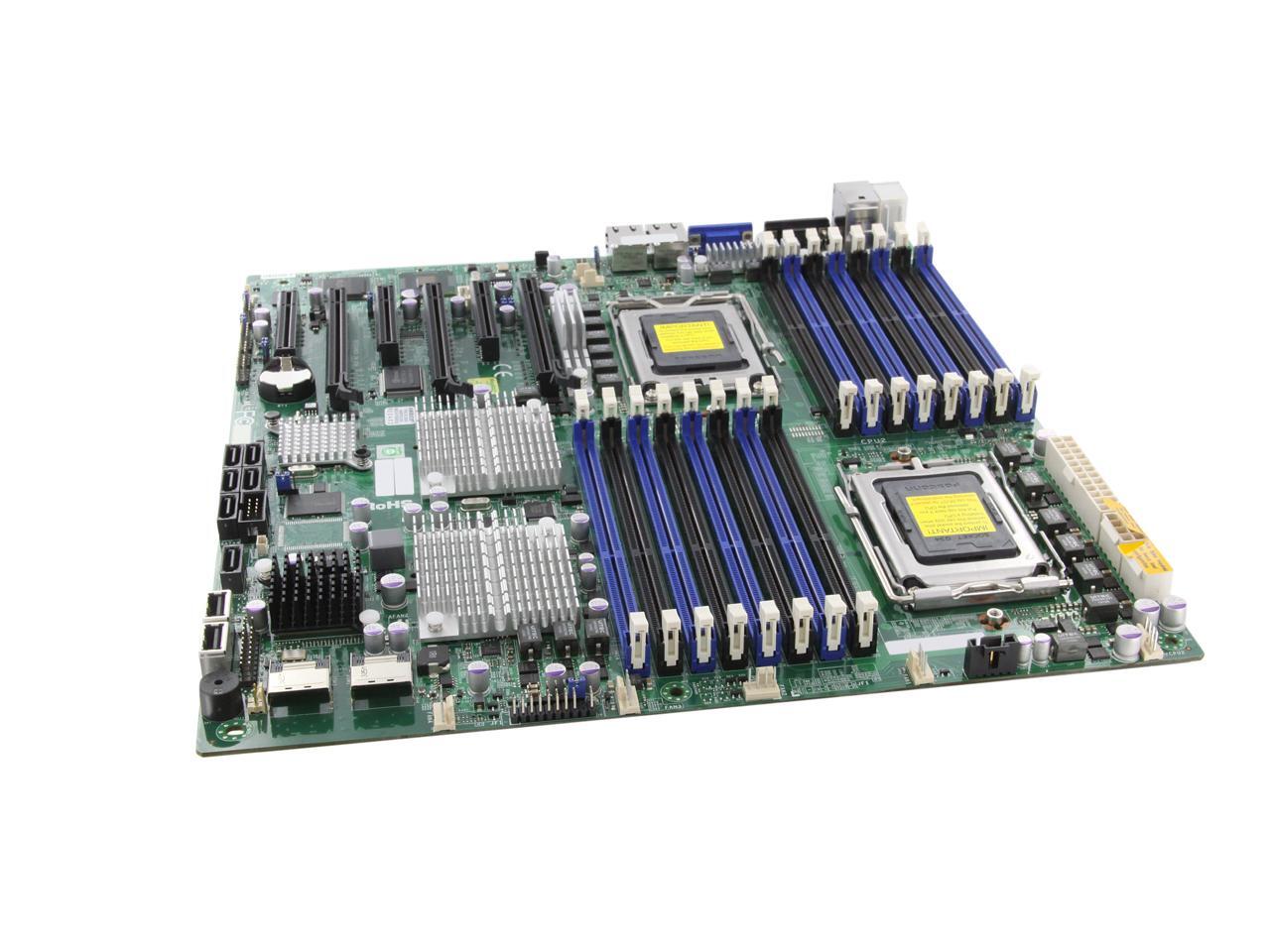

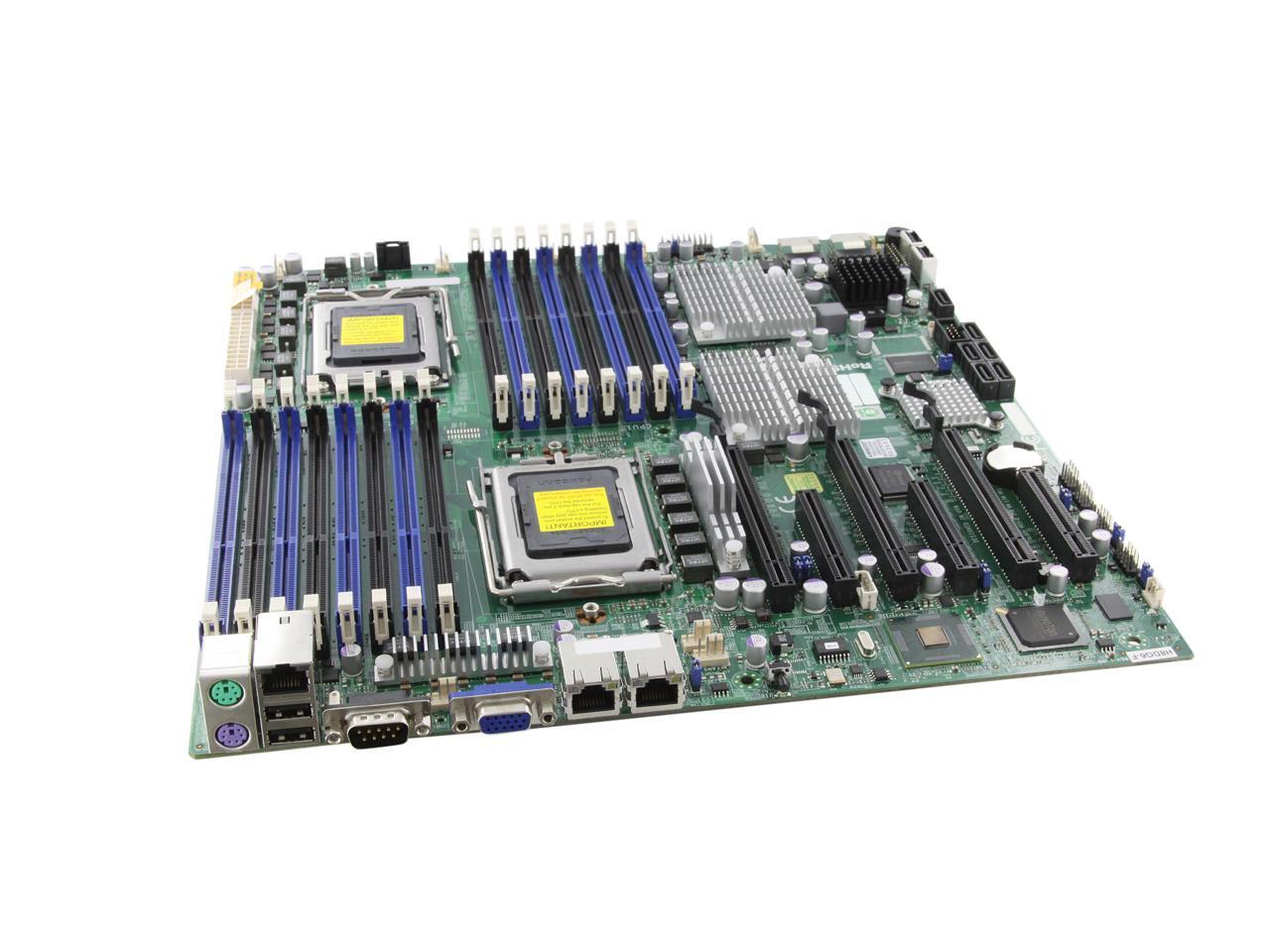

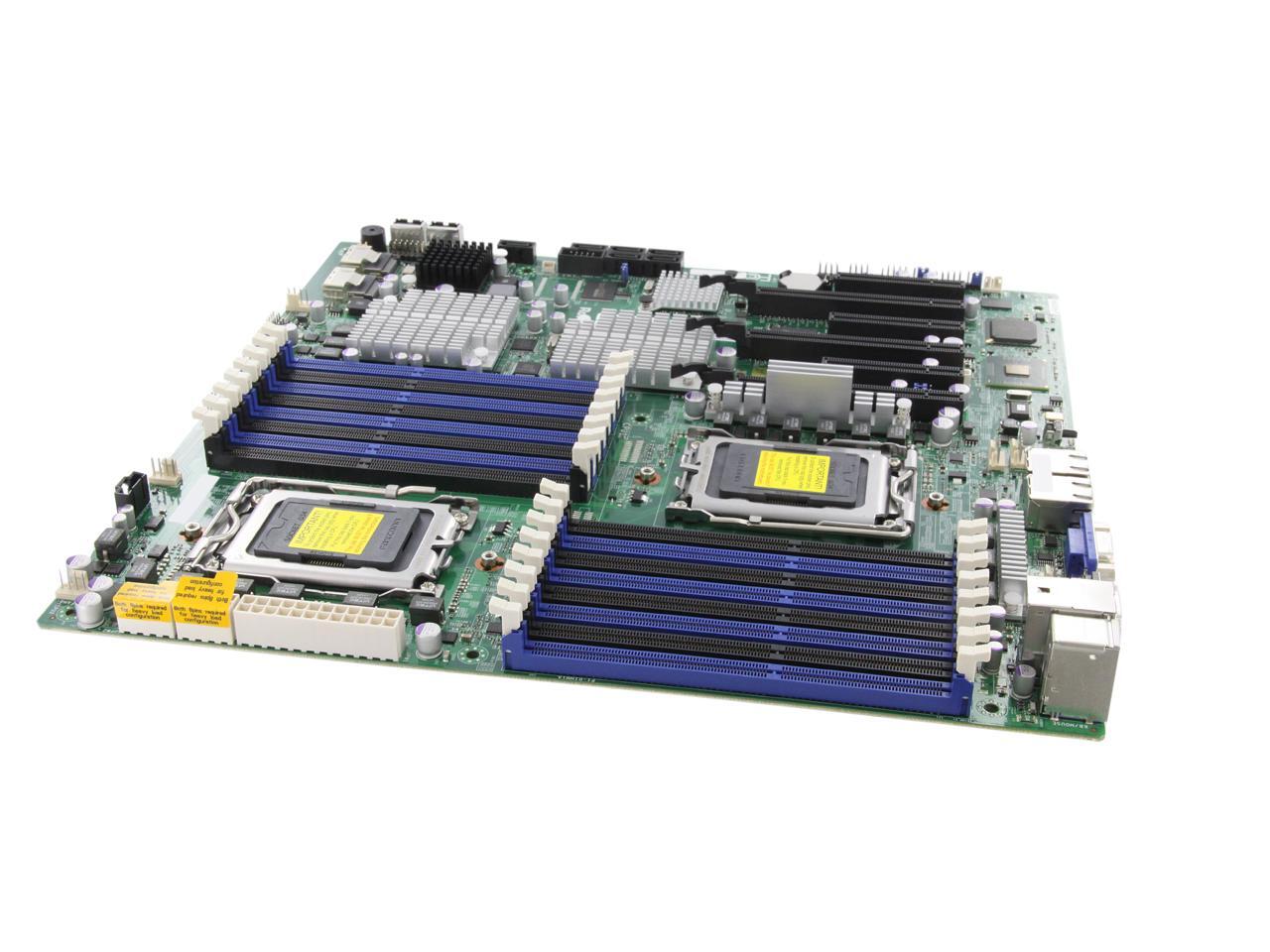

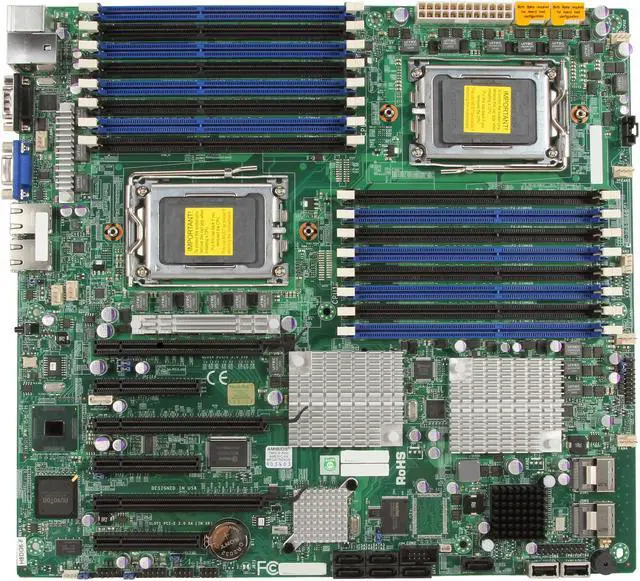

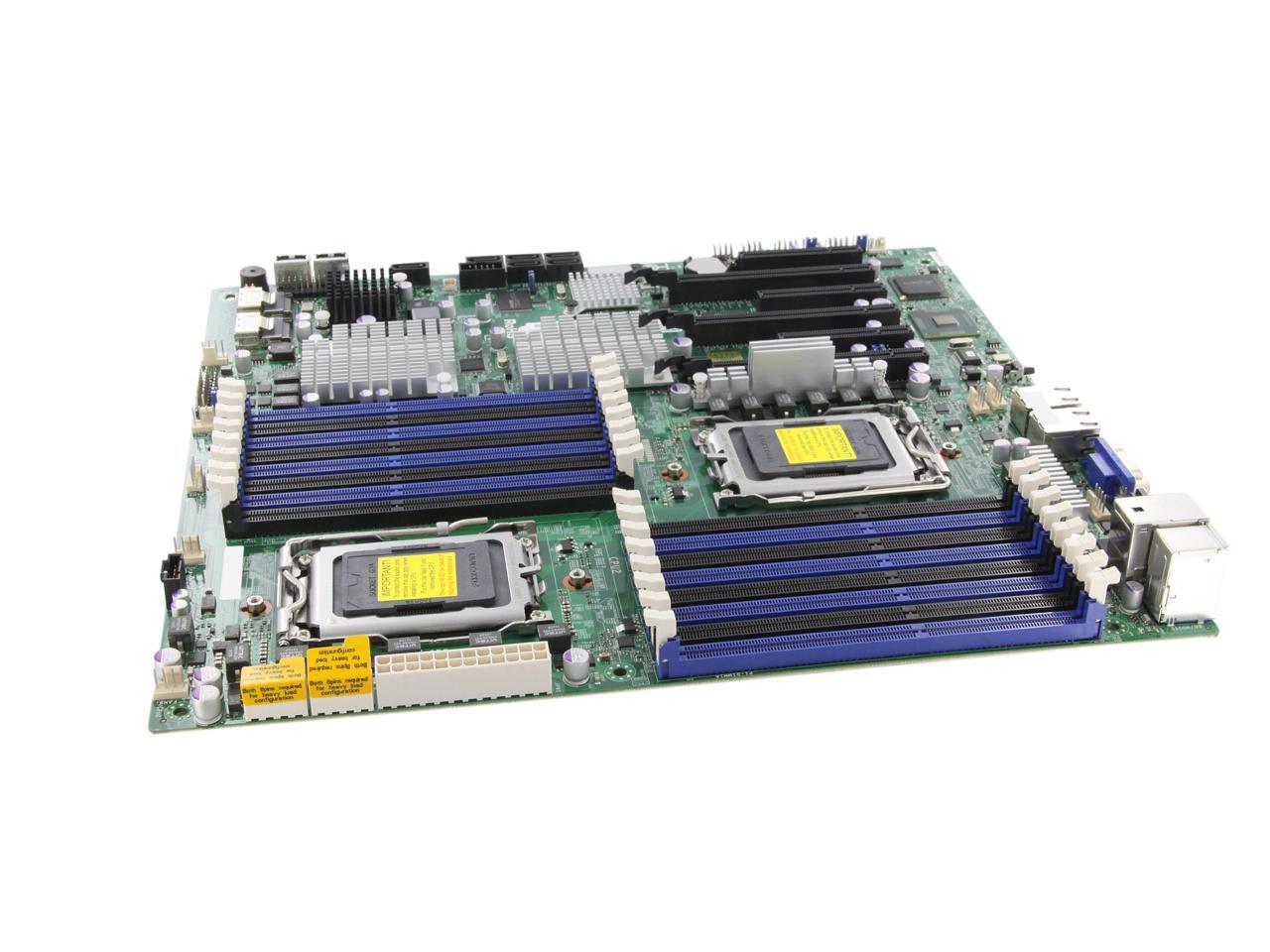

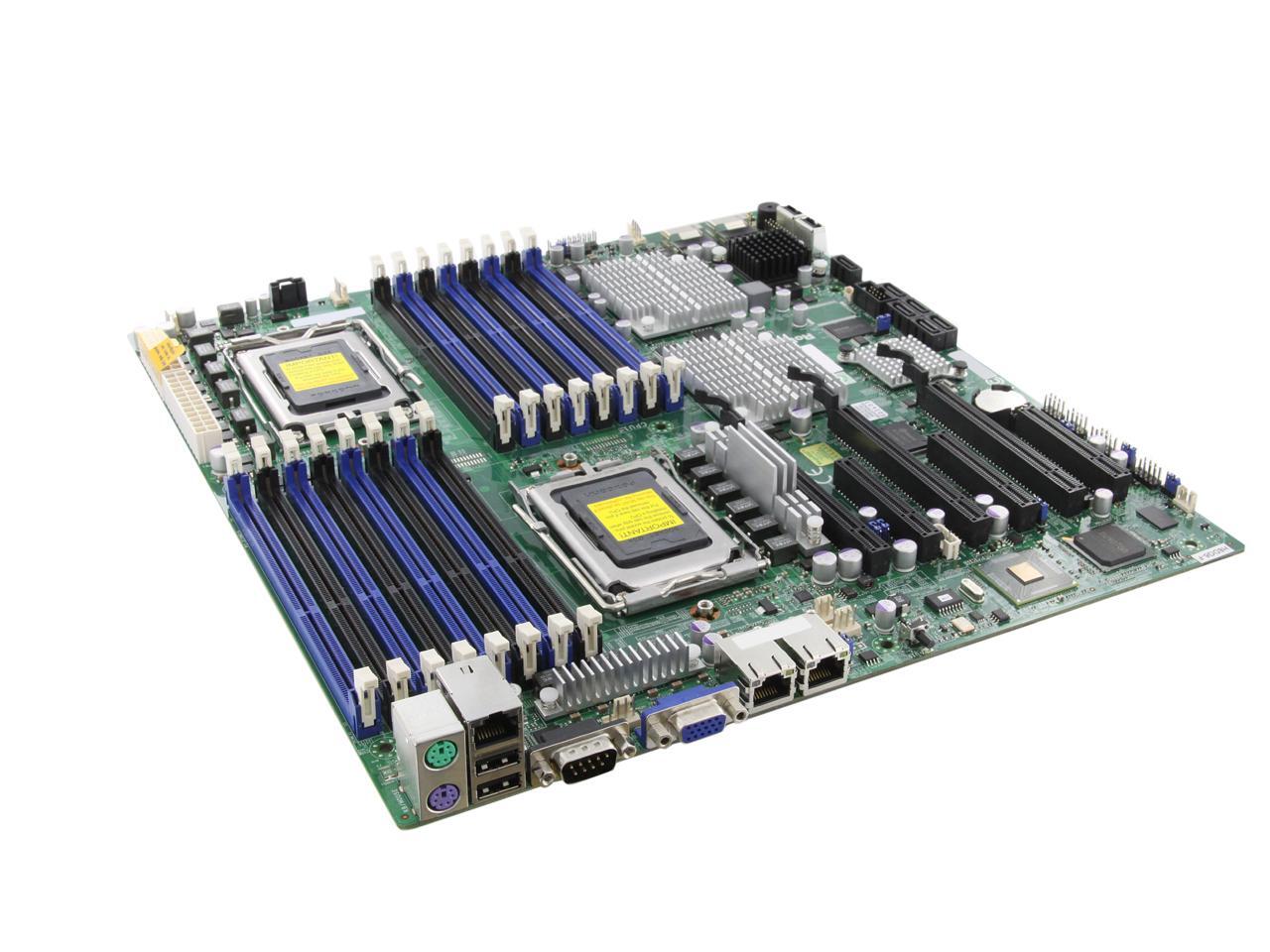

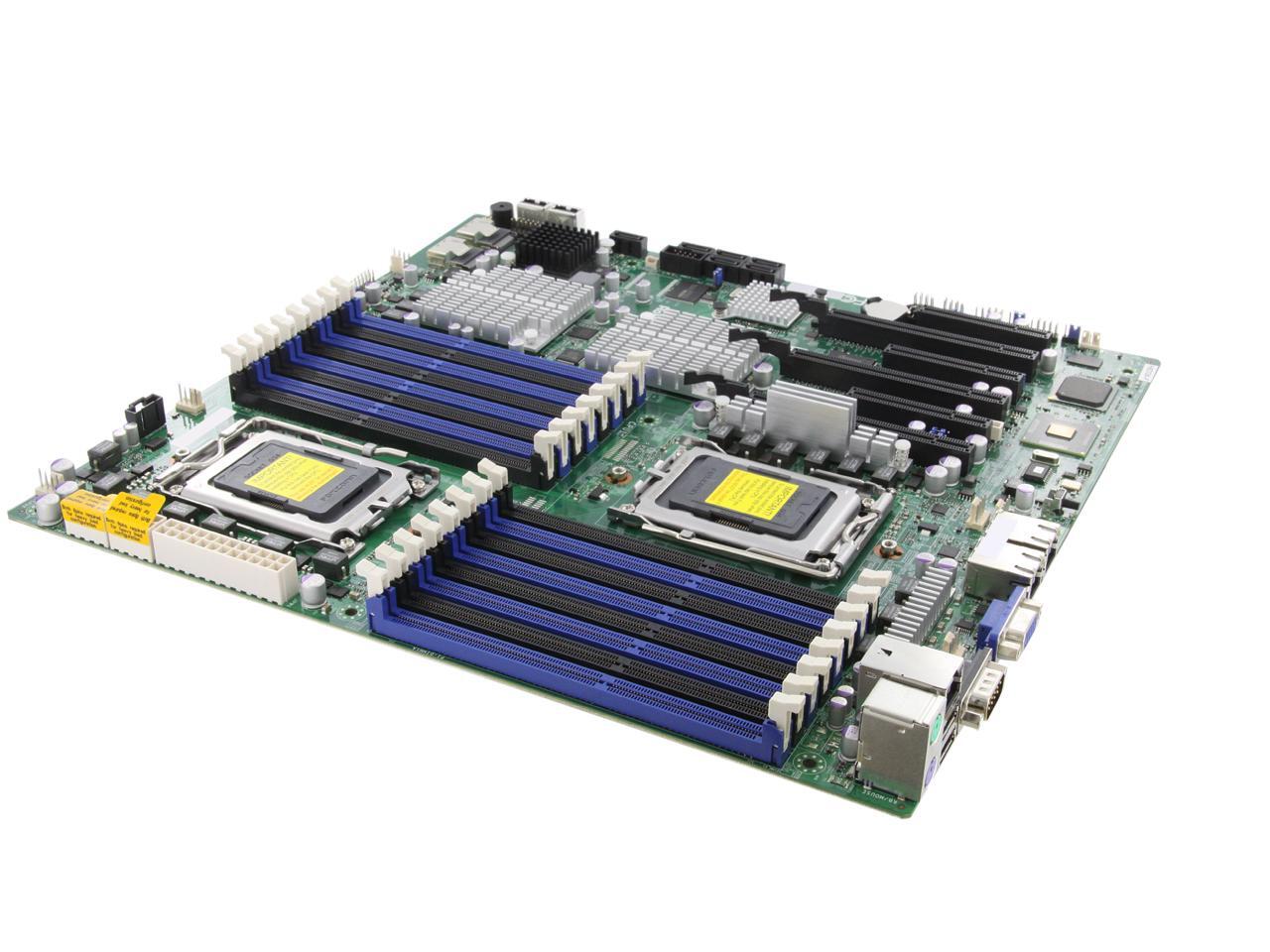

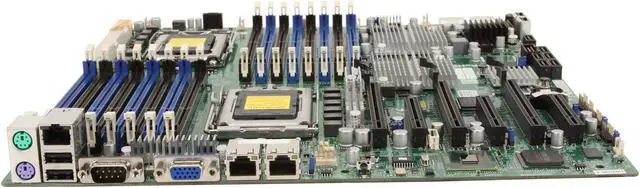

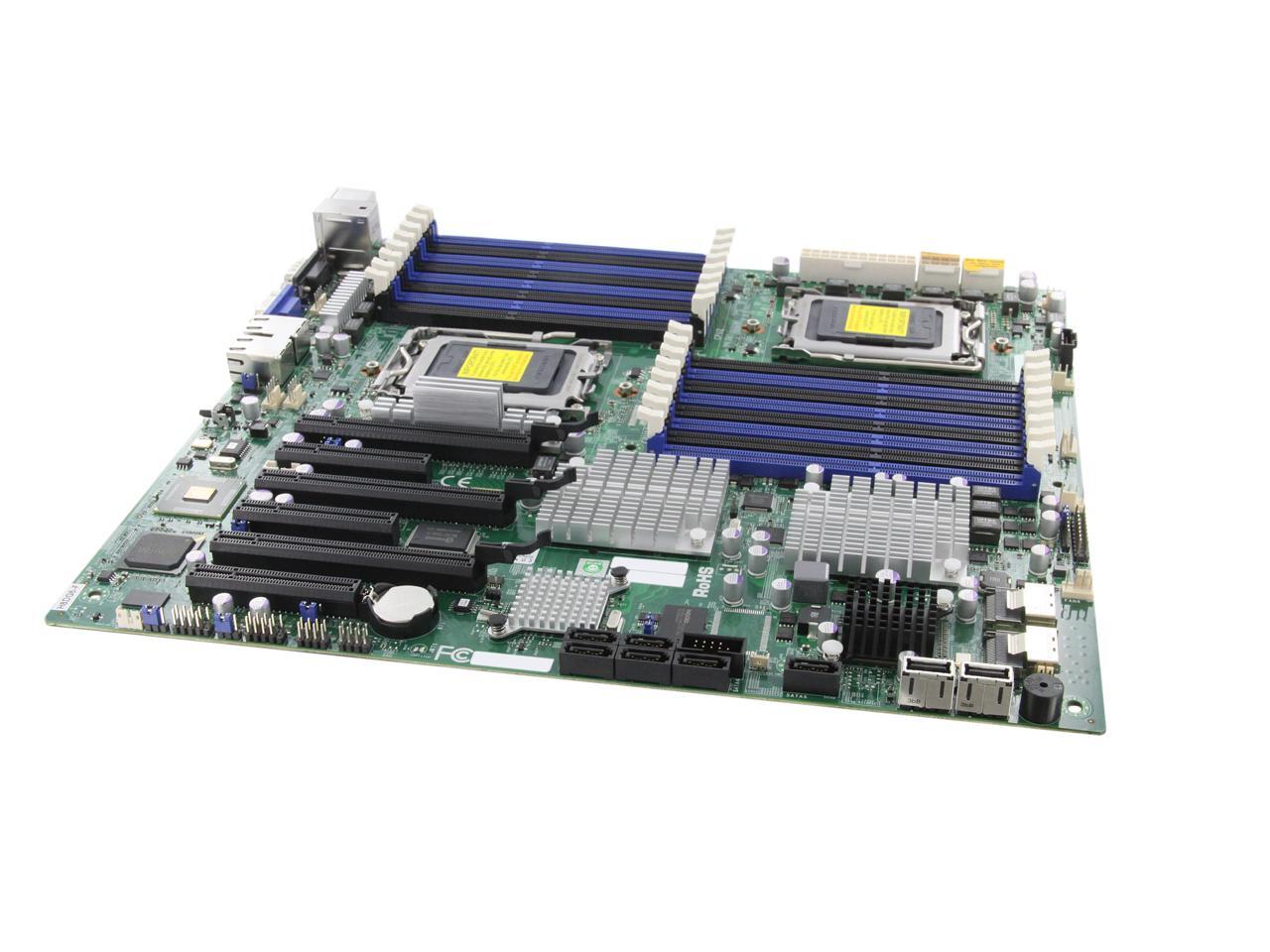

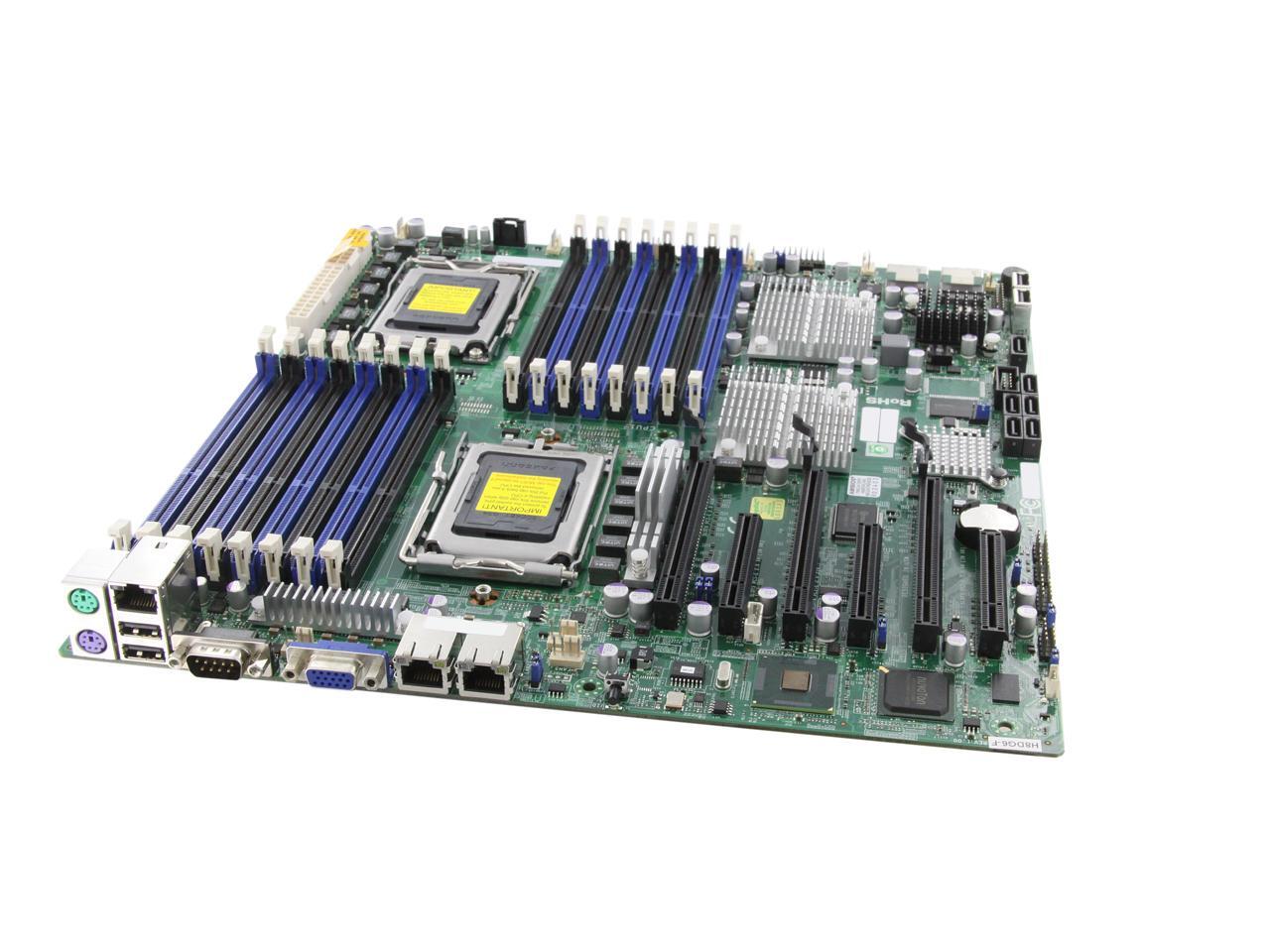

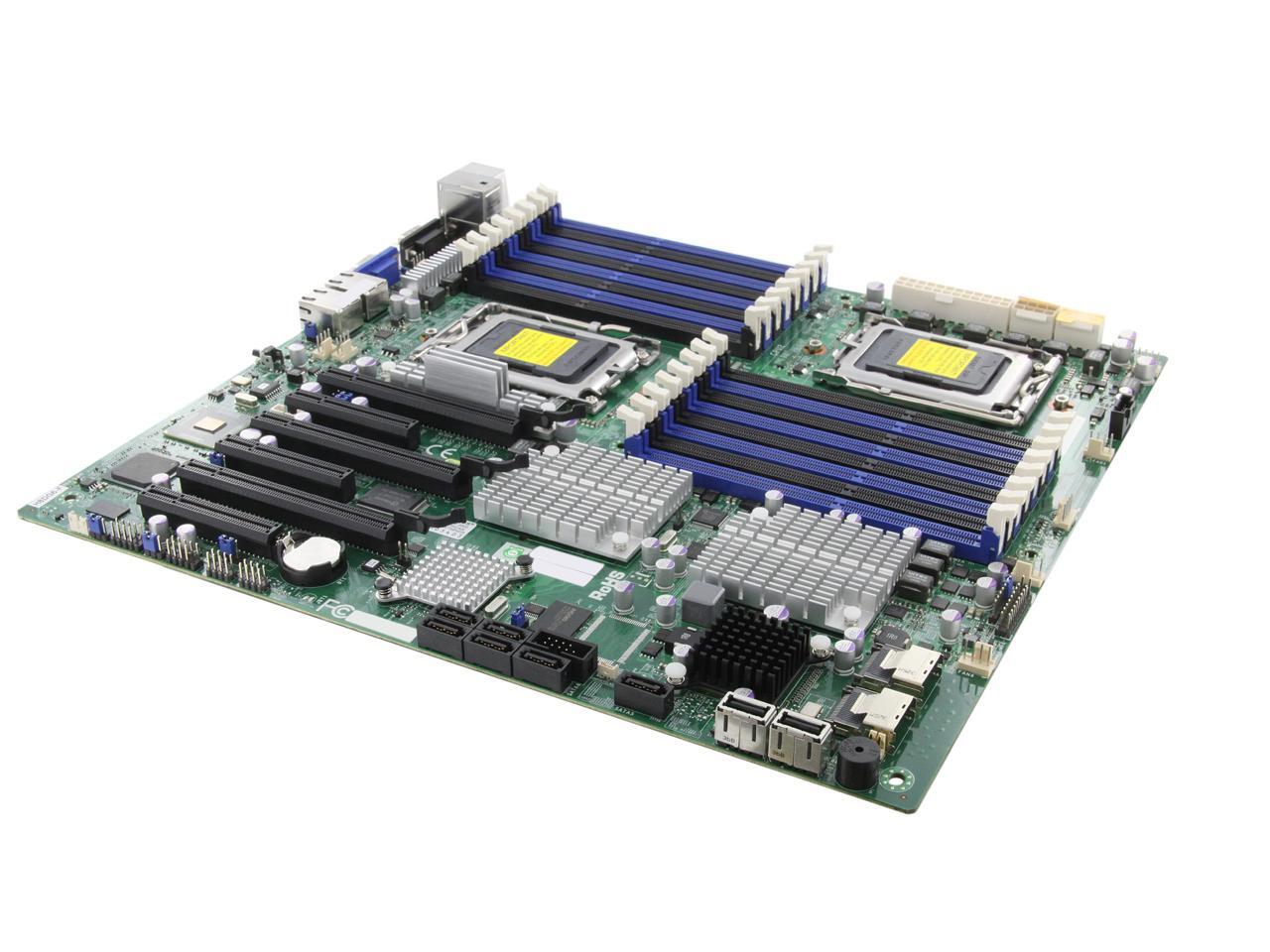

SUPERMICRO MBD-H8DG6-F-O E-ATX Form Server Motherboard Dual 1944-pin Socket G34 2 x AMD SR5690 DDR3 1600/1333/1066

SUPERMICRO MBD-H8DG6-F-O E-ATX Form Server Motherboard

Features

Specifications

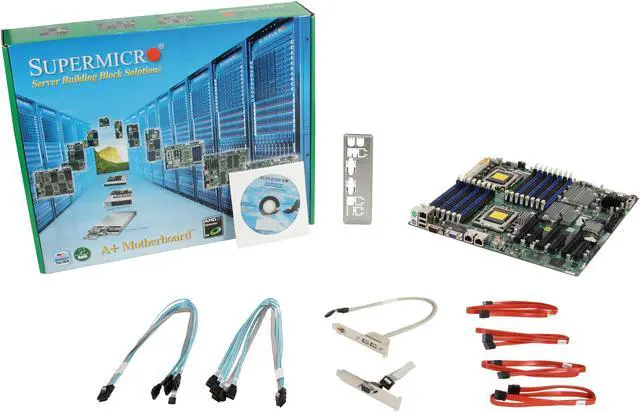

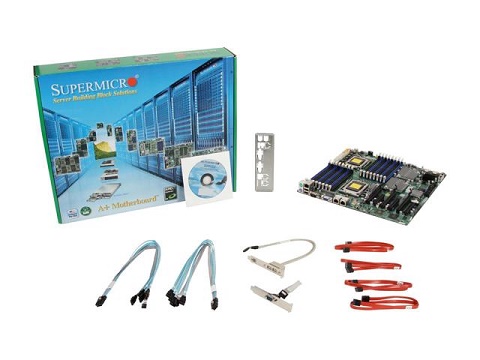

What's in the Box

Learn more about the Supermicro MBD-H8DG6-F-O

Customer Reviews of the Supermicro MBD-H8DG6-F-O

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

PCI Express 2.0 x16	3 PCI-E 2.0 x16
PCI Express x8	1 PCI-E 2.0 x8 2 PCI-E 2.0 x4 (in x8 slots)

SATA	6 x SATA 3.0Gb/s
SATA RAID	0/1/10
SAS	LSI 2008 8 port SAS controller
SAS RAID	RAID 0, 1, 10

LAN Chipset	Intel 82576
LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

PS/2	PS/2 keyboard and mouse ports
COM	1x Fast UART 16550 serial port
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Dimensions
Form Factor	E-ATX Form
Dimensions (W x L)	12.0" x 13.0"
