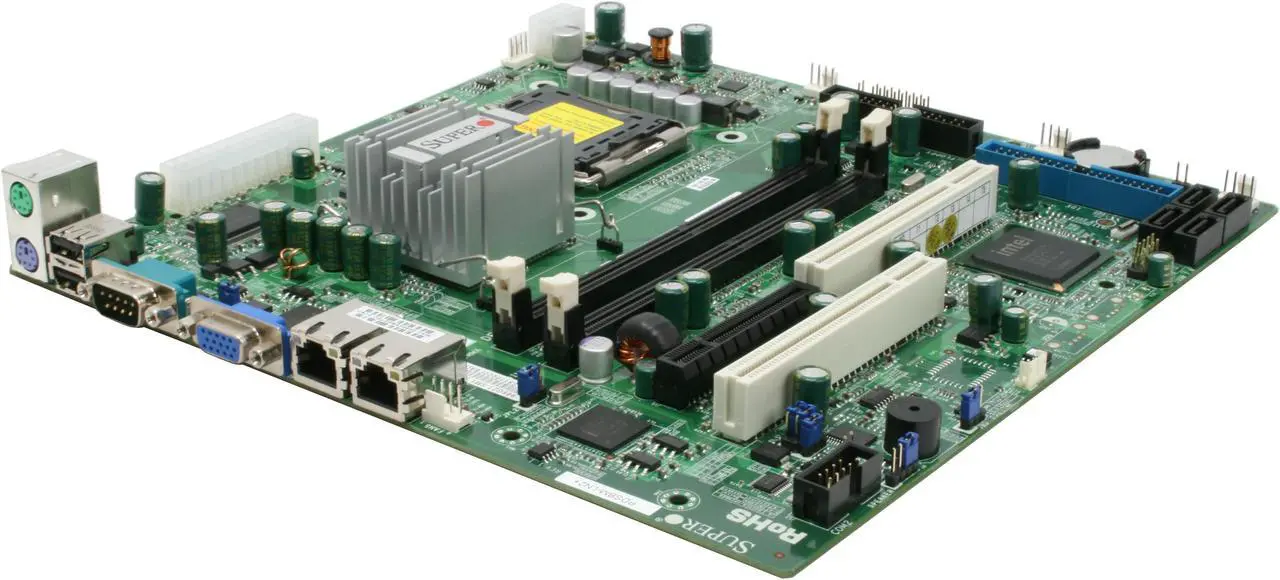

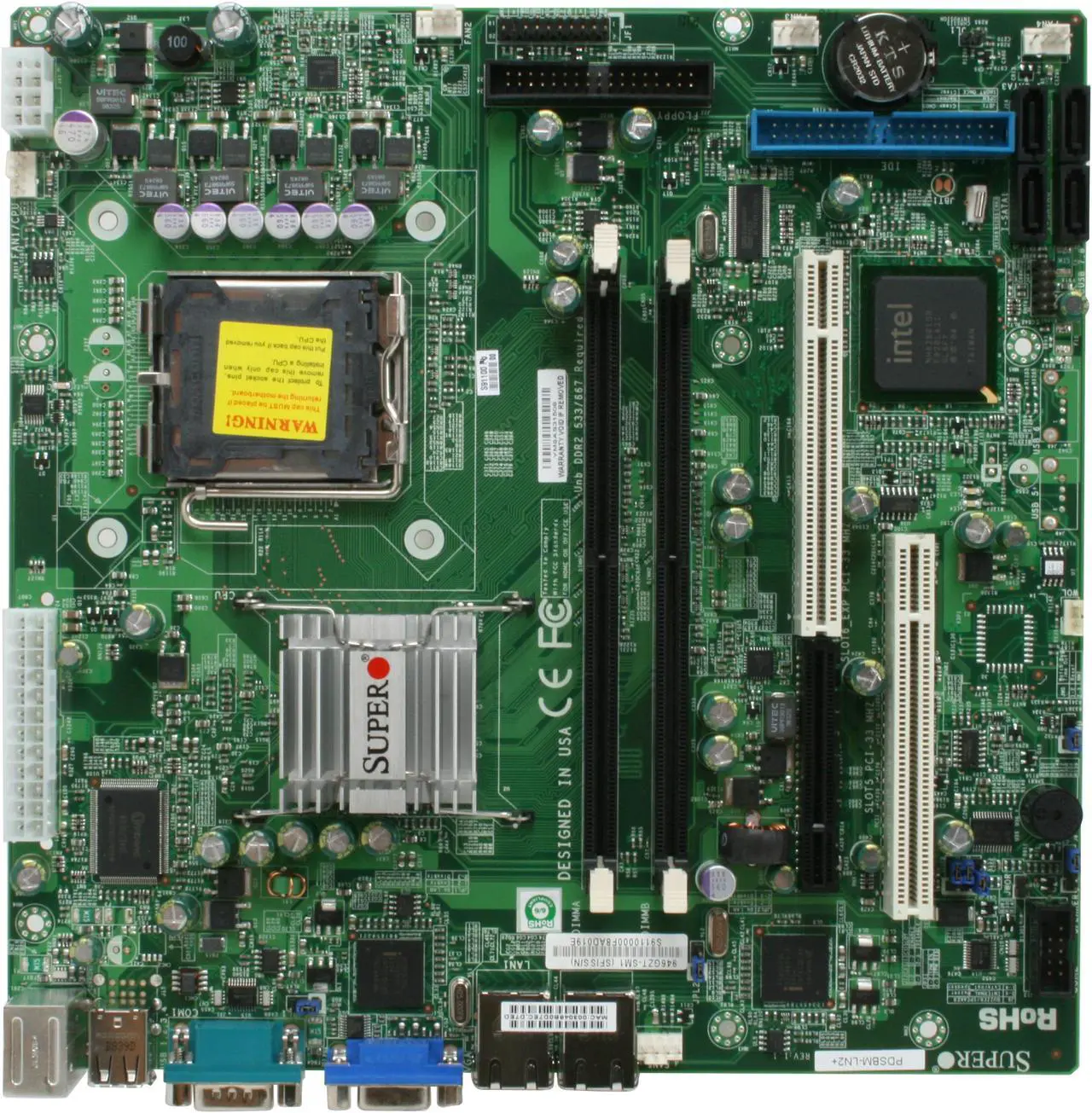

SUPERMICRO MBD-PDSBM-LN2+-O LGA 775 Intel 946GZ Micro ATX Intel Xeon 3000/Core2 Duo/Pentium D/Pentium 4/Celeron D Server Motherboard

  • LGA 775
  • Intel 946GZ
  • 2 x 240Pin
Specs
Reviews (6)

Learn more about the Supermicro MBD-PDSBM-LN2+-O

Model
Brand SUPERMICRO
Model MBD-PDSBM-LN2+-O
Supported CPU
CPU Socket Type LGA 775
CPU Type Supports a Dual-Core Intel Xeon 3000 Series
Supports an Intel Core2 Duo E6000 and E4000 Series
Supports an Intel Pentium E2000 Series
Supports an Intel Pentium D 945, 935, 925, 915 and 820, 805
Supports an Intel Pentium 4 600 and 500 Series
Supports an Intel Celeron E1000 Series
Supports an Intel Celeron 400 Series
Supports an Intel Celeron D 300 Series
NOTE: This board DOES NOT support Q9000, E8000, E7000 or E5000 series processor
System Bus 1066/800/533 MHz
Chipsets
North Bridge Intel 946GZ
South Bridge Intel ICH7R
Memory
Number of DDR2 Slots 2 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x4 1 (x4) (x8 physical) PCI-Express Slot OR 1x 32-bit 33MHz PCI Slot
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA 100 2 Dev. Max
SATA 4 x SATA 3.0Gb/s
SATA RAID RAID 0, 1, 5, 10 support (Windows Only)
Onboard Video
Onboard Video Chipset On Chip Intel 946GZ Video
Onboard LAN
LAN Chipset Intel 82573
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82573
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps

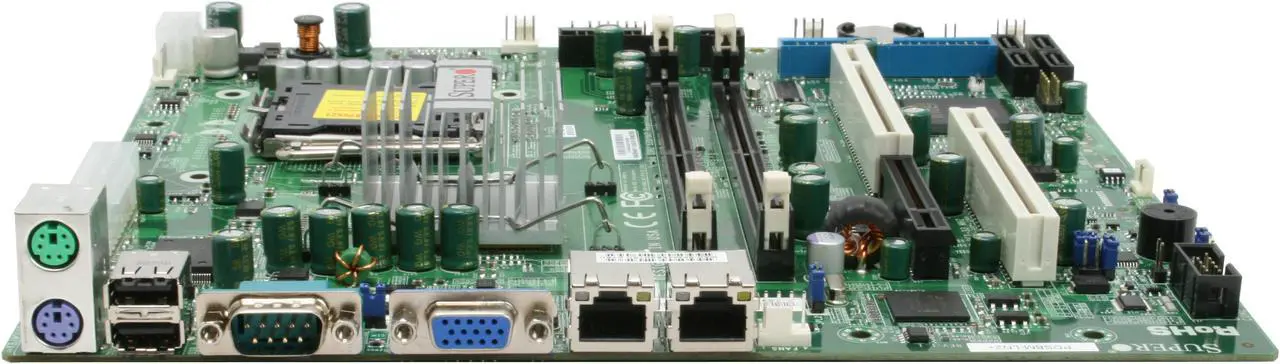

Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Features
Features NOTE: This board DOES NOT support Q9000, E8000, E7000 or E5000 series processor
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Packaging

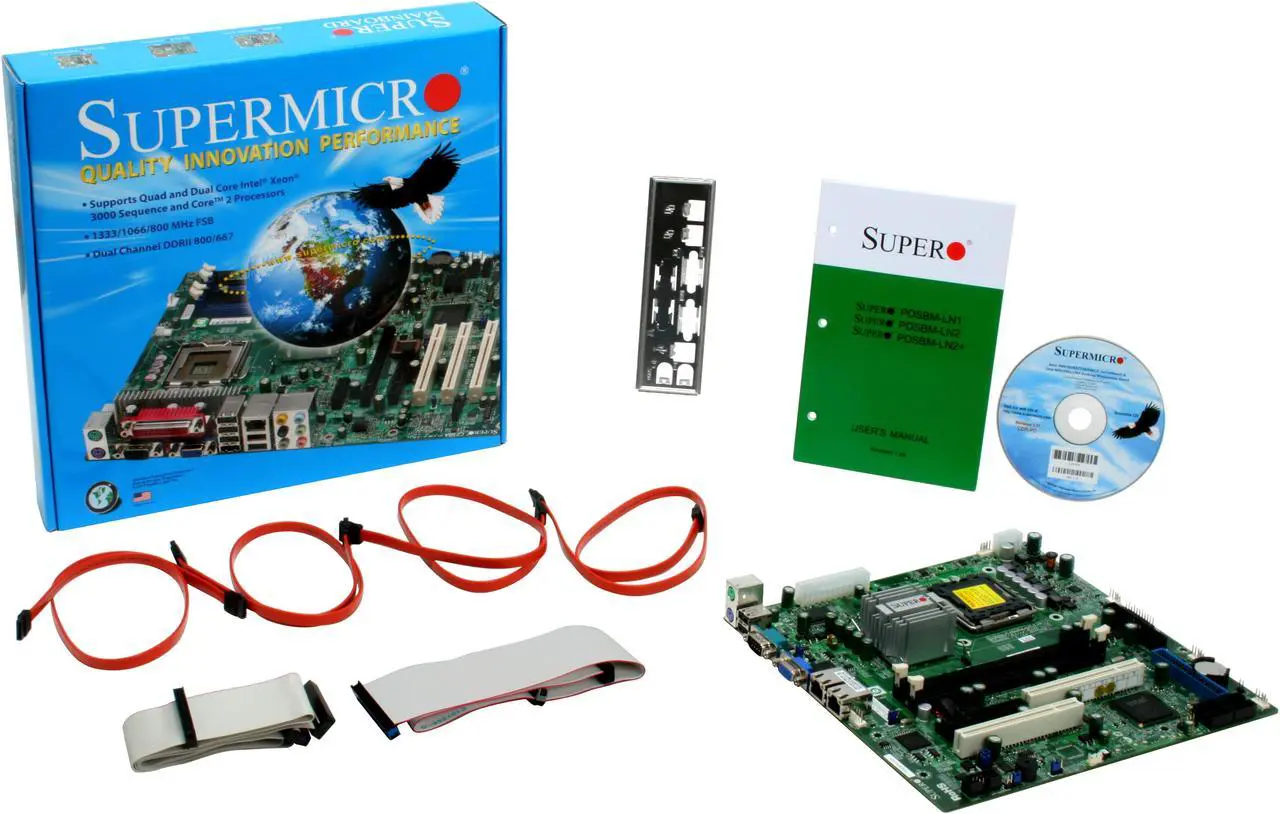

Package Contents MBD-PDSBM-LN2+-O
User Manual
Driver Disk
IDE/PATA Cable
FDD Cable
4 x SATA Cable
Rear I/O Panel Shield
Additional Information
Date First Available July 19, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
