Would you please recommend some RAM that'll work with this motherboard? It has all of the features I want in a microATX format. The RAM I tried (item N82E16820239826) was not recognized. Thank you. David

You need to make sure that you get ECC Unbuffered memory. I'm using 4GB modules in mine, (item N82E16820148710), but there's no reason the 8GB modules of the same type (item N82E16820191592) shouldn't work. I'm pretty sure the module you linked does not have ECC. Hope that helps!

Is there a a mid tower or desktop case which will fit this MB's form factor? If so which cases? Thanks

Any ATX case will work, However I use these and they're awesome or at least for my purposes, provide power supplies are more that decent as well. Good luck. http://www.newegg.com/Product/Product.aspx?Item=N82E16811152123 http://www.newegg.com/Product/Product.aspx?Item=N82E16811152168

will this support any OS?

Shawn C - what OS are you looking to use with this board? If it helps, i bought this board to use with Freenas.

How do I disable the built on pc speaker? The manual doesn't make this clear.

Header JD1 directly below the speaker should have a jumper on the last 2 pins. Removing that should force it to use those external speaker pins (pins 4-7 on that header), which you can just not plug anything into.

Does this mainboard support Broadwell processors?

I doubt it. You should probably do some research, but from what little I've found I don't think the C224 chipset is compatible with Broadwell processors.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of SUPERMICRO MBD-X10SLM-F-O uATX Server Motherboard LGA 1150 Intel C224 DDR3 1600

Alt view image 2 of 5 - SUPERMICRO MBD-X10SLM-F-O uATX Server Motherboard LGA 1150 Intel C224 DDR3 1600

Alt view image 3 of 5 - SUPERMICRO MBD-X10SLM-F-O uATX Server Motherboard LGA 1150 Intel C224 DDR3 1600

Alt view image 4 of 5 - SUPERMICRO MBD-X10SLM-F-O uATX Server Motherboard LGA 1150 Intel C224 DDR3 1600

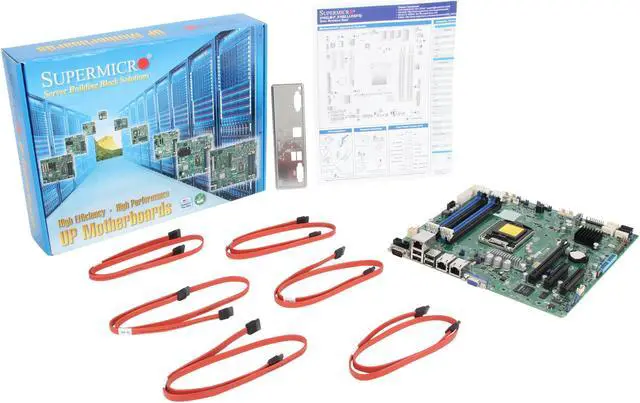

Alt view image 5 of 5 - SUPERMICRO MBD-X10SLM-F-O uATX Server Motherboard LGA 1150 Intel C224 DDR3 1600

Shop All Supermicro Products

SUPERMICRO MBD-X10SLM-F-O uATX Server Motherboard LGA 1150 Intel C224 DDR3 1600

(18) Write a Review

LGA 1150
Intel C224
4 x 240pin

Overview

Specs

Reviews (18)

Any questions? Our AI beta will help you find out quickly.

Try me now

Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.

SUPERMICRO MBD-X10SLM-F-O uATX Server Motherboard

Features

Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th gen. Core i3, Pentium, Celeron processors
Intel® C224 Express PCH
Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT)
2x SATA (3Gbps), 4x SATA (6Gbps)
1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slots
4x USB 3.0 (1 Type-A, 2+1 via header) 6x USB 2.0 (4 rear, 2 via header)
Integrated IPMI 2.0 with KVM and Dedicated LAN
SATA DOM power connector support
VGA D-sub connector, TPM header
Support Intel Node Manager

Specifications

Product SKUs
MBD-X10SLM-F	X10SLM-F (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6" x 9.6", (24.4cm x 24.4cm)
Processor/Cache
CPU	Intel® Xeon® processor E3-1200 v3/v4 and 4th Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150)
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5V, 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C224 Express PCH
SATA	SATA3 (6Gbps) w/ RAID 0, 1, 10, 5 SATA2 (3Gbps) w/ RAID 0, 1
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2400 with 10/100/1000M bps MAC
Network Controllers	Intel® i217LM + Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
VGA	BMC integrated Aspeed AST2400
Input / Output
Serial ATA	4x SATA3 (6Gbps) ports 2x SATA2 (3Gbps) ports
LAN	2x Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (1 Type-A, 2+1 via header) 6x USB 2.0 ports (4 rear, 2 via header)
VGA	1x VGA D-Sub Connector
Serial Port / Header	2x COM ports (1 rear, 1 header)
DOM	SATA DOM (Disk on Module) power connector support
TPM	1x TPM 1.2 20-pin Header

Whats in the Box

Model
Brand	SUPERMICRO
Model	MBD-X10SLM-F-O

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Intel Xeon E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron

Chipsets
North Bridge	Intel C224

Memory
Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	32GB
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	1x PCI-E 3.0 x8 (in x16) slot
PCI Express x8	1x PCI-E 3.0 x8 slot 1x PCI-E 2.0 x4 (in x8) slot

Storage Devices
SATA	2 x SATA 3.0Gb/s + 4 x SATA 6.0Gb/s
SATA RAID	SATA3 (6Gbps) w/ RAID 0, 1, 10, 5 SATA2 (3Gbps) w/ RAID 0, 1

Onboard Video
Onboard Video Chipset	Aspeed AST2400

Onboard LAN
LAN Chipset	Intel I217-LM
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I210-AT
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0

Features
Features	SATA DOM (Disk on Module) power connector support IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Dimensions
Form Factor	uATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
Date First Available	June 01, 2013
