SUPERMICRO MBD-X10SLM+LN4F-O Micro ATX Server Motherboard LGA 1150 DDR3 1600

OUT OF STOCK.
  • LGA 1150
  • Intel C224
  • 4 x 240pin
Overview
Specs
Reviews
MBD-X10SLM+LN4F-O

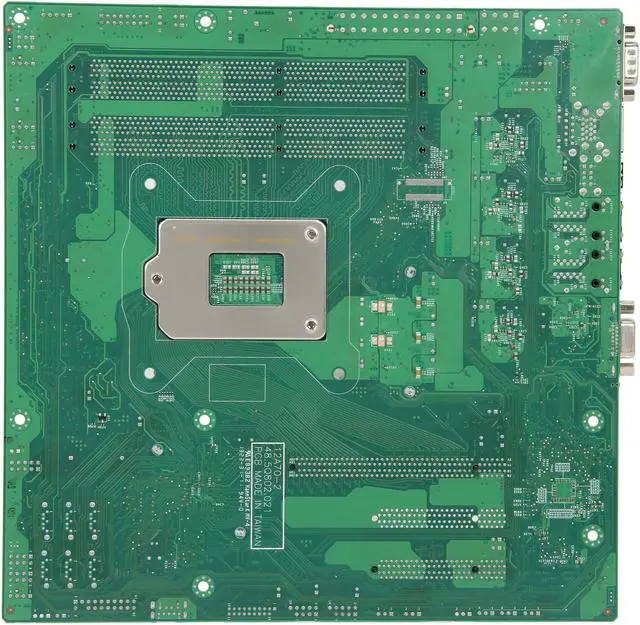

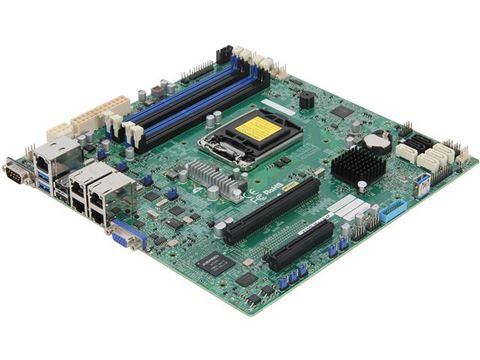

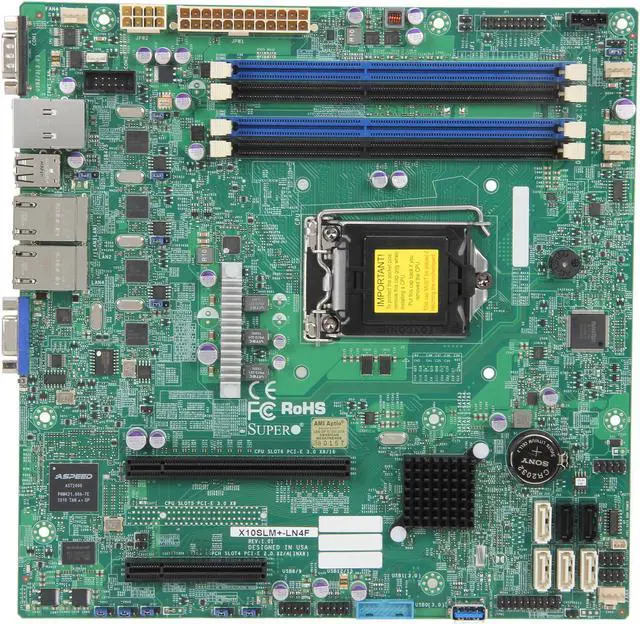

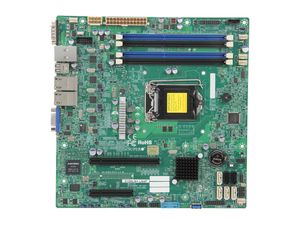

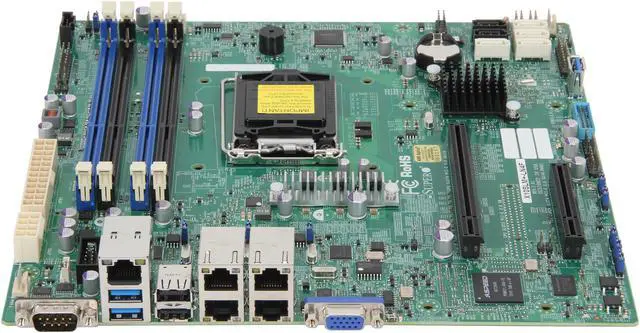

SUPERMICRO MBD-X10SLM+LN4F-O Micro ATX Server Motherboard

Features

MBD-X10SLM+LN4F-O
  • Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th gen. Core i3, Pentium, Celeron processors
  • Intel® C224 Express PCH
  • Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
  • Quad Gigabit Ethernet LAN ports via Intel® i210AT
  • 4x SATA (6Gbps), 2x SATA (3Gbps)
  • Expansion slots: 1x PCI-E 3.0 x16, 1x PCI-E 2.0 x2 (in x8)
  • 4x USB 3.0 and 6x USB 2.0
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • SATA DOM power connector support
  • VGA D-sub connector, TPM header
  • Support Intel Node Manager

Specifications

Product SKUs
MBD-X10SLM+-LN4F X10SLM+-LN4F (Bulk Pack)
Physical Stats
Form Factor microATX
Dimensions 9.6" x 9.6", (24.4cm x 24.4 cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3/v4 and 4th Gen Core i3, Pentium, Celeron processors
  • Single Socket H3 (LGA 1150)
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5V, 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C224 Express PCH
SATA
  • SATA3 (6Gbps) w/ RAID 0, 1, 10, 5
  • SATA2 (3Gbps) w/ RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Aspeed AST2400
Network Controllers
  • Intel® i210AT Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
VGA BMC integrated Aspeed AST2400
Input / Output
Serial ATA
  • 4x SATA3 (6Gbps) ports
  • 2x SATA2 (3Gbps) ports
LAN
  • 4x Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (2 rear, 1 Type-A, 1 via header
  • 6x USB 2.0 ports (2 rear, 4 via header)
VGA 1x VGA D-Sub Connector
Serial Port / Header 2x COM ports (1 rear, 1 header)
DOM SATA DOM (Disk on Module) power connector support
TPM 1x TPM 1.2 20-pin Header
SuperServer(s) with X10SLM+-LN4F
Model(s) SYS-5018D-MTLN4F
Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x16 slot
  • 1x PCI-E 2.0 x2 (in x8) slot
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI (SMBIOS) 2.7
  • ACPI 5.0
  • USB Keyboard support
Management
Software
  • IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
  • SuperDoctor® III
  • Watch Dog
  • NMI
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of five 4-pin fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

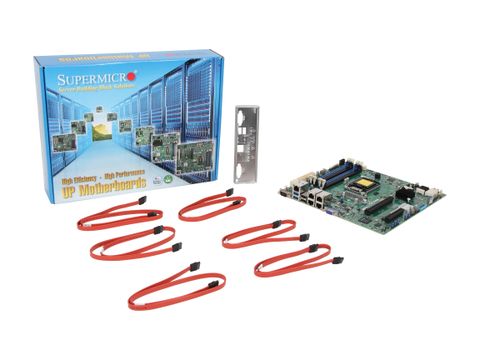

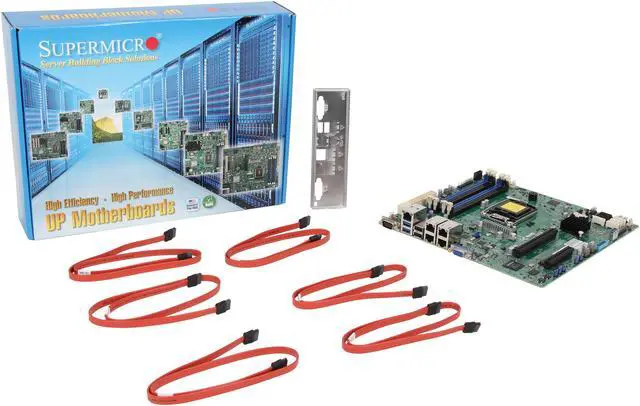

Whats in the Box

MBD-X10SLM+LN4F-O

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
