SUPERMICRO MBD-X11SSQ-O Micro ATX Server Motherboard LGA 1151 Intel Q170 DDR3 1600

In stock.
Ships from Italy.
Most customers receive within 4-32 days.
  • LGA 1151
  • Intel Q170
Overview
Specs
Reviews
MBD-X11SSQ-O

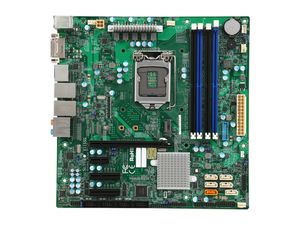

SUPERMICRO MBD-X11SSQ-O Micro ATX Server Motherboard

Features

MBD-X11SSQ-O
  • Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors
  • Intel® Q170 Express chipset
  • Up to 64GB DDR4 2133MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
  • 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, M.2 PCIex2 M Key 2242/2280, PCIex4 w/ open slots
  • 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM
  • 6x SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10 Intel RST
  • HDMI, DP, DVI-D, 1 eDP, Intel HD Graphics, 3x independent displays
  • 1x SATA DOM, 4x COM ports, TPM header, ALC 888S HD Audio 7.1
  • 4x USB 3.0 (2 rear + 2 via header) 8x USB 2.0 (4 rear + 4 via headers)

Specifications

Product SKUs
MBD-X11SSQ -B X11SSQ (Bulk Pack)
Physical Stats
Form Factor microATX
Dimensions 9.6" x 9.6", (24.4cm x 24.4cm)
Processor/Cache
CPU
  • Intel® 6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 95W TDP
  • Single Socket H4 (LGA 1151)
System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type 2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2 V
On-Board Devices
Chipset Intel® Q170 Express chipset
SATA
  • SATA3 (6Gbps) via Intel® Q170 Express controller
  • RAID 0, 1, 5, 10 Intel RST
Network Controllers
  • Single Intel® I210-AT Gigabit Ethernet LAN port
  • Single Intel® PHY I219LM Gigabit Ethernet LAN port
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio RealTek ALC 888S High Definition Audio
Input / Output
SATA 6x SATA3 (6Gbps) ports
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 4x USB 3.0 ports (2 rear + 2 via header)
  • 8x USB 2.0 ports (4 rear + 4 via headers)
Audio 7.1 HD Jacks
Video/Display
  • 1x HDMI, 1x DP (Display Port), 1x DVI-D, Intel® HD Graphics
  • 3x Independent Displays from Processor Graphics
Serial Port / Header 4x COM ports (4 headers)
SuperDOM 1x SuperDOM (Disk on Module) ports with built-in power
TPM 1x TPM 20-pin Header
Others
  • SGPIO Header
  • SMbus header
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 3.0
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

Whats in the Box

MBD-X11SSQ-O

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Twinix Return Policy
