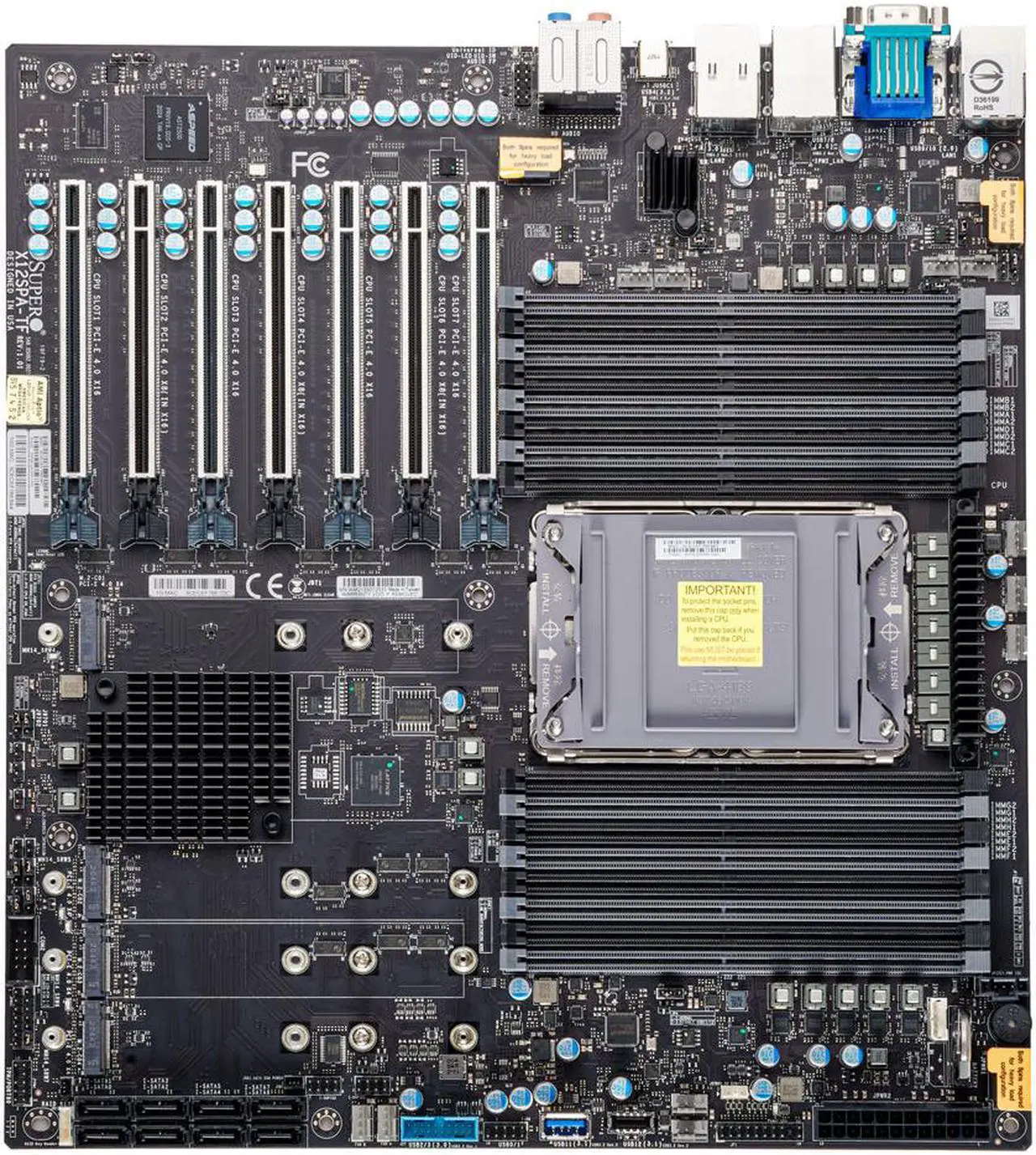

SUPERMICRO MBD-X12SPA-TF-B Extended ATX Server Motherboard LGA 4189 Intel C621A
In stock.
Ships from United States.
- LGA 4189
- Intel C621A
Specs
Reviews
Learn more about the Supermicro MBD-X12SPA-TF-B
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X12SPA-TF-B |
| CPU Socket Type | LGA 4189 |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 16 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | 4 |
|---|---|
| PCI Express x8 | 3 x PCI Express 4.0 x8 (in x16 slot) |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | M.2 Interface: 4 PCI-E 4.0 x4 |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Realtek RTL8211F PHY |
| Second LAN Speed | 10/100/1000Mbps |
| Third LAN Chipset | Marvell AQC113 |
| Third LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10/100/1000Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x USB 3.2 Gen 2 Type-C / 1 x USB 3.2 Gen 2x2 Type-C / 2 x USB 2.0/1.1 / 3 x LAN (RJ45) / 4 x USB 3.2 Gen 1 |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| Date First Available | October 24, 2022 |
|---|
