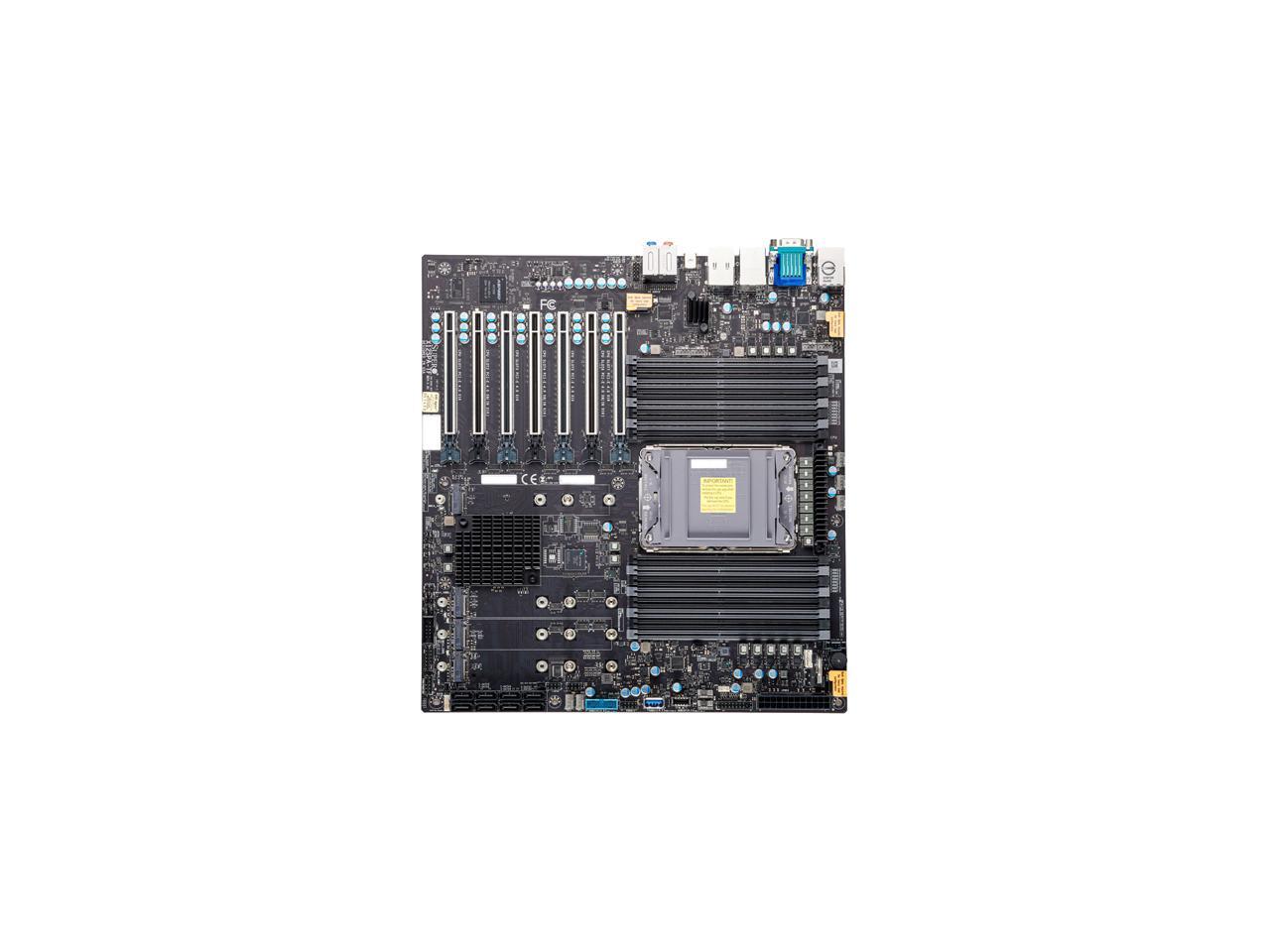

SUPERMICRO MBD-X12SPA-TF-O Extended ATX Server Motherboard LGA 4189 Intel C621A

(1) Write a Review
See more "workstation motherboard"
Check more best sellers of "Server Motherboards"
Check more lowest price of "Server Motherboards"
In stock.
Ships from United States.
  • 3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel C621A
  • Single LAN with Intel Ethernet Controller I210-AT
  • Single LAN with Marvell AQC113
  • Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 4TB Intel Optane Persistent Memory, DDR4-3200MHz, in 16 DIMM slots
  • 4 PCI-E 4.0 x16,
  • 3 PCI-E 4.0 x8 (in x16 slot)
  • M.2 Interface: 4 PCI-E 4.0 x4
  • M.2 Form Factor: 2260/2280/22110
  • M.2 Key: M-Key
  • M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
  • Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 1 VGA port,
  • VGA connector is dedicated for IPMI.
+
+
Specs
Reviews

Learn more about the Supermicro MBD-X12SPA-TF-O

Best Seller Ranking #24 in Server Motherboards
Model
Brand SUPERMICRO
Model MBD-X12SPA-TF-O
Supported CPU
CPU Socket Type LGA 4189
CPU Type Supports 3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 16 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported 4TB
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 4
PCI Express x8 3 x PCI Express 4.0 x8 (in x16 slot)
Storage Devices
SATA 8 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 4 PCI-E 4.0 x4
Form Factor: 2260/2280/22110
Key: M-Key
M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
LAN Chipset Intel I210-AT
Second LAN Chipset Marvell AQC113
Third LAN Chipset Realtek RTL8211F PHY (dedicated IPMI)
Max LAN Speed 10Gbps + 1Gbps
Rear Panel Ports
RJ45 1 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 10GBase-T ports
1 x RJ45 Dedicated IPMI LAN port
USB 1.1/2.0 2 x USB 2.0
USB 3.0 4 x USB 3.2 Gen1
USB 3.1 2 x USB 3.2 Gen2 (1 Type A, 1 Type C)
USB 3.2 1 x USB 3.2 Gen2x2 (1 Type C)
Onboard Ports
Onboard USB 2 x USB 2.0 (via headers)
2 x USB 3.2 Gen 1 (via headers)
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 12" x 13"
Additional Information
Date First Available May 20, 2021
