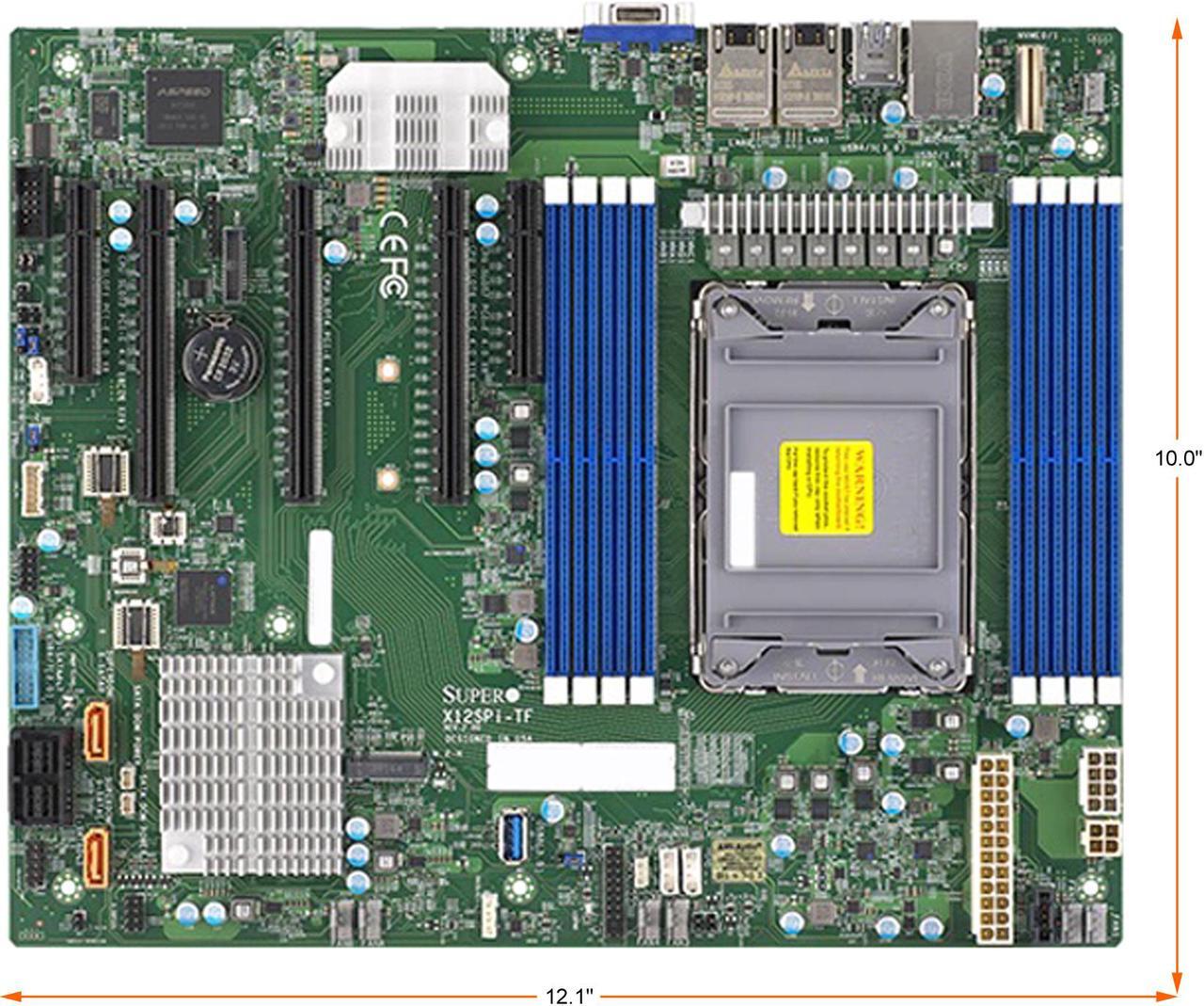

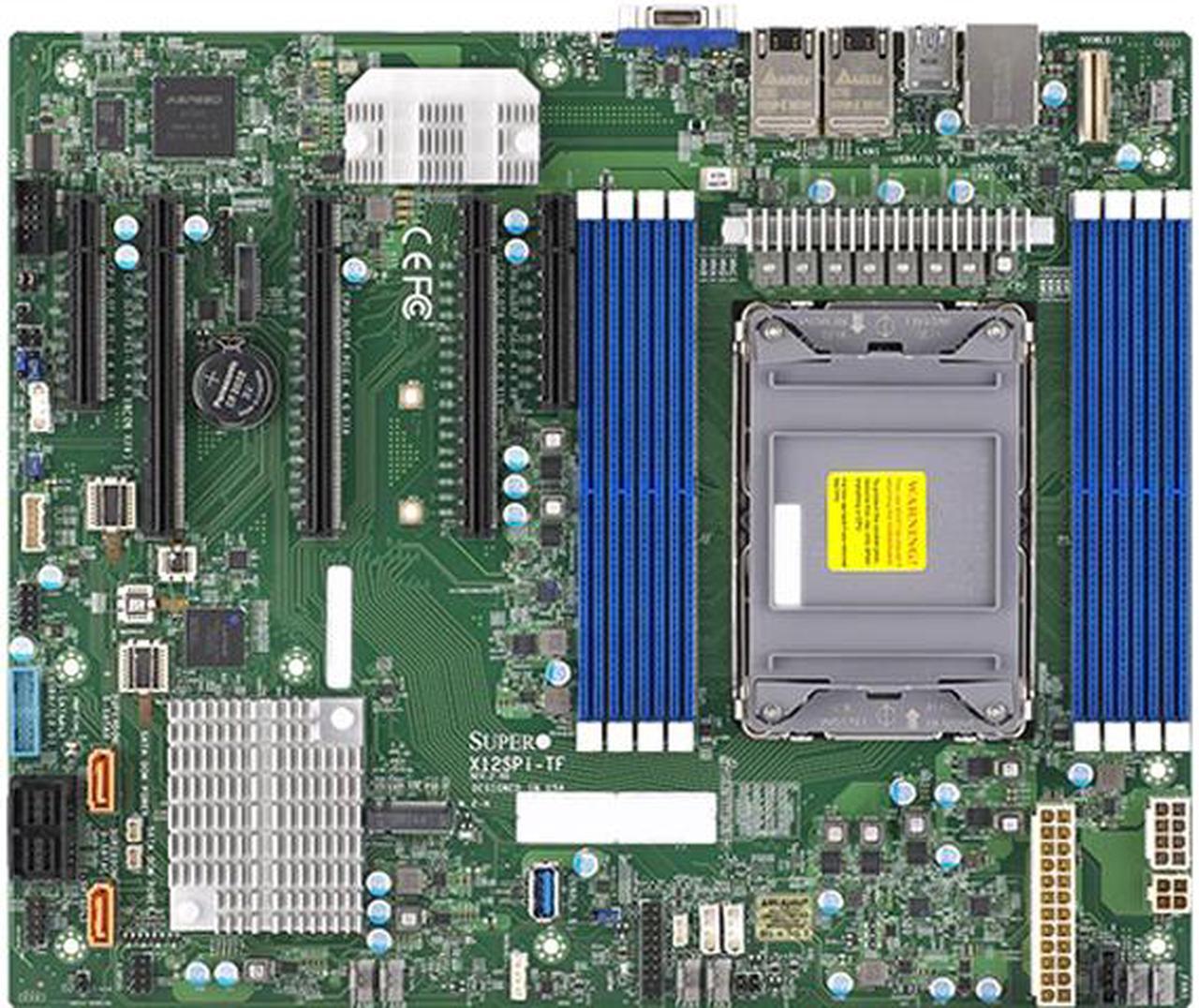

SUPERMICRO MBD-X12SPI-TF-O ATX Server Motherboard LGA 4189 Intel C621A

OPEN BOX

3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel C621A
Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-3200MHz
Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
2 PCI-E 4.0 x16,
2 PCI-E 4.0 x8,
1 PCI-E 4.0 x8 (in x16 slot),
1 PCI-E 4.0 NVMe x8 Internal Port(s)
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10GBase-T with Intel X550

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Learn more about the Supermicro MBD-X12SPI-TF-O

Model
Brand	SUPERMICRO
Model	MBD-X12SPI-TF-O

Supported CPU
CPU Socket Type	LGA 4189
CPU Type	Supports 3rd Gen Intel Xeon Scalable processors

Chipsets
North Bridge	Intel C621A

Expansion Slots
PCI Express 4.0 x16	2
PCI Express x8	2 x PCI Express 4.0 x8 1 x PCI Express 4.0 x8 (in x16 slot)

Storage Devices
SATA	10 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
M.2	M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key

Onboard Video
Onboard Video Chipset	Aspeed AST2600

Onboard Ports
Onboard USB	2 x USB 2.0 via headers 2 x USB 3.2 Gen 1 via headers

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.1" x 10"

Additional Information
Date First Available	February 28, 2022
