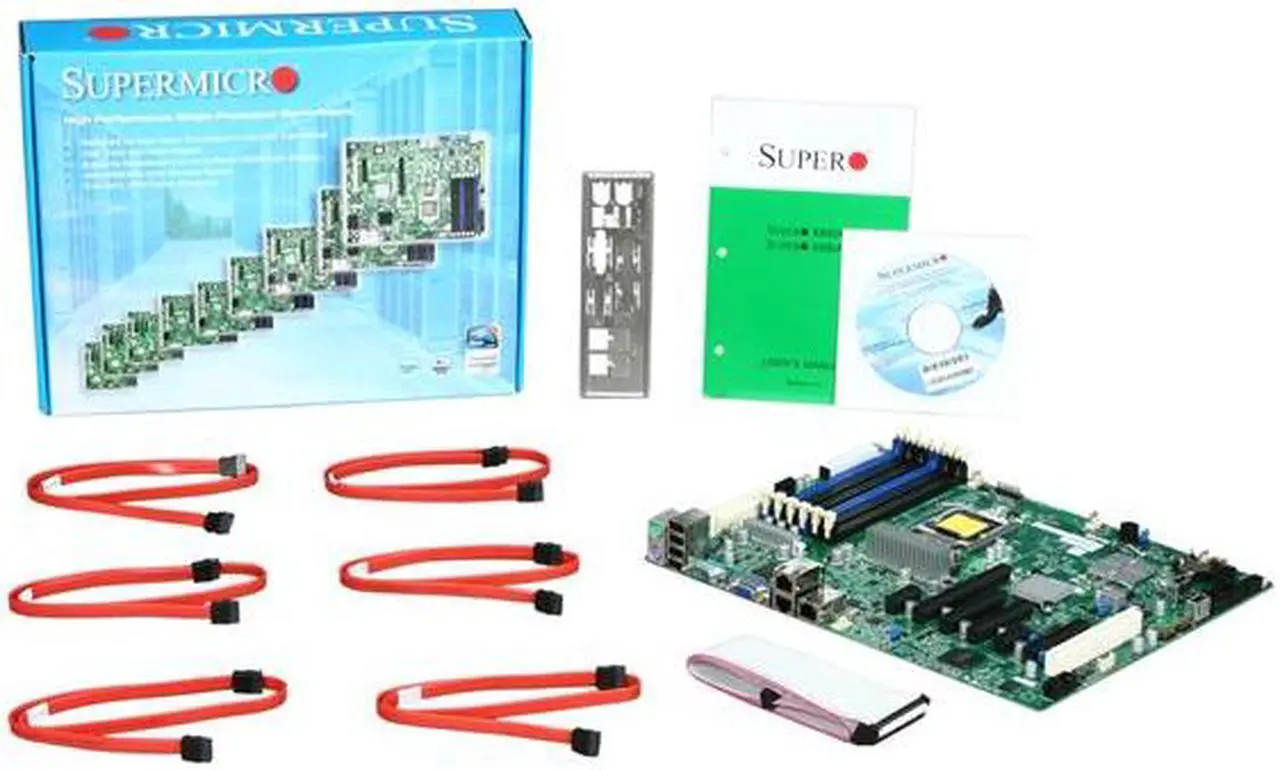

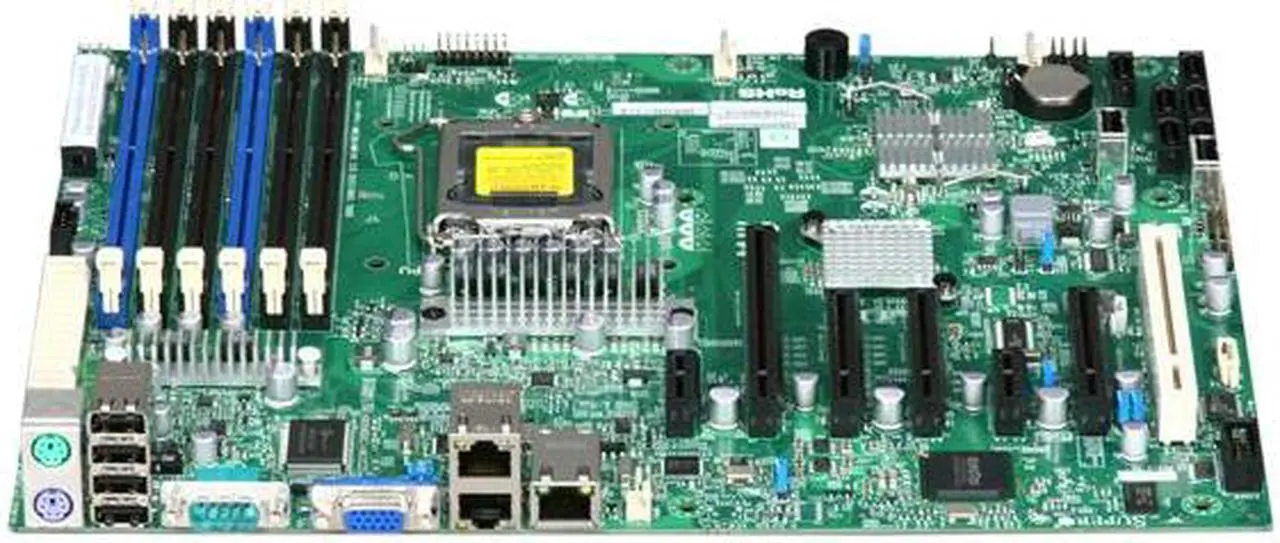

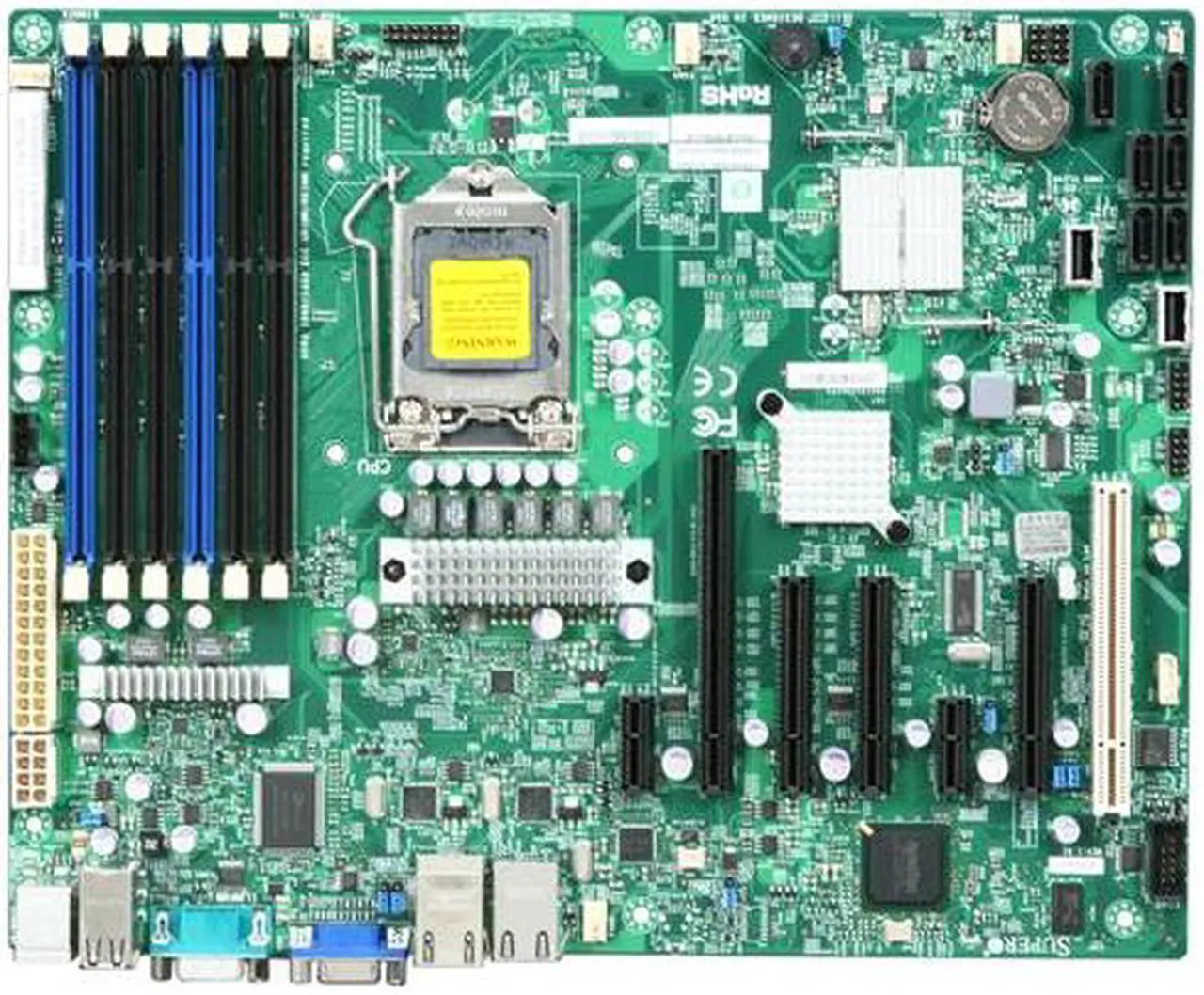

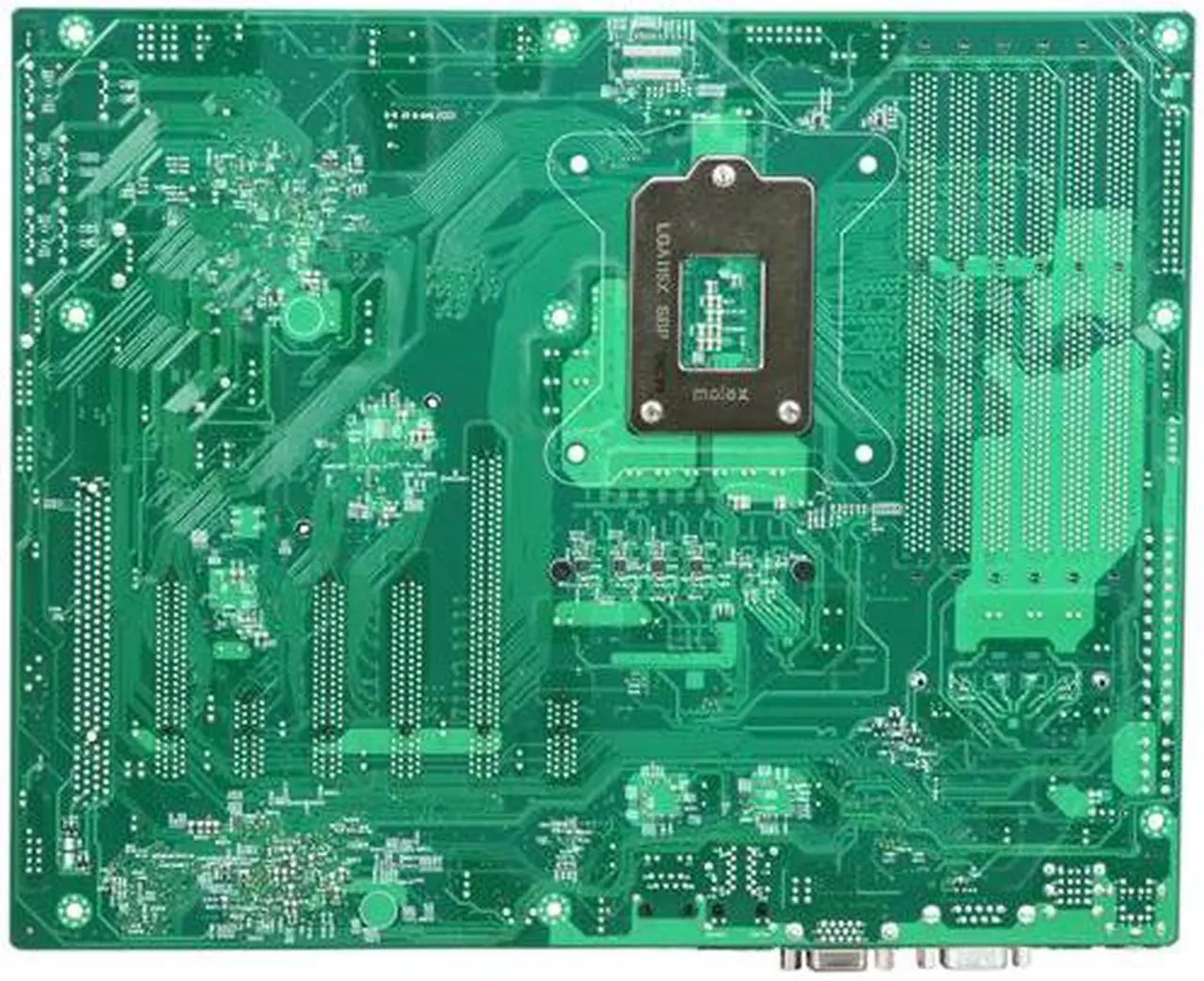

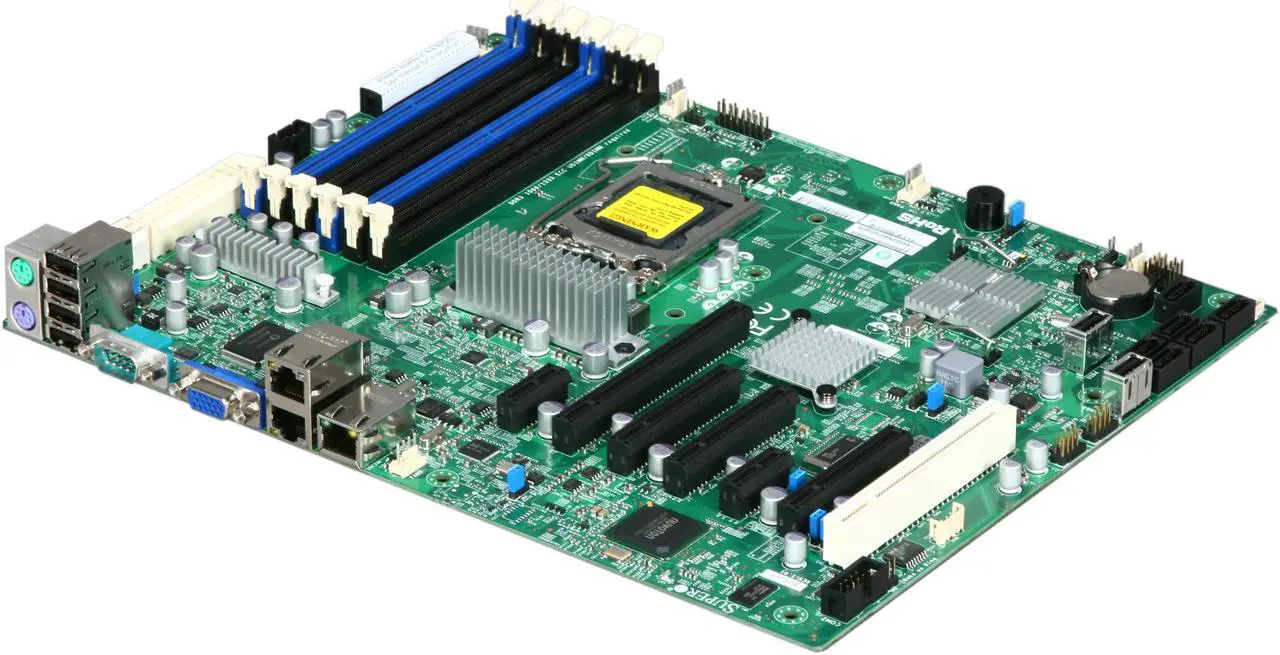

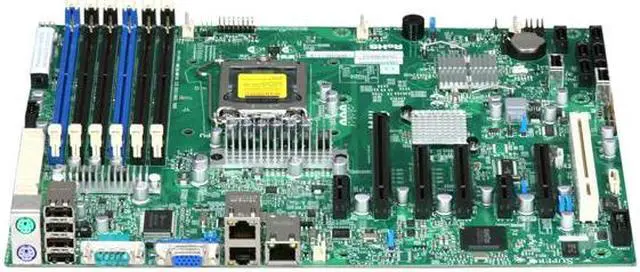

SUPERMICRO MBD-X8SIA-F-O LGA 1156 Intel 3420 ATX Intel Xeon X3400/L3400 series Server Motherboard
OUT OF STOCK.
- LGA 1156
- Intel 3420
- 6 x 240pin
Specs
Reviews
Learn more about the Supermicro MBD-X8SIA-F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X8SIA-F-O |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Intel Xeon X3400/L3400, Core i3, Pentium G6950, Celeron G1101 |
| North Bridge | Intel 3420 |
|---|
| Number of DDR3 Slots | 6 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM sockets |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x8 | 3 (x8) PCI-E 2.0 (1 in x16 slot) |
|---|---|
| PCI Express x4 | 1 (x4) PCI-E 2.0 (using x8 slot) |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| Onboard Video Chipset | Matrox G200eW 16MB DDR2 |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Features | Super I/O: Nuvoton W83627DHG UBE Integrated IPMI 2.0 with KVM and Dedicated LAN |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Date First Available | May 13, 2010 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
LOADING...
Pros: Great, reliable server board. Paired with an X3430 and 24GB RAM it's robust and perfect for heavy duty file servers, FreeNAS machines, or other roles. IPMI is fantastic. Obviously works in any enclosure, but installed in a Supermicro chassis it's a great setup.
Cons: On our first one I had a heck of a time figuring out what memory it wanted. Once I found a 24GB set it liked I stuck with that.
Overall Review: By this point it's missing some newer things, but that's not always what's needed from a server. Each one we have has been extremely reliable.
