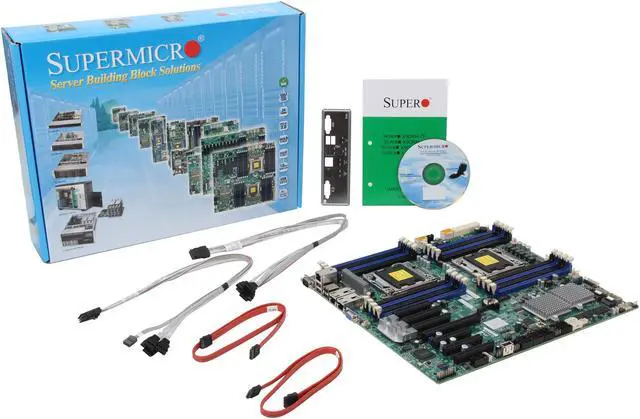

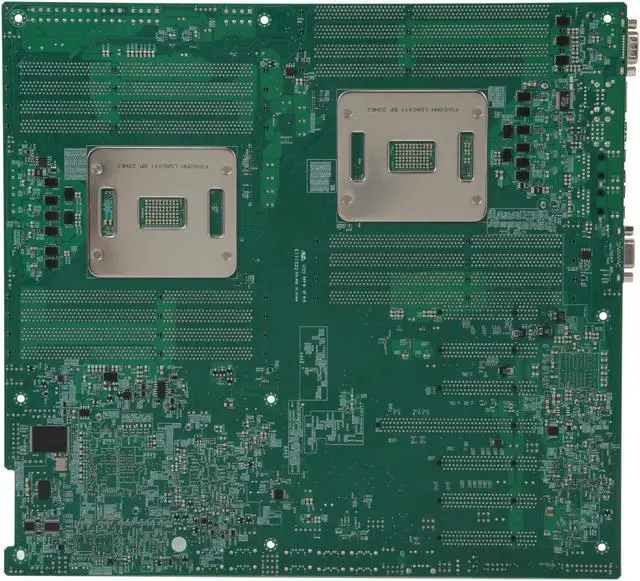

SUPERMICRO MBD-X9DRH-7TF-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1600/1333/1066/800
- Dual LGA 2011
- Intel C602 Chipset
- 16 x 240pin
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X9DRH-7TF-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X9DRH-7TF-O |
| CPU Socket Type | Dual LGA 2011 |
|---|---|
| CPU Type | Dual Intel Xeon E5-2600 Series (Up to 135W TDP) |
| QPI | Up to 8.0GT/s |
| Other Chipset | Intel C602 Chipset |
|---|
| Number of DDR3 Slots | 16 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333/1066/800 |
| Maximum Memory Supported | 512GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 1x PCI-E 3.0 x16 |
|---|---|
| PCI Express x8 | 6x PCI-E 3.0 x8 |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | SATA 2.0 3Gbps with RAID 0/1/5/10 SATA 3.0 6Gbps with RAID 0/1 |
| Additional SATA | 4 x SATA 3.0Gb/s |
| Additional SATA RAID | 0/1/10 |
| SAS | 8 x SAS2 port via LSI 2208 |
| SAS RAID | RAID 0/1/5/6/10/50/60 |
| Onboard Video Chipset | Matrox G200eW |
|---|
| LAN Chipset | Intel X540-AT2 |
|---|---|
| LAN Speed | 10GBase-T |
| Max LAN Speed | 2 x 10Gbps |
| COM | 1 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Onboard USB | 2 via header + 1 Type A |
|---|
| Features | IPMI 2.0 & KVM with dedicated LAN 1x DOM (Disk on Module) power connector *Do not support 150W processors |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | May 15, 2012 |
|---|
