SUPERMICRO SSG-6037R-E1R16L 3U Rackmount Server Barebone Dual LGA 2011 Intel C602J DDR3 1866/1600/1333/1066/800
- Dual LGA 2011
- Support Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 130W TDP)
- 16 x 240 Pin Memory Slots (Max 1TB)
- Support 2 x SATA 600 / 4 x SATA 300
- 920W high-efficiency (94% +) AC-DC Redundant power supplies with PMBus and I2C, 80 Platinum Certified

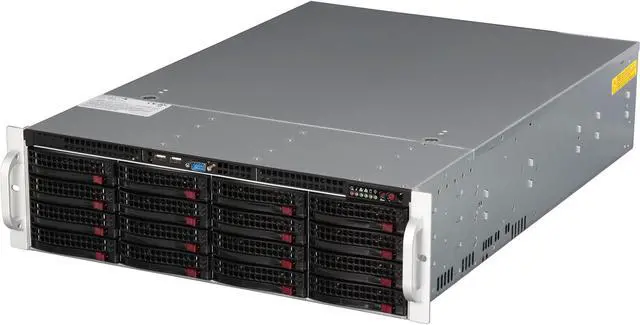

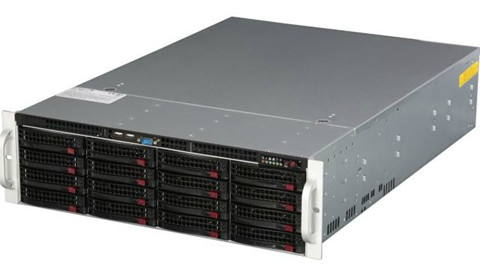

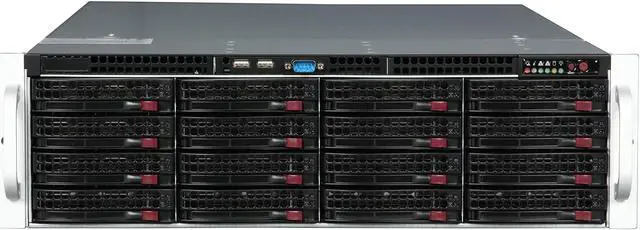

SUPERMICRO SSG-6037R-E1R16L 3U Rackmount Server Barebone
Features
- Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
- Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
- 5x PCI-E 3.0 x8 slots (FHHL)
- Intel® i350 GbE Controller; 4x ports
- 16x 3.5" Hot-swap SAS2/SATA3 & Opt. 2x rear 2.5" Hot-swap HDD Bays
- Onboard LSI 2308 IT mode
- Dual JBOD expansion ports
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 3x Heavy duty PWM fans
- 920W Redundant Power Supplies Platinum Level (94%)
Specifications
| Product SKUs | |
| SSG-6037R-E1R16L | SuperServer 6037R-E1R16L (Black) |
| Motherboard | |
| Motherboard | Super X9DRD-7LN4F-JBOD |
| Processor/Cache | |
| CPU |
|
| Note | † BIOS version 3.0 or above is required |
| Cache | Up to 30MB |
| System Bus | QPI up to 8 GT/s |
| System Memory | |
| Memory Capacity |
|
| Memory Type | 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C602J Chipset |
| SATA |
|
| SAS | SAS2 via LSI 2308; IT Mode/Pass-through |
| IPMI |
|
| Network Controllers |
|
| Graphics | G200 (Renesas SH7757 BMC w/ graphic controller) |
| Super I/O | Nuvoton W83527 |
| Input / Output | |
| Serial ATA |
|
| SAS | 8x SAS2 ports (6Gbps) |
| LAN |
|
| JBOD | 2x JBOD Expansion Ports |
| USB | 9x USB 2.0 ports total (4 rear + 4 via header + 1 Type A) |
| VGA | 1x VGA port |
| Serial Port / Header | 1x Fast UART 16550 port / 1 Header |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|

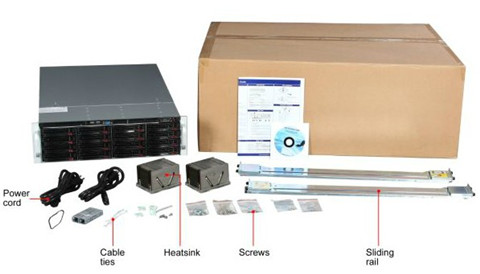

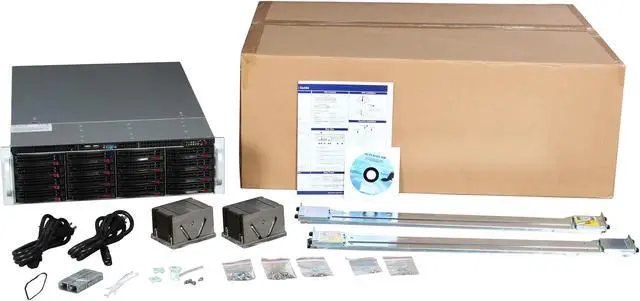

Whats in the Box
Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon® processor E5-2600 family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
