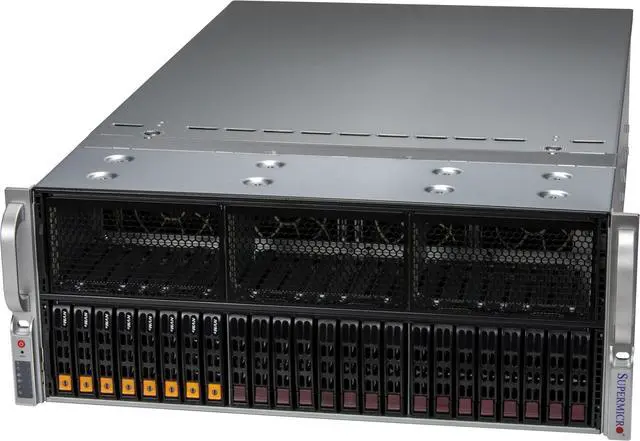

Supermicro SYS-421GE-TNRT 4U GPU Server Barebone, Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors.
- Key Applications: Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall ApplicationCDN, Edge Nodes
- Key Features: 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 4800MHz ECC DDR5
- 13 PCIe Gen 5.0 X16 FHFL Slots
- -AIOM/OCP 3.0 Support
- 8x 2.5" Hot-swap SATA drive bays
- 8x HOT SWAP 2.5” SATA/SAS (AOC required)
- 8x2.5" Hot-swap NVMe drive bays
- 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
- 4x 2700W (2+2) Redundant Power Supplies, Titanium Level
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-421GE-TNRT
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-421GE-TNRT |
| Form Factor | 4U Rackmount |
| Workload | AI/ML/HPC |
| CPU Type | Intel Xeon |
|---|---|
| CPU Socket | LGA 4677 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| CPU Features | 4th Gen Intel Xeon Scalable processors Future support for the upcoming 5th Gen Intel Xeon processors Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled) |
| North Bridge | Intel C741 |
|---|
| Memory Slots | 32 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Up to 8TB: 32 x 256 GB DRAM |
| Memory Type Supported | DDR5 4800 |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | 2 x M.2 NVMe |
| GPU/VPU | Max GPU Count: Up to 10 double-width or 10 single-width GPU(s) Supported GPU: NVIDIA PCIe: A100, L40S, A10, H100, L40 CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA NVLink Bridge (optional) |
|---|
| PCI Express | 12 x PCIe 5.0 x16 FHFL slot(s) 1 x PCIe 5.0 X16 FHFL slot(s) |
|---|
| First LAN | Intel X710-AT2 |
|---|---|
| Max. LAN Speed | 10 Gigabit |
| Hot-Swap Bays | 24 x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid; 8x 2.5" NVMe dedicated) |
|---|
| VGA | 1 |
|---|---|
| RJ45 | 2 |
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
|---|---|
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
|---|
| Dimensions | 7" x 17.2" x 29" |
|---|---|
| Weight | 65.5 lbs. |
| Date First Available | October 31, 2023 |
|---|
