These extreme low-power and quiet solutions deliver the best expansion and storage features of any Atom-based platform and are designed for embedded industrial PC (IPC) applications. These quiet, energy saving solutions make ideal storage and network appliances or print and email servers. Package Contents: SuperServer 5015A-EHF-D525 1 x Super X7SPE-HF-D525 Motherboard 1 x 1U Black Chassis 1 x 35CM, SATA CABLE, PB FREE 1 x DRIVER CD FOR X7 UP MOTHERBOARDS 1 x 200W,1U W/ STANDARD HARNESS OUTPUT LC 1 x RSC-RR1U-E16 with PCI-E x16 ou Riser Card Product Type: Server Maximum Memory: 4 GB Product Type: Server Input Voltage: 220 V AC Input Voltage: 110 V AC Manufacturer Part Number: SYS-5015A-EHF-D525 Maximum Memory: 4 GB Limited Warranty: 3 Year Weight (Approximate): 10 lb Form Factor: Rack Processor Speed: 1.80 GHz Processor Type: Atom RAID Levels: 0, 1, 5, 10 Form Factor: Rack Manufacturer: Supermicro Computer, Inc Product Model: 5015A-EHF-D525 Product Name: SuperServer 5015A-EHF-D525 Processor Speed: 1.80 GHz Processor Type: Atom Product Line: SuperServer RAID Levels: 0, 1, 5, 10 Controller Type: Serial ATA/300 Rack Height: 1U Brand Name: Supermicro Rack Height: 1U Brand Name: Supermicro Memory Technology: DDR3 SDRAM Processor Model: D525 Processor Model: D525 Height: 1.7 Width: 17.2 Depth: 9.8 Processor Core: Dual-core (2 Core) Environmentally Friendly: Yes Processor Manufacturer: Intel RAID Supported: Yes Maximum Power Supply Wattage: 200 W Product Family: SuperServer Processor Core: Dual-core (2 Core) Environmentally Friendly: Yes Environmental Certification: RoHS-6 Processor Manufacturer: Intel Graphics Controller Manufacturer: Matrox Graphics Controller Model: G200eW Number of Total Memory Slots: 2 RAID Supported: Yes Ethernet Technology: Gigabit Ethernet Number of Total Expansion Bays: 1 Number of 3.5 Bays: 1 Maximum Power Supply Wattage: 200 W
SUPERMICRO SYS-5015A-EHF-D525 1U Rackmount Server Barebone
Key Features
1. Intel® Atom™ D525 (DMI)
2. Up to 4GB single channel unbuffered,
non-ECC DDR3 800/667MHz SO-DIMM
3. 2x Intel 82574L Gigabit LAN
4. 1 PCI-E 2.0 x4 (in x16 slot)
5. Onboard Matrox G200eW video
6. 1x 3.5" or Up to 2x 2.5" Internal Drives
7. 200W Power Supply
Specifications
Product SKUs
SYS-5015A-EHF-D525
SuperServer 5015A-EHF-D525(Black)
Motherboard
Super X7SPE-HF-D525
Processor/Cache
CPU
Intel® Atom™ D525 processor
System Bus
DMI
System Memory
Memory Capacity
Two 204-pin SO-DIMM sockets
Supports up to 4 GB of unbuffered, non-ECC DDR3 800/667MHz SO-DIMM (Single Channel)
Memory Type
DDR3 800/667MHz unbuffered, non-ECC SO-DIMM
DIMM Sizes
256 MB, 512 MB, 1 GB, 2GB
Memory Voltage
1.5V only
On-Board Devices
Graphics
Onboard Matrox G200eW video
SATA
Intel ICH9R SATA 3.0Gbps Controller
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers
2x Intel 82574L Gigabit Ethernet
Supports 10BASE-T, 100/1000BASE-TX, RJ45 output
Super I/O
Winbond 83627DHG chip
Input / Output
Serial ATA
6 Serial ATA ports ( 3Gbps )
LAN
2x RJ45 LAN port
USB
8x USB 2.0 / 1.1 compatible
2 rear + 3 headers (5 ports) + 1 Type A connector
VGA
D-Sub 15
Keyboard / Mouse
PS/2 keyboard and mouse ports
Serial Ports
1x Fast UART 16550 serial port
1x Serial Header
Power Port
1x DOM Power connector

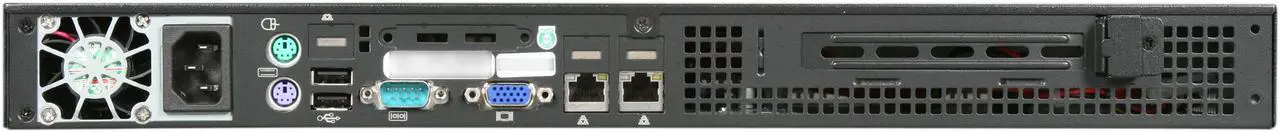

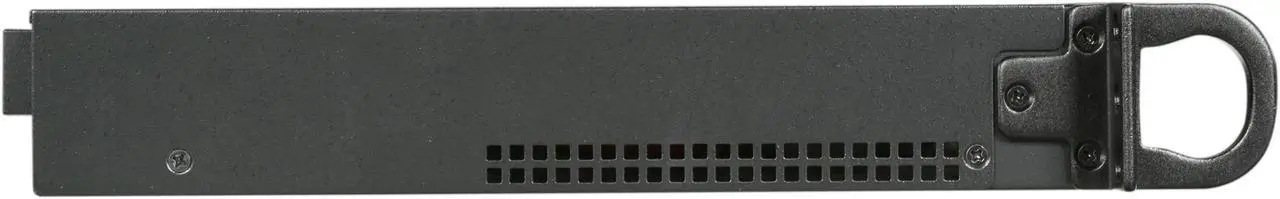

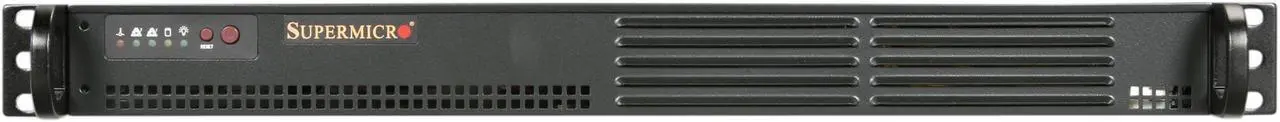

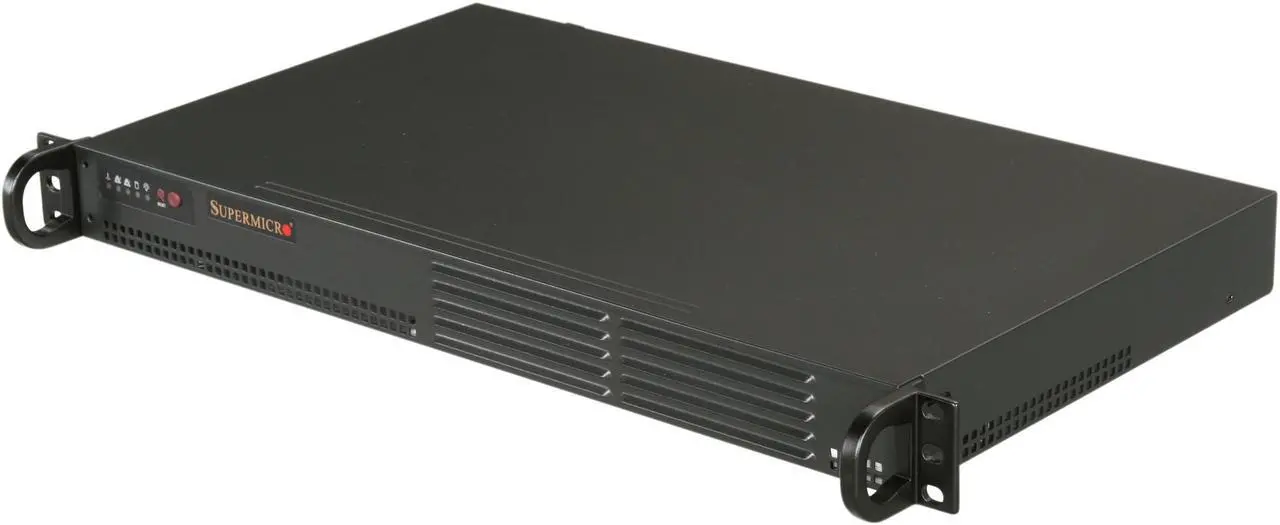

Gallery

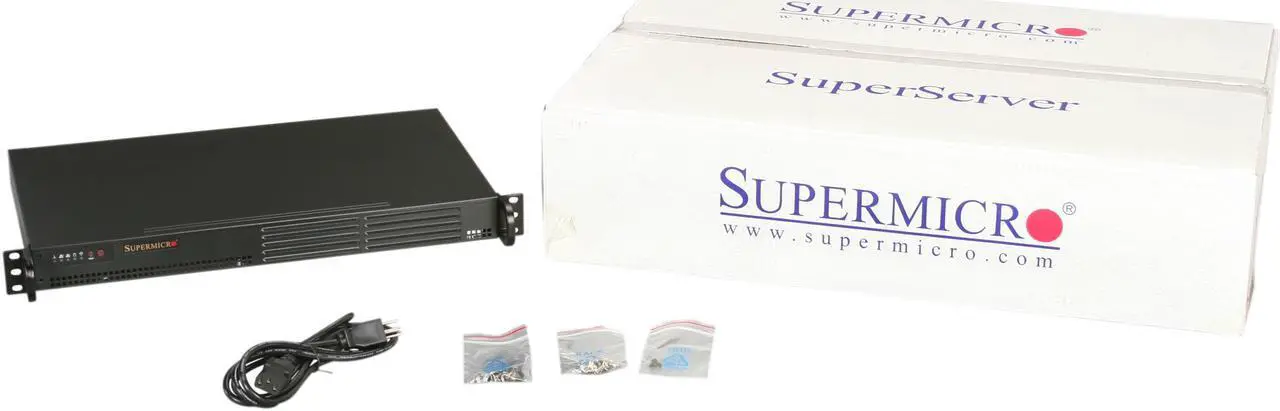

Whats in the Box
Learn more about the Supermicro SYS-5015A-EHF-D525
Model
Brand
SUPERMICRO
Model
SYS-5015A-EHF-D525
CPU Supported
CPU Type
Intel Atom D525 processor
Memory Supported
Memory Slots
2 x 204Pin
Max Memory Supported
4GB
Memory Type Supported
DDR3 800 / 667 MHz unbuffered, non-ECC SO-DIMM
Storage Supported
Serial ATA
6 x SATA 300
SATA RAID
RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux)
Graphics
GPU/VPU
Matrox G200eW
Expansion Slots
PCI Express
1 (x4) PCI-e 2.0 slot (in x16 slot)
Communications
First LAN
Intel 82574L
Second LAN
Intel 82574L
Max. LAN Speed
Dual 10/100/1000Mbps
Panel Ports
VGA
1
Rear USB
2
RJ45
2
Power Supply
Max. Power
200W Low Noise AC-DC power supply with PFC
Features
Features
Intel Atom D525 (DMI)
Up to 4GB single channel unbuffered, non-ECC DDR3 800 / 667 MHz SO-DIMM
2 x Intel 82574L Gigabit LAN
1 x PCI-E 2.0 x4 (in x16 slot)
Onboard Matrox G200eW video
1 x 3.5" or Up to 2 x 2.5" Internal Drives
200W Power Supply
Details
Form Factor
1U Rackmount
Dimensions & Weight
Dimensions
1.70" x 17.20" x 9.80"
Additional Information
Date First Available
November 08, 2010
